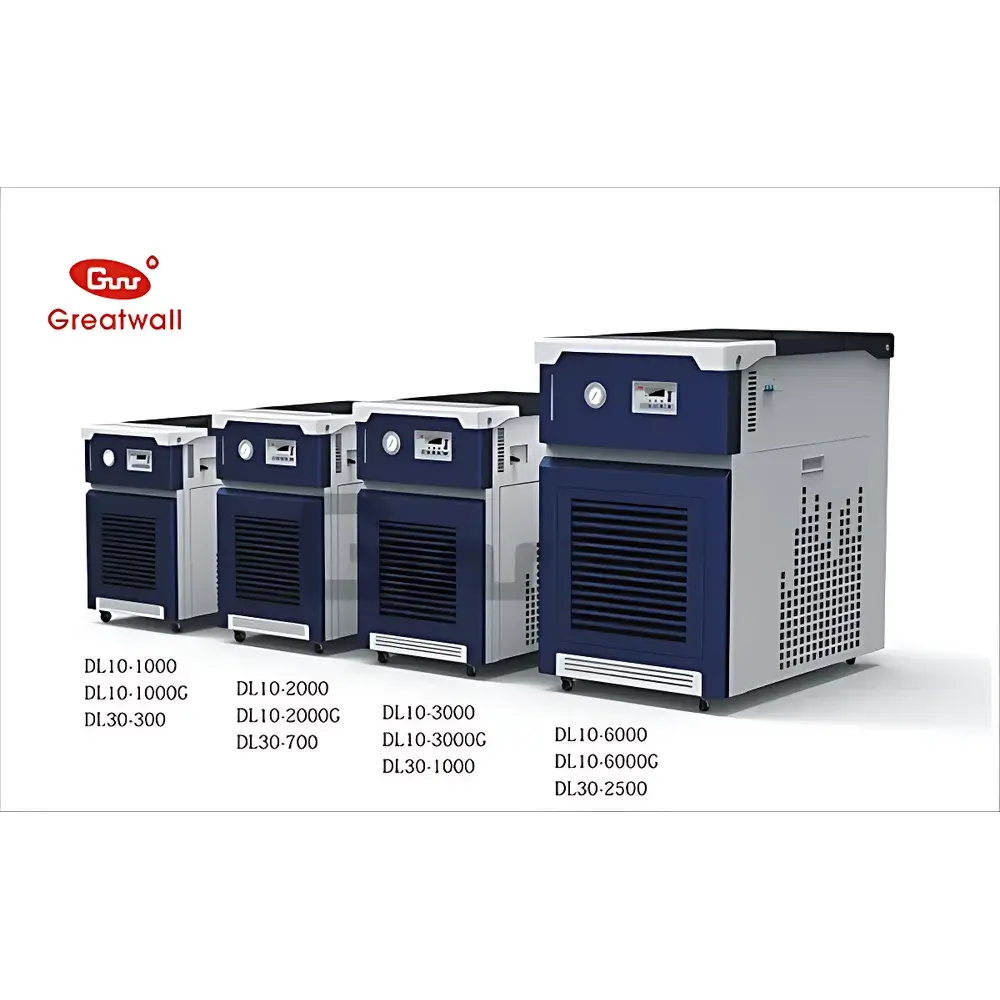

The Great Wall DL30-700 Circulating Chiller

Overview

The Great Wall DL30-700 Circulating Chiller is an integrated, air-cooled refrigeration system engineered for precise and stable thermal management in laboratory and pilot-scale applications. It operates on a closed-loop vapor-compression refrigeration cycle, utilizing R404A or R507 refrigerant (depending on configuration) to deliver consistent cooling capacity across its full operating range of −30 °C to +5 °C. Designed for continuous-duty operation, the unit maintains temperature stability within ±2 °C under dynamic load conditions—critical for reproducible reaction kinetics, condensation efficiency in rotary evaporation, and controlled thermal cycling in material characterization. Its sealed circulation architecture minimizes fluid degradation by preventing volatile loss and moisture ingress, extending heat-transfer fluid service life and reducing maintenance intervals.

Key Features

• Integrated air-cooled design eliminates dependency on external chilled water infrastructure or cooling towers—ideal for space-constrained laboratories and mobile research setups.
• Dual-stage safety architecture includes high-pressure cut-off, compressor thermal overload protection, delayed restart logic (≥3 min), and real-time leakage detection compliant with IEC 61000-6-3 EMC standards.
• Intuitive front-panel interface with LED temperature display, status indicators for pump operation, refrigeration stage, and fault codes—supporting rapid diagnostics without software dependency.
• Transparent reservoir with calibrated level gauge enables visual verification of coolant volume; compatible with standard silicone oil, ethylene glycol/water mixtures (30–50% v/v), or low-temperature synthetic heat-transfer fluids.
• Stainless steel internal piping and corrosion-resistant pump housing ensure long-term compatibility with aggressive solvents used in pharmaceutical synthesis and polymer processing.

Sample Compatibility & Compliance

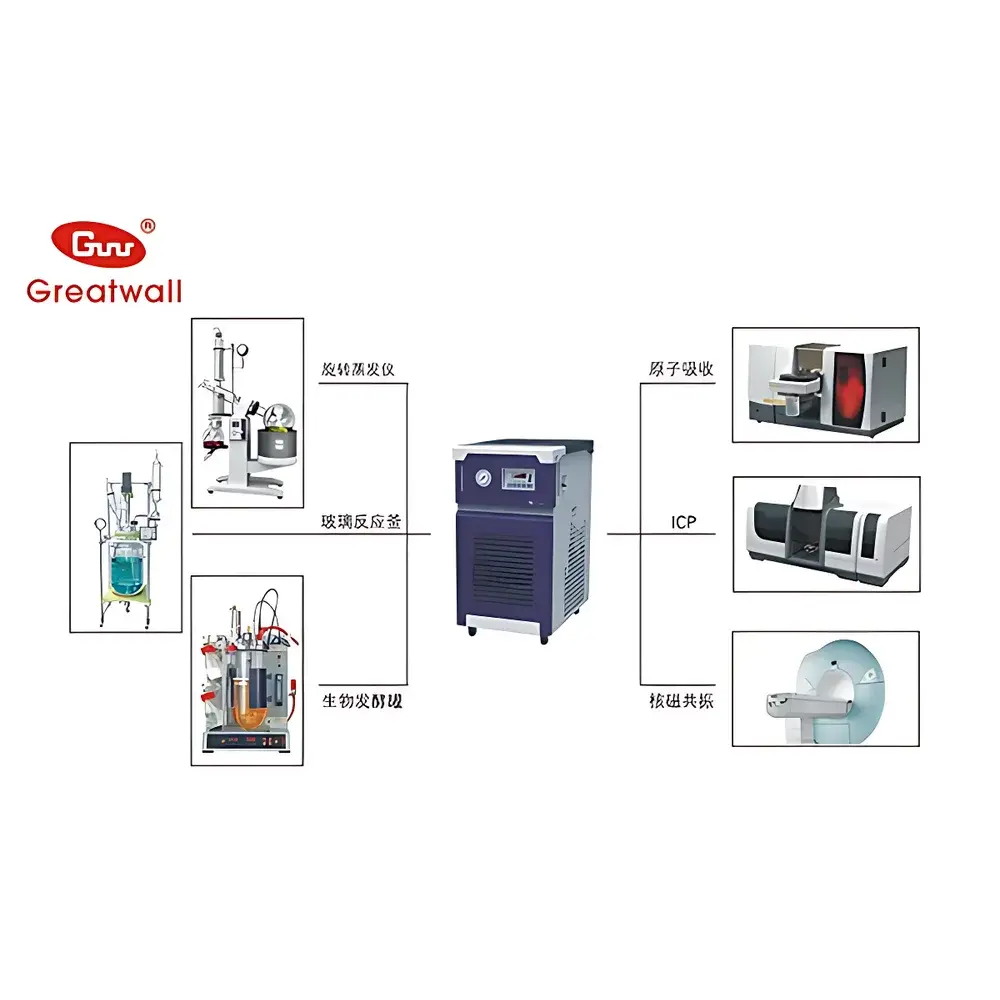

The DL30-700 supports circulation through external equipment with standard 1/2″ NPT or G1/2″ threaded ports. It is routinely deployed with jacketed reactors (up to 50 L volume), rotary evaporators (including Buchi, IKA, and Heidolph models), differential scanning calorimeters (DSC), and environmental test chambers. The unit meets GB/T 20840.1–2015 (Chinese national standard for laboratory refrigeration equipment), conforms to CE marking requirements under Directive 2014/35/EU (Low Voltage Directive) and 2014/30/EU (EMC Directive), and supports GLP-compliant operation when paired with validated temperature logging protocols.

Software & Data Management

While the DL30-700 operates as a standalone instrument, optional RS485 Modbus RTU interface enables integration into centralized lab automation systems (e.g., LabVantage, STARLIMS). When connected, users can monitor real-time setpoint deviation, pump runtime, and compressor duty cycle via SCADA platforms. Audit-trail functionality—including timestamped parameter changes and alarm events—is achievable using third-party data acquisition modules compliant with FDA 21 CFR Part 11 requirements when configured with electronic signature and access control layers.

Applications

• Temperature control of jacketed glass reactors during exothermic catalytic hydrogenations and cryogenic Grignard reactions.
• Cooling condenser coils in rotary evaporation systems to maximize solvent recovery efficiency at reduced bath temperatures (e.g., chloroform, THF, ethyl acetate).
• Thermal conditioning of tensile testing fixtures and dynamic mechanical analyzers (DMA) per ASTM D638 and ISO 527 protocols.
• Stabilization of laser sources, CCD detectors, and RF amplifiers in analytical instrumentation requiring thermal drift suppression below 0.1 °C/hour.
• Simulated process cooling for scale-up studies in continuous flow chemistry systems (e.g., Corning AFR, Vapourtec R-Series).

FAQ

What heat-transfer fluids are compatible with the DL30-700?
Ethylene glycol/water mixtures (30–50% concentration), silicone oils (e.g., DC200 series), and low-temperature synthetic fluids (e.g., Therminol LT) are verified for use. Avoid methanol, acetone, or pure water below 0 °C due to freezing risk and corrosion.
Can the unit operate unattended for extended periods?
Yes—designed for 24/7 continuous operation with automatic fault shutdown and self-diagnostic capability. Recommended for unattended use only when installed in ventilated, non-humid environments with ambient temperatures between 10–35 °C.
Is remote monitoring supported out of the box?
No native Ethernet or Wi-Fi interface is included; however, the RS485 port (optional accessory) permits integration with industrial PLCs or building management systems using standard Modbus register mapping.
How often should the refrigerant charge be verified?
Under normal operation, refrigerant integrity remains stable for ≥5 years. Verification is advised during annual preventive maintenance or following any documented pressure loss event, using calibrated manifold gauges per ASHRAE Guideline 3-2021.
Does the chiller meet requirements for GMP-regulated environments?
The base unit satisfies mechanical and electrical safety prerequisites for GMP Annex 15 (qualification of utilities). Full compliance requires IQ/OQ documentation, calibration against NIST-traceable references, and integration into a validated facility monitoring system.
