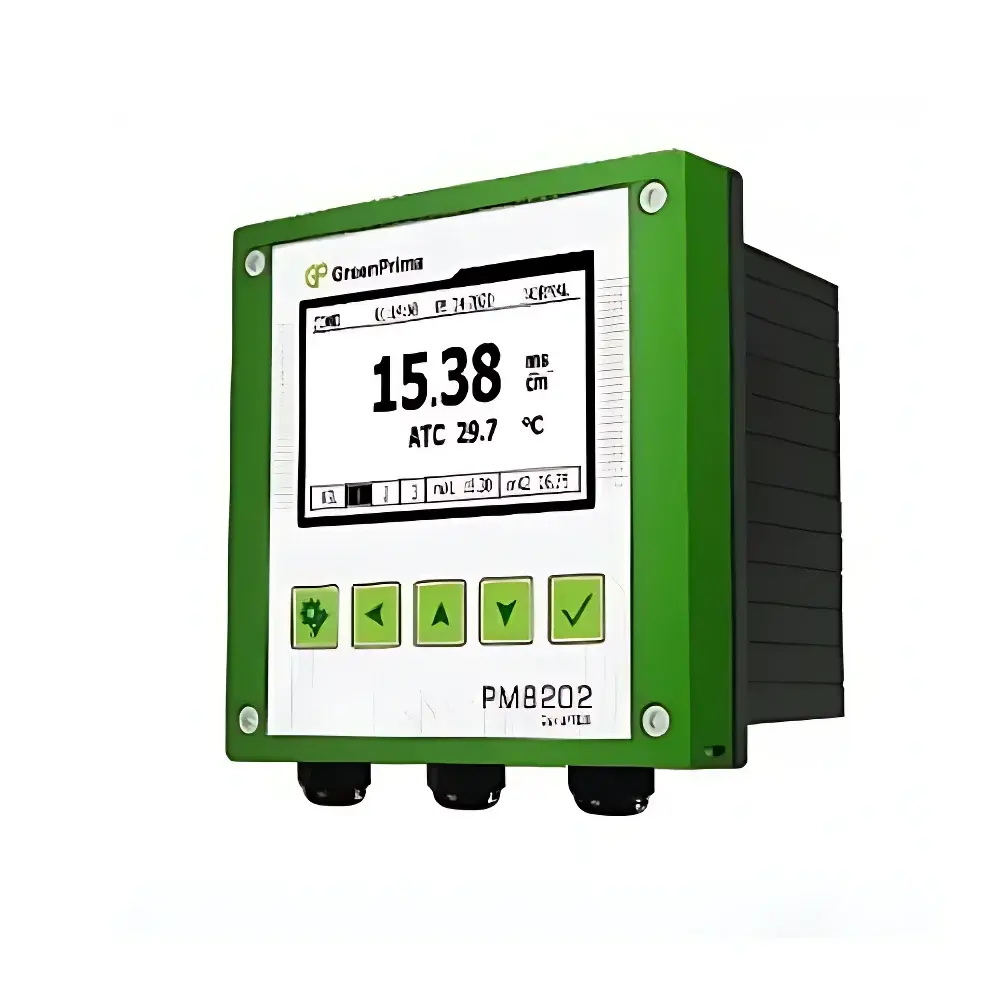

GreenPrima PM8202C Online Conductivity Analyzer for Ultrapure Water Monitoring

Overview

The GreenPrima PM8202C Online Conductivity Analyzer is an industrial-grade, microprocessor-controlled instrument engineered for continuous, high-stability measurement of electrical conductivity, salinity, and total dissolved solids (TDS) in ultrapure water (UPW), boiler feedwater, pharmaceutical process water, semiconductor rinse water, and other critical water quality applications. Based on the fundamental principle of two-electrode or four-electrode conductometric measurement—where conductivity is derived from the reciprocal of electrical resistance across a known cell constant—the PM8202C delivers trace-level sensitivity and long-term drift stability essential for compliance-driven environments. Its design adheres to the electrochemical measurement standards underpinning ASTM D1125, ISO 7888, and USP , supporting validation requirements for pharmaceutical and biotech water systems. Unlike benchtop meters, the PM8202C integrates real-time temperature compensation using either NTC30k or PT1000 sensors, enabling accurate correction across a wide operational range (−10 to 130 °C), thereby eliminating thermal artifact errors common in un-compensated online monitoring.

Key Features

• Multi-parameter output: Simultaneous real-time measurement of conductivity (0.00–2000 mS/cm), salinity (0.00–78.00 ppt), and TDS (0–120,000 ppm) with configurable units and scaling
• Dual isolated 4–20 mA analog outputs—each independently assignable to conductivity, temperature, or calculated TDS—with full-scale accuracy of ±0.1% and loop-load capability up to 500 Ω
• RS485 serial interface compliant with Modbus RTU protocol; optional HART 7.5 support for integration into legacy DCS/SCADA platforms
• Graphical backlit LCD display with intuitive dual-language (English/Chinese) menu navigation and password-protected configuration access to prevent unauthorized parameter changes
• Two programmable SPDT relay outputs with user-defined alarm thresholds, hysteresis control, and fail-safe logic for pump interlock, valve actuation, or system shutdown
• Onboard data logging of 600,000 timestamped records—including conductivity, temperature, and status flags—with cyclic overwrite and USB export capability (via optional adapter)
• Configurable automatic electrode cleaning control: cleaning interval (0.1–1000 hours) and duration (1–1000 seconds) optimized for fouling-prone applications such as cooling tower makeup or wastewater influent streams

Sample Compatibility & Compliance

The PM8202C supports compatibility with a broad portfolio of GreenPrima conductivity cells—including stainless steel 316L, titanium, and graphite electrodes—enabling deployment across diverse fluid chemistries: deionized water (0.055 µS/cm), reverse osmosis permeate, condensate, seawater, brine, and aggressive industrial effluents. Its temperature-compensated algorithm conforms to the linear and non-linear (e.g., NaCl-based) compensation models specified in IEC 60746-3 and ASTM D5391. For regulated industries, the analyzer’s firmware architecture supports audit-trail-enabled configuration changes and time-stamped event logging—features aligned with FDA 21 CFR Part 11 requirements when deployed with validated software and secure user authentication. The IP65-rated enclosure ensures reliable operation in humid, washdown, or dust-laden environments typical of pharmaceutical clean utilities or food & beverage processing lines.

Software & Data Management

Configuration, calibration, and diagnostics are performed locally via the front-panel interface or remotely through GreenPrima’s PC-based Commissioning Tool (v3.2+), which provides full access to calibration history, sensor diagnostics (e.g., electrode resistance, cable integrity), and trend visualization. All calibration events—including standardization against certified KCl solutions (e.g., 1413 µS/cm, 12.88 mS/cm)—are stored with operator ID, date/time stamp, and deviation metrics. Data export supports CSV format for import into LIMS, MES, or statistical process control (SPC) platforms. Optional cloud connectivity (via MQTT or OPC UA gateway) enables centralized fleet monitoring and predictive maintenance alerts based on sensor degradation trends.

Applications

• Ultrapure water (UPW) monitoring in semiconductor fab ultraclean loops and pharmaceutical WFI (Water for Injection) distribution systems
• Real-time conductivity verification in steam condensate return lines to detect cooling water ingress or heat exchanger leakage
• Continuous TDS surveillance in RO permeate tanks and EDI feed streams for membrane performance trending
• Salinity control in aquaculture recirculation systems and desalination plant product water quality assurance
• Regulatory-compliant conductivity verification per USP , EP 2.2.38, and JP 2.05 for purified water and water for injection

FAQ

What conductivity cell types are compatible with the PM8202C?
GreenPrima offers a range of two-electrode and four-electrode cells—including 316L stainless steel, titanium, and graphite variants—with cell constants from 0.01 cm⁻¹ to 10 cm⁻¹, selected based on expected conductivity range and chemical compatibility.
Does the PM8202C support automatic temperature compensation with external sensors?
Yes—it accepts both NTC30k thermistors and PT1000 RTDs, with auto-detection and configurable compensation curves (linear, NaCl, or custom polynomial) per IEC 60746-3.
Can the device be validated for GMP environments?
When used with documented IQ/OQ protocols, calibrated reference standards, and configured with audit-trail logging enabled, the PM8202C meets foundational requirements for computerized system validation under Annex 11 and FDA 21 CFR Part 11.
Is field recalibration possible without removing the transmitter from service?
Yes—zero and span calibration can be executed in-situ using certified standard solutions; all calibration parameters and deviations are logged with traceable metadata.
What is the maximum distance supported for RS485 Modbus communication?
Up to 1200 meters at 9600 bps using shielded twisted-pair cable with proper termination; repeaters may extend range further in multi-drop configurations.
