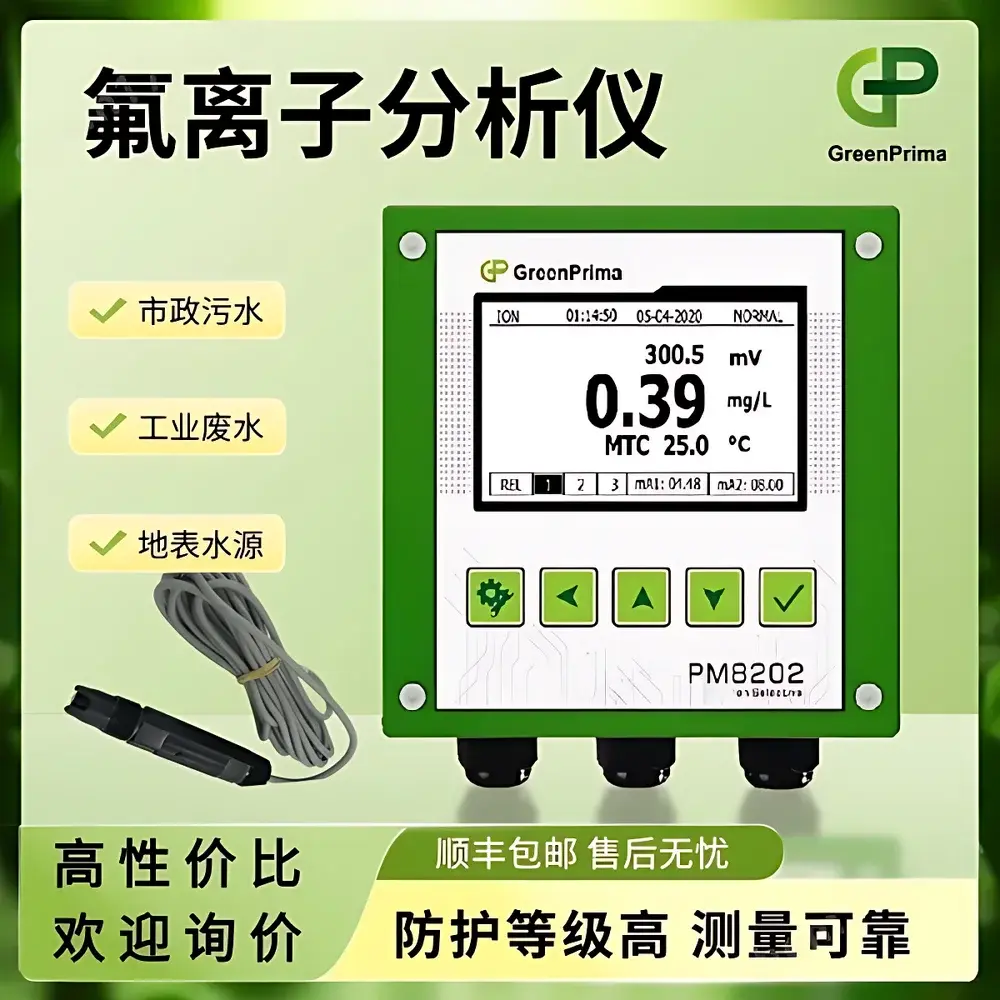

GreenPrima PM8202I Fluoride Ion Analyzer

Overview

The GreenPrima PM8202I Fluoride Ion Analyzer is a dedicated online potentiometric analyzer engineered for continuous, real-time quantification of fluoride ion (F⁻) concentration in aqueous media. It operates on the principle of ion-selective electrode (ISE) potentiometry—measuring the potential difference between a fluoride-specific solid-state membrane electrode (Bsens710) and a stable reference electrode under controlled ionic strength and pH conditions. This electrochemical method complies with standardized potentiometric procedures referenced in ISO 10304-1 (water quality — determination of dissolved anions by liquid chromatography), ASTM D4192 (standard test method for fluoride in water by ion-selective electrode), and USP (fluoride content in pharmaceutical waters). Designed for unattended operation in municipal drinking water treatment plants, wastewater effluent streams, semiconductor rinse water loops, and industrial cooling systems, the PM8202I delivers stable baseline performance across variable conductivity (100 µS/cm to 5 mS/cm) and pH (5.0–8.5) ranges—conditions typical of regulated water matrices.

Key Features

• Triple-sensor compatibility architecture: Supports interchangeable operation with Bsens710 (F⁻), Bsens720 (Cl⁻), and Bsens730 (NH₄⁺/NH₃) ISE modules via standardized analog input channels—enabling multi-parameter deployment without hardware replacement.
• IP65-rated sealed enclosure with corrosion-resistant polycarbonate housing and gasketed front bezel—certified for outdoor wall mounting or humid indoor environments (e.g., pump stations, chlorination rooms).
• Configurable resolution and accuracy tiers (0.01 ppm / ±0.01 ppm at low range; 1 ppm / ±1 ppm at high range) aligned with regulatory reporting thresholds for fluoride compliance (e.g., WHO guideline value: 1.5 mg/L; US EPA MCL: 4.0 mg/L).
• Dual isolated 4–20 mA outputs assignable to measured F⁻ concentration, compensated temperature, or alarm status—fully compliant with industrial SCADA and DCS integration requirements.
• Modbus RTU over RS485 enables bidirectional communication with PLCs and central monitoring systems, supporting register mapping for live data polling, calibration logging, and configuration backup.
• Onboard cleaning cycle control with programmable actuation timing and duration—synchronized with solenoid-driven chemical or air-pulse cleaning systems to mitigate electrode fouling in turbid or organic-rich influents.

Sample Compatibility & Compliance

The PM8202I is validated for use in clarified, filtered, or coagulated water samples meeting standard intake criteria for ISE-based analysis: suspended solids < 10 mg/L, free chlorine 0.1 mM, Fe³⁺ > 0.05 mM) that interfere with fluoride activity measurement. It conforms to EN 61326-1 (electromagnetic compatibility for laboratory and industrial equipment) and meets functional safety prerequisites outlined in IEC 61508 SIL 2 for critical monitoring applications. Calibration traceability follows NIST-traceable standards (e.g., NaF solutions certified to ISO/IEC 17025), and full audit trails—including calibration timestamps, operator IDs, and drift verification results—are retained in non-volatile memory per GLP/GMP documentation requirements.

Software & Data Management

Internal firmware supports automated calibration sequence execution (single-point or two-point), slope validation (≥95% theoretical Nernstian response), and drift compensation algorithms based on historical stability profiles. All 600,000 stored records include UTC timestamp, raw mV signal, temperature-compensated concentration, electrode impedance, and system diagnostic flags. Data export is supported via USB flash drive (CSV format) or Modbus-polling scripts. Optional PC-based configuration utility (GreenPrima ConfigTool v3.2) provides graphical trend visualization, alarm event filtering, and PDF report generation—including compliance summaries aligned with ISO 17025 clause 7.8.2 (data review and verification).

Applications

• Municipal drinking water fluoridation control: Real-time feedback for sodium fluoride or fluorosilicic acid dosing pumps to maintain 0.6–1.2 ppm F⁻ within regulatory tolerance bands.
• Wastewater discharge monitoring: Continuous verification of fluoride removal efficiency in lime precipitation or activated alumina treatment trains prior to environmental release.
• Pharmaceutical process water systems: Monitoring of purified water (PW) and water-for-injection (WFI) loops where fluoride contamination may originate from stainless-steel passivation or resin leaching.
• Recycled industrial coolant circuits: Detection of fluoride accumulation from metal etching or glass washing effluents to prevent corrosion acceleration in closed-loop heat exchangers.
• Environmental surface water surveillance: Fixed-site deployment in river intakes near aluminum smelters or phosphate fertilizer plants where fluoride represents a key contaminant indicator.

FAQ

What calibration standards are required for routine operation?
Primary calibration requires two NIST-traceable NaF standard solutions bracketing the expected measurement range (e.g., 0.1 ppm and 10 ppm F⁻), prepared in background electrolyte (e.g., 0.001 M NaCl) to maintain constant ionic strength.
Can the PM8202I operate without temperature compensation?
Yes, manual temperature entry is supported; however, automatic compensation using integrated NTC30K or external PT1000 sensors is strongly recommended to correct for the −0.22 mV/°C Nernst slope drift inherent to fluoride ISEs.
Is FDA 21 CFR Part 11 compliance supported?
The device itself does not implement electronic signatures or audit trail encryption; however, its Modbus interface and CSV export capability enable full Part 11-compliant data handling when integrated with validated third-party LIMS or MES platforms.
How often must the Bsens710 electrode be replaced?
Typical service life is 12–18 months under continuous operation in clean water; reduction to 6–9 months is expected in high-turbidity or high-Ca²⁺ environments due to membrane fouling and junction clogging.
Does the unit support remote firmware updates?
Firmware upgrades require local USB connection and authenticated access via the GreenPrima ConfigTool—no over-the-air (OTA) update functionality is implemented to ensure deterministic behavior in regulated environments.
