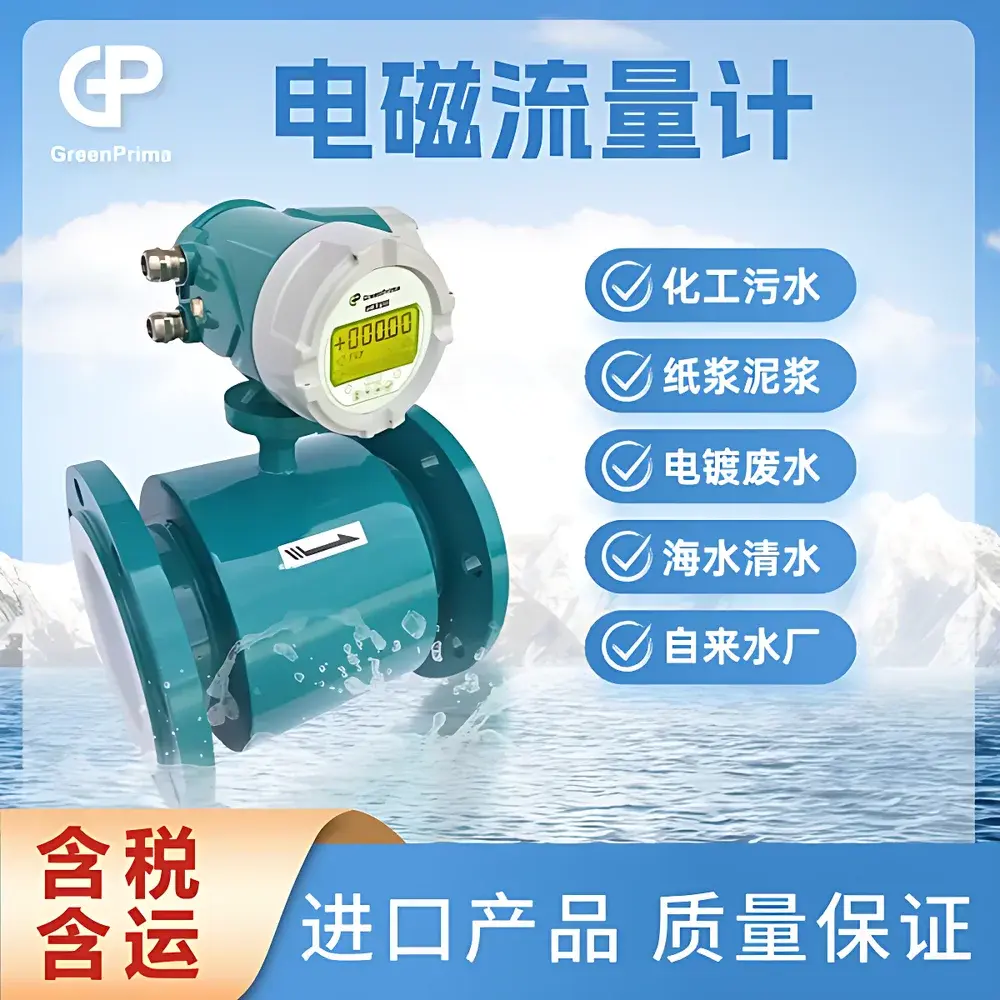

GreenPrima PSTAB500 Electromagnetic Flow Meter for Chemical Wastewater

Overview

The GreenPrima PSTAB500 Electromagnetic Flow Meter is an industrial-grade inline flow measurement instrument engineered for continuous, non-intrusive volumetric flow monitoring of conductive liquids in demanding chemical wastewater treatment and process environments. Operating on Faraday’s law of electromagnetic induction, the PSTAB500 generates a magnetic field perpendicular to the flow direction; as conductive fluid passes through this field, a voltage proportional to the average flow velocity is induced across two electrodes mounted in the pipe wall. This principle ensures measurement independence from fluid density, viscosity, temperature, pressure, and turbulence—making it uniquely suited for heterogeneous, corrosive, or abrasive media where mechanical meters fail.

Key Features

• Full-bore measurement tube with zero moving parts—eliminates pressure loss and minimizes maintenance requirements.
• Robust electromagnetic architecture optimized for high noise immunity in electrically noisy plant environments common in chemical processing and effluent treatment facilities.
• Bidirectional flow detection with real-time direction indication—critical for recirculation loops, neutralization tanks, and dual-purpose discharge/reuse systems.
• Integrated self-diagnostics including coil continuity check, electrode short/open detection, and empty-pipe validation—enabling predictive maintenance and compliance with IEC 61508 SIL 2 readiness guidelines.
• Modular construction supporting integral (compact) or remote (split-type) configurations—accommodating space-constrained piping layouts or hazardous area installations (ATEX/IECEx optional).
• Wide operating temperature range (–30°C to +250°C) and customizable electrode/lining combinations—including PTFE-lined bodies with tantalum or platinum-iridium electrodes—for long-term stability in concentrated acids, caustics, and slurry-laden effluents.
• High-resolution backlit LCD display with configurable language interface (English, German, French, Spanish)—supporting local operator interaction without external configuration tools.

Sample Compatibility & Compliance

The PSTAB500 is validated for use with liquids exhibiting minimum electrical conductivity ≥5 µS/cm—covering all major chemical wastewater streams, including sulfuric acid (98%), sodium hydroxide (50%), mixed organic/inorganic effluents, activated sludge suspensions, and pulp-and-paper mill black liquor. Its design conforms to ISO 9001 manufacturing standards and meets electromagnetic compatibility requirements per EN 61326-1 (industrial environment). For regulated applications, the meter supports audit-ready data logging when paired with GreenPrima’s certified firmware—fully compliant with FDA 21 CFR Part 11 electronic record controls and GLP/GMP traceability protocols. Optional ATEX II 2G Ex d IIB T4 certification enables deployment in Zone 1 classified areas adjacent to reactor vents or clarifier basins.

Software & Data Management

Configuration, calibration, and diagnostics are performed via the GreenPrima FlowConfig Suite—a Windows-based engineering tool supporting offline setup, firmware updates, and historical trend export (CSV/Excel). The embedded MODBUS RTU protocol (RS485 physical layer) enables seamless integration into DCS/SCADA platforms such as Siemens PCS7, Emerson DeltaV, and Honeywell Experion. Optional HART 7.5 implementation allows for multi-drop configuration and device-level parameter interrogation without interrupting analog 4–20 mA transmission. All communication events—including parameter changes, alarm triggers, and diagnostic flags—are timestamped and stored locally for up to 30 days, satisfying ISO/IEC 17025 documentation retention expectations for accredited laboratories and third-party auditors.

Applications

• Real-time flow monitoring at influent/effluent points in municipal and industrial wastewater treatment plants.
• Volumetric dosing control of coagulants (e.g., ferric chloride), flocculants (polyacrylamide), and pH-adjusting reagents (HCl/NaOH) in chemical dosing skids.
• Sludge transfer verification between primary settlers, anaerobic digesters, and dewatering centrifuges.
• Leak detection and balance calculations across parallel treatment trains using synchronized bidirectional measurements.
• Regulatory reporting under EU Urban Wastewater Treatment Directive (91/271/EEC) and U.S. EPA NPDES permit compliance programs.

FAQ

What minimum conductivity is required for reliable operation?
The PSTAB500 requires liquid conductivity ≥5 µS/cm—verified during factory calibration using ASTM D1125 reference solutions. Applications below this threshold (e.g., deionized water, solvents) require alternative technologies such as Coriolis or ultrasonic meters.

Can the meter be calibrated in-situ without removal from the pipeline?
Yes—zero calibration is supported under static fluid conditions via the front-panel menu or remote command. Span calibration requires traceable master meter comparison per ISO 4185, but no disassembly is needed.

Is the device suitable for custody transfer applications?
While meeting OIML R49 Class 1.0 accuracy specifications, formal custody transfer approval depends on site-specific metrological validation per ISO 5167 or API RP 1171—and requires third-party witnessed testing with NIST-traceable standards.

How does the empty-pipe detection function operate?
The meter continuously monitors electrode impedance and signal-to-noise ratio. When both fall below preset thresholds for >3 seconds, it activates an internal relay and flags “Empty Pipe” in the display and digital output registers—preventing false accumulation in batch control logic.

What cybersecurity safeguards are implemented in the MODBUS interface?
The standard firmware includes write-protection locks for critical parameters (e.g., K-factor, damping time), configurable access levels (operator/engineer/admin), and cyclic redundancy checks (CRC-16) on all frame transmissions—aligning with ISA/IEC 62443-3-3 SL1 requirements.
