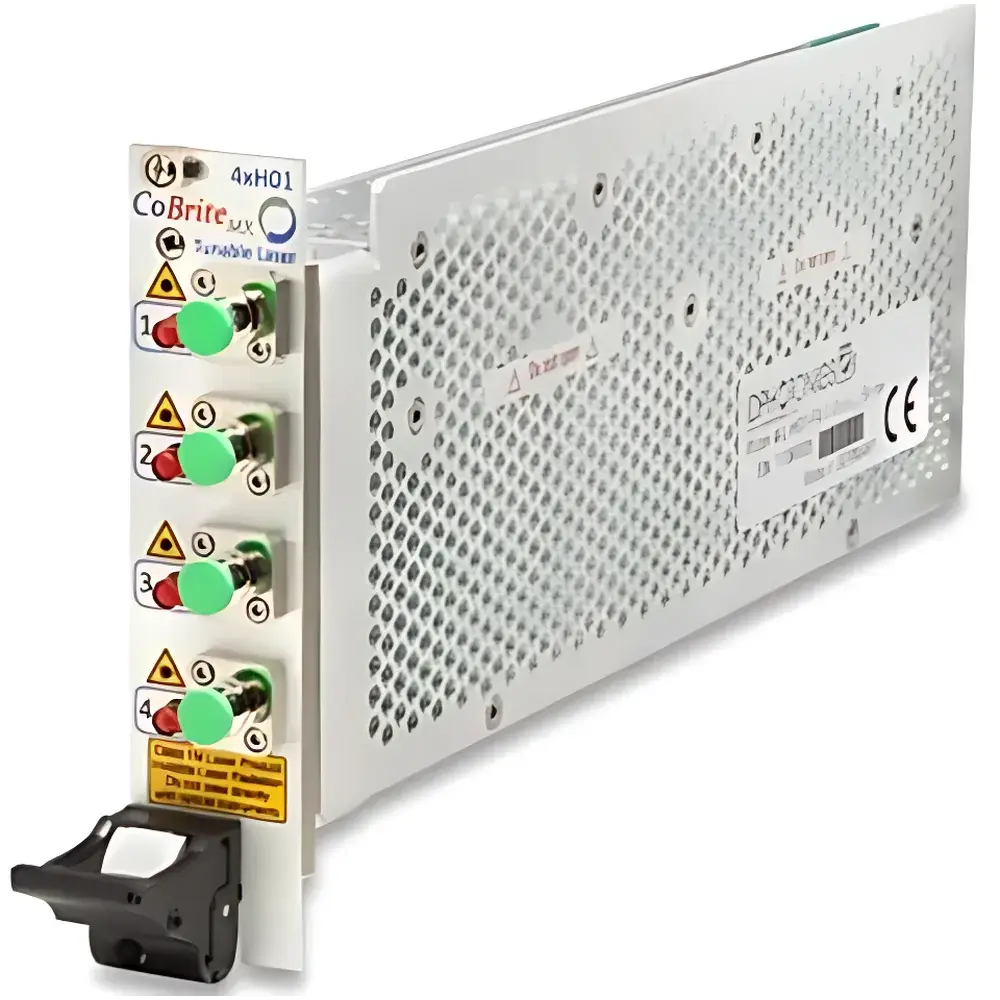

GRINTECH CobriteMX Tunable Laser Platform
| Brand | GRINTECH |
|---|---|
| Origin | Canada |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Instrument |
| Model | CobriteMX Laser Platform |
| Core Architecture | Solid-State Laser System |
| Compliance Context | Designed for R&D-grade optical metrology and spectroscopic integration |
Overview
The GRINTECH CobriteMX Tunable Laser Platform is a modular, solid-state laser system engineered for high-stability wavelength tuning across the visible and near-infrared spectral ranges. Built upon a monolithic cavity architecture with intracavity birefringent filtering and precision piezoelectric actuation, the platform enables continuous, mode-hop-free tuning with sub-pm resolution and kHz-level frequency stability. It operates on the principle of thermally stabilized Littman-Metcalf or Grazing-Incidence grating configurations—depending on the configured oscillator module—delivering narrow-linewidth (<100 kHz typical), low-amplitude-noise (<–140 dBc/Hz at 1 MHz offset) output suitable for coherent spectroscopy, cavity ring-down measurements, and optical frequency comb seeding. Unlike diode-based tunable sources, the CobriteMX leverages DPSS (diode-pumped solid-state) gain media—including Nd:YVO₄, Nd:YAG, and Yb-doped crystals—to ensure superior beam quality (M² < 1.1), long-term power stability (<±0.3% over 8 h), and insensitivity to back-reflection. Its mechanical and thermal design conforms to ISO 10110 optical mounting standards and supports vacuum-compatible integration in ultra-stable interferometric environments.
Key Features
- Continuous, mode-hop-free wavelength tuning over up to 15 nm range (configurable per gain medium and grating set)
- Output power stability ≤ ±0.3% RMS over 8 hours at constant ambient temperature (23 ± 0.5 °C)
- Beam pointing stability < 2 µrad/°C; collimated free-space output with Ø1.5 mm beam diameter and divergence < 0.5 mrad
- Integrated digital control interface (USB 2.0 + RS-422) supporting SCPI command set for automated wavelength sweeps and power modulation
- Onboard temperature stabilization (±0.02 °C) of both laser crystal and grating mounts using dual-stage Peltier elements
- Compliance with IEC 60825-1:2014 Class 3B laser safety requirements; includes interlock-ready shutter and key-switch enable
Sample Compatibility & Compliance
The CobriteMX platform is designed for integration into optical benches, vacuum chambers, and OEM spectroscopic subsystems requiring reproducible, traceable laser excitation. It supports direct coupling to single-mode polarization-maintaining fibers (FC/APC) via optional fiber launch modules meeting Telcordia GR-1209-CORE specifications. All optical coatings comply with ISO 9211-3 for laser-grade durability (LIDT > 500 MW/cm² at 1064 nm, 10 ns pulse). The system meets electromagnetic compatibility requirements per EN 61326-1:2013 (industrial environment) and carries CE marking under the EU Machinery Directive 2006/42/EC. For regulated laboratories, firmware logs include timestamped calibration records aligned with ISO/IEC 17025 traceability frameworks; audit trails support GLP-compliant operation when paired with validated host software.
Software & Data Management
GRINTECH provides the CobriteMX Control Suite—a cross-platform application (Windows/macOS/Linux) enabling real-time wavelength calibration via integrated wavemeter feedback (optional external High-Finesse WSx series), power ramp profiling, and script-driven sequence execution. Data export supports HDF5 and CSV formats with metadata headers compliant with FAIR principles (Findable, Accessible, Interoperable, Reusable). The SDK includes C/C++, Python (PySerial + NumPy), and LabVIEW VIs, allowing seamless incorporation into NI TestStand or MATLAB-based acquisition pipelines. Firmware updates preserve user-defined calibration tables and maintain backward compatibility across version revisions. Audit logging meets FDA 21 CFR Part 11 requirements when operated in “validated mode” with electronic signature enforcement and role-based access control.
Applications
- High-resolution absorption spectroscopy of transient molecular species (e.g., OH, NO, CH radicals) in combustion diagnostics
- Pump-probe experiments requiring synchronized tunable pump (CobriteMX) and broadband probe (supercontinuum) sources
- Cavity-enhanced detection systems including CRDS and OF-CEAS for atmospheric trace-gas monitoring (ppq-level sensitivity)
- Calibration reference source for FTIR spectrometers and optical spectrum analyzers (OSAs) per ASTM E1421–22
- Seed source for optical parametric oscillators (OPOs) and high-energy amplifier chains operating in nanosecond or picosecond regimes
- Quantum optics experiments requiring phase-coherent scanning across atomic transitions (e.g., Rb D2 line at 780.24 nm)
FAQ
What wavelength ranges are available for the CobriteMX platform?
Standard configurations cover 532 nm (frequency-doubled Nd:YVO₄), 780 nm (Ti:sapphire-pumped dye alternative), 1064 nm (Nd:YAG), and 1550 nm (Er:glass); custom grating sets extend coverage to 450–2000 nm.
Can the CobriteMX be integrated into a vacuum environment?
Yes—the base platform uses vacuum-rated stainless-steel housing and non-outgassing adhesives; optional bake-out certification (≤10⁻⁶ mbar, 80 °C) is available upon request.
Is remote operation supported over Ethernet or GPIB?
Native support is USB and RS-422; Ethernet connectivity requires an external protocol converter (e.g., Prologix GPIB-ETHERNET); full TCP/IP SCPI server functionality is planned for Q3 2025 firmware release.
Does the system include factory calibration data?
Each unit ships with NIST-traceable wavelength and power calibration certificates, including uncertainty budgets per ISO/IEC 17025 Annex A.3.
What is the expected lifetime of the laser crystal under continuous operation?
GRINTECH specifies ≥20,000 hours MTBF for Nd:YVO₄ and Nd:YAG modules when operated within rated thermal and drive-current limits.
