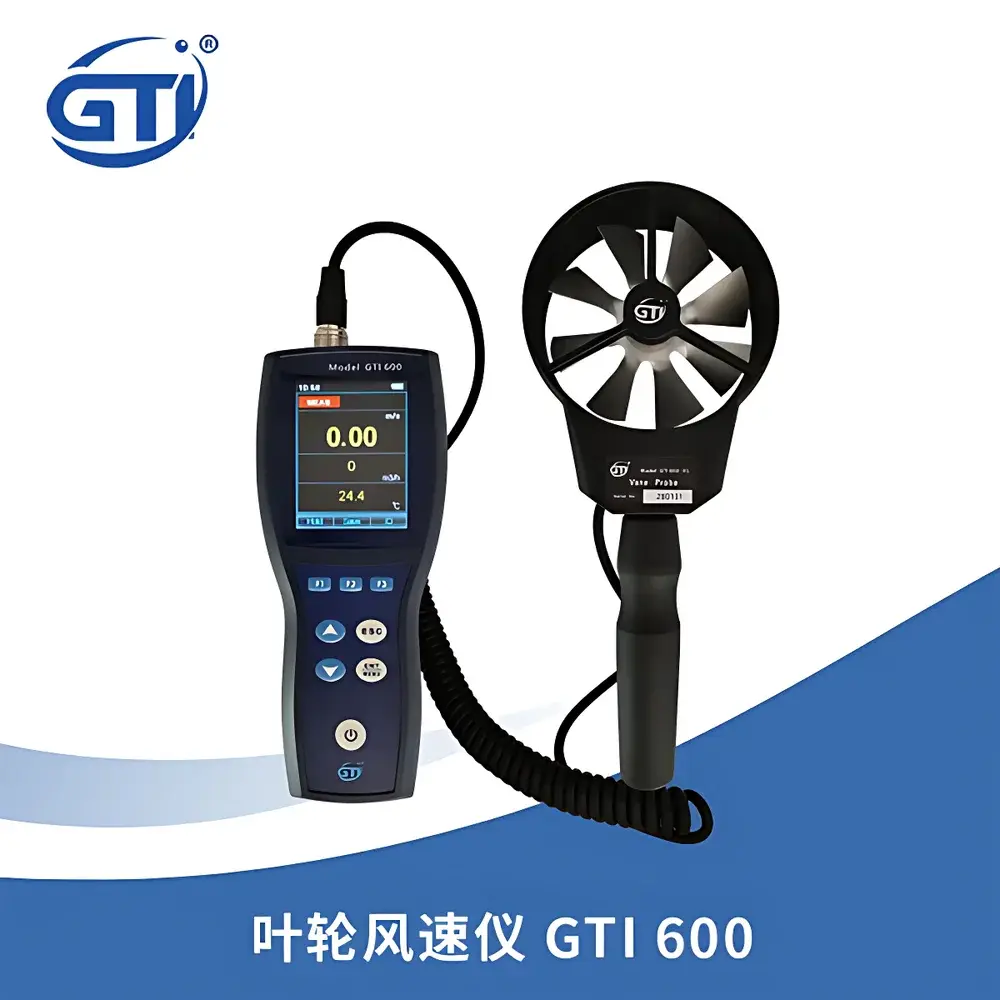

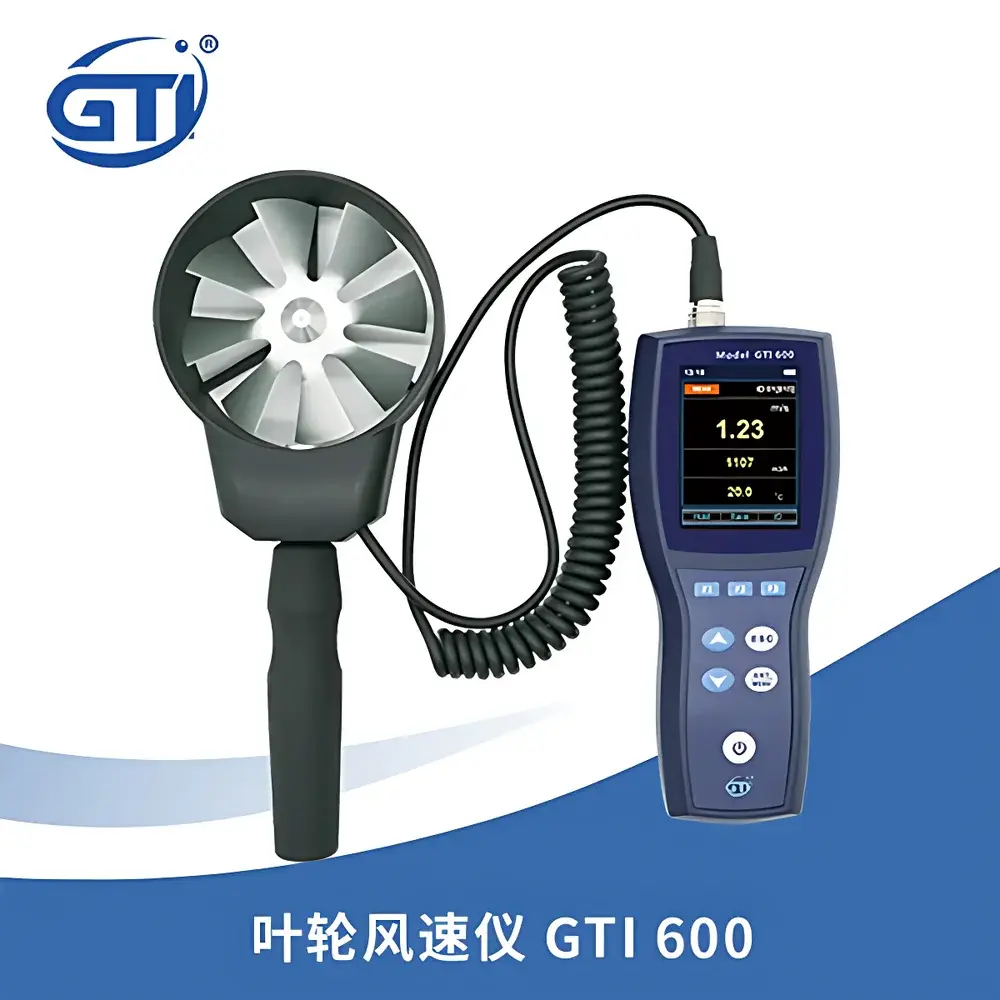

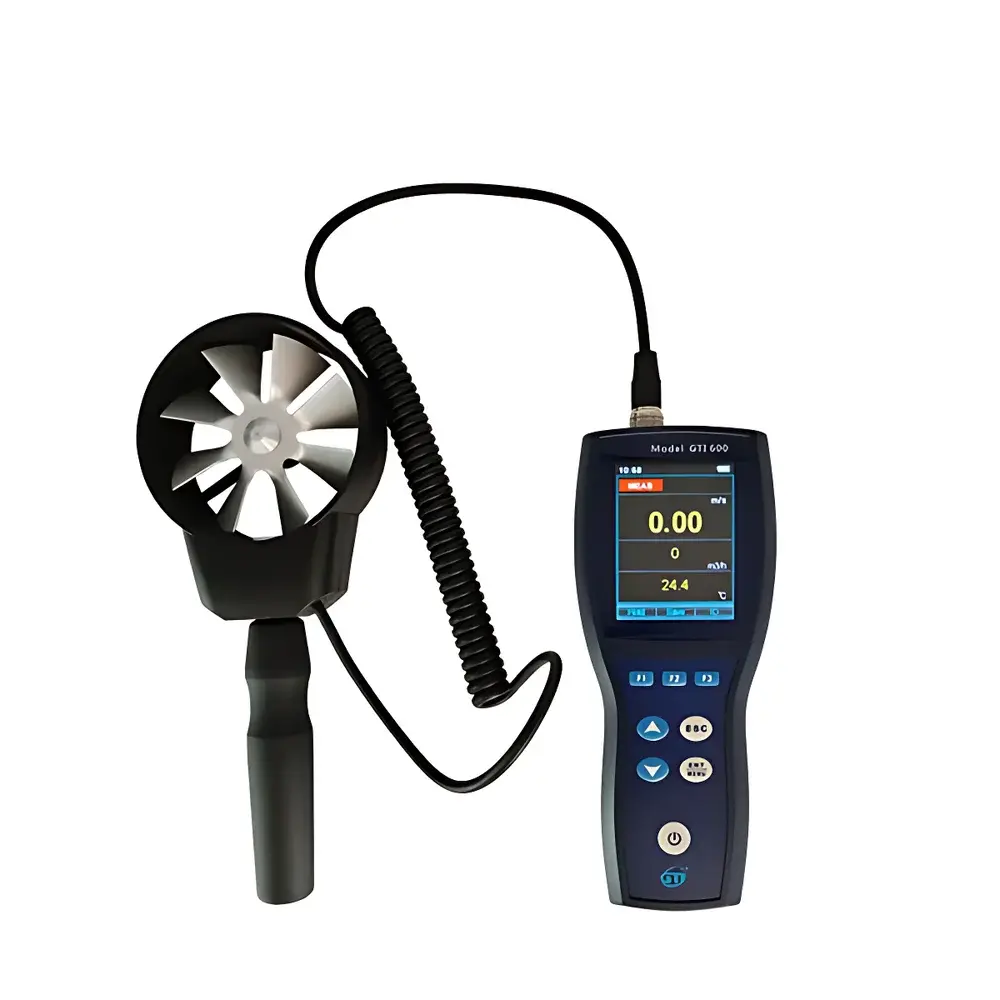

GTI GTI600 Advanced Vane Anemometer with Intelligent Statistical Processing

Overview

The GTI GTI600 Advanced Vane Anemometer is an engineered handheld instrument designed for precise, field-deployable measurement of air velocity, temperature, and volumetric airflow in HVAC, cleanroom, and environmental validation applications. It operates on the principle of rotational torque transduction: airflow imparts angular momentum to a calibrated vane rotor, whose rotational speed is converted into a linear wind speed reading via Hall-effect or optical sensing—ensuring high reproducibility across turbulent and laminar flow regimes. Unlike thermal anemometers, the GTI600 maintains accuracy in variable humidity and moderate particulate environments due to its mechanical vane architecture. Its core function extends beyond point measurement: integrated geometric algorithms convert real-time velocity data into volumetric flow (m³/h) using user-defined duct geometry (rectangular or circular), cross-sectional area, and multi-point sampling protocols—making it suitable for ASHRAE 111-compliant airflow verification and ISO 14644-3 classified space testing.

Key Features

• Tri-probe interchangeability: Supports three standardized vane sensors—FV14 (small-diameter, high-sensitivity for grilles and diffusers), FV70 (medium-diameter, balanced response for duct traverses), and FV100 (large-diameter, low-turbulence stability for open-space monitoring)—all mechanically and electrically compatible with the GTI600 main unit.
• Intelligent averaging modes: Selectable instantaneous or moving-average acquisition (1–60 second window) to suppress short-term turbulence-induced fluctuations while preserving dynamic response integrity.
• On-device statistical processing: Captures sequential measurements at fixed locations and automatically computes min/max/mean values with standard deviation—critical for ISO 14644-1 particle count correlation and EN 13779 ventilation rate audits.
• Real-time volumetric flow calculation: Input duct type (rectangular/circular), dimensions (height × width or diameter), and number of traverse points; the device computes total airflow without external software or manual interpolation.
• Dual-parameter simultaneous display: Concurrent readouts of wind speed (m/s), temperature (°C), and derived airflow (m³/h) on a high-contrast LCD with intuitive icon-based status indicators (battery level, memory usage, duct mode, hold status).
• Robust data management: Stores up to 10,000 timestamped records locally; exports via USB flash drive in CSV format for traceable reporting and integration with LIMS or Excel-based QA workflows.

Sample Compatibility & Compliance

The GTI600 accommodates heterogeneous airflow profiles typical of HVAC commissioning—non-uniform discharge from ceiling diffusers, low-velocity return grilles, HEPA filter face velocities, and laminar flow hoods. Its vane design meets ANSI/ASHRAE Standard 111 requirements for traverse-based airflow measurement and supports compliance with ISO 14644-3 (cleanroom certification), ISO 16813 (HVAC design verification), and EU GMP Annex 1 (airflow uniformity mapping). While not intrinsically certified for hazardous locations, its non-sparking vane construction and battery-powered operation permit safe use in Class 1 Div 2 environments when deployed per site-specific risk assessments.

Software & Data Management

No proprietary software installation is required. All data reside in the instrument’s non-volatile memory and export directly to industry-standard CSV files via USB mass storage mode. Each record includes UTC timestamp, sensor ID, measured velocity, temperature, duct geometry parameters, and statistical flags (e.g., “avg”, “max”, “hold”). The exported dataset is fully compatible with FDA 21 CFR Part 11–compliant audit trails when imported into validated laboratory information management systems (LIMS) or electronic lab notebooks (ELN). Optional calibration certificate documentation (NIST-traceable) is provided with each unit to support GLP/GMP documentation requirements.

Applications

• HVAC system balancing and TAB (Testing, Adjusting, Balancing) per ASHRAE Guideline 1
• Cleanroom airflow uniformity and velocity profiling per ISO 14644-3
• Filter face velocity verification for HEPA/ULPA installations
• Lab hood face velocity surveys compliant with ANSI/ASHRAE 110
• Air quality assessment in occupied buildings under IEQ (Indoor Environmental Quality) protocols
• Validation of ventilation rates in pharmaceutical manufacturing suites (Annex 1, EU GMP)
• Educational and research use in building science and environmental engineering laboratories

FAQ

Does the GTI600 meet ISO/IEC 17025 calibration requirements?
Yes—when paired with NIST-traceable calibration services (available through GTI-authorized metrology labs), the GTI600 supports uncertainty budgets required for ISO/IEC 17025 accreditation.
Can the device calculate airflow in irregularly shaped ducts?
No—it supports only rectangular and circular cross-sections. For irregular geometries, users must apply area-equivalent approximations prior to input.
Is the temperature sensor independently calibrated?
Yes—the integrated thermistor is factory-calibrated against reference standards and verified during full-system calibration cycles.
What is the recommended recalibration interval?
GTI recommends annual calibration for routine QA/QC use; semi-annual calibration is advised for GMP-regulated environments or continuous operational deployment.
Are firmware updates available?
Firmware upgrades are distributed via GTI’s secure customer portal and applied via USB—no internet connectivity required on the instrument itself.
