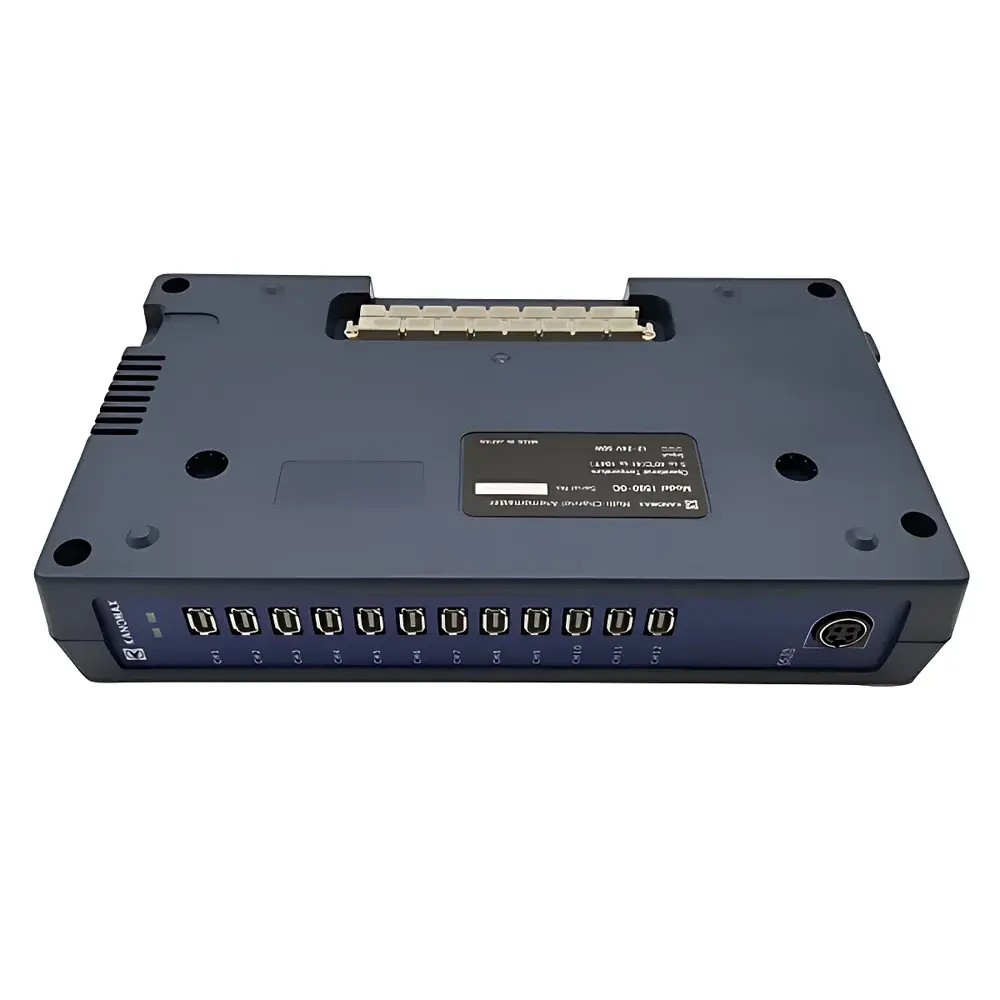

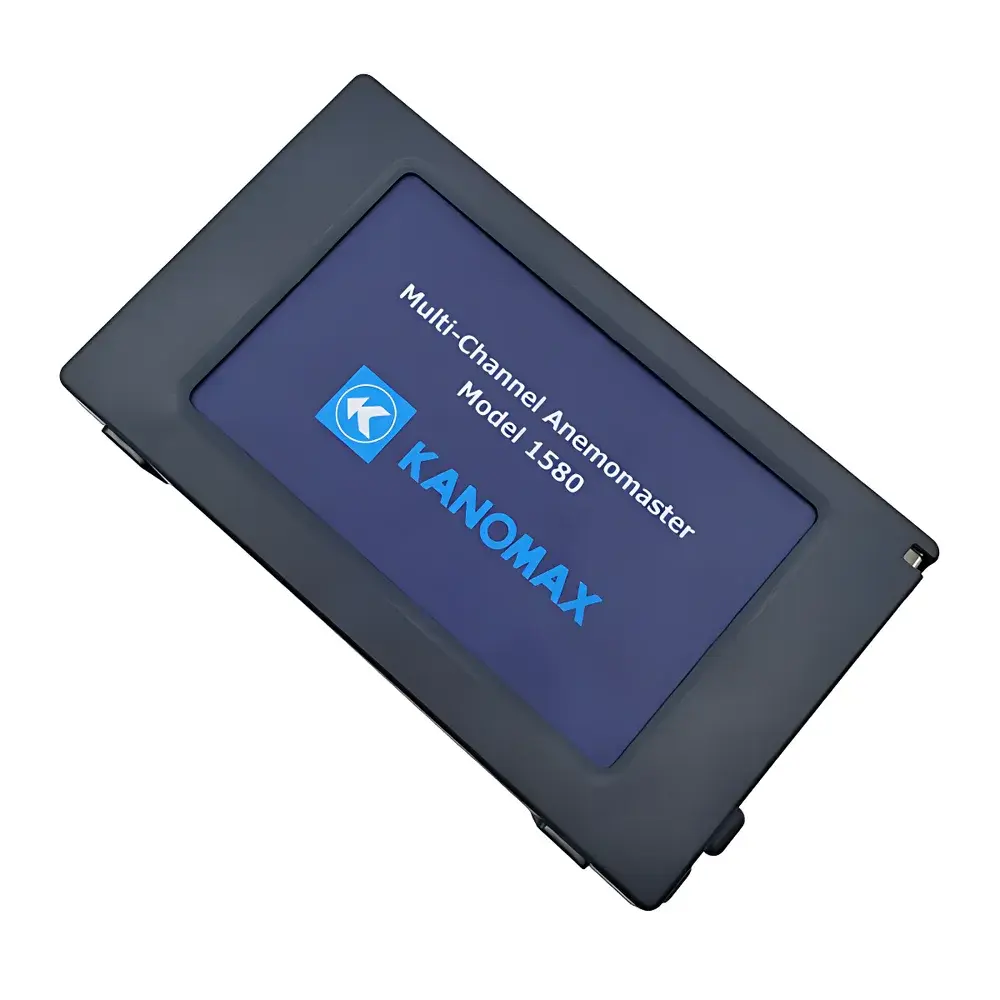

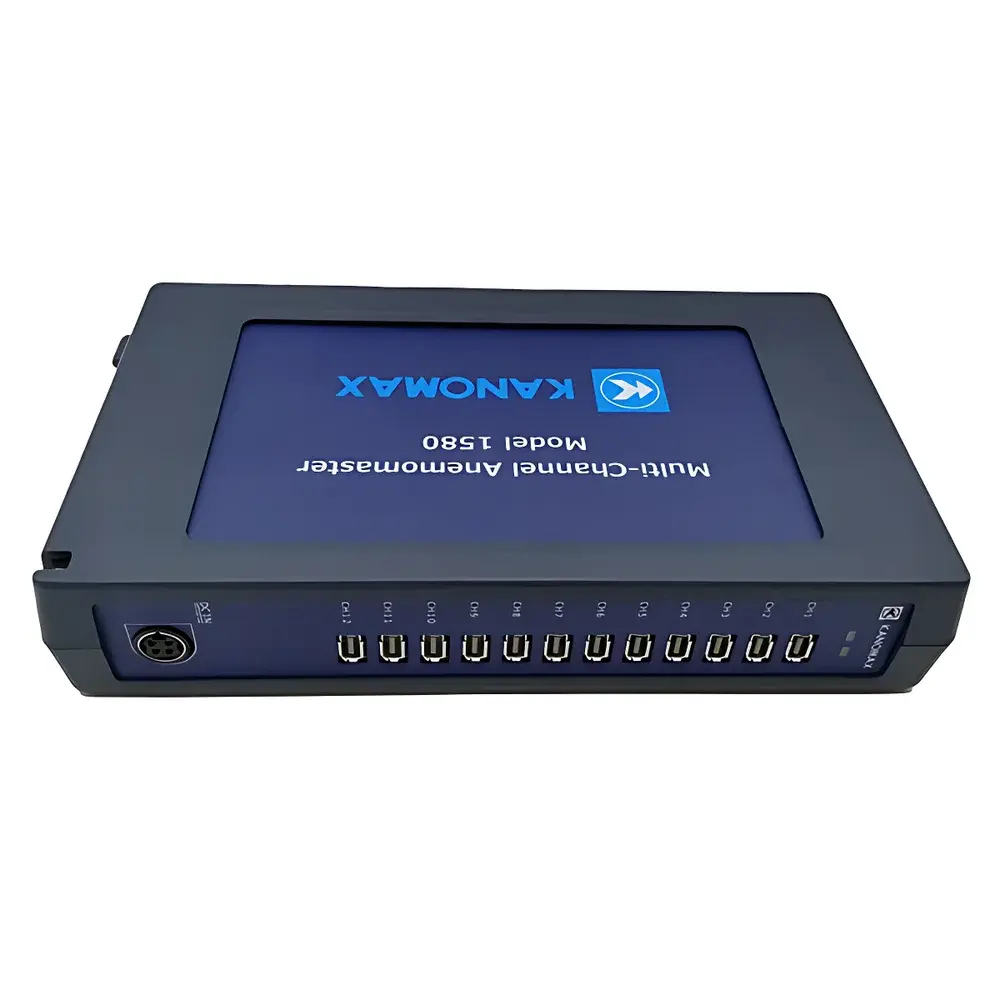

Kanomax MODEL 1580-0C 12-Channel Multipoint Environmental Monitoring System

Overview

The Kanomax MODEL 1580-0C is a compact, high-channel-count multipoint environmental monitoring system engineered for precision measurement of air velocity, temperature, and relative humidity in research laboratories, university teaching facilities, cleanrooms, HVAC validation environments, and controlled industrial settings. Based on constant-temperature anemometry (CTA), the system employs thermally sensitive hot-wire and hot-film probes to deliver stable, low-drift velocity measurements across an extended dynamic range—from ultra-low airflow (0.01 m/s) up to 50.0 m/s—with inherent temperature compensation for improved accuracy under varying thermal conditions. Its modular architecture supports up to 12 simultaneously connected probes—each independently configurable—enabling spatially resolved, time-synchronized acquisition across complex geometries such as laminar flow hoods, duct cross-sections, ventilation grids, and microclimate chambers. The system’s lightweight chassis (0.6 kg), minimal footprint (220 × 130 × 40 mm), and dual-power capability (AC/DC) facilitate both benchtop deployment and mobile applications—including vehicle-mounted environmental profiling and field-based HVAC commissioning.

Key Features

• 12-channel synchronized data acquisition with plug-and-play probe compatibility—no channel reconfiguration required when swapping probe types.
• 15 interchangeable probe models supporting directional and omnidirectional airflow sensing, high-temperature operation (up to 120 °C), and ultra-compact form factors (<6 mm tip diameter) for access to confined spaces.
• Thermal drift compensation algorithms embedded in all probe firmware, ensuring consistent accuracy across operating temperature (5–40 °C) and humidity (0–85% RH, non-condensing) ranges.
• Dual-mode analog output via optional MODEL 1592-0C modules: user-selectable 0–5 V (1 kΩ load) or 4–20 mA (250 Ω load) per channel; scalable to 144 total channels using up to 12 expansion units.
• Flexible power architecture: accepts AC 100–240 V or DC 12–24 V inputs; supports daisy-chained or isolated powering configurations for distributed sensor networks.
• Integrated USB Micro-B and serial interfaces enable direct connection to Windows 10 PCs without external drivers; firmware-upgradable via standard communication protocols.

Sample Compatibility & Compliance

The MODEL 1580-0C accommodates diverse sampling scenarios through its standardized probe interface and calibrated transducer options. Probes are certified for use in ISO Class 5–8 cleanrooms (per ISO 14644-1), pharmaceutical environmental monitoring (aligned with EU GMP Annex 1 and USP ), and academic airflow characterization per ASTM D1072 and ISO 7726. All probes undergo individual NIST-traceable calibration at Kanomax’s JIS Z 8401-certified facility in Japan, with calibration certificates including uncertainty budgets compliant with ISO/IEC 17025. The system meets CE marking requirements (EMC Directive 2014/30/EU, LVD Directive 2014/35/EU) and RoHS 2011/65/EU material restrictions. Data integrity features—including timestamped logging, non-volatile memory retention during power loss, and audit-ready configuration history—support GLP/GMP workflows requiring traceability under FDA 21 CFR Part 11.

Software & Data Management

The bundled Kanomax Environmental Monitoring Software (v3.x) runs natively on Windows 10 (64-bit) and supports real-time visualization of up to 144 channels when cascaded with multiple 1580-0C units and 1592-0C analog modules. The interface provides multilingual support (English, Japanese, Chinese) and enables per-channel parameter assignment—including unit conversion (m/s, ft/min, °C, °F, %RH), averaging interval (1 s to 1 hr), peak-hold capture, and statistical summary (min/mean/max). All raw and processed data export directly to .CSV or native Excel (.xlsx) formats with embedded metadata (probe ID, calibration date, operator name, location tag). The software implements role-based access control, electronic signature prompts for critical actions, and full audit trail logging—including configuration changes, calibration updates, and manual data edits—to satisfy regulatory documentation requirements.

Applications

• University and research laboratory studies on indoor air distribution, boundary layer development, and thermal plume behavior.
• Pharmaceutical facility qualification (IQ/OQ/PQ) of unidirectional airflow systems, isolators, and gloveboxes per EU GMP Annex 1.
• Electronics manufacturing cleanroom airflow mapping and ISO 14644-3 certification testing.
• Automotive cabin HVAC performance validation under transient thermal loads.
• Energy efficiency audits of commercial building ventilation systems per ASHRAE Standard 111.
• Microclimate analysis in museum conservation environments and agricultural growth chambers.

FAQ

What is the maximum number of probes supported by a single MODEL 1580-0C unit?

A single MODEL 1580-0C supports up to 12 probes simultaneously via its integrated serial bus.
Can the system operate continuously in high-humidity environments?

Yes—provided ambient humidity remains below 85% RH with no condensation, continuous operation is validated for up to 72 hours.
Is probe calibration traceable to national standards?

All probes ship with NIST-traceable calibration certificates issued by Kanomax Japan, compliant with ISO/IEC 17025.
Does the software support automated report generation for regulatory submissions?

Yes—the software includes customizable report templates compatible with FDA 21 CFR Part 11 and EU Annex 11 compliance frameworks.
What is the typical response time for low-velocity measurements?

At 1 m/s airflow under standard conditions (23 °C, 50% RH), the 0975-00 omnidirectional probe achieves 90% step response in ≤3 seconds.
