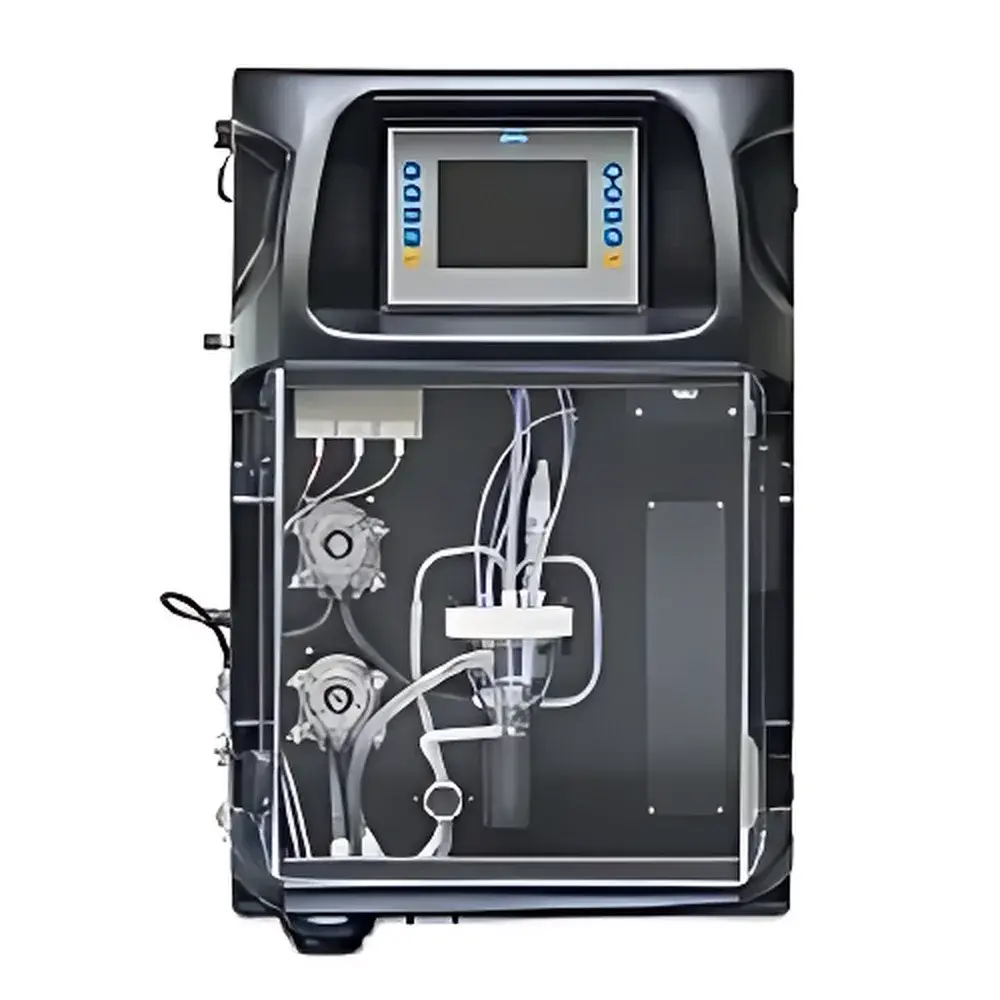

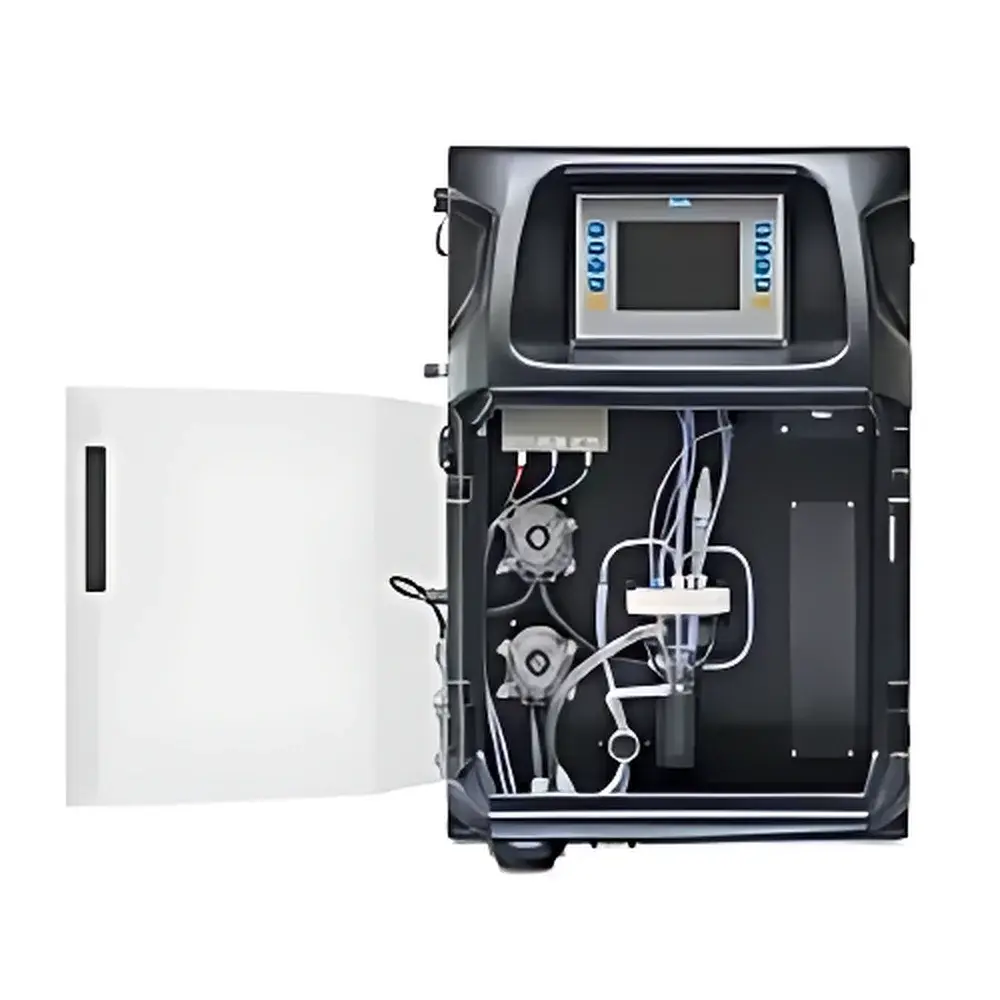

HACH EZ3500 Series Chloride Ion Analyzers
| Brand | HACH |
|---|---|
| Origin | Imported |
| Manufacturer Type | Manufacturer |
| Model | EZ3503, EZ3504, EZ3505 |
| Instrument Type | Online Chloride Analyzer |
| Measurement Range | EZ3503: 1–10 mg/L Cl⁻ |
| EZ3504 | 10–100 mg/L Cl⁻ |
| EZ3505 | 100–1,000 mg/L Cl⁻ |
| Detection Limit | ≤1 mg/L Cl⁻ |
| Response Time | 8 minutes |
| Accuracy | ≤2% F.S. (with certified standard solutions) |
| Operating Temperature | 10–30 °C |
Overview
The HACH EZ3500 Series Chloride Ion Analyzers are online, multi-range electrochemical analyzers engineered for continuous, reliable quantification of chloride ion (Cl⁻) concentration in industrial process water and wastewater streams. Based on the potentiometric principle using a selective chloride ion electrode coupled with an automated standard addition (spiking) technique, the EZ3500 series mitigates matrix interference—particularly from high ionic strength, variable pH, or presence of competing anions—common in real-world effluent and cooling water applications. Unlike conventional direct-potentiometric systems, the sequential batch-mode standard addition method enables dynamic calibration at each measurement cycle, delivering enhanced accuracy and long-term stability without manual recalibration. The system is designed for unattended operation in demanding plant environments, meeting functional safety and reliability requirements typical of ISO 9001-certified water treatment and chemical manufacturing facilities.
Key Features
- Automated batch-mode standard addition (spiking) methodology—ensures traceable, matrix-compensated chloride measurement across variable sample compositions.
- Three preconfigured range models (EZ3503, EZ3504, EZ3505) optimized for low-, mid-, and high-concentration applications—enabling precise resolution without signal saturation or dilution errors.
- Low-maintenance architecture with minimal reagent consumption (standard solution only); no pumps requiring frequent replacement or tubing prone to clogging.
- Integrated industrial panel PC with intuitive HMI interface for local configuration, real-time diagnostics, alarm management, and historical trend review.
- Flexible I/O options: 4–20 mA analog outputs (isolated), Modbus RTU/ASCII over RS-485, and optional Ethernet/IP or PROFINET for PLC integration.
- Scalable multi-channel capability—up to eight independent analysis channels housed in a single cabinet, reducing footprint and simplifying centralized monitoring of parallel process streams.
Sample Compatibility & Compliance
The EZ3500 series accommodates raw and treated wastewater, cooling tower blowdown, desalination brine streams, and chemical process effluents with turbidity up to 100 NTU and suspended solids <50 mg/L. It operates within a pH range of 4.0–10.0 and tolerates moderate levels of sulfide, bromide, and nitrate—provided interferences are assessed per ASTM D6508 (Standard Test Method for Determination of Anions in Water by Ion Chromatography) guidelines. All firmware and data handling comply with 21 CFR Part 11 requirements for electronic records and signatures when configured with audit trail logging. System design adheres to IEC 61000-6-2 (EMC immunity) and IEC 60529 IP54 enclosure rating for indoor industrial deployment.
Software & Data Management
The embedded analyzer software supports scheduled automatic verification (AV), drift compensation routines, and configurable pass/fail criteria for QC checks. Data is timestamped and stored locally for ≥30 days; export via USB or network transfer supports CSV and XML formats compatible with LIMS and SCADA platforms. Optional HACH Insight™ cloud service enables remote monitoring, predictive maintenance alerts, and secure role-based access control. Audit trails record all parameter changes, calibration events, and manual overrides—including operator ID, timestamp, and pre-/post-change values—satisfying GLP and GMP documentation standards.
Applications
- Wastewater treatment plants: Monitoring chloride ingress in biological nutrient removal (BNR) systems where elevated Cl⁻ inhibits nitrifying bacteria.
- Power generation: Controlling chloride in boiler feedwater and condensate return loops to prevent stress corrosion cracking (SCC) in stainless steel piping (per ASME B31.1 and EPRI guidelines).
- Chemical and petrochemical facilities: Ensuring chloride compliance in catalyst quench water and scrubber effluents prior to discharge or recycle.
- Food & beverage processing: Verifying rinse water quality and detecting salt carryover in CIP validation protocols.
- Desalination pretreatment: Tracking seawater or brackish feed variability to optimize antiscalant dosing and membrane protection strategies.
FAQ
What measurement principle does the EZ3500 use?
It employs potentiometric detection with an ion-selective chloride electrode combined with automated standard addition in a closed-loop batch sequence.
Can the EZ3500 be integrated into existing DCS or PLC systems?
Yes—via Modbus RTU/ASCII (RS-485), 4–20 mA analog outputs, or optional industrial Ethernet protocols including PROFINET and Ethernet/IP.
Is routine calibration required between standard additions?
No—the system performs in-situ calibration during each measurement cycle via spiking, eliminating need for daily manual calibration.
What is the minimum detectable chloride concentration?
The detection limit is ≤1 mg/L Cl⁻ under defined operating conditions (10–30 °C, pH 4–10, low turbidity).
How is data integrity ensured for regulatory reporting?
All measurements include digital timestamps, operator authentication, and immutable audit trails compliant with 21 CFR Part 11 when enabled.
