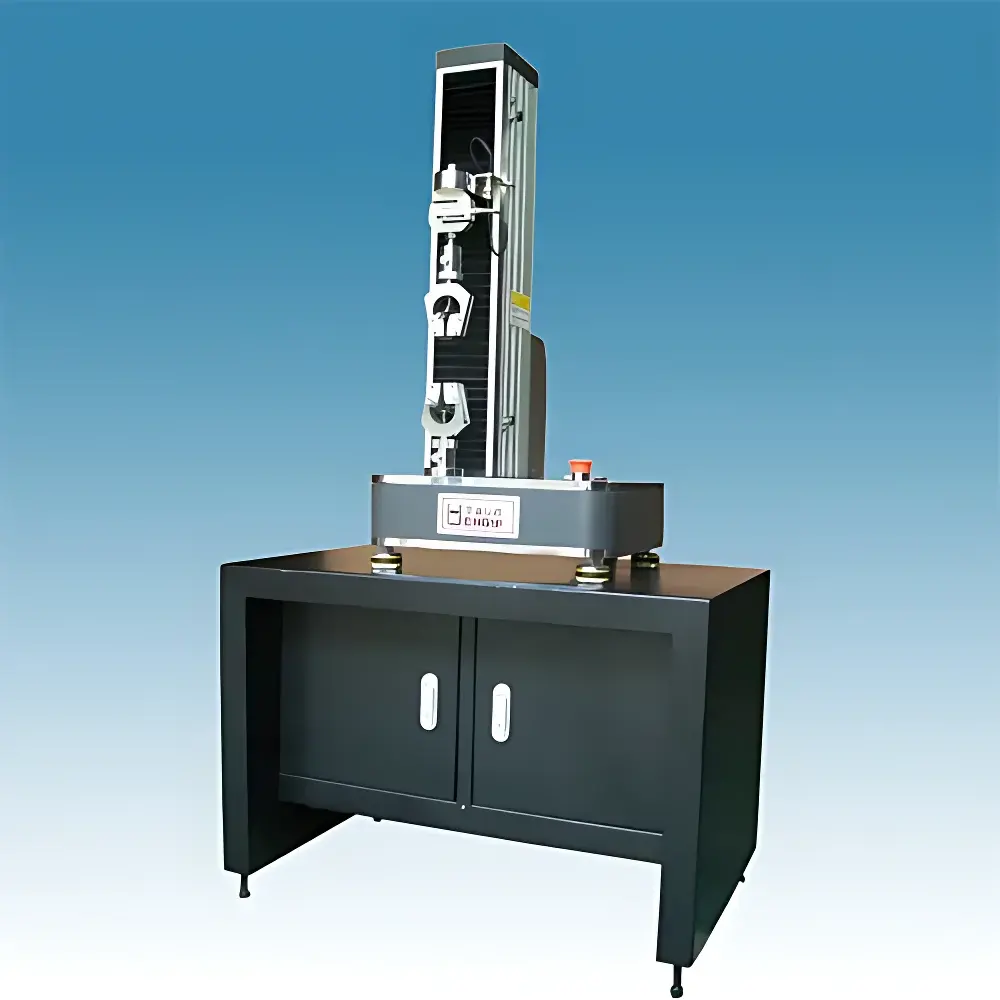

Hengyi HY-0580ASD Single-Column Electromechanical Tensile Testing Machine

Overview

The Hengyi HY-0580ASD is a precision-engineered single-column electromechanical tensile testing machine designed for static mechanical property evaluation of metallic and non-metallic materials under uniaxial loading conditions. It operates on the principle of servo-controlled linear actuation, where a high-fidelity load cell—calibrated to ISO 7500-1 Class 0.5 accuracy—measures applied force, while an optical encoder system tracks crosshead displacement with sub-micron resolution. The system supports quasi-static tension, compression, bending, peel, shear, and tear tests per internationally recognized test protocols. Its modular architecture accommodates standardized test fixtures and custom-designed grips, enabling reliable characterization of advanced laminates—including aluminum-titanium composite plates—as well as polymers, textiles, elastomers, composites, and thin-film substrates. The machine complies with structural and metrological requirements defined in GB/T 2611–2007, GB/T 16491–2008, and ISO 7500-1:2018, and its force measurement traceability aligns with national calibration standards maintained by CNAS-accredited laboratories.

Key Features

• Single-column rigid frame constructed from high-strength anodized aluminum alloy, minimizing thermal drift and mechanical hysteresis during extended testing cycles
• High-resolution load measurement system with ±0.5% full-scale accuracy across the entire 1 N–5 kN range; no internal range switching required
• Adjustable crosshead speed from 0.001 to 500 mm/min, with speed control stability maintained within ±0.5% of setpoint
• Dual-mode motion control: manual jog operation for rapid positioning and programmable automatic return to home position post-test
• Integrated electronic limit switches and overload protection (110% FS threshold), ensuring operator safety and hardware integrity
• Real-time monitoring of stress rate (0.005–6% FS/s) and strain rate (0.002–6% FS/s), with closed-loop feedback for precise ramp-and-hold testing
• Modular fixture interface compatible with ASTM E8, ISO 6892-1, GB/T 228.1, and ISO 178-compliant grips, including wedge-action clamps, bend supports, and peel fixtures

Sample Compatibility & Compliance

The HY-0580ASD accommodates specimens up to 120 mm wide and 800 mm effective travel height, supporting standard dog-bone, strip, and sheet geometries used in aerospace-grade Al–Ti laminate qualification. It meets mechanical and software validation criteria specified in GB/T 16852.1–2008 (equivalent to ISO 7500-1) for static uniaxial testing systems. The controller firmware supports audit-trail generation for GLP/GMP environments, and test data files are structured to comply with FDA 21 CFR Part 11 requirements when paired with validated software packages. All force transducers are factory-calibrated against primary standards traceable to NIM (National Institute of Metrology, China), and optional third-party certification to ISO/IEC 17025 is available upon request.

Software & Data Management

The system ships with HengyiTest v3.x control and analysis software, a Windows-based application supporting multi-step test programming, real-time curve overlay, and automated report generation in PDF or Excel formats. Raw data export includes time-stamped force, displacement, and calculated engineering stress–strain values at user-defined sampling intervals (down to 1 kHz). Software modules support statistical process control (SPC) charting, batch comparison, and pass/fail threshold evaluation per material specification sheets. For enterprise integration, optional OPC UA and TCP/IP interfaces enable bidirectional communication with MES or LIMS platforms. All test logs include metadata such as operator ID, environmental temperature/humidity (when connected to external sensors), calibration status, and instrument configuration history.

Applications

• Mechanical qualification of aluminum–titanium diffusion-bonded laminates per ASTM B577 and MIL-DTL-46027
• Tensile strength, yield strength, elongation at break, and Young’s modulus determination for polymer matrix composites (ISO 527-1)
• Bending stiffness and flexural strength testing of thin metallic foils and clad sheets (ISO 178)
• Peel resistance evaluation of adhesive bonds in multilayer packaging and aerospace bonding applications (ASTM D903)
• Compression testing of soft elastomers and cellular foams (ISO 3386-1)
• Quality assurance testing for fasteners, medical device components, and smart card substrates per ISO/IEC 7816-1

FAQ

What standards does the HY-0580ASD support out-of-the-box?

It natively implements test routines aligned with GB/T 228.1, ISO 6892-1, ASTM E8/E21, ISO 178, and GB/T 3923. Custom test methods can be scripted via the software’s macro language.
Is the system compliant with FDA 21 CFR Part 11?

Yes—when deployed with HengyiTest v3.x in validated configuration, it provides electronic signatures, audit trails, and role-based access control required for regulated environments.
Can the machine perform cyclic or fatigue testing?

No—the HY-0580ASD is designed exclusively for static and quasi-static loading. For dynamic or high-cycle fatigue applications, consider Hengyi’s HY-1000 series electrodynamic systems.
What maintenance is required for long-term accuracy?

Annual recalibration of the load cell and encoder system is recommended; routine verification using certified reference load standards should be performed before each testing shift.
Does the system support third-party transducers or extensometers?

Yes—via analog voltage input (±10 V) and digital RS-422 interfaces, enabling integration with clip-on extensometers meeting ASTM E83 Class B-1 specifications.
