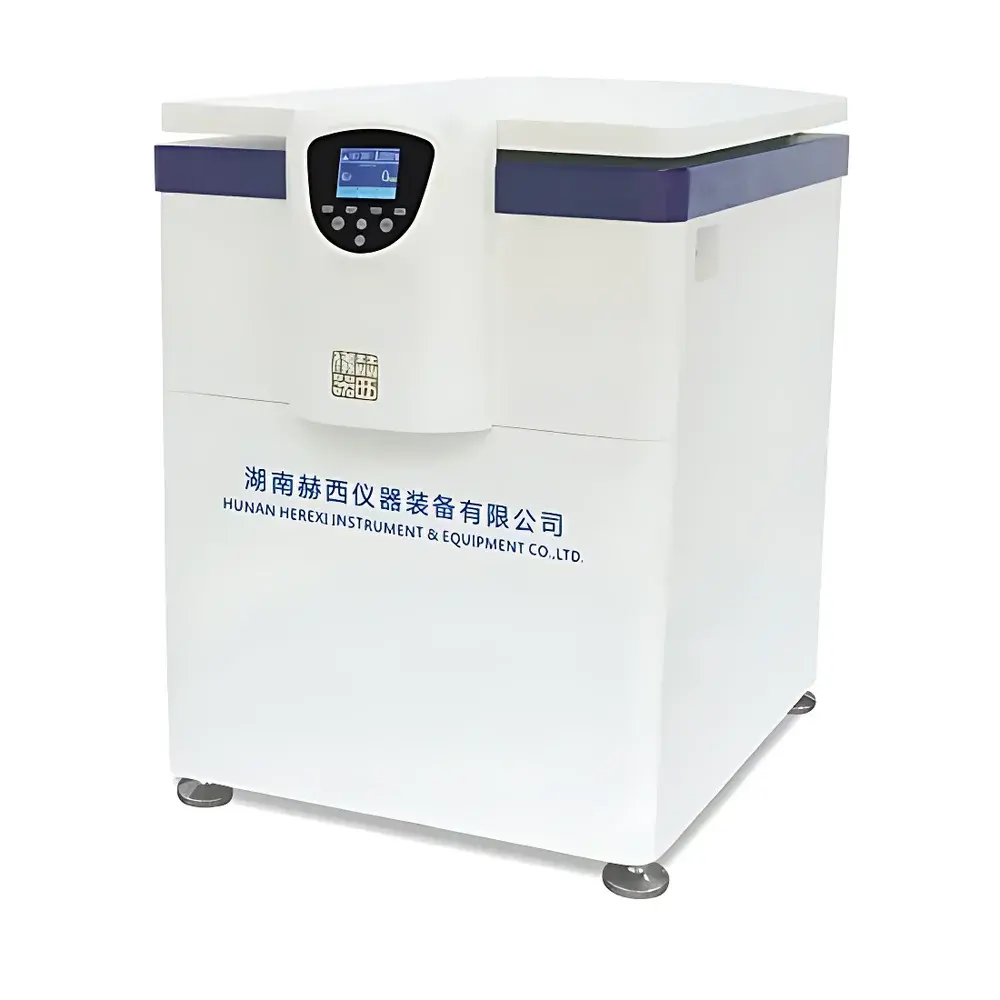

Hettich DD5M Vertical High-Capacity Refrigerated Centrifuge

Overview

The Hettich DD5M is a floor-standing, high-capacity refrigerated centrifuge engineered for routine and demanding separation tasks in clinical diagnostics, biopharmaceutical process development, blood banking, and academic life science laboratories. Designed around a robust AC brushless frequency-controlled motor and precision-engineered mechanical architecture, it delivers stable rotational performance at speeds up to 5,000 rpm with a maximum relative centrifugal force (RCF) of 4,800 × g—optimized for low-speed, high-volume applications such as cell pelleting, plasma separation, microbial harvesting, and large-scale buffer clarification. Its vertical configuration maximizes bench footprint efficiency while supporting heavy-load horizontal rotors. The unit operates within a precisely regulated temperature range of −20 °C to +40 °C, enabled by a sealed, non-ozone-depleting R404a refrigeration system compliant with EU RoHS Directive 2015/863. All thermal functions—including pre-cooling, standby temperature maintenance, and automatic defrost—are fully programmable and monitored in real time.

Key Features

• AC brushless motor with intelligent drive control ensures consistent torque delivery, low acoustic emission (<65 dB(A) at 5,000 rpm), and extended service life under continuous operation.
• Triple-stage composite damping system—including asymmetric spring mounts, elastomeric isolators, and dynamic counterbalance—minimizes vibration transmission and prevents sample resuspension during deceleration.
• TFT-LCD true-color touchscreen interface with dual-input support (touch + tactile keys) provides intuitive navigation, real-time display of both setpoints and actual values (speed, RCF, time, temperature, rotor ID), and on-the-fly parameter modification without interrupting the run.
• Electromechanical interlocked lid mechanism engages automatically upon closure, meeting IEC 61010-2-020 safety requirements for centrifuge door integrity and emergency stop responsiveness.
• Integrated silicone rubber sealing gasket on all biocontainment rotors complies with EU RoHS 2015/863, effectively containing aerosols generated during high-biomass centrifugation and protecting operator health and lab environment.
• Stainless steel (AISI 304) centrifuge chamber, powder-coated carbon steel outer housing, and reinforced triple-layer front shield meet structural durability standards for Class II biosafety environments.

Sample Compatibility & Compliance

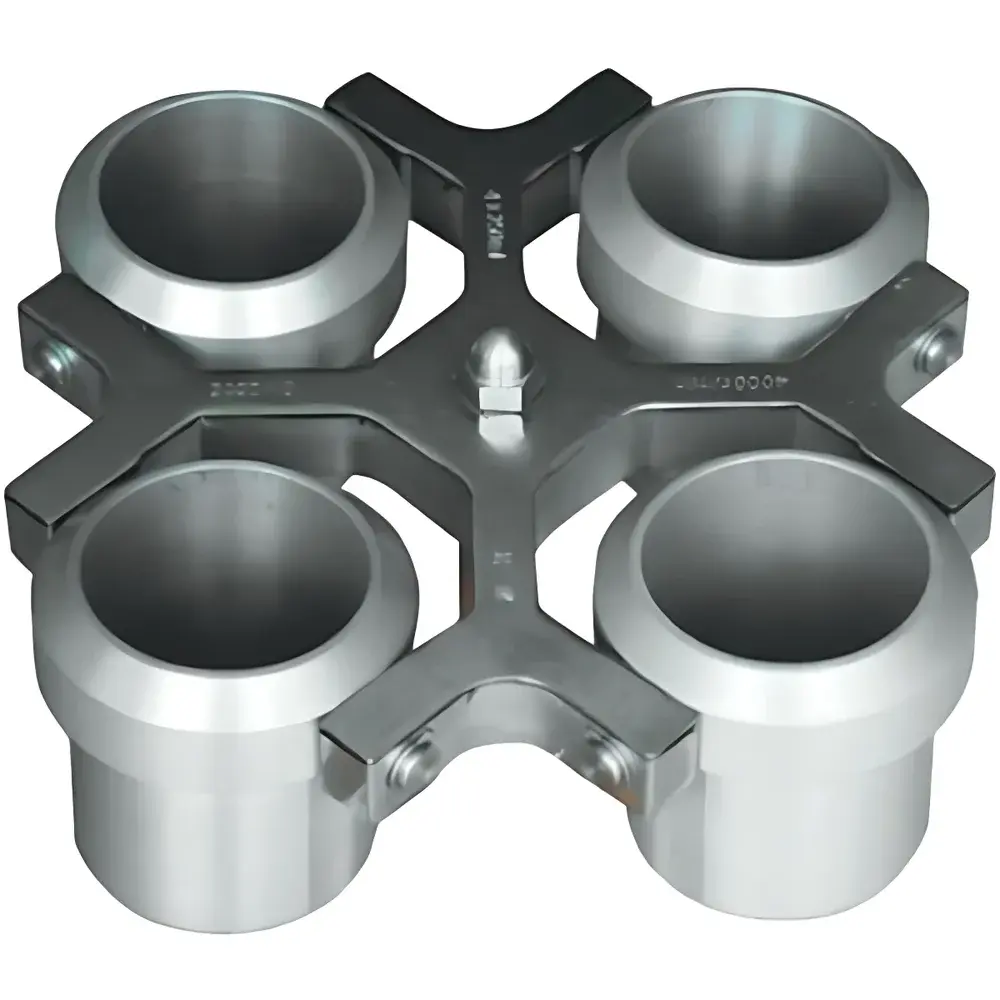

The DD5M supports standard horizontal swing-out rotors accommodating up to six 500 mL bottles or equivalent tube configurations (e.g., 12 × 50 mL, 24 × 15 mL). Rotor identification is verified via embedded RFID tags or manual selection to enforce speed–capacity pairing limits per ISO 21501-4 and IEC 61010-2-020. All operational parameters—including temperature setpoint, acceleration/deceleration profiles, and run duration—are traceable and auditable, supporting GLP/GMP-aligned workflows. The device carries CFDA registration as a Class II medical device and conforms to ISO 9001:2015 (Quality Management) and ISO 13485:2016 (Medical Devices), enabling integration into regulated quality systems requiring documented calibration, preventive maintenance, and change control.

Software & Data Management

While the DD5M operates as a standalone instrument, its firmware architecture supports audit-trail-enabled data logging compliant with FDA 21 CFR Part 11 principles. Each run generates a timestamped record including rotor ID, start/stop times, peak RCF, average temperature deviation, and alarm events. User-defined programs (up to 20 stored protocols) may be exported via USB port for cross-instrument consistency or backup. Firmware updates are performed offline using signed binary files, ensuring integrity and version control. Language localization includes English, Chinese, Russian, and Portuguese—facilitating multi-site deployment across international research consortia and contract manufacturing organizations.

Applications

• Clinical hematology: Whole blood fractionation into packed red cells, platelet-rich plasma (PRP), and platelet-poor plasma (PPP) at ≤4,000 × g.
• Vaccine manufacturing: Harvesting bacterial or yeast cultures prior to lysis and purification steps.
• Cell therapy: Gentle pelleting of mesenchymal stromal cells (MSCs) and peripheral blood mononuclear cells (PBMCs) without membrane damage.
• Environmental microbiology: Concentration of waterborne pathogens (e.g., Legionella, Cryptosporidium) from large-volume samples (up to 3 L per run).
• Bioprocess development: Clarification of clarified harvest streams in upstream biomanufacturing, particularly for mAb and viral vector production.

FAQ

What is the maximum permissible load imbalance tolerance for safe operation?
The DD5M features real-time imbalance detection calibrated to ±5 g per bucket at 5,000 rpm; automatic shutdown occurs if imbalance exceeds 10 g across opposing positions.
Can the centrifuge maintain temperature stability during extended runs?
Yes—the compressor-driven cooling system sustains ±1 °C uniformity across the entire rotor cavity for durations exceeding 120 minutes, validated per ISO 13485 Annex A clause 7.5.11.
Is rotor calibration required before first use?
No—factory-calibrated rotors include embedded identification and certified RCF curves; however, periodic verification against NIST-traceable tachometers is recommended annually.
Does the instrument support remote monitoring or network connectivity?
Not natively; the DD5M is designed for local operation only. Data export is limited to USB-stored CSV logs, aligning with cybersecurity best practices for isolated lab networks.
What documentation is provided for regulatory submissions?
Standard delivery includes Declaration of Conformity (DoC), ISO 13485 certificate, CFDA registration dossier summary, and full electrical safety test reports per IEC 61010-1 and IEC 61010-2-020.
