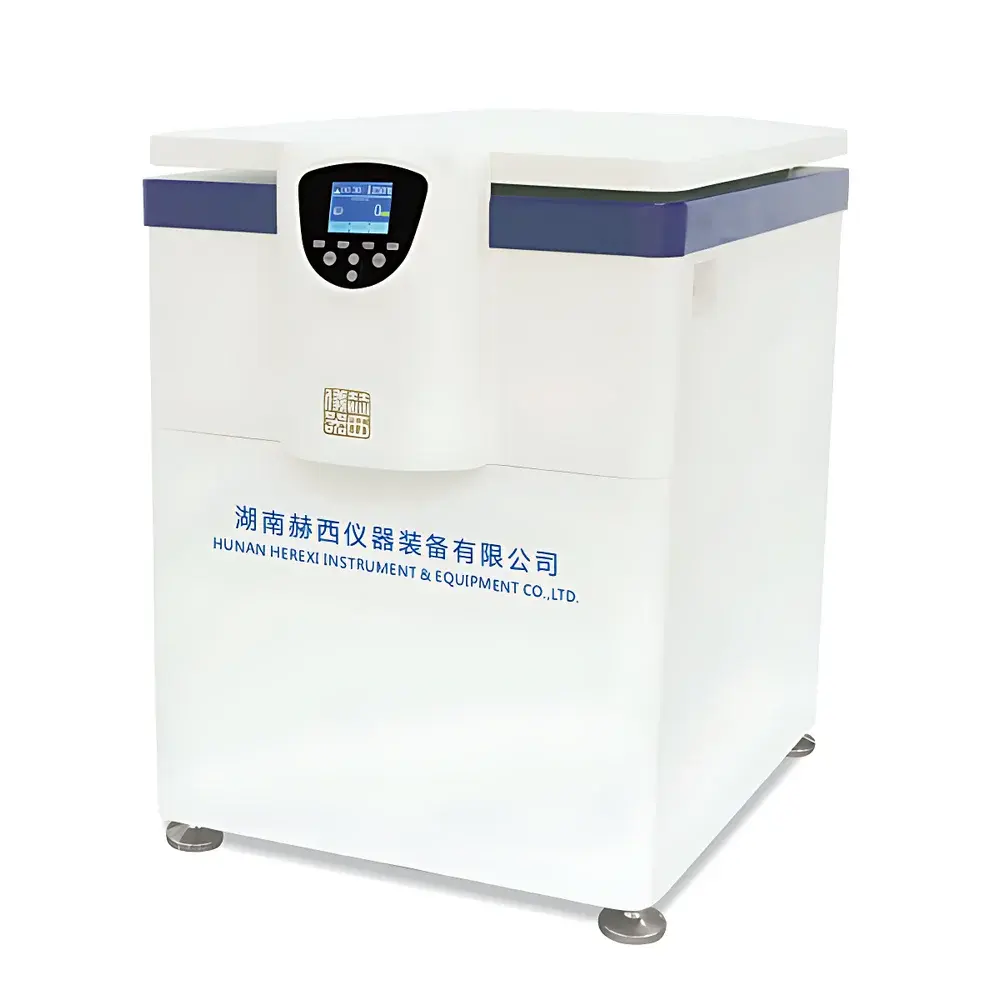

Hexion TL8R High-Capacity Refrigerated Floor-Standing Centrifuge

Overview

The Hexion TL8R is a high-capacity, refrigerated floor-standing centrifuge engineered for routine and demanding separation tasks in clinical diagnostics, biopharmaceutical processing, blood banking, and academic research laboratories. It operates on the principle of sedimentation under controlled gravitational force (RCF), where differential density and particle size enable efficient separation of cellular components, plasma, serum, viruses, organelles, and precipitated macromolecules. Designed for continuous operation in high-throughput environments, the TL8R integrates a robust AC brushless frequency-controlled motor with precision-engineered mechanical damping and a thermally stable refrigeration system—ensuring consistent rotor performance across extended run cycles and variable ambient conditions.

Key Features

• Refrigerated operation from −20 °C to +40 °C with real-time temperature adjustment during runs; equipped with pre-cooling, standby cooling, and automatic defrost functions
• High-efficiency refrigeration system using R404a refrigerant and a sealed, fluorine-free compressor compliant with international environmental standards
• TFT-LCD full-color touchscreen interface with bilingual (English/Chinese) and multilingual menu support (including Russian and Portuguese); dual-input mode enables intuitive parameter entry via touch or physical keys
• Dual-display capability showing both setpoints and real-time operational values—including speed (rpm), RCF (×g), time, temperature, and acceleration/deceleration status
• Programmable acceleration and deceleration profiles (10 steps each) to minimize sample disturbance and prevent resuspension of delicate pellets
• 20 user-defined protocol slots with editable rotor-specific parameters—including speed limits, temperature setpoints, and run duration
• Aerosol-tight biological safety design featuring an integrated silicone O-ring seal (RoHS 2015/863 compliant) for horizontal rotors, mitigating cross-contamination risks during high-speed operation
• Triple-stage vibration damping system combining hydraulic dampers, elastomeric mounts, and structural reinforcement to maintain rotor stability and extend bearing service life
• Motor-driven stainless-steel door lock with auto-engagement upon lid closure; meets mechanical interlock requirements per IEC 61010-2-020
• Stainless-steel 304 centrifuge chamber, powder-coated steel exterior, and triple-layer reinforced front panel for structural integrity and impact resistance

Sample Compatibility & Compliance

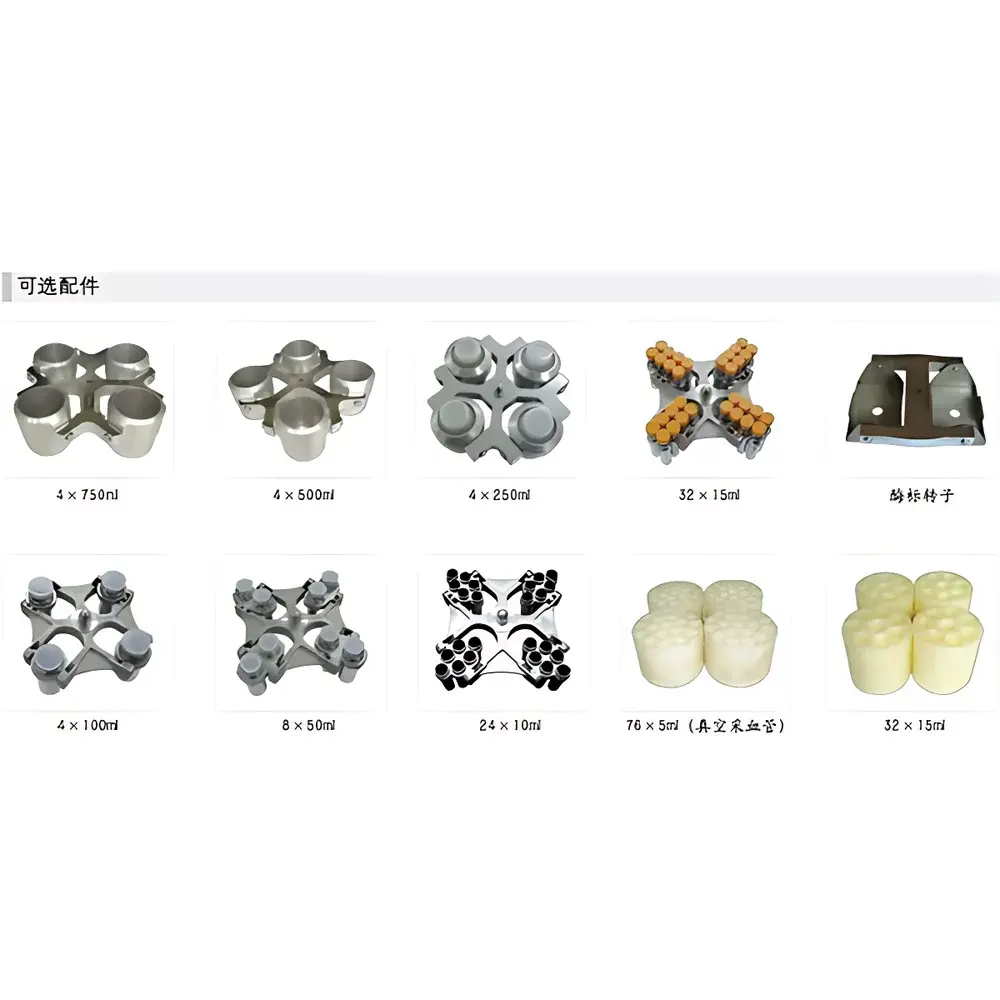

The TL8R accommodates standard 50 mL conical tubes, 100 mL bottles, and custom containers up to 750 mL per position when used with its standard horizontal rotor configuration (4 × 750 mL). Compatible with common laboratory plastics (polypropylene, polycarbonate) and glassware rated for ≥6,142 × g. All critical safety systems—including overspeed protection, thermal cutoff, imbalance detection, voltage monitoring, and rotor recognition logic—are independently validated and documented per ISO 13485:2016 quality management requirements for medical device manufacturers. The instrument carries CFDA registration and production license for Class II in vitro diagnostic equipment in China, supporting GLP-compliant workflows in regulated environments.

Software & Data Management

While the TL8R operates as a standalone unit without external PC connectivity, its embedded firmware supports full audit trail functionality for all user interactions—including parameter changes mid-run, program recalls, and emergency stops. Timestamped event logs are retained in non-volatile memory and accessible via service mode for internal QA review. Firmware updates are performed via secure USB interface with digital signature verification. The control architecture complies with fundamental principles outlined in FDA 21 CFR Part 11 regarding electronic records and signatures, enabling traceability and accountability in GxP-aligned laboratories.

Applications

• Whole blood fractionation into packed red cells, leukocyte-rich plasma, and platelet-poor plasma in transfusion medicine
• Clarification of cell lysates and purification of subcellular fractions (e.g., mitochondria, nuclei) in molecular biology workflows
• Large-volume pelleting of microbial cultures (E. coli, yeast) prior to downstream extraction or cryopreservation
• Preparative isolation of exosomes and microvesicles from biofluids using differential ultracentrifugation protocols
• Routine sedimentation of immunoassay reagents, antigen-antibody complexes, and latex agglutination suspensions
• Stabilization of temperature-sensitive samples—including enzyme preparations, viral vectors, and RNA-binding proteins—during prolonged centrifugation

FAQ

What is the maximum relative centrifugal force (RCF) achievable with the TL8R?
The TL8R delivers a maximum RCF of 6,142 × g at 8,000 rpm with the standard 4 × 750 mL horizontal rotor.
Does the TL8R support rotor auto-recognition?
No—rotor identification is manual via operator input; however, speed and temperature limits are enforced based on selected rotor type to prevent over-speeding.
Is the refrigeration system suitable for long-duration runs at low temperatures?
Yes—the compressor and heat exchange system are rated for continuous operation at −20 °C, with thermal load compensation algorithms preventing condensation buildup in the chamber.
Can the TL8R be integrated into a LIMS or laboratory automation platform?
Not natively; it lacks Ethernet, RS-232, or USB host interfaces for external command control. Data export is limited to on-device event logging.
What maintenance intervals are recommended for optimal performance?
Centrifuge chamber cleaning after each use; rotor inspection every 100 hours of operation; full service—including bearing lubrication and calibration verification—every 1,000 operating hours or annually, whichever occurs first.
