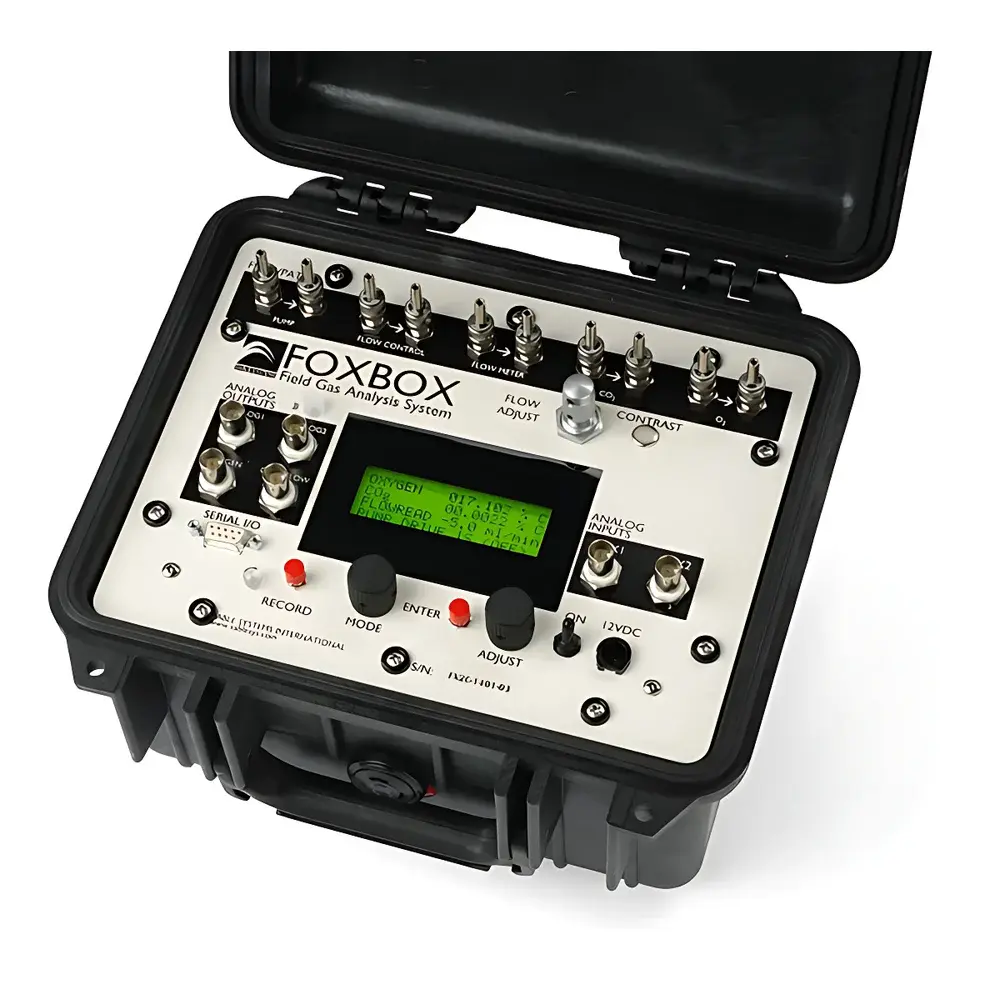

Sable FOXBOX Portable Terrestrial Animal Respirometry System

Overview

The Sable FOXBOX Portable Terrestrial Animal Respirometry System is a field-deployable, integrated open-flow respirometry platform engineered for precise, real-time quantification of oxygen consumption (VO₂) and carbon dioxide production (VCO₂) in terrestrial animals ranging from insects to rodents. It operates on the fundamental principles of differential gas analysis within a controlled, calibrated airflow circuit—enabling calculation of metabolic rate, respiratory exchange ratio (RER), and substrate utilization patterns. The system employs electrochemical fuel cell technology for O₂ detection and dual-wavelength non-dispersive infrared (NDIR) spectroscopy for CO₂ measurement—both methods validated for high specificity, low cross-sensitivity, and long-term stability under variable ambient conditions. Its compact, battery-compatible architecture supports both laboratory-based validation studies and remote field deployments, including ecological physiology, thermal biology, and behavioral energetics research.

Key Features

• Integrated dual-gas analysis: factory-calibrated fuel cell O₂ sensor (0–100% range, ±0.1% accuracy) and NDIR CO₂ sensor (0–5% range, ±1% accuracy), with drift compensation algorithms active during extended recordings.
• Microprocessor-regulated flow control: replaces obsolete rotameters with a closed-loop thermal feedback system linking a diaphragm pump and hot-wire flowmeter—ensuring stable, pressure- and temperature-insensitive flow delivery across 10–1700 mL/min.
• High-resolution data acquisition: 12-bit analog I/O, 4-line backlit LCD display showing concurrent O₂ %, CO₂ %, and volumetric flow (mL/min), updated at user-defined intervals from 0.1 seconds to 60 minutes.
• Onboard storage: 8,190 timestamped data points retained without external PC connection—critical for unattended field measurements or transport-limited setups.
• Modular expandability: supports optional external modules including MA-10 CH₄ analyzer (0–10%, 1 ppm resolution, barometric compensation), RH-300 relative humidity sensor (0.2–100% RH, 0.001% resolution), and high-capacity flow controller (250 mL/min–5 L/min) for larger mammals.
• Standardized interfacing: RS-232 serial output for integration with third-party DAQ systems; two BNC analog inputs for external sensors (e.g., thermistors, activity monitors); three BNC analog outputs (O₂, CO₂, and two configurable channels).

Sample Compatibility & Compliance

The FOXBOX accommodates a broad taxonomic and size spectrum: standardized glass insect chambers (20 mm Ø × 40 mm L, flame-polished, Viton® gaskets for minimal CO₂/H₂O permeability), custom-machined acrylic or aluminum chambers for reptiles and small mammals, and scalable configurations for voles, rats, and other medium-sized terrestrial vertebrates. All chamber materials are selected for low adsorption/desorption kinetics and inert surface chemistry—minimizing analytical artifacts in low-flux metabolic assays. The system conforms to foundational respirometry best practices outlined in ASTM E2577 (Standard Guide for Respirometric Measurements), supports GLP-aligned metadata tagging (time, temperature, flow, calibration status), and enables traceable audit trails when used with Sable’s Windows-based software suite compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures.

Software & Data Management

Sable Systems’ proprietary Windows application provides real-time visualization of gas concentration waveforms, flow profiles, and derived metrics (VO₂, VCO₂, RER). Data files are saved in ASCII-delimited format (.txt) for direct import into MATLAB, R, Python (Pandas), or commercial statistical packages. The software includes batch processing tools for baseline correction, drift subtraction, and time-windowed averaging—essential for circadian rhythm or post-exercise recovery analyses. Export options include CSV, Excel (.xlsx), and image-rendered plots (PNG, TIFF) with embedded scale bars and metadata headers. Firmware updates and sensor calibration logs are stored locally and synchronized with each dataset, satisfying institutional requirements for method transparency and reproducibility.

Applications

• Ecological energetics: field measurements of standard metabolic rate (SMR) and active metabolic rate (AMR) in ectotherms across thermal gradients.
• Nutritional physiology: determination of respiratory quotient (RQ) shifts during dietary transitions (e.g., carbohydrate vs. lipid oxidation) in rodent models.
• Toxicology and pharmacology: assessment of mitochondrial uncoupling or oxidative phosphorylation inhibition via acute O₂/CO₂ flux profiling.
• Conservation physiology: non-invasive metabolic phenotyping of endangered species during translocation acclimation or captive breeding programs.
• Neuroethology: coupling with video tracking or EEG to correlate locomotor activity bursts with transient increases in VO₂.
• Climate change research: multi-stressor experiments integrating temperature, hypoxia, and CO₂ exposure while monitoring real-time metabolic compensation.

FAQ

Can the FOXBOX be used for aquatic or semi-aquatic species?
No—the system is designed exclusively for terrestrial respirometry with air as the carrier gas. For aquatic organisms, Sable offers separate water-breathing configurations (e.g., AquaResp) with dissolved O₂ probes and CO₂-permeable membranes.
Is factory calibration traceable to NIST standards?
Yes—each O₂ and CO₂ sensor undergoes dual-point calibration using certified gas mixtures (NIST-traceable O₂ in N₂ and CO₂ in air), with calibration certificates provided per unit.
Does the system support automated chamber-switching for high-throughput screening?
Not natively—the FOXBOX is a single-chamber platform. Multi-chamber throughput requires integration with Sable’s MUX-8 multiplexer and external solenoid valve manifold, controlled via the same software interface.
What is the recommended recalibration interval under continuous lab use?
O₂ sensors require zero/span verification every 30 days; CO₂ sensors every 60 days. Drift-corrected field deployments exceeding 72 hours should include pre- and post-deployment calibration checks.
Can raw sensor voltages be logged independently of calculated metabolic rates?
Yes—the software allows logging of unprocessed analog signals (mV outputs from O₂/CO₂ sensors and flowmeter) alongside derived values, enabling custom algorithm development and method validation.
