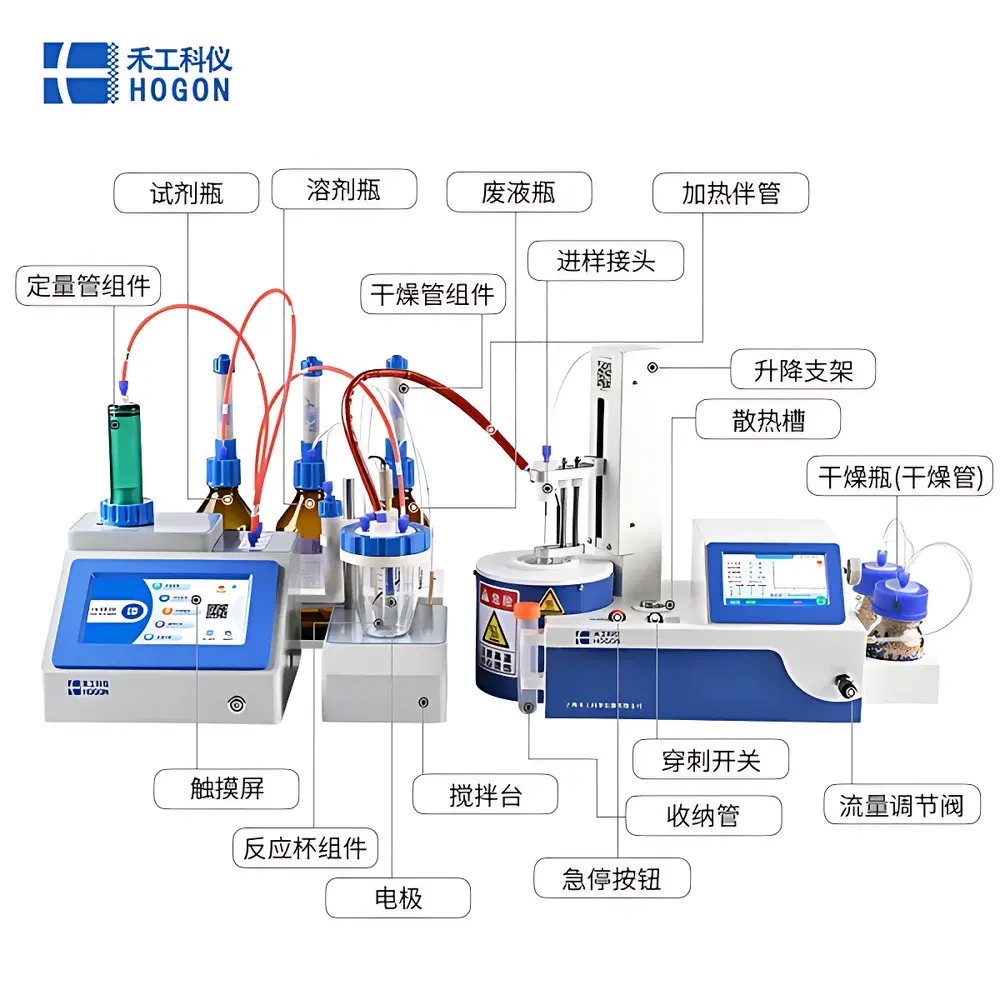

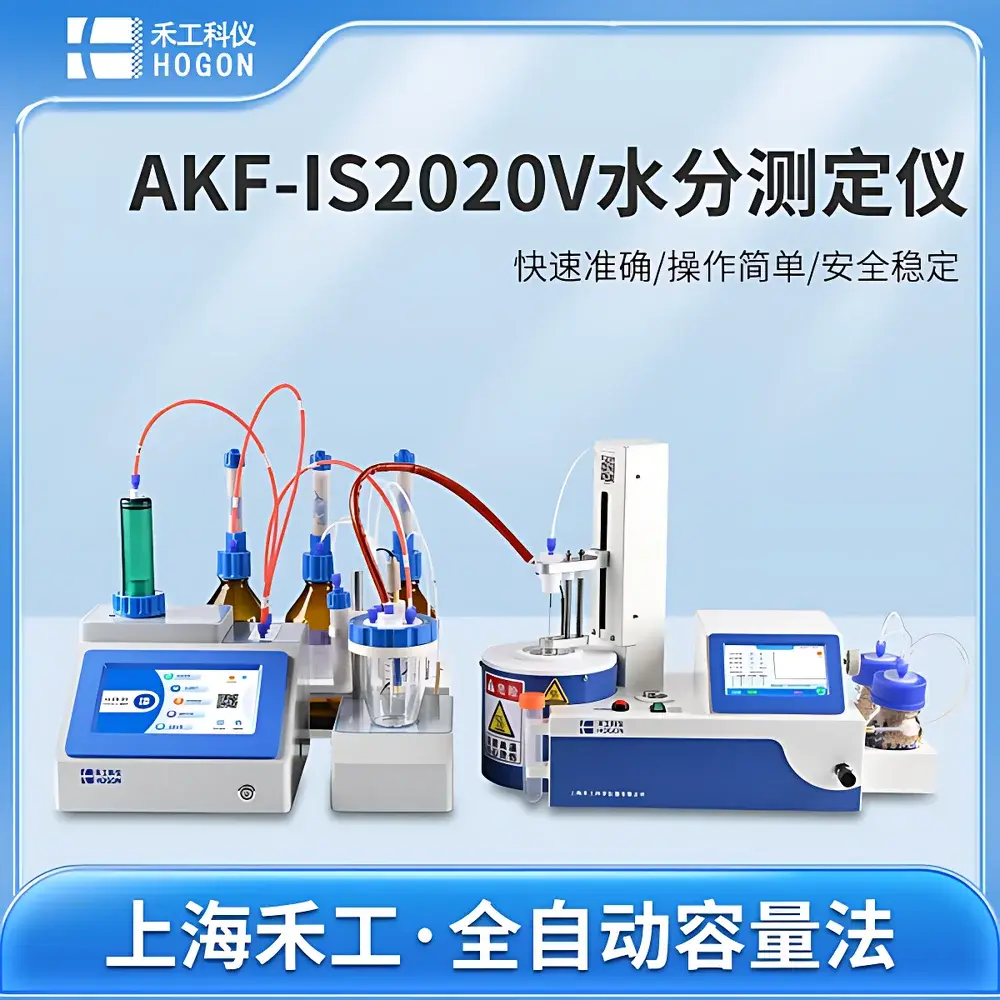

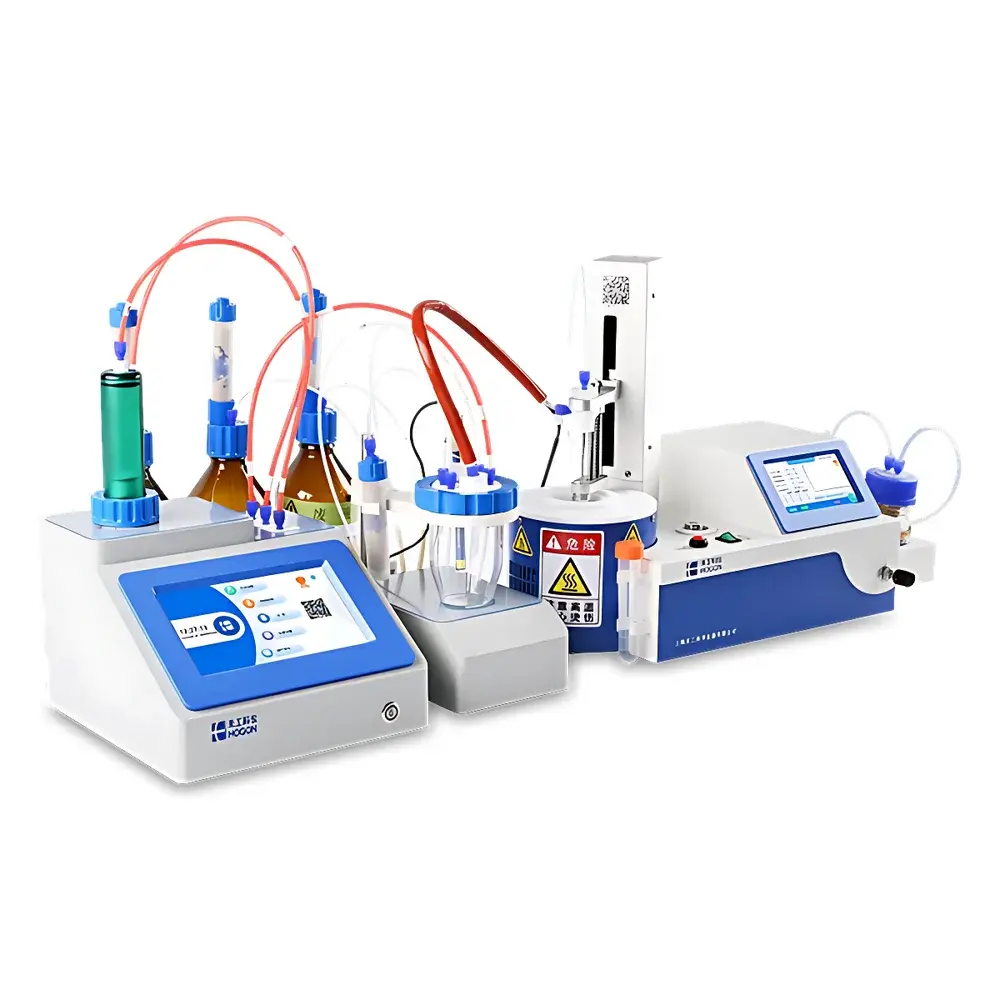

HOGON AKF-IS2020V Volumetric Karl Fischer Moisture Titrator

Overview

The HOGON AKF-IS2020V is a high-performance volumetric Karl Fischer (KF) moisture titrator engineered for precision, safety, and operational efficiency in regulated laboratory environments. It operates on the fundamental electrochemical principle of iodine-based redox titration—where water reacts stoichiometrically with iodine, sulfur dioxide, and a base in methanol medium—and quantifies moisture content by measuring the volume of standardized KF reagent consumed to reach a stable electrochemical endpoint. Unlike coulometric systems limited to trace-level analysis (<1000 ppm), the AKF-IS2020V excels across the full dynamic range—from ultra-trace (10 ppm) to hydrous matrices (100% w/w)—making it suitable for QC laboratories in pharmaceuticals, food & beverage, biologics, herbal medicine, polymers, and fine chemicals. Its dual-mode architecture supports both volumetric titration (primary mode) and optional coulometric configuration via firmware upgrade, ensuring method flexibility without hardware replacement.

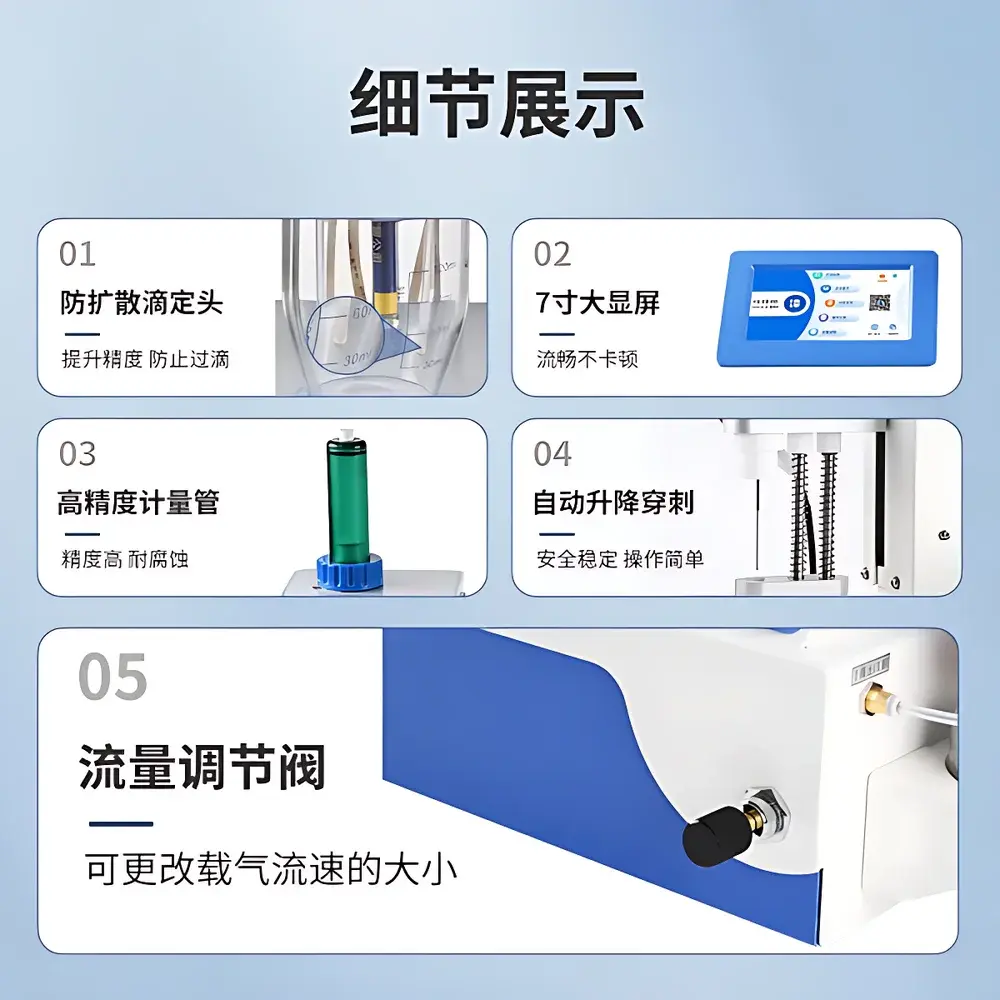

Key Features

• Fully automated titration sequence—including solvent conditioning, sample injection, endpoint detection, reagent dosing, and endpoint stabilization—reducing operator dependency and inter-user variability.
• Hermetically sealed titration cell with integrated desiccant drying tube and inert gas purge port minimizes ambient moisture ingress, ensuring baseline stability and low drift (<0.5 µg H₂O/min).
• Intelligent titration speed control dynamically adjusts delivery rate based on real-time polarization current response, enabling robust performance with diverse KF reagents (e.g., single-component, two-component, pyridine-free, or aldehyde-compatible formulations).
• Dual platinum indicator electrode with adjustable polarization voltage (0–120 mV) ensures reliable endpoint discrimination across complex matrices, including viscous, particulate-laden, or low-conductivity samples.
• High-accuracy syringe-driven burette system (±0.5 µL dispensing accuracy) with 10 mL and 20 mL interchangeable burettes accommodates both high-precision micro-titrations and routine macro-analyses.
• Self-diagnostic firmware continuously monitors critical subsystems (electrode impedance, pump actuation, cell voltage, reagent saturation), triggering audible/visual alerts and initiating protective shutdown if anomalies exceed predefined thresholds.

Sample Compatibility & Compliance

The AKF-IS2020V is validated for direct analysis of solid, liquid, and semi-solid samples—including hygroscopic powders (e.g., lactose, cellulose), thermolabile botanical extracts, lipid-rich foods (nuts, oils), polymer pellets, and lyophilized biopharmaceutical intermediates. Optional integration with the HOGON KF Heating Oven (sold separately) enables controlled thermal release of bound water from insoluble or matrix-entrapped samples (e.g., starches, clays, APIs with crystalline hydrates). All measurement protocols align with internationally recognized standards: ASTM E203 (Standard Test Method for Water Using Volumetric Karl Fischer Titration), ISO 760 (Determination of Water—Volumetric Method), USP “Water Determination”, European Pharmacopoeia 2.5.12, and Chinese National Standard GB/T 6283. The instrument’s audit trail, user access control, and electronic signature readiness support GLP and GMP compliance when configured per FDA 21 CFR Part 11 requirements.

Software & Data Management

The embedded touchscreen interface features an intuitive, icon-driven UI compliant with IEC 62304 software lifecycle standards. Each analysis automatically logs timestamp, operator ID, method name, sample ID, water mass (µg), % moisture, reagent consumption (mL), titration duration, endpoint voltage (mV), and raw polarization curve data. Up to 200 complete test records are stored locally with non-volatile memory retention. Data export is supported via USB drive in CSV and PDF formats—with embedded metadata (instrument serial number, firmware version, calibration history) for full traceability. Optional PC connectivity enables remote method deployment, centralized database synchronization, and LIMS integration using standard OPC UA or Modbus TCP protocols.

Applications

• Pharmaceutical QC: Quantification of residual solvents and hydrate water in active pharmaceutical ingredients (APIs) and excipients per ICH Q5C guidelines.
• Food Safety Labs: Rapid verification of moisture limits in dried fruits, infant formula, and cereal products to prevent microbial proliferation and ensure shelf-life compliance.
• Biotechnology: Accurate water content assessment in freeze-dried monoclonal antibodies, vaccines, and diagnostic reagents where hydration state directly impacts stability and potency.
• Materials Science: Moisture profiling of lithium-ion battery cathode materials (e.g., NMC, LFP) prior to cell assembly—critical for preventing HF generation and electrolyte decomposition.
• Academic Research: Method development for novel KF reagents, kinetic studies of water liberation from clathrates, and validation of alternative solvents (e.g., ethylene glycol dimethyl ether) for challenging substrates.

FAQ

What is the difference between volumetric and coulometric Karl Fischer titration?
Volumetric KF measures water content by delivering a standardized titrant solution from a burette; it is optimal for samples containing >100 ppm water. Coulometric KF generates iodine electrochemically at the anode and is preferred for trace-level analysis (<100 ppm). The AKF-IS2020V is volumetric-first but supports coulometric operation via optional module upgrade.
Can the instrument be used with non-pyridine reagents?
Yes—the adaptive titration algorithm and wide polarization voltage range (0–120 mV) ensure compatibility with modern pyridine-free reagents, including imidazole- and diethanolamine-based formulations, without recalibration.
How does the system handle samples that do not dissolve in methanol?
For insoluble or heterogeneous samples, the optional KF Heating Oven (model AKF-HOV-1) thermally releases bound water into the titration cell under nitrogen purge, enabling accurate determination without solvent dissolution.
Is method validation documentation provided?
HOGON supplies IQ/OQ documentation templates, linearity verification reports (r² ≥0.999), repeatability datasets (RSD ≤0.3%), and a comprehensive user manual aligned with ISO/IEC 17025 requirements for method transfer and regulatory submission.
What maintenance is required for long-term reliability?
Routine maintenance includes weekly electrode cleaning with ethanol, monthly drying tube replacement, and quarterly burette seal inspection. All consumables—including electrodes, drying tubes, and septa—are cataloged with OEM part numbers and available through global distribution partners.
