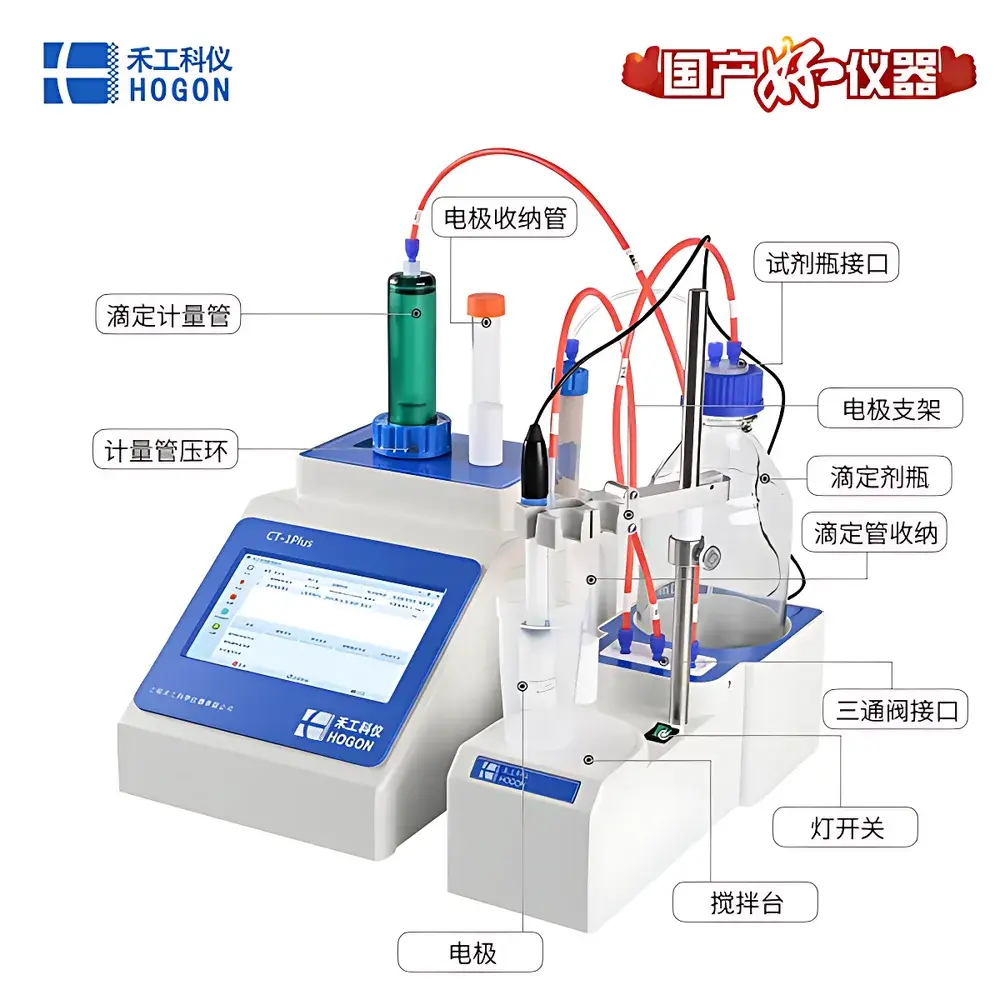

HOGON CT-1Plus Automated Colorimetric Titrator for High-Concentration Hydrofluoric Acid Analysis

Overview

The HOGON CT-1Plus is a purpose-engineered automated colorimetric titrator designed specifically for the safe, precise, and repeatable determination of high-concentration hydrofluoric acid (HF) solutions—commonly encountered in semiconductor wafer cleaning, glass etching, and fluorinated chemical synthesis. Unlike conventional potentiometric titrators that rely solely on electrode potential inflection, the CT-1Plus integrates a high-resolution digital camera module with real-time RGB color-space analysis and first-derivative (dE/dV) endpoint detection algorithms. This hybrid optical-electrochemical architecture enables robust endpoint identification in visually challenging matrices—such as pale-pink phenolphthalein transitions in highly acidic, low-transmittance HF samples—where traditional visual or potentiometric methods suffer from poor reproducibility and operator-dependent bias. The instrument operates on the principle of stoichiometric neutralization (e.g., HF + NaOH → NaF + H₂O), with endpoint defined not by a fixed pH threshold, but by the maximum rate of chromatic change in the indicator system—a method validated against ASTM E2087 and aligned with ISO 8655-6 for volumetric accuracy.

Key Features

• High-definition 5-megapixel CMOS camera with adjustable white balance and LED illumination control, enabling consistent color capture under variable ambient lighting conditions.
• Real-time CIELAB color space processing: monitors ΔE (total color difference) evolution during titrant addition; automatically identifies the inflection point where dE/dV reaches its global maximum.

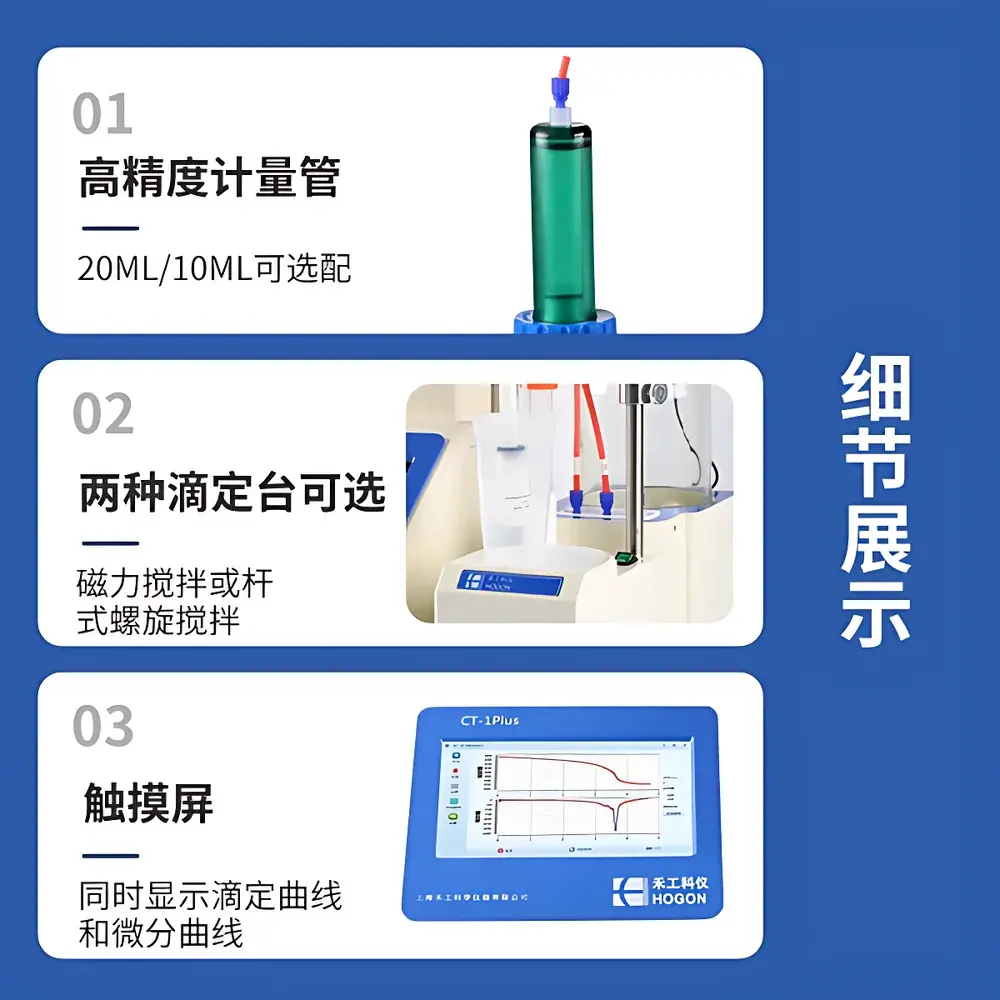

• Dual-burette configuration support: standard 20 mL glass burette (±0.001 mL precision per step) and optional 10 mL high-resolution burette (±0.0005 mL resolution) for sub-microliter dosing control.
• Integrated magnetic stirrer with programmable speed ramping (0–1200 rpm) to ensure homogeneous mixing without splashing or vortex-induced air entrapment—critical for viscous or volatile HF solutions.
• Chemically resistant fluid path: PTFE-coated syringes, ETFE tubing, and ceramic valve manifolds rated for continuous exposure to ≥40% w/w HF at 25°C.
• GLP-compliant audit trail: timestamped records of all user actions, method parameters, raw color data streams, and final calculation logs—fully traceable and exportable in CSV/PDF format.

Sample Compatibility & Compliance

The CT-1Plus accommodates aqueous HF solutions ranging from 5% to 48% w/w, as well as ammonium bifluoride (NH₄HF₂) and buffered HF mixtures used in precision etching baths. Sample volumes are configurable between 0.5 g and 5.0 g (via analytical balance interface), with automatic density compensation applied during %w/w calculation. All wetted materials comply with ASTM F2239 (fluoride-resistant polymers) and meet USP extractables testing requirements. The system supports 21 CFR Part 11-compliant electronic signatures when paired with HOGON’s optional LIMS integration module. Method validation documentation—including linearity (R² ≥ 0.999 over 5–45% HF), intermediate precision (RSD ≤ 0.12%, n = 6), and robustness testing against temperature (20–30°C) and humidity (30–70% RH)—is provided with each instrument shipment.

Software & Data Management

HOGON TitraSoft v3.2 firmware provides intuitive method creation via drag-and-drop workflow builder: users define sample weight input mode (manual entry or balance auto-read), titrant concentration, indicator type (phenolphthalein default), color sensitivity thresholds, and post-endpoint stabilization delay. All acquired images and derivative curves are stored with metadata (timestamp, operator ID, environmental sensor readings). Data export supports ASTM E1382-compliant .tdf files for third-party statistical analysis (e.g., JMP, Minitab). Remote monitoring and method push/pull are enabled via encrypted HTTPS API—compatible with enterprise Active Directory authentication and SIEM logging frameworks.

Applications

• Semiconductor manufacturing: In-line monitoring of BOE (buffered oxide etch) bath composition to maintain SiO₂ etch rate consistency within ±0.8 Å/min.
• Flat-panel display production: QC verification of HF-based etchants for ITO and metal oxide layer patterning.
• Fluorochemical synthesis: Batch release testing of anhydrous HF intermediates and fluorinating agents per ISO 12922.
• Environmental compliance labs: Quantification of residual HF in wastewater effluents prior to CaF₂ precipitation treatment.
• Academic research: Kinetic studies of HF-mediated desilylation reactions requiring millisecond-level endpoint resolution.

FAQ

Can the CT-1Plus be used for non-HF titrations?
Yes—it supports any colorimetric titration using standard indicators (methyl orange, bromothymol blue, etc.) and is field-upgradable to redox and precipitation modes via optional electrode modules.
Is calibration required before each HF analysis?
No. The optical system is factory-calibrated using NIST-traceable color standards; only routine verification with certified HF reference material (e.g., NIST SRM 3192) is recommended weekly.
How does the system handle turbid or colored HF samples?
The algorithm applies adaptive background subtraction using pre-titration baseline imaging and restricts analysis to the green channel (520–560 nm), minimizing interference from yellow/brown oxidation byproducts.
What safety certifications does the instrument hold?
CE marked per EN 61010-1:2019 (Laboratory Equipment Safety); conforms to IEC 61326-1:2013 for EMC in industrial environments; optional explosion-proof enclosure available for Class I, Division 2 hazardous locations.
Is remote software update supported?
Yes—over-the-air firmware updates are delivered via TLS 1.3-secured connection with SHA-256 signature verification and rollback capability.
