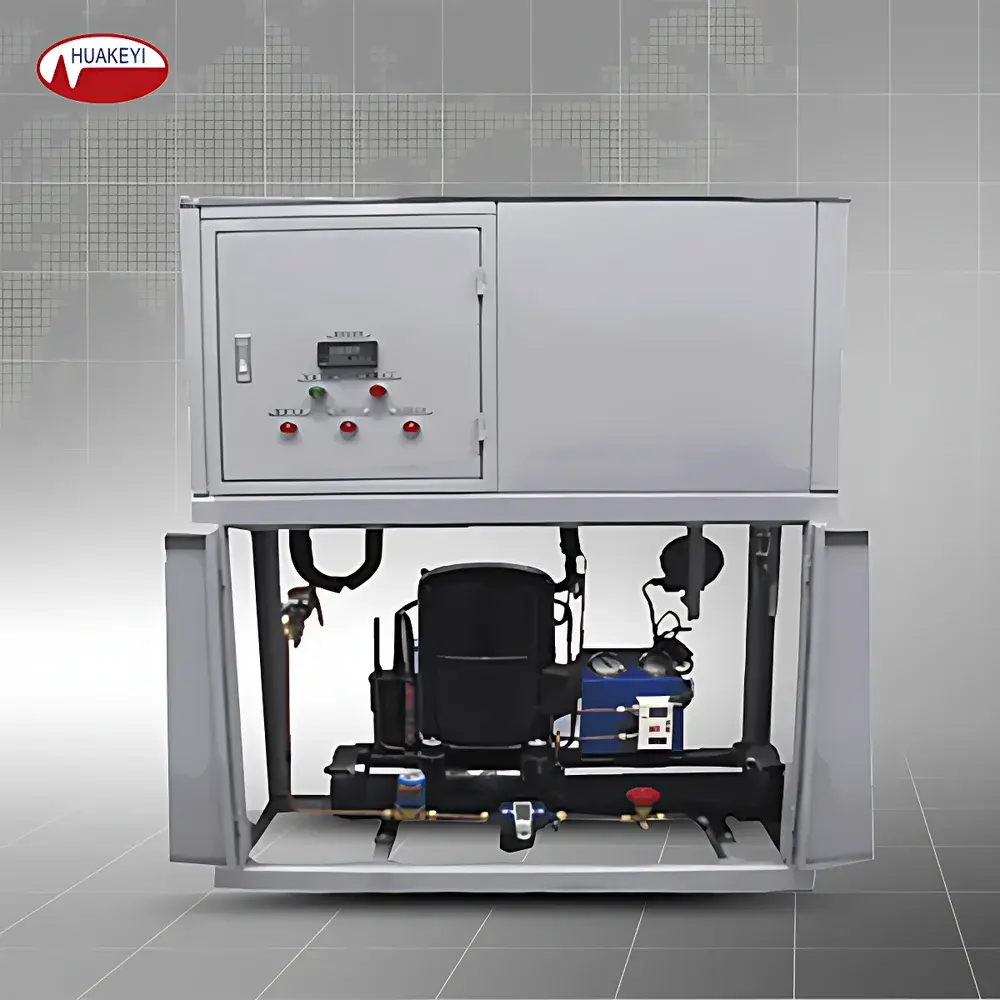

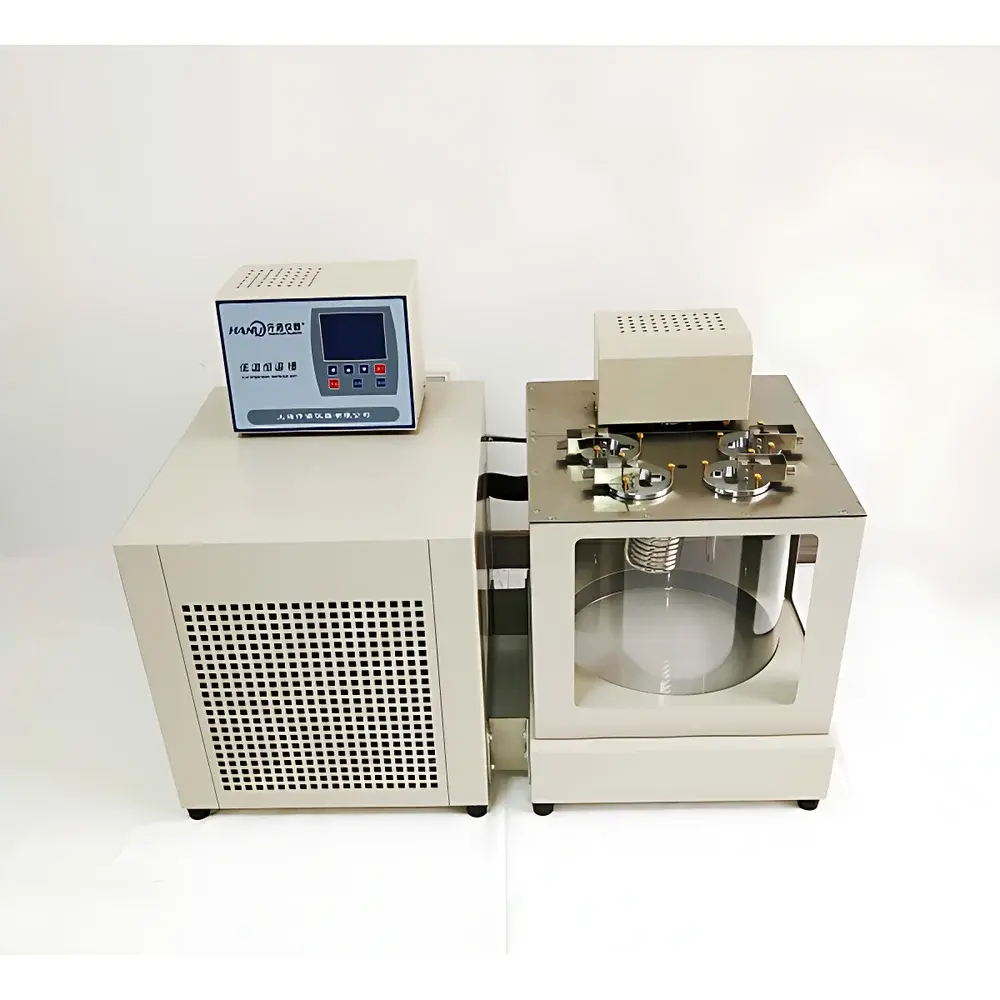

Huake Instrument HK-5200 Series Temperature-Controlled Sample Conditioning Unit

Overview

The Huake Instrument HK-5200 Series Temperature-Controlled Sample Conditioning Unit is a precision-engineered subsystem designed for continuous, high-reliability thermal conditioning of liquid process samples in power plant boiler water and steam cycle monitoring applications. It operates on the principle of active refrigerant-based heat exchange—utilizing a high-capacity vapor-compression refrigeration cycle—to maintain sample streams at a tightly controlled reference temperature of 25 ±1 °C. This precise thermal stabilization is critical for ensuring measurement integrity across online analytical instruments such as conductivity meters, dissolved oxygen analyzers, silica analyzers, and cation conductivity detectors—whose calibration and response characteristics are highly temperature-dependent. The unit is engineered to integrate seamlessly into steam-water sampling racks (SWR), serving as a central thermal conditioning node for up to 20 independent sample lines. Its rapid thermal response (<3 minutes to stabilize 0.35 metric tons of coolant) and uniform temperature distribution—enabled by a dedicated 12 L/h circulation pump and optimized internal flow hydraulics—meet the stringent operational continuity requirements of ISO 5667-3 compliant sampling systems and IEC 61511-aligned safety instrumented functions.

Key Features

• Industrial-grade, water-cooled imported compressor with integrated high-pressure and overcurrent protection—ensuring long-term reliability under continuous duty cycles in harsh plant environments.
• Patented helical-tube flow-type secondary cooler: enables independent adjustment of chilled coolant flow per sample path, compensating for variable inlet temperatures (≤40 °C) while guaranteeing uniform outlet temperature compliance (25 ±1 °C) across all channels.
• Modular control architecture: fully automated PLC-based controller housed in a separate NEMA 4X-rated enclosure; supports remote monitoring via 4–20 mA analog outputs and Modbus RTU/ASCII communication protocols.
• Digital temperature display with real-time setpoint tracking, deviation alarms, and configurable hysteresis—designed for integration into DCS or SCADA systems without proprietary software dependencies.
• Customizable mechanical configuration: frame dimensions, mounting orientation, and inlet/outlet port layout can be adapted to site-specific space constraints and piping schematics—subject to engineering review and ASME B31.1-compliant fabrication documentation.

Sample Compatibility & Compliance

The HK-5200 is validated for use with low-conductivity, high-purity water streams typical of drum boiler and supercritical once-through cycle systems—including feedwater, condensate, boiler water, and saturated steam condensate. It complies with ASTM D4582-22 (Standard Practice for Sampling High-Purity Water) and supports adherence to EPRI TR-102390 guidelines for online water chemistry monitoring. All wetted materials—including stainless steel 316L cooling coils, EPDM gaskets, and fluoropolymer-lined sample manifolds—meet USP Class VI and FDA 21 CFR Part 11 material compatibility requirements where applicable. The unit’s thermal stability performance satisfies the ±0.5 °C repeatability threshold specified in IEC 62282-3-100 for auxiliary instrumentation in safety-critical thermal power applications.

Software & Data Management

While the HK-5200 operates as a standalone hardware conditioning module, its embedded controller provides native support for audit-trail-enabled data logging when interfaced with third-party historian platforms (e.g., OSIsoft PI System, Emerson DeltaV DCS). Temperature setpoints, actual outlet readings, compressor runtime, and alarm events—including high-pressure cutout, low-flow detection, and thermal deviation exceedance—are timestamped with millisecond resolution and retained for ≥30 days onboard. Optional firmware upgrades enable TLS 1.2-secured MQTT publishing to cloud-based asset performance management (APM) systems, satisfying cybersecurity requirements outlined in NIST SP 800-82 Rev. 2 for industrial control system components.

Applications

• Continuous thermal conditioning of sample streams for online conductivity, pH, sodium, silica, and chloride analyzers in fossil-fueled and nuclear power generation facilities.
• Stabilization of high-temperature condensate prior to entry into cation conductivity cells—preventing thermal drift-induced false corrosion indication.
• Supporting ASTM D5119-compliant turbine oil sampling systems where viscosity-sensitive measurements require strict temperature control.
• Integration into distributed water chemistry monitoring networks compliant with IEEE 1626-2021 (Standard for Smart Grid Interoperability)
• Backup thermal conditioning for redundant analyzer trains in N+1 configured critical instrumentation loops.

FAQ

What is the maximum number of sample lines the HK-5200 can condition simultaneously?
The unit supports 1 to 20 independently regulated sample paths, with modular manifold options available for scalable channel expansion.
Does the HK-5200 meet ASME or PED pressure equipment directives?
The unit itself is not classified as pressure equipment under PED 2014/68/EU or ASME Section VIII Div. 1; however, its cooling water circuit is rated for ≤0.2 MPa operating pressure and supplied with full hydrostatic test certification.
Can the HK-5200 operate in ambient temperatures exceeding 45 °C?
Yes—the water-cooled compressor design ensures stable operation up to 50 °C ambient, provided cooling water supply meets specified flow (≤6 t/h) and inlet temperature (≤32 °C) limits.
Is calibration traceability provided with the unit?
A factory-issued NIST-traceable temperature verification report is included, covering the accuracy of the primary PT100 sensor and digital readout at 25 °C under load conditions.
What maintenance intervals are recommended for the refrigeration system?
Compressor oil analysis and refrigerant charge verification are recommended every 24 months; condenser coil cleaning and coolant filter replacement every 6 months under continuous operation.
