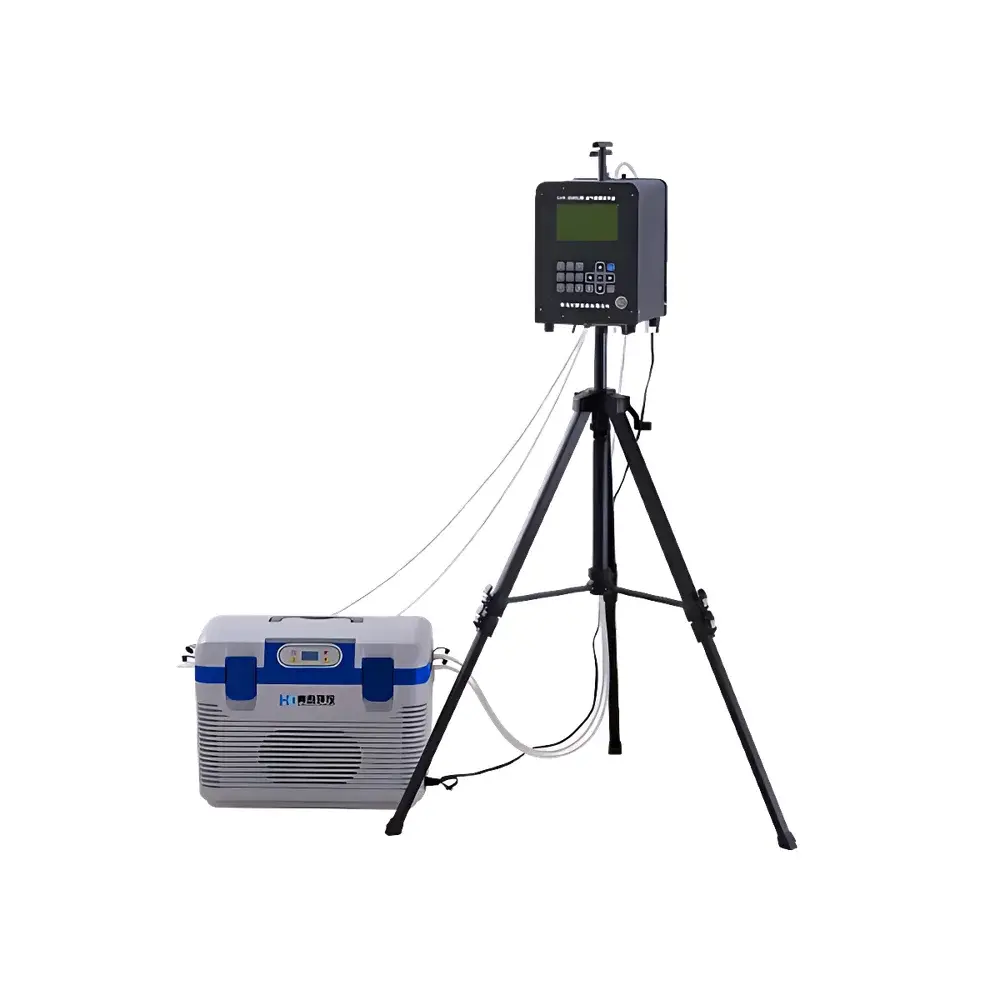

HUANKONG GHK-2000QA Dual-Channel Ambient Aldehyde and Ketone Air Sampler

Overview

The HUANKONG GHK-2000QA Dual-Channel Ambient Aldehyde and Ketone Air Sampler is a field-deployable, regulatory-compliant sampling system engineered for the quantitative collection of low-concentration carbonyl compounds—including formaldehyde, acetaldehyde, acetone, and other C1–C10 aldehydes and ketones—from ambient air and fugitive emission sources. It operates on the principle of solution absorption followed by high-performance liquid chromatography (HPLC) analysis, fully aligned with the methodology specified in HJ 1154–2020, the official Chinese Environmental Protection Standard for aldehyde and ketone determination in ambient air. The instrument integrates two independent, synchronized sampling channels—each equipped with precise mass-flow-controlled aspiration, real-time environmental parameter compensation (temperature, pressure, flow), and active thermal stabilization—to ensure analyte integrity during extended deployments. Its design prioritizes chemical stability of collected samples: absorption solutions (e.g., DNPH-coated cartridges or aqueous DNPH reagent) are maintained at a user-selectable constant temperature inside a light-shielded, insulated sample chamber, minimizing photolysis, volatilization, and oxidation losses.

Key Features

• Dual-channel constant-temperature and constant-flow sampling: Independent control of two parallel sampling lines, each with programmable flow setpoints (0.1–1.0 L/min) and ±2% flow accuracy under variable backpressure conditions.
• Integrated thermostatic sample chamber: Maintains absorption bottles or cartridges at stable temperatures (typically 4–25 °C) with optical shielding to prevent UV-induced degradation of carbonyl-DNPH hydrazones.
• Anti-backflow protection: Transparent desiccant bottle installed downstream of each absorption train prevents moisture ingress and absorption solution carryover into the pump head and gas circuitry.
• Intelligent flow monitoring and fault response: Continuous flow verification; automatic sampling suspension if deviation exceeds ±10% of setpoint for ≥5 minutes—ensuring data validity per QA/QC protocols.
• Real-time environmental parameter acquisition: Onboard sensors measure ambient temperature, atmospheric pressure, and differential pressure across the sampling train, enabling automatic standard-volume (STP: 273.15 K, 101.325 kPa) correction per ISO 5725 and EPA Method TO-11A conventions.
• Flexible sampling modes: Supports quantitative volume-based, immediate-start, clock-triggered, interval-based, and uninterrupted 24-hour continuous operation—ideal for compliance monitoring and source apportionment studies.
• Robust power architecture: High-capacity rechargeable Li-ion battery powers both main unit and thermostatic chamber simultaneously, supporting >8 hours of continuous dual-channel operation at 0.5 L/min.
• Field-hardened enclosure: IP54-rated housing with integrated rain/snow guard and operational range of −30 °C to +50 °C—validated for year-round deployment in diverse climatic zones.
• Low-noise, maintenance-free aspiration: Brushless DC diaphragm pump ensures >20,000 hours MTBF, minimal vibration transfer, and consistent performance across temperature extremes.

Sample Compatibility & Compliance

The GHK-2000QA is validated for use with standard DNPH-coated silica gel cartridges (e.g., EPA TO-11A), impingers containing acidic DNPH solution (per HJ 1154–2020), and alternative derivatization media compatible with post-sampling HPLC-UV or LC-MS quantification. All wetted materials (PTFE tubing, borosilicate glass impingers, stainless-steel fittings) are inert to carbonyls and acidic reagents. The system meets functional requirements of HJ 1154–2020, GB/T 15438–1995 (ambient air formaldehyde), and supports alignment with international frameworks including ISO 16000-3 (indoor air), ISO 16017-1 (volatile organic compounds), and EU Directive 2008/50/EC Annex IX (formaldehyde monitoring). Data logging complies with GLP traceability standards, including time-stamped event records and audit-ready metadata export.

Software & Data Management

On-device LCD interface enables intuitive configuration of sampling parameters, calibration checks, and real-time status monitoring. The instrument logs up to 200 complete sampling events—including start/stop timestamps, cumulative volume, mean flow rate, temperature/pressure readings, and error flags—with full metadata retention. Data export is supported via USB flash drive in CSV format for integration into LIMS or statistical analysis platforms (e.g., R, Python pandas). Firmware supports firmware update via USB and includes configurable auto-backup upon power interruption. While no proprietary PC software is bundled, raw data files conform to ASTM E2500-21 structured reporting guidelines for instrument-generated records.

Applications

• Ambient air quality monitoring networks (urban, rural, background stations)
• Fugitive emission characterization at petrochemical facilities, paint manufacturing plants, and resin production sites
• Indoor air quality assessments in schools, hospitals, and newly renovated buildings
• Method validation and inter-laboratory comparison studies under CNAS or CMA accreditation scopes
• Source testing for compliance with local VOC emission limits (e.g., DB11/122–2023, Shanghai DB31/1025–2017)
• Research on atmospheric carbonyl chemistry, secondary organic aerosol (SOA) formation, and ozone precursor profiling

FAQ

Does the GHK-2000QA support flow calibration traceable to national standards?
Yes—each unit is factory-calibrated using NIST-traceable primary flow standards, and includes a built-in calibration mode for field verification with a certified bubble meter or electronic calibrator.
Can the thermostatic chamber accommodate standard 10-mL and 25-mL impingers simultaneously?
Yes—the chamber interior is dimensioned to hold two 25-mL impingers side-by-side or four 10-mL impingers in staggered orientation, with secure silicone gasket mounts.
Is the data logger compliant with FDA 21 CFR Part 11 requirements?
No—the device does not implement electronic signatures or role-based access control; however, its CSV output format and immutable timestamping support manual audit trails required under GLP/GMP-aligned workflows.
What maintenance intervals are recommended for the brushless pump and desiccant bottles?
Pump requires no scheduled maintenance; desiccant bottles should be replaced when silica gel transitions from blue to pink (typically every 5–10 sampling days under high-humidity conditions).
Is external power supply included, and what are its specifications?
A universal AC adapter (100–240 VAC, 50/60 Hz, output: 24 VDC/3 A) is supplied; optional 12 VDC vehicle adapter available for mobile monitoring campaigns.
