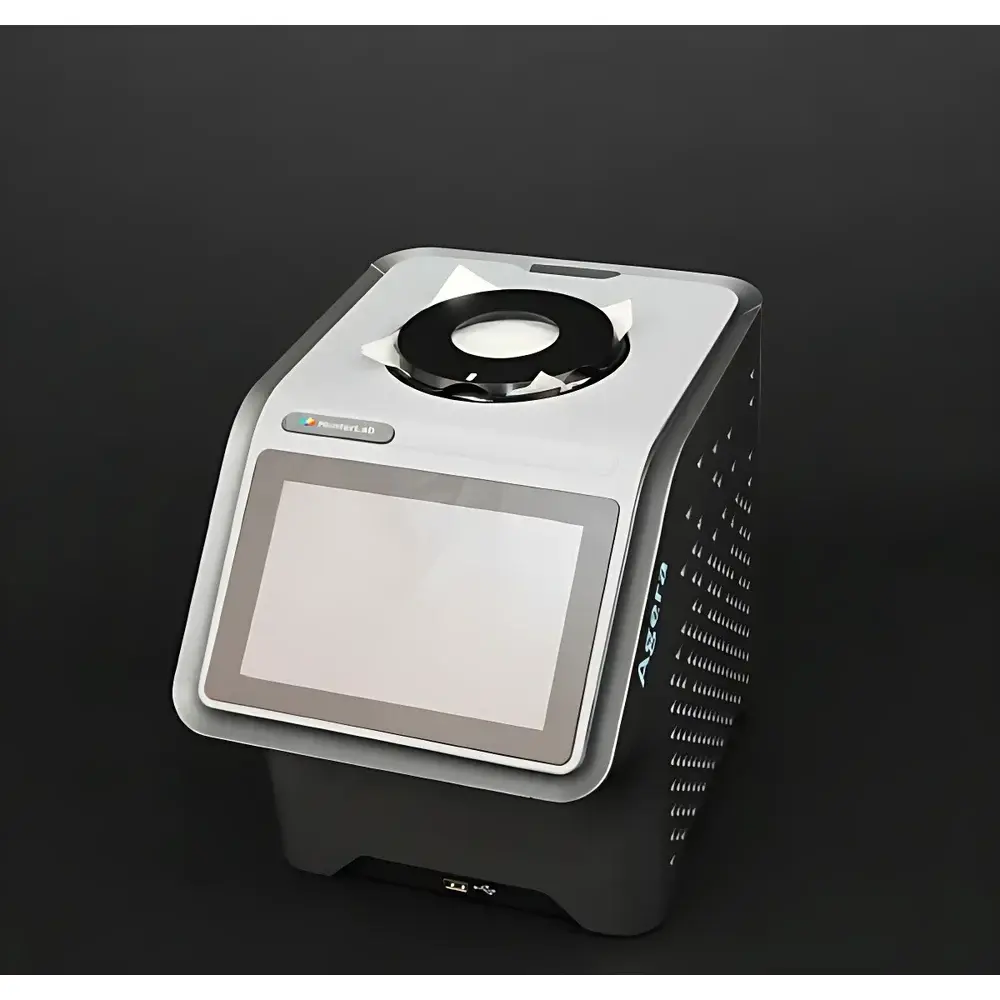

HunterLab Agera Titanium Dioxide Color Measurement System

Overview

The HunterLab Agera Titanium Dioxide Color Measurement System is a purpose-engineered benchtop spectrophotometer optimized for precise, repeatable color and appearance characterization of titanium dioxide (TiO₂)-rich materials—including pigment dispersions, masterbatches, coatings, and powdered formulations. Unlike general-purpose colorimeters, the Agera integrates CIE-compliant 0°/45° annular illumination geometry with a dual-beam integrating sphere architecture to emulate human visual assessment under standardized viewing conditions while eliminating directional bias inherent in textured or anisotropic samples. Its optical design ensures high angular tolerance and minimal inter-instrument agreement deviation—critical for TiO₂ batch release testing where metamerism, scattering efficiency, and surface reflectance uniformity directly impact product performance. The system operates across the visible spectrum (400–700 nm) with full-spectrum balanced LED illumination, enabling accurate quantification of both reflectance-based colorimetric parameters (L*, a*, b*, ΔE*ab) and appearance attributes such as gloss and surface texture correlation.

Key Features

• 0°/45° annular optical geometry with dual-beam integrating sphere—designed to minimize sample orientation effects and deliver metrologically traceable results per CIE 15:2018 and ASTM E308.
• Full-spectrum LED light source with stable spectral power distribution (SPD), ensuring long-term photometric consistency without lamp replacement or warm-up delays.
• Integrated 60° gloss sensor compliant with ASTM D523 and ISO 2813; provides simultaneous gloss and color data in a single measurement cycle.
• 5-megapixel coaxial camera with calibrated 45° full-spectrum illumination enables real-time sample positioning verification and archival of true-field-of-view images linked to each measurement record.
• Three fixed apertures (50.8 mm, 25.4 mm, 15.89 mm) accommodate diverse sample formats—from bulk powders and granules to small-area coated panels—without mechanical recalibration.
• Industrial-grade 7-inch capacitive touchscreen interface (1280 × 800 resolution) running embedded EasyMatch Essentials software—eliminates dependency on external PCs for routine operation and basic QC reporting.

Sample Compatibility & Compliance

The Agera system is validated for use with heterogeneous, high-scatter, and non-planar samples commonly encountered in TiO₂ pigment manufacturing and quality control workflows—including dry powders, wet slurries, extruded pellets, injection-molded parts, and spray-coated substrates. Its intelligent auto-height sensing mechanism adjusts the measurement head to optimal focal distance, compensating for variable sample thickness and surface topography. All optical components are sealed against dust and particulate ingress, supporting deployment in production environments per IP54-rated enclosure specifications. The instrument’s measurement algorithms conform to ISO 11664 (CIE colorimetry standards), ASTM D2244 (color difference calculation), and ISO 13655 (spectral measurement geometry). Optional 21 CFR Part 11 compliance package includes audit-trail logging, electronic signature enforcement, role-based access control, and secure data export—enabling regulatory alignment in pharmaceutical excipient and food-grade TiO₂ applications.

Software & Data Management

Embedded EasyMatch Essentials provides a complete, self-contained quality control environment with preconfigured methods for TiO₂-specific indices including Yellowness Index (YI E313), Whiteness Index (WI CIE), Tinting Strength (TS), and hiding power estimation via contrast ratio. Users may define custom pass/fail tolerances, multi-parameter control charts, and workflow-driven measurement sequences without coding. Data export supports CSV, PDF, XML, and industry-standard CxF/XRGA formats. Network connectivity options—Ethernet, Wi-Fi, Bluetooth, USB OTG, and SMTP email—enable seamless integration into LIMS, MES, or ERP platforms. Remote diagnostics and firmware updates are supported via HunterLab’s secure cloud portal, reducing downtime and enabling just-in-time technical support without on-site service visits.

Applications

• Batch-to-batch consistency verification of rutile/anatase TiO₂ pigments during final packaging and dispatch.
• Quantitative assessment of optical performance in TiO₂-loaded plastics, paints, inks, and cosmetics—correlating color, gloss, and particle dispersion homogeneity.
• Stability monitoring of TiO₂ suspensions under accelerated aging conditions (e.g., UV exposure, thermal cycling).
• Raw material qualification against supplier specifications using multi-point spectral comparison and PCA-based outlier detection.
• Root-cause analysis of color drift in downstream processing—linking spectral deviations to changes in calcination temperature, surface treatment, or milling parameters.

FAQ

Is the Agera system suitable for measuring titanium dioxide in powder form?
Yes—the instrument’s auto-height sensing, large-aperture options, and diffuse 0°/45° geometry are specifically designed for reproducible measurements of loose powders, granules, and compressed cakes without compaction or dilution.
Does it support fluorescence correction for TiO₂ samples containing optical brighteners?
While the standard Agera model covers 400–700 nm, UV-enabled variants (with selectable 360–400 nm excitation) are available for accurate fluorescence compensation in whitened formulations.
Can measurement data be integrated into our existing laboratory information management system (LIMS)?
Yes—via Ethernet or Wi-Fi, the Agera exports structured data in CSV, XML, and CxF formats compatible with major LIMS vendors; API-level integration is supported through HunterLab’s Developer Toolkit.
What calibration standards are included and how often must they be renewed?
Each unit ships with NIST-traceable white ceramic and black glass calibration tiles; annual verification is recommended, with optional factory recertification services available.
Is remote software update and troubleshooting supported?
Yes—HunterLab’s SecureConnect feature enables authenticated remote access for firmware updates, diagnostic logging, and guided operator training sessions—all compliant with ISO/IEC 27001 information security protocols.
