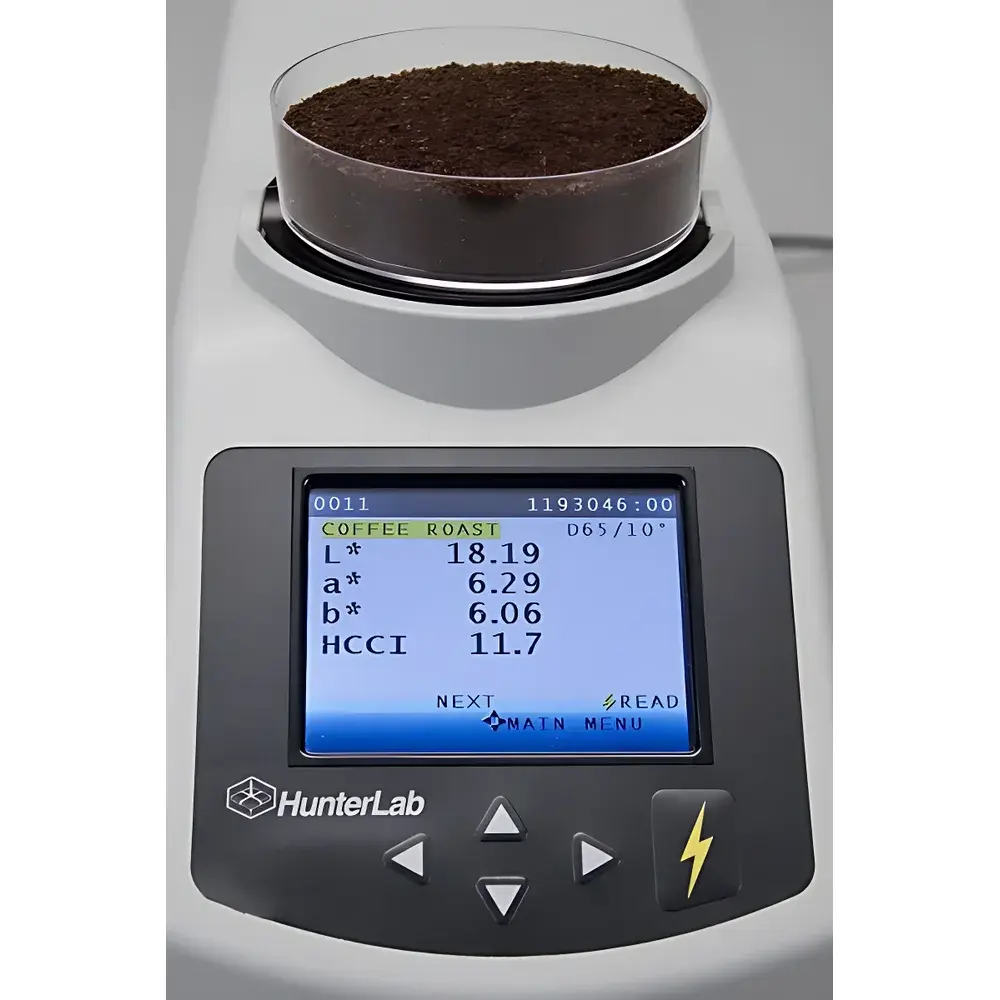

HunterLab ColorFlex Coffee Desktop Colorimeter

Overview

The HunterLab ColorFlex Coffee is a purpose-engineered benchtop colorimeter designed exclusively for objective, repeatable quantification of roasted coffee color across the full spectrum of processing stages—from green bean pre-roast reference through drum roasting, grinding, freeze-drying, and final packaging. Unlike general-purpose spectrophotometers or tristimulus meters, this instrument implements a validated 45°/0° annular illumination geometry—where light is delivered at 45° in a ring configuration and reflected color is collected perpendicularly at 0°—a configuration rigorously correlated with human visual assessment under standardized viewing conditions (CIE 15:2018, ASTM D2244). This optical architecture eliminates directional bias from surface texture and gloss, delivering high reproducibility for heterogeneous particulate samples such as ground coffee, instant granules, and agglomerated powders. The pulsed xenon lamp provides stable, daylight-simulated illumination (D65 equivalent) across the visible spectrum (400–700 nm), ensuring spectral fidelity without thermal drift or lamp aging artifacts common in tungsten-halogen sources.

Key Features

• 45°/0° optical geometry compliant with ASTM D2244 and ISO 11664-4 for perceptually uniform color measurement of textured and non-uniform surfaces
• Dedicated coffee-specific color indices: HunterLab Coffee Color Index (HCCI), SCAA Agtron Scale (#25–#100), and SCAA Roast Classification (Light, Medium, City, Full City, Vienna, French, Italian)
• Integrated diagnostics and calibration suite including white tile, black trap, and proprietary coffee reference standards traceable to NIST-certified materials
• Benchtop form factor with ergonomic sample port and removable plastic coffee sample cup optimized for consistent packing density and layer thickness control
• High-stability pulsed xenon source with >1 million flashes lifetime and no warm-up delay—enabling rapid sequential measurements without spectral drift
• Onboard memory stores up to 1,000 measurements with full spectral data (10 nm intervals), index values, timestamps, and operator IDs

Sample Compatibility & Compliance

The ColorFlex Coffee accommodates diverse physical forms encountered in coffee manufacturing: finely ground arabica/robusta blends, coarse French press grinds, spray-dried or freeze-dried soluble granules, roasted whole beans (with optional bean holder), and even liquid coffee extracts (using cuvette adapter kit). All measurements adhere to GLP-aligned data integrity protocols: each result includes audit-trail metadata (date/time, operator ID, calibration status, instrument serial number) and supports 21 CFR Part 11–compliant software export. The system meets IEC 61326-1 (EMC) and IEC 61010-1 (safety) requirements for laboratory instrumentation. Its optical design inherently satisfies the geometric constraints defined in ISO 9241-307 for consistent inter-laboratory correlation of roast degree assessments.

Software & Data Management

Instrument operation and data export are managed via HunterLab’s EasyMatch QC software (v5.0+), which provides GMP-ready reporting templates, statistical process control (SPC) charts for batch-to-batch consistency monitoring, and automated pass/fail evaluation against user-defined specification limits (e.g., Agtron #55 ±1.5 for “Medium Roast”). Raw spectral data (31 points, 400–700 nm @ 10 nm intervals) and derived indices are exportable in CSV, XML, and PDF formats. Audit trail logs record all calibration events, user logins, method changes, and result modifications—fully compliant with FDA 21 CFR Part 11 when deployed with electronic signature and role-based access controls.

Applications

• Roast profiling and endpoint determination in drum, fluid-bed, and air-roasting systems
• Quality assurance of incoming green beans against origin-specific baseline spectra
• Batch release testing of ground coffee and instant coffee products per SCAA/SCA specifications
• Stability studies tracking color shift during shelf life under varying humidity and O₂ exposure
• Supplier qualification and raw material grading using HCCI as a quantitative proxy for Maillard reaction progression
• Cross-functional alignment between R&D, production, and sensory panels via objective color benchmarks

FAQ

Does the ColorFlex Coffee require annual recalibration by HunterLab service engineers?
No—field recalibration is performed daily using the included white tile and black trap. Full factory recalibration is recommended every 12 months or after 10,000 measurements, per ISO/IEC 17025 guidance.
Can it measure wet or oily coffee grounds?
Not directly—the instrument requires dry, free-flowing samples. For high-moisture or oil-coated grounds, conditioning per SCA Technical Standard TDS-001 (drying to ≤5% moisture) is required prior to measurement.
Is the SCAA Agtron scale embedded in firmware or loaded via software?
Both: the Agtron algorithm and reference spectra are hard-coded into the instrument firmware; software enables custom interpolation and reporting against updated SCA Agtron v2.0 definitions.
What sample volume is required for repeatable results?
12 g ±0.5 g packed into the supplied 50 mm diameter plastic cup to a consistent 10 mm height—validated per ASTM D6290 for particulate color measurement repeatability.
Does it support network connectivity for centralized data aggregation?
Yes—Ethernet and USB interfaces enable integration with LIMS or MES platforms via TCP/IP or HunterLab’s HL-Link API (RESTful JSON over HTTPS).
