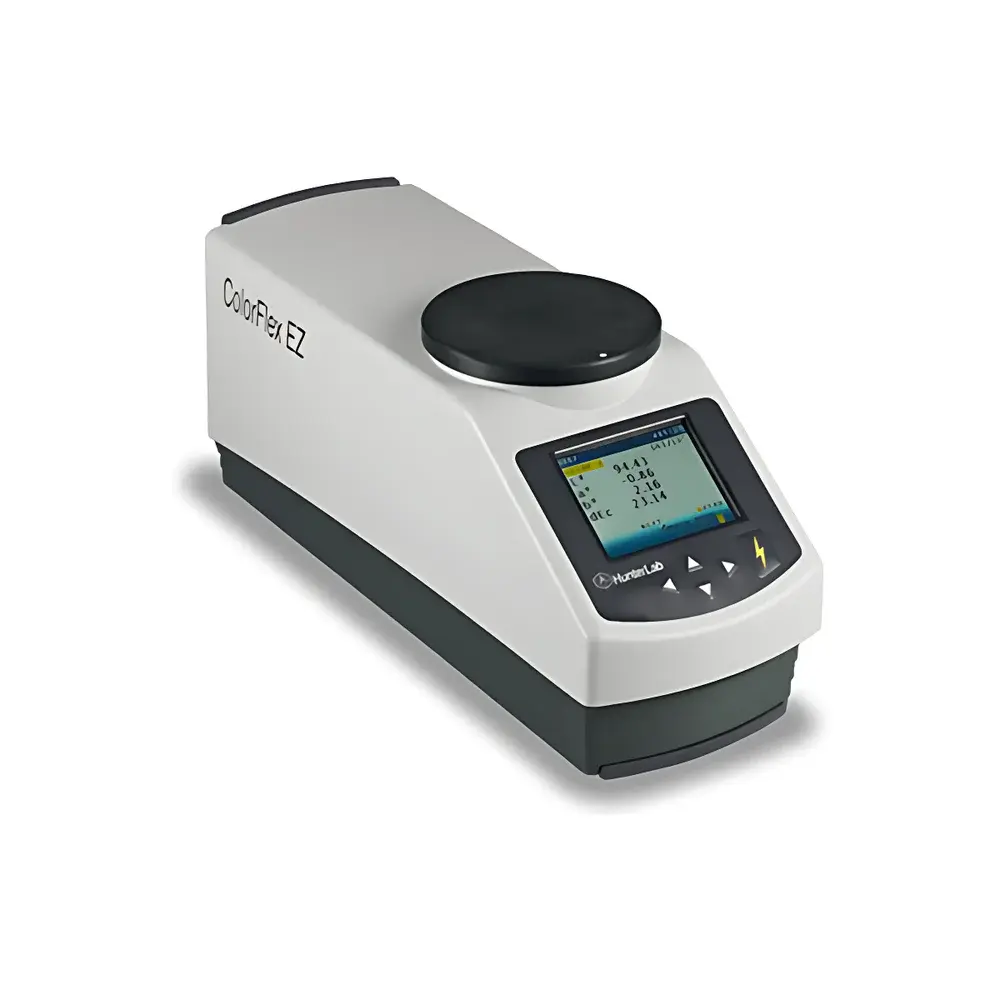

HunterLab ColorFlex EZ 45°/0° Spectrophotometric Colorimeter

Overview

The HunterLab ColorFlex EZ is a benchtop spectrophotometric colorimeter engineered for high-precision, repeatable color measurement in quality control laboratories and production environments. It employs a standardized 45°/0° optical geometry—comprising annular 45° illumination and 0° directional viewing—which closely emulates human visual perception under controlled lighting conditions. This geometry minimizes the influence of surface texture, gloss, and directional reflectance anomalies, making it especially suitable for evaluating non-uniform, textured, or semi-transparent samples where diffuse 8°/d or d/8° geometries may yield inconsistent results. The instrument uses a pulsed xenon lamp as its broadband light source, ensuring stable spectral output across the visible range (400–700 nm) without warm-up drift or lamp aging artifacts common in tungsten-halogen sources. Its solid-state detector array enables full-spectrum acquisition per measurement, supporting calculation of all major CIE color spaces, indices, and tolerancing methods in compliance with ISO 11664, ASTM E308, and CIE Publication 15.

Key Features

• 45°/0° optical configuration optimized for appearance-critical applications—ideal for coatings, plastics, food, pharmaceuticals, and consumer goods where surface finish affects perceived color;
• Pulsed xenon illumination delivers consistent spectral power distribution across the visible spectrum, eliminating calibration drift between measurements;
• Built-in EasyMatch™ EZ firmware with 250 preconfigured application setups—including product-specific tolerances, illuminant/observer combinations, and pass/fail logic—reducing operator training time and method validation effort;
• Onboard storage for up to 250 standards (with associated tolerances and metadata) and 2000 sample measurements, enabling offline operation and audit-ready data retention;
• Three USB host ports support direct integration with barcode scanners (for GLP-compliant sample ID entry), alphanumeric keyboards (for manual lot/batch input), USB flash drives (for secure data export/import), and thermal printers (for real-time hardcopy reports);
• Compact footprint (approx. 28 × 23 × 20 cm) designed for space-constrained QC labs; intuitive “press-and-measure” interface requires no software installation for basic operation.

Sample Compatibility & Compliance

The ColorFlex EZ accommodates a broad spectrum of physical sample types without requiring accessory swaps: opaque solids (e.g., painted panels, plastic pellets, cheese blocks), translucent liquids (juices, sauces, dairy), powders (coffee, sugar, dry chemical blends), granules, flakes, and semi-crystalline materials (cement, resin beads). Optional sample holders—including liquid cells, powder cups, and spherical sample adapters—are available to standardize presentation and improve inter-instrument reproducibility. All measurement protocols align with ISO/IEC 17025 requirements for testing laboratories, and data integrity features (e.g., timestamped readings, user ID logging, and immutable audit trails when paired with EasyMatch QC software) support FDA 21 CFR Part 11 compliance in regulated industries. The instrument’s repeatability specification (ΔE*ab < 0.05 on ceramic tile) meets or exceeds ASTM D2244 and ISO 13655 performance benchmarks for routine color verification.

Software & Data Management

While fully functional in standalone mode, the ColorFlex EZ integrates seamlessly with HunterLab’s EasyMatch QC software (optional), enabling advanced statistical process control (SPC), trend analysis, multi-instrument network synchronization, and automated report generation. EasyMatch QC provides full 21 CFR Part 11 compliance capabilities—including electronic signatures, role-based access control, and audit-trail archiving—making it suitable for GMP/GLP environments. Data export formats include CSV, XML, and PDF, facilitating import into LIMS, ERP, or MES platforms. Firmware updates are delivered via USB flash drive, ensuring long-term maintainability without dependency on cloud connectivity or vendor remote access.

Applications

The ColorFlex EZ is deployed globally across industries where color consistency directly impacts brand integrity, regulatory acceptance, or functional performance. In food & beverage, it quantifies batch-to-batch variation in ground coffee, tomato paste, powdered milk, and fruit juices—accounting for particle size effects and turbidity. In coatings and polymers, it verifies color match of automotive clearcoats, powder coatings, and PVC extrusions under D65 illumination. In pharmaceuticals, it supports excipient color qualification per USP and aids in visual inspection protocol development. Additional validated use cases include cement clinker grading, detergent formulation monitoring, cheese ripeness assessment, and cosmetic foundation shade matching—all leveraging the 45°/0° geometry’s insensitivity to specular highlights and micro-texture.

FAQ

What is the difference between 45°/0° and d/8° geometry?
45°/0° uses discrete angular illumination and axial viewing, minimizing sensitivity to surface gloss and texture—making it preferred for appearance-critical flat or molded parts. d/8° (diffuse/8°) integrates total reflectance, including specular component, and is better suited for matte, diffusely scattering materials per ISO 7724.

Can the ColorFlex EZ measure transparent liquids?
Yes—when used with a 10 mm or 50 mm pathlength transmission cell and appropriate zeroing procedure (air or solvent blank), it reports transmittance-based color values (e.g., APHA, Gardner, Pt-Co) compliant with ASTM D1209 and D5386.

Is calibration traceable to NIST standards?
Yes—HunterLab provides factory calibration using NIST-traceable ceramic tiles and liquid standards; annual recalibration services include full uncertainty reporting per ISO/IEC 17025.

Does it support custom color metrics or proprietary tolerancing?
Yes—EasyMatch QC allows creation of user-defined color difference formulas, multi-zone tolerances, and weighted pass/fail rules based on L*, a*, b*, or chroma deviation thresholds.
