HunterLab SpectraTrend HT In-Line Color and Height Measurement System for Plastic Pellets

Overview

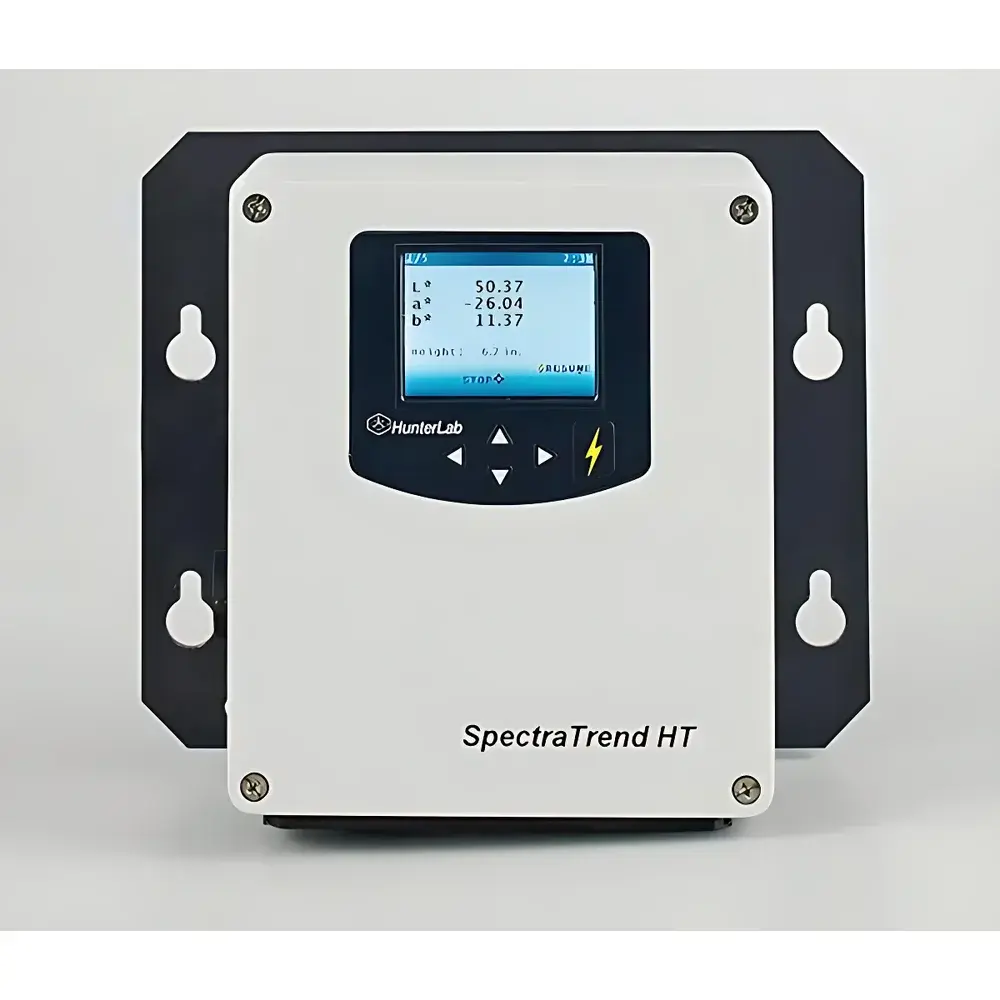

The HunterLab SpectraTrend HT is an industrial-grade, in-line spectrophotometric color and height measurement system engineered for continuous, non-contact monitoring of plastic pellets during extrusion, drying, blending, and conveying processes. Operating on the principle of 0/45° geometry with a high-stability solid-state LED light source and integrating sphere optics, it delivers laboratory-grade spectral reflectance data (400–700 nm, 10 nm bandwidth) under dynamic production conditions. Unlike traditional benchtop colorimeters, the SpectraTrend HT simultaneously acquires CIE L*a*b*, ΔE*ab, and physical height data—enabling real-time correction for sample position, conveyor belt variation, and surface topography. Its optical architecture eliminates angular dependency and compensates for height-induced spectral deviations via proprietary height-synchronized calibration algorithms. Designed for integration into automated manufacturing environments, it supports Process Analytical Technology (PAT) frameworks and aligns with FDA guidance for real-time quality assurance in continuous manufacturing.

Key Features

• Simultaneous dual-parameter acquisition: spectral color (CIE L*a*b*, L*C*h, Yellowness Index, Whiteness Index) and precise object height (±0.1 mm resolution)
• Non-contact, high-speed measurement at 5 Hz—optimized for fast-moving pellet streams on vibratory feeders or gravity chutes
• Robust 0/45° integrating sphere design with full-spectrum balanced LED illumination ensures long-term photometric stability and >100,000-hour source lifetime
• Automatic height-based color compensation: dynamically adjusts spectral response based on real-time distance feedback to mitigate errors from pellet pile height variance or belt sag
• NEMA 4 / IP56-rated enclosure suitable for harsh industrial environments—including dust, moisture, and temperature fluctuations common in polymer processing lines
• Integrated Ethernet interface (10/100BASE-T) enables direct connection to plant networks, SCADA systems, or distributed control architectures without serial port limitations or cable-length constraints
• PLC-ready digital I/O (opto-isolated inputs/outputs) for seamless synchronization with line speed, alarm triggers, and reject logic

Sample Compatibility & Compliance

The SpectraTrend HT is validated for heterogeneous particulate materials including virgin and regrind plastic pellets (PP, PE, ABS, PC, PET), granules, flakes, and irregularly shaped thermoplastic compounds. Its height-aware measurement engine discriminates target material from conveyor belt backgrounds (e.g., rubber, stainless steel, or matte-black polyurethane), eliminating false readings caused by substrate interference. The system conforms to ISO 11664-4 (CIE colorimetry), ASTM D2244 (standard practice for calculation of color tolerances), and ISO/DIS 13655 (spectral measurement geometry). For regulated industries, EasyMatch QC software supports audit trails, electronic signatures, user role-based access control, and 21 CFR Part 11 compliance—including secure data archiving, change history logging, and instrument calibration verification records required under GMP/GLP and ICH Q5/Q7 frameworks.

Software & Data Management

HunterLab EasyMatch QC v5.x serves as the central analytical and operational interface. It provides real-time visualization of color deviation trends (SPC charts), spectral overlays, pass/fail status per defined tolerances (ellipsoidal or rectangular ΔE*ab, ΔL*, Δa*, Δb*), and synchronized height histograms. Users configure customizable reporting templates—including Excel-exportable summaries (CSV/XLSX), PDF inspection certificates, and XML data feeds compatible with MES (Manufacturing Execution Systems) and LIMS platforms. Data retention policies, automatic backup scheduling, and SQL database integration support long-term statistical process control (SPC) and Six Sigma DMAIC initiatives. All measurement events are timestamped, geotagged (if network-synced), and traceable to operator ID, calibration batch, and sensor firmware version.

Applications

The SpectraTrend HT is deployed across polymer compounding, masterbatch production, food-grade plastic packaging, and medical device component manufacturing. Typical use cases include: real-time detection of color drift during pigment let-down; closed-loop feedback to extruder screw speed or dosing valve actuation; validation of batch homogeneity prior to bagging; monitoring of thermal degradation-induced yellowing in polyolefins; and qualification of recycled content consistency in post-consumer resin (PCR) streams. It is also applied in non-polymer sectors requiring simultaneous color and morphology assessment—such as cereal flake uniformity, baked goods browning control, pharmaceutical tablet coating consistency, and metal flake orientation analysis in automotive coatings.

FAQ

Can the SpectraTrend HT measure opaque versus translucent pellets with equal accuracy?
Yes—the 0/45° geometry and integrating sphere minimize subsurface scattering effects, and height compensation corrects for differences in effective path length through semi-crystalline or filled polymers.
Is recalibration required when switching between different pellet sizes or colors?
No—factory-calibrated spectral response is invariant across material types; only routine verification using certified ceramic tiles or NIST-traceable standards is recommended per ISO/IEC 17025 QA protocols.
How does the system handle ambient light interference in open factory settings?
The LED source operates at modulated frequency, and the detector employs synchronous demodulation—rejecting broadband ambient radiation including fluorescent, LED, and sunlight exposure up to 10,000 lux.
Can multiple SpectraTrend HT units be synchronized across a single production line?
Yes—via Precision Time Protocol (PTP/IEEE 1588) over Ethernet or hardware trigger signals, enabling time-aligned multi-zone color profiling and cross-correlation analysis.
Does HunterLab provide validation documentation for FDA-regulated facilities?
Yes—Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) protocols, along with risk assessments (FMEA) and 21 CFR Part 11 readiness reports, are available upon request.
