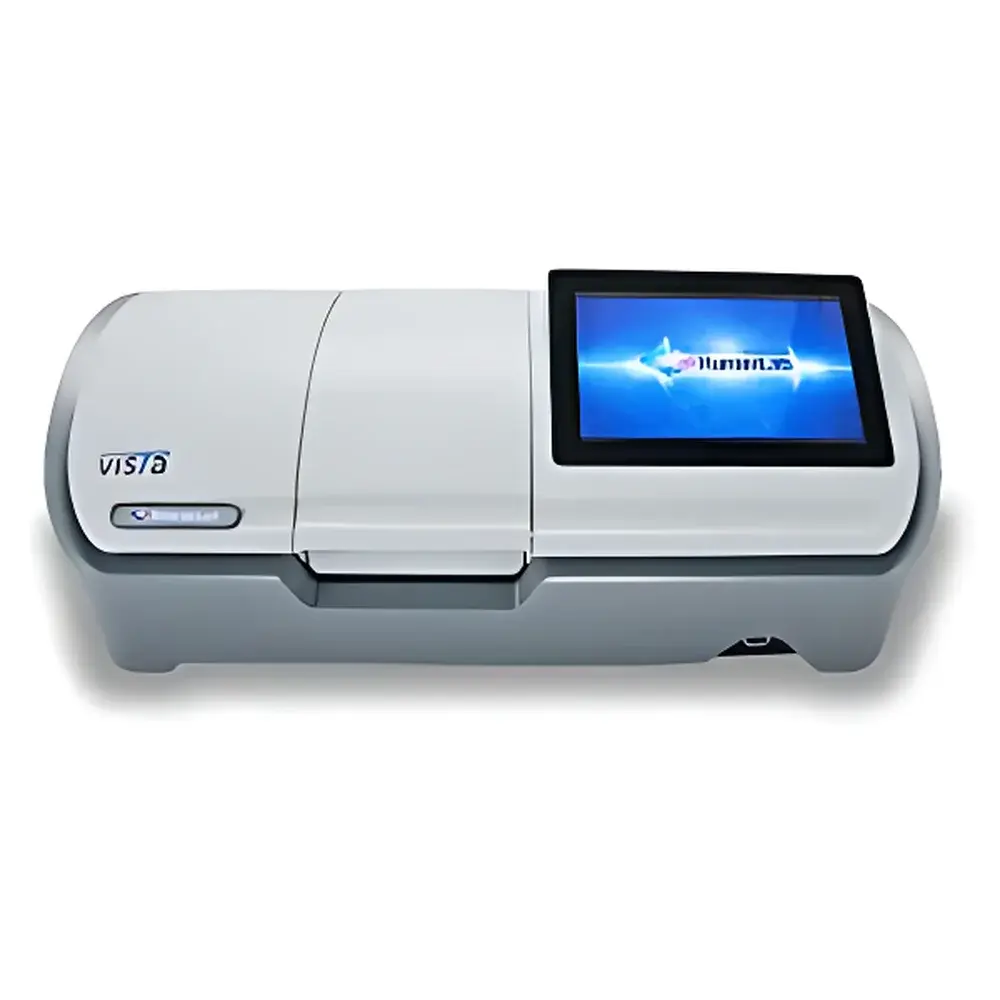

HunterLab Vista BPA Melt Colorimeter
| Brand | HunterLab |
|---|---|
| Origin | USA |
| Model | Vista BPA Melt Colorimeter |
| Instrument Type | Benchtop |
| Optical Geometry | d/8° integrating sphere |
| Light Source | Full-spectrum LED array |
| Spectral Range | 400 nm – 700 nm |
| Repeatability | < 0.025 ΔE* (30 measurements) |
| Compliance | ASTM E1164, ASTM D1003, CIE 15:2004, DIN 5033-7, JIS Z 8722 Condition E, ISO/CIE 11664 |
Overview
The HunterLab Vista BPA Melt Colorimeter is a purpose-engineered benchtop spectrophotometer designed specifically for quantitative color and haze measurement of organic chemical intermediates in their molten state. It operates on the principle of dual-beam spectral photometry with a 76 mm integrating sphere and 256-element diode array detector coupled to a high-resolution concave holographic grating. The instrument measures total transmittance (TTRAN), regular transmittance (RTRAN), and haze—simultaneously and traceably—across the visible spectrum (400–700 nm) at 10 nm nominal bandwidth intervals. Its optical architecture conforms to CIE 15:2004 and ASTM E1164 for colorimetry and ASTM D1003 for haze, ensuring metrological alignment with global regulatory expectations for quality control in fine chemical and polymer precursor manufacturing.
Key Features
- Dual optical path design with real-time reference beam correction for enhanced photometric stability during extended melt-state measurements
- Full-spectrum LED illumination source rated for ≥5 years of continuous operation, eliminating lamp replacement and spectral drift concerns
- Integrated 100 mm pathlength sample cell holder optimized for high-temperature molten samples (compatible with heated cuvette accessories up to 200 °C)
- Automatic self-calibration routine with NIST-traceable ceramic tile and haze standards, executed prior to each measurement session
- Spill-resistant sample compartment with precision-machined thermal isolation to minimize heat transfer to optics and electronics
- 1280×800 high-resolution capacitive touchscreen interface supporting multi-language UI and context-sensitive guidance for ASTM-compliant workflows
- Compact footprint (W × D × H: 320 × 380 × 290 mm) enabling integration into QC laboratories with constrained bench space
Sample Compatibility & Compliance
The Vista BPA Melt Colorimeter is validated for use with thermally stable, optically clear molten organic compounds—including bisphenol A (BPA), phenol, phthalic anhydride, maleic anhydride, trimellitic anhydride (TMA), dimethyl terephthalate (DMT), di(2-ethylhexyl) phthalate (DOP), and ethylenediamine. Samples must exhibit no visible turbidity or phase separation at test temperature. The system supports both TTRAN (total transmittance) and RTRAN (regular transmittance) modes, enabling differentiation between true color absorption and scattering effects. All color and haze outputs are traceable to CIE standard illuminants (D65/10° and C/2°) and observer functions, and fully compliant with FDA-relevant quality systems: audit trails, user-level access control, and electronic signature support align with 21 CFR Part 11 requirements when used with optional Enterprise Software Suite. Routine verification meets GLP/GMP documentation standards per ISO/IEC 17025 calibration protocols.
Software & Data Management
- Embedded VistaTouch OS with preloaded method templates for ASTM D1209 (APHA), ASTM D6166 (Gardner), ASTM D1500 (Saybolt), and ASTM D1925/D313 (Yellowness Index)
- Real-time spectral data export in CSV, XML, and CxF/XRGA formats compatible with LIMS and SAP QM modules
- Batch reporting engine generating PDF certificates with embedded metadata: operator ID, timestamp, instrument serial number, calibration status, and environmental conditions (optional external sensor input)
- Cloud-sync capable via secure HTTPS API (TLS 1.2+) for centralized fleet monitoring and predictive maintenance alerts
- Optional HunterLab QualMap™ software for multivariate trend analysis across production lots, including PCA-based outlier detection for raw material consistency validation
Applications
This instrument serves as a critical analytical node in the quality assurance chain for manufacturers of epoxy resins, polycarbonates, unsaturated polyesters, and plasticizers. By quantifying color shift (ΔE*) and haze development during melt processing, it enables early detection of oxidative degradation, catalyst residue carryover, or trace metal contamination—factors directly impacting downstream polymer clarity, thermal stability, and regulatory compliance (e.g., USP , EU Pharmacopoeia 2.2.59). In R&D settings, it supports formulation optimization by correlating melt color profiles with monomer purity grades and refining cycle parameters. Its ability to resolve subtle differences in yellowness index (YI E313 vs. YI D1925) and APHA values below 5 units makes it indispensable for high-purity specialty chemical release testing.
FAQ
What sample forms are supported for melt-state measurement?
The instrument accepts liquid-phase samples in standardized 100 mm pathlength quartz or high-temperature borosilicate glass cells. Optional heated sample holders maintain temperature stability ±0.5 °C from ambient to 200 °C.
Does the Vista BPA comply with pharmaceutical excipient color specifications?
Yes—it satisfies USP and EP 2.2.59 requirements for color assessment of polymeric excipients when operated under validated SOPs and calibrated with certified reference materials.
Can haze and color be measured simultaneously in a single scan?
Yes. The dual-beam architecture captures full spectral data (31 points from 400–700 nm) in <2.5 seconds, enabling concurrent calculation of CIE L*a*b*, APHA, and ASTM D1003 haze without sequential mode switching.
Is remote calibration verification possible?
With Enterprise Software Suite installed, users can initiate automated remote diagnostics and generate calibration verification reports signed with digital certificates, meeting internal audit and regulatory inspection requirements.
