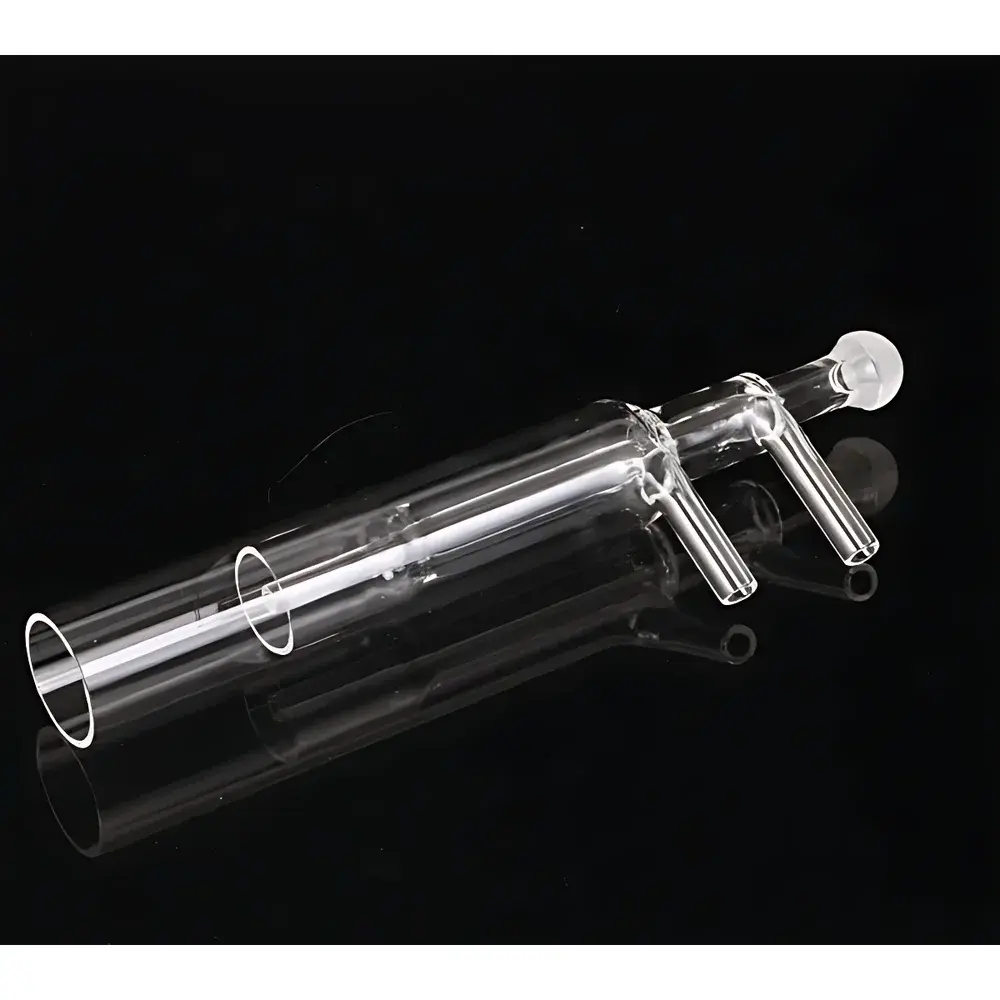

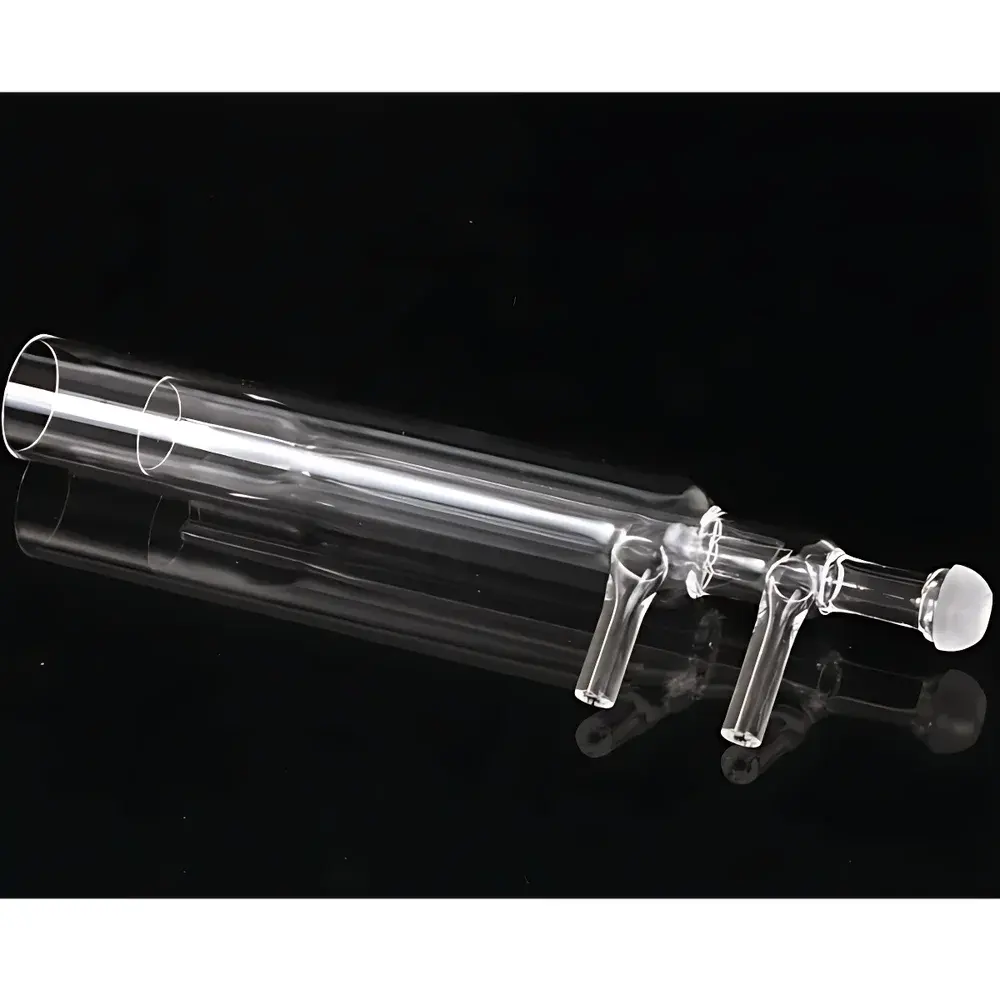

ICP Torch Tube (SGM Brand)

Overview

The SGM ICP Torch Tube is a precision-engineered consumable component designed for inductively coupled plasma optical emission spectrometry (ICP-OES) and mass spectrometry (ICP-MS) systems. Constructed from high-purity fused quartz with optimized wall thickness and concentric geometry, it sustains stable plasma ignition and thermal equilibrium under continuous RF power loads of 1.0–1.5 kW. The tube’s triple-channel design—comprising outer argon sheath gas, intermediate cooling gas, and central sample aerosol flow—ensures laminar plasma confinement, minimal thermal stress deformation, and consistent excitation conditions across analytical runs. Its geometric fidelity directly influences plasma stability, detection limit reproducibility, and long-term signal drift performance—critical parameters for trace elemental quantification in environmental, geological, pharmaceutical, and metallurgical laboratories.

Key Features

• High-purity fused quartz construction (≥99.99% SiO₂) with low metallic impurity background (Fe, Al, Na < 10 ppb by ICP-MS screening)
• Optimized concentricity tolerance: ≤±0.05 mm between inner, intermediate, and outer tubes to maintain uniform plasma coupling efficiency
• Thermal shock resistance validated for rapid ramp-up from ambient to 6,000 K plasma core temperature without microcracking
• Standardized O-ring interface dimensions compliant with Thermo iCAP, PerkinElmer Optima, Agilent 5110/5800, and Shimadzu ICPE-9800 mounting fixtures
• Pre-cleaned and individually packaged in Class 100 cleanroom environment to prevent particulate contamination prior to installation

Sample Compatibility & Compliance

The SGM ICP Torch Tube supports aqueous, organic (e.g., MIBK, xylene-diluted extracts), and high-salt matrix samples—including seawater, brines, and digested soil leachates—when used with appropriate nebulizer and spray chamber configurations. It is compatible with standard PFA, quartz, or sapphire concentric nebulizers (e.g., Meinhard A3, SeaSpray, or CETAC U5000AT+), and operates within the recommended nebulizer uptake rate range of 0.1 mL/min as specified. The tube meets ISO 17025 requirements for consumable traceability and is routinely employed in laboratories adhering to EPA Method 200.7, ISO 11885, ASTM D5600, and USP <232>/<233> for elemental impurities testing. While not certified to GLP or GMP as a standalone item, its batch-controlled manufacturing and QC documentation support audit readiness for regulated environments.

Software & Data Management

As a passive hardware component, the SGM ICP Torch Tube does not incorporate embedded firmware or software interfaces. However, its performance metrics—plasma stability index (PSI), background equivalent concentration (BEC), and 10-minute signal drift (%RSD)—are routinely monitored and logged via vendor-specific instrument control software (e.g., Thermo Fisher Qtegra, PerkinElmer Syngistix, Agilent MassHunter). These parameters are integrated into laboratory information management systems (LIMS) during method validation and routine QC workflows. For full 21 CFR Part 11 compliance, users must configure electronic signatures, audit trails, and user access controls at the instrument software layer—functions independent of torch tube operation but essential for data integrity in regulated applications.

Applications

• Multi-element trace analysis in drinking water per EPA 200.5 and ISO 17294-2
• Heavy metal screening in pharmaceutical excipients and active ingredients (ICH Q3D)
• Geochemical fingerprinting of rare earth elements (REEs) in rock digests
• Alloy composition verification in aerospace-grade aluminum and titanium materials
• Monitoring of catalyst poisons (e.g., As, Pb, Sb) in petrochemical feedstocks
• Validation of digestion recovery yields in certified reference materials (CRMs) such as NIST SRM 1643e and GBW(E) 080391

FAQ

What is the typical service life of the SGM ICP Torch Tube under routine operation?
Under standard operating conditions (1.2 kW RF power, 15 L/min outer argon, aqueous samples, no HF-containing matrices), expected lifetime ranges from 300–500 hours. Life is reduced significantly by high-salt content (>0.2% TDS), hydrofluoric acid exposure, or frequent on/off cycling.
Is this torch compatible with ICP-MS instruments?
Yes—mechanically and thermally compatible with all major quadrupole and magnetic sector ICP-MS platforms when installed with appropriate sampler/skimmer cone alignment. Plasma robustness must be verified using tuning solutions (e.g., CeO⁺/Ce⁺ < 3%, Ba²⁺/Ba⁺ < 3%).
Does SGM provide batch-specific certificate of analysis (CoA)?
Upon request and with minimum order quantity (MOQ) of 5 units, SGM issues CoA documenting fused quartz purity assay, dimensional inspection report, and pre-installation leak test results.
Can the torch be cleaned and reused after carbon deposition?
Light carbon buildup may be removed via 10% HNO₃ soak followed by ultrasonic rinsing in 18.2 MΩ·cm DI water—but repeated cleaning degrades quartz integrity. Replacement is strongly recommended after visible etching, discoloration, or increased background noise (>10% rise in Ar II 434.8 nm intensity).
What torque specification is recommended for torch mounting?
Tighten quartz-to-adapter retaining nuts to 1.2–1.5 N·m using a calibrated torque screwdriver. Over-torquing induces microfractures; under-torquing causes argon leakage and plasma instability.
