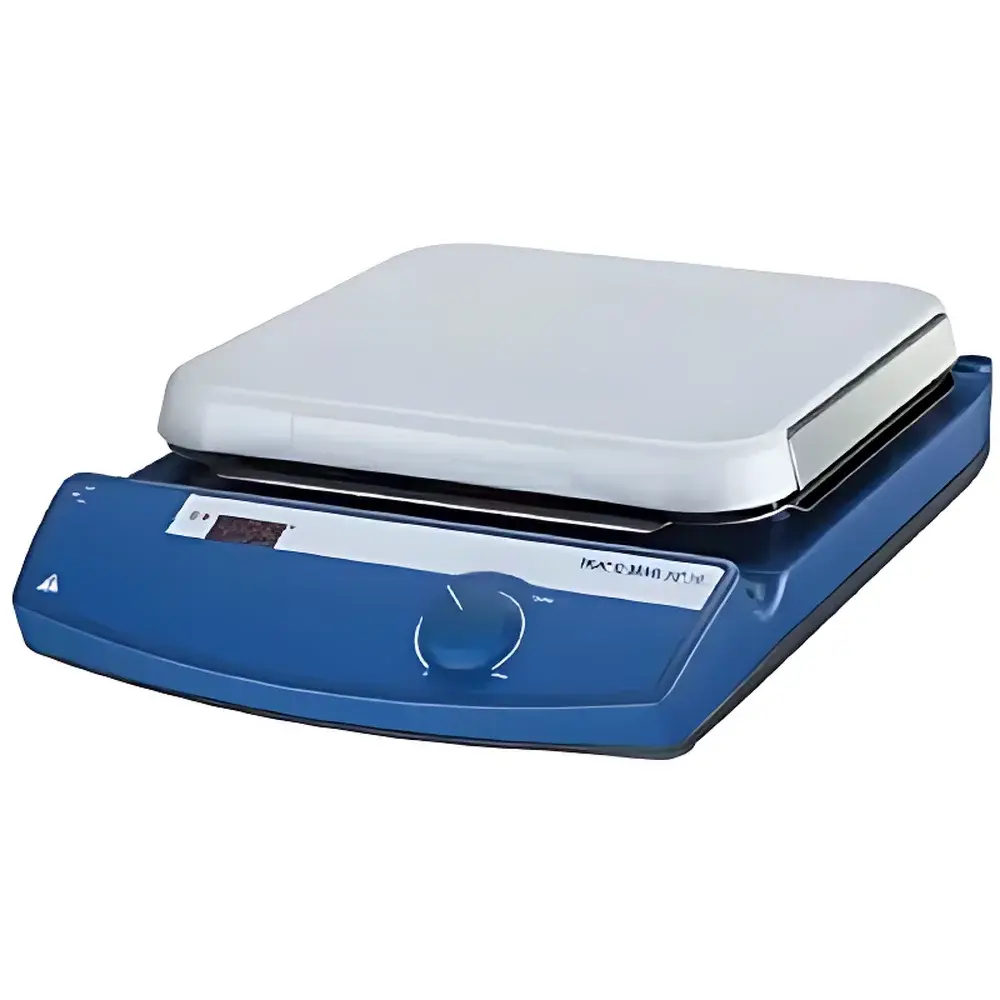

IKA C-MAG HP10 Ceramic Heating Plate with ETS-D5 Temperature Probe

Overview

The IKA C-MAG HP10 Ceramic Heating Plate is a precision-engineered laboratory heating system designed for demanding sample preparation, digestion, evaporation, and reaction support applications. Built on IKA’s decades-long heritage in German engineering, the HP10 operates on resistive heating principles integrated into a monolithic glass-ceramic surface—offering rapid thermal response, exceptional chemical resistance, and long-term dimensional stability under repeated thermal cycling. Unlike conventional metal or coated plates, the seamless ceramic top prevents infiltration of aggressive reagents (e.g., concentrated HNO₃, HF, aqua regia), ensuring compliance with ISO 17025-accredited lab environments where surface integrity directly impacts method reproducibility. The unit features dual-mode operation: standalone plate temperature control (50–500 °C) and external feedback control via the included ETS-D5 contact probe—enabling direct solution temperature regulation with ±0.5 °C accuracy under typical laboratory conditions. A fixed safety cutoff at 550 °C provides fail-safe thermal protection aligned with DIN EN 61000-6-4 electromagnetic compatibility and IEC 61010-1 safety standards for laboratory electrical equipment.

Key Features

• Glass-ceramic heating surface (260 × 260 mm active area) with zero porosity and resistance to strong acids, alkalis, and organic solvents
• Digital LED display with intuitive push-button interface for precise setpoint entry and real-time temperature readout
• Elevated control panel design minimizes risk of liquid ingress during splashing and improves ergonomics for frequent parameter adjustments
• Integrated thermal warning indicator: blinking LED alerts users when surface temperature exceeds safe handling thresholds
• Microprocessor-based PID temperature control with adaptive tuning—maintains setpoint stability within ±3 °C across full plate area (per DIN 12878)
• Fixed overtemperature protection at 550 °C, independent of main controller logic, satisfying Class II electrical safety requirements
• IP21-rated enclosure (DIN EN 60529) ensures protection against vertically falling droplets and solid objects >12.5 mm

Sample Compatibility & Compliance

The C-MAG HP10 supports a broad range of vessel types—including borosilicate glass beakers (50–2000 mL), PTFE digestion vessels, quartz crucibles, and stainless-steel reactors—without compromising thermal homogeneity or introducing catalytic interference. Its inert ceramic surface eliminates metal ion leaching, critical for trace-metal analysis (e.g., EPA Method 3050B, ASTM D5685). The system complies with GLP documentation requirements when used with the ETS-D5 probe, which provides calibrated, NIST-traceable temperature feedback. Full audit trail capability is enabled via optional IKA Labworldsoft integration, supporting 21 CFR Part 11-compliant electronic records when paired with validated software configurations.

Software & Data Management

While the HP10 operates as a standalone instrument, it is fully compatible with IKA’s Labworldsoft platform for centralized device monitoring, parameter logging, and SOP-driven workflow execution. When connected via RS232 or optional USB interface, the system transmits real-time plate temperature, probe-measured solution temperature, and operational status (e.g., heating phase, safety lockout events). All logged data include timestamp, operator ID, and instrument serial number—facilitating traceability in regulated QC/QA environments. Firmware updates preserve backward compatibility with existing validation protocols and are distributed through IKA’s certified update portal.

Applications

• Acid digestion of environmental, biological, and geological samples prior to ICP-MS or AAS analysis
• Controlled solvent evaporation in pharmaceutical stability studies (ICH Q1A–Q5E)
• Preparation of calibration standards requiring strict thermal consistency (e.g., USP compounding)
• Heating baths for reflux, hydrolysis, and polymerization reactions under inert atmosphere
• Supporting hotplate-stirrer hybrid workflows when mounted alongside IKA RCT basic or Eurostar digital stirrers
• Calibration verification of thermocouples and RTDs using standardized reference solutions (ASTM E220)

FAQ

Does the HP10 include a stirrer function?
No—the C-MAG HP10 is a dedicated heating-only plate. For combined heating and stirring, consider the IKA C-MAG HS7 or HS10 series.
Can the ETS-D5 probe be used with other IKA heating plates?
Yes—the ETS-D5 is compatible with all C-MAG HP and HS models equipped with analog temperature input terminals.
What is the recommended cleaning procedure for the ceramic surface?
Wipe with damp lint-free cloth after cooling; avoid abrasive cleaners or steel wool. For residue removal, use diluted nitric acid (10 % v/v) followed by deionized water rinse.
Is the HP10 suitable for use in fume hoods?
Yes—its IP21 rating and low outgassing ceramic surface make it appropriate for ventilated enclosures; ensure adequate clearance (≥10 cm) around rear ventilation grilles.
How often should the ETS-D5 probe be recalibrated?
Annual recalibration is recommended per ISO/IEC 17025; field verification using ice bath (0.0 ± 0.1 °C) and boiling water (100.0 ± 0.3 °C at local atmospheric pressure) is advised before critical assays.
