Instech Tether Tube Holder for Rodent Pharmacological Studies
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Tether |
| Pricing | Available Upon Request |
Overview

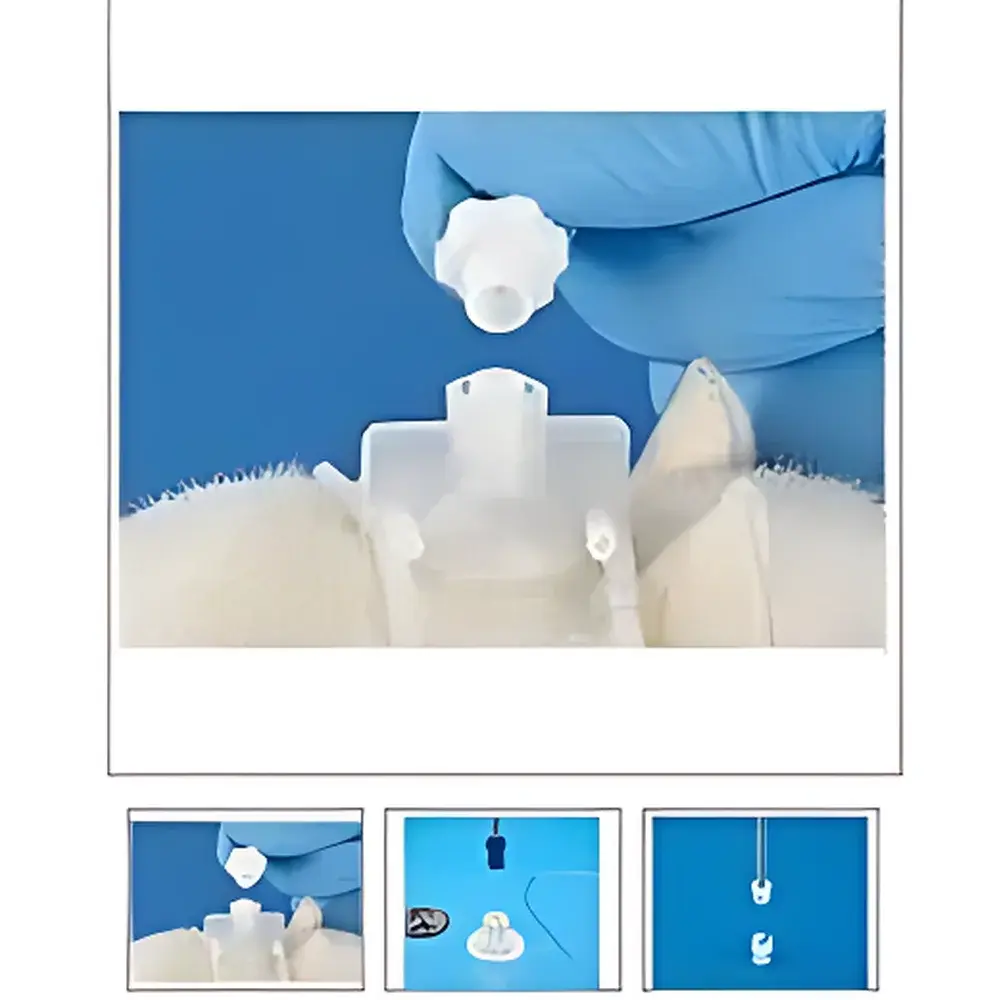

The Instech Tether is a precision-engineered tube holder designed for chronic intravenous, intracerebral, or intrathecal drug delivery in rodent neuroscience and pharmacology research. It functions as a mechanical interface between an external infusion pump or dosing system and an implanted cannula or catheter, enabling unrestricted animal mobility while maintaining patency and positional stability of the delivery line. Unlike passive swivel systems, the Tether actively transfers torsional load away from the implanted cannula—preventing torque-induced tissue damage, catheter dislodgement, or occlusion during free movement. Its design adheres to established principles of biomechanical isolation in chronic implant studies, where minimizing mechanical stress at the skull or vessel entry site is critical for data integrity and animal welfare compliance.
Key Features
- Three anatomically optimized configurations: Saddle-style Tether for dorsal midline mounting, Button-style Tether for low-profile subcutaneous anchoring, and Magnetic Head Block Tether for rapid, non-invasive headpiece coupling in rats and mice
- Stainless steel and medical-grade PEEK construction ensures biocompatibility, chemical resistance to solvents and drug formulations, and autoclavability (up to 134°C, 20 min)
- Integrated torque-dissipation geometry directs rotational forces externally—away from the cannula hub and brain tissue interface—reducing risk of micro-movement artifacts in electrophysiology or microdialysis experiments
- Modular coupling system compatible with standard Luer-lock, Nanoport™, and custom-fitted catheters (ID 0.012–0.025 in / 0.3–0.64 mm)
- Zero-backlash rotational interface maintains fluidic integrity during continuous or pulsed infusions, supporting both acute behavioral assays and multi-day chronic dosing protocols
Sample Compatibility & Compliance
The Tether is validated for use with C57BL/6, Sprague-Dawley, and Long-Evans rodents across weight ranges of 18–500 g. Each variant undergoes ISO 10993-5 cytotoxicity testing and meets USP Class VI material requirements. The system supports GLP-compliant study designs by enabling consistent, operator-independent catheter fixation—critical for regulatory submissions involving CNS-targeted therapeutics. When used with Instech’s certified sterile implant kits, the Tether contributes to full traceability under 21 CFR Part 11–aligned documentation workflows, including batch-specific sterilization logs and mechanical validation reports.
Software & Data Management
While the Tether itself is a passive mechanical device, its integration into automated infusion platforms (e.g., Harvard Apparatus PHD Ultra, World Precision Instruments Micro4) enables synchronized timestamping of infusion events with behavioral video tracking (Noldus EthoVision XT) or neurophysiological recordings (Plexon OmniPlex, Tucker-Davis Technologies RZ5). All Instech tether models are supplied with a digital calibration certificate and dimensional CAD files (STEP/IGES) for integration into institutional IACUC protocol schematics and 3D-printed custom mounts. Firmware-upgradable controllers from partner pump manufacturers log tether-related error states (e.g., line tension exceedance), ensuring audit-ready event history for QA/QC review.
Applications
- Chronic intracerebroventricular (ICV) or intraparenchymal drug administration in Alzheimer’s, Parkinson’s, and depression models
- Long-term microdialysis sampling with simultaneous IV co-infusion of pharmacological modulators
- Optogenetic fiber optic coupling where fluidic lines must coexist with light delivery without mutual interference
- Telemetric cardiovascular studies requiring concurrent IV vasopressor titration and ECG/pressure monitoring
- Development and validation of blood-brain barrier permeability enhancers using quantitative LC-MS/MS bioanalysis
FAQ
Is the Tether compatible with stereotaxic surgery frames and post-operative imaging (e.g., MRI or CT)?
Yes—the Button and Saddle variants feature non-ferromagnetic PEEK housings and titanium fasteners, enabling safe use in 7T MRI environments and high-resolution µCT without artifact generation.
Can the Magnetic Head Block Tether be reused across multiple animals?
Each magnetic head block is calibrated for specific torque thresholds and sterilized per IACUC SOPs; reuse is permitted up to five cycles when validated via tensile strength testing (ASTM D638) and surface SEM inspection.
Does Instech provide installation training or surgical protocol support?
Yes—authorized distributors offer on-site technician certification programs covering aseptic mounting, torque-limit verification, and post-implant patency assessment using fluorescent microsphere flow tests.
