Instron 3340 Single-Column Universal Testing System

Overview

The Instron 3340 Single-Column Universal Testing System is an electromechanical materials testing platform engineered for precision, repeatability, and space efficiency in quality control, production validation, and routine mechanical property evaluation. Built on Instron’s proven load frame architecture, the system operates on a servo-controlled ball-screw actuation principle, delivering smooth, low-noise motion with high positional fidelity. It measures fundamental mechanical responses—including tensile strength, compressive modulus, yield point, elongation at break, and flexural performance—by applying controlled axial force to specimens while recording displacement, load, and time-synchronized data. Designed specifically for laboratories with spatial constraints, the 3340 series maintains full compliance with international test standards (e.g., ASTM E4, ISO 7500-1, and ISO 5893) while supporting standardized methods such as ASTM D638, ISO 527, ASTM C39, and ISO 604. Its modular design enables rapid configuration for both static and quasi-static testing protocols across polymers, metals, composites, elastomers, textiles, and biomedical devices.

Key Features

• 100:1 force measurement range — full accuracy maintained down to 1.0% of transducer capacity, eliminating need for sensor swapping during multi-range testing
• High-fidelity load cells calibrated to ISO 7500-1 Class 0.5, ensuring ±0.5% accuracy across the entire operational span
• 500 Hz real-time data acquisition synchronized with crosshead motion, enabling robust capture of transient events and strain-rate-sensitive behavior
• Automatic sensor recognition via digital communication interface, reducing setup errors and calibration traceability gaps
• CE-marked mechanical and electrical architecture, compliant with EN 61000-6-2 (EMC) and EN 61000-6-4 (emission) directives
• Compact footprint: gray-painted base and white anodized column optimize lab floor utilization without compromising rigidity or thermal stability

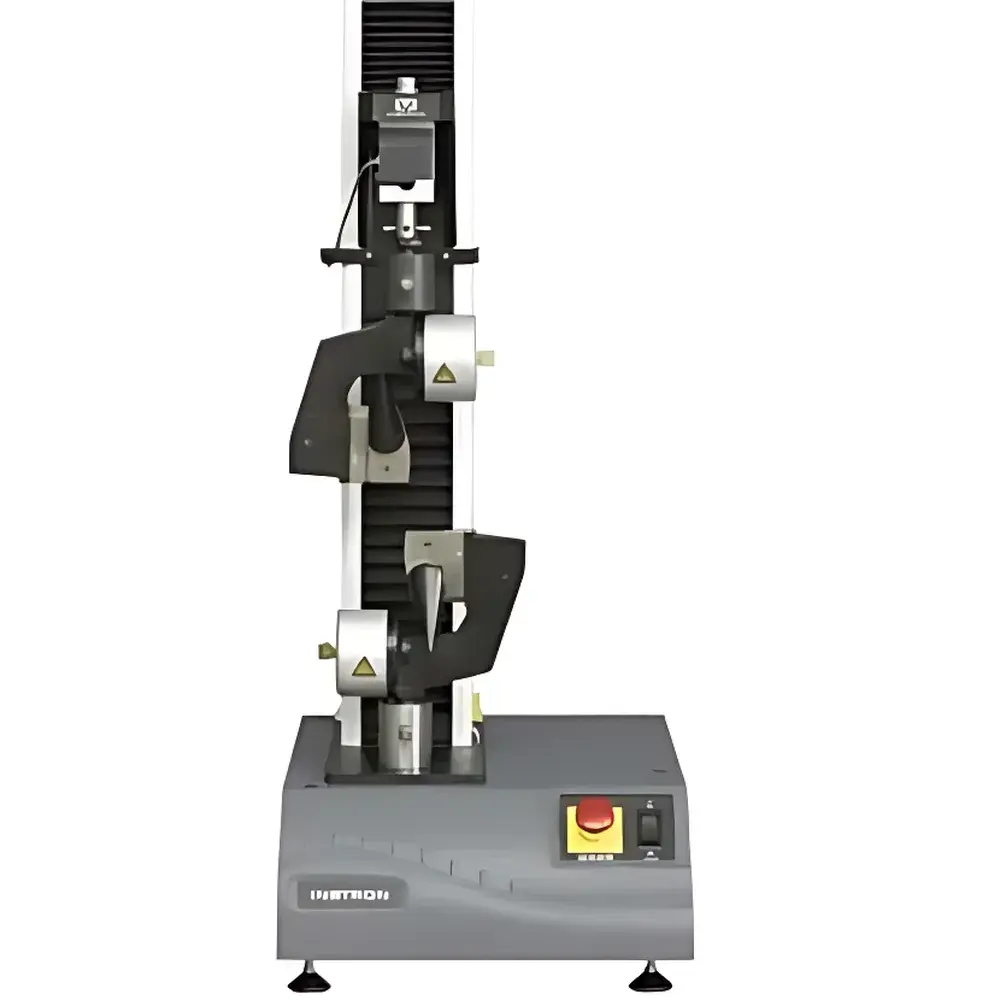

• Four standard configurations (3342–3345) covering 0.5 kN to 5 kN capacities, each optimized for vertical travel (651–1383 mm) and specimen geometry constraints

Sample Compatibility & Compliance

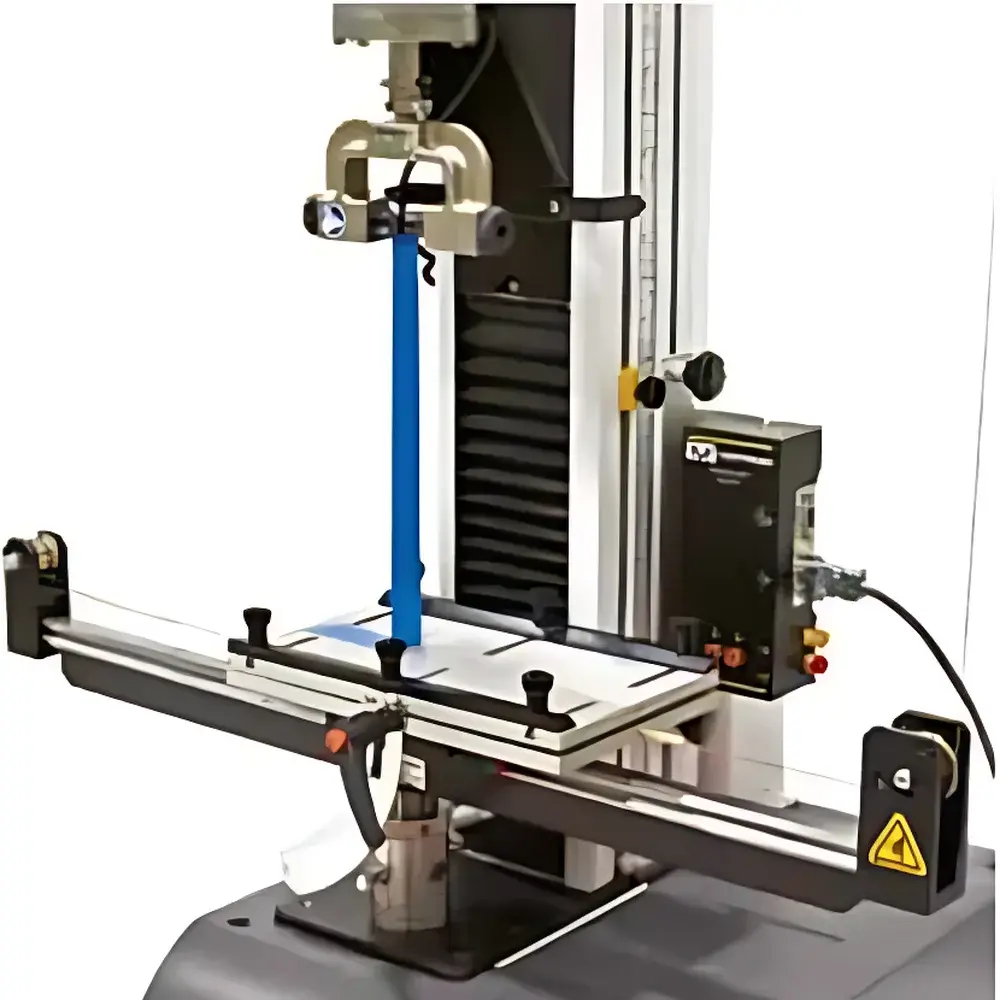

The 3340 accommodates a broad spectrum of specimen geometries through Instron’s extensive portfolio of wedge-action grips, pneumatic clamps, compression platens, bend fixtures, and peel test accessories—all mechanically interlocked and software-recognized. Optional environmental chambers (−70 °C to +300 °C) integrate seamlessly for temperature-dependent characterization per ASTM D695, ISO 604, or ISO 178. All hardware and firmware are designed to support GLP/GMP-aligned workflows, including audit-trail-enabled user authentication, electronic signatures (per FDA 21 CFR Part 11), and secure data export in CSV, XML, and PDF formats. Test method libraries are preloaded with over 200 standardized procedures, each referencing applicable clauses from ASTM, ISO, and DIN standards.

Software & Data Management

Controlled exclusively via Bluehill® 3 or Bluehill LE software, the 3340 supports fully automated test sequencing, real-time curve overlay, pass/fail tolerance mapping, and multi-channel synchronization (load, displacement, extensometer, environmental chamber output). Bluehill 3 provides advanced scripting (via JavaScript API), custom report generation with embedded metadata (operator ID, timestamp, calibration status), and integration with LIMS via ODBC or RESTful API. Both versions maintain full traceability logs—including parameter changes, sensor swaps, and calibration events—with immutable timestamps. Data files include embedded instrument configuration and test method identifiers, satisfying ISO/IEC 17025 documentation requirements for accredited testing laboratories.

Applications

The system is routinely deployed in manufacturing QA/QC labs for incoming raw material verification (e.g., polymer resin tensile screening per ASTM D638), finished goods release testing (e.g., medical tubing burst pressure per ISO 8536-4), and process validation (e.g., adhesive bond strength per ASTM D1002). Academic users apply it to fundamental structure–property studies in soft matter physics and biomaterials science. Aerospace suppliers employ it for composite laminate shear testing (ASTM D5379), while packaging engineers use it for seal strength (ASTM F88) and puncture resistance (ASTM F1306). Its consistent force resolution and repeatable crosshead control make it suitable for comparative benchmarking against reference materials and inter-laboratory round-robin studies.

FAQ

What is the maximum vertical travel available on the 3340 series?
The standard models offer 651 mm (3342), 1067 mm (3343 and 3344), or 1123 mm (3345); a high-travel variant extends to 1383 mm for elongated specimens.
Does the 3340 support closed-loop strain control?
Yes—when paired with an attached contact or non-contact extensometer, Bluehill software enables displacement-, strain-, or stress-controlled feedback loops per ASTM E8/E8M.
Can I retrofit an older 3300-series controller with Bluehill 3?
No—the 3340 integrates a dedicated 500 Hz controller module; legacy systems require hardware upgrade to achieve full feature parity.
Is calibration certification included with shipment?
Each system ships with NIST-traceable factory calibration documentation, valid for 12 months under normal operating conditions.
How does the automatic sensor recognition function?
Digital load cells communicate native capacity, calibration coefficients, and serial ID directly to the controller via RS-422, eliminating manual entry and reducing configuration errors.
