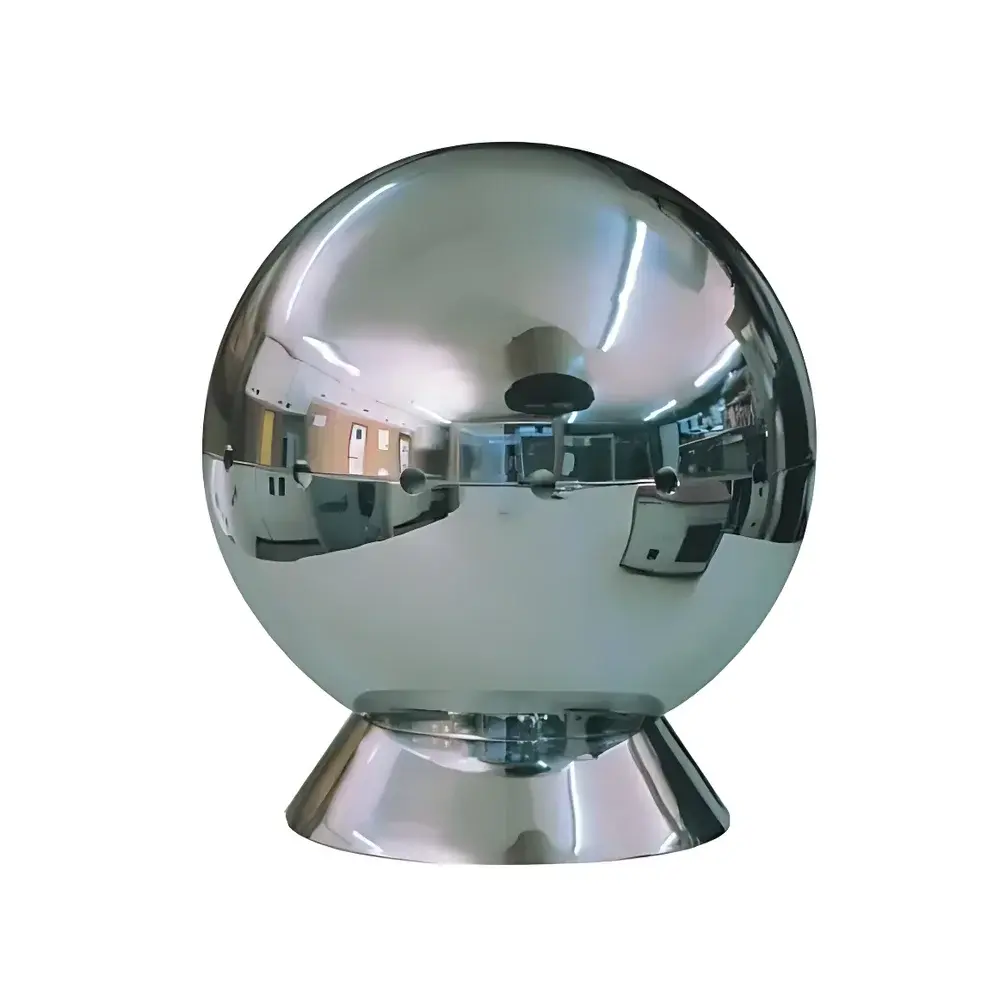

ISOTECH Model 877 Spherical Thermocouple Calibration Furnace
| Brand | ISOTECH |
|---|---|
| Origin | USA |
| Model | 877 |
| Instrument Type | Thermocouple Calibration Furnace |
| Temperature Range | 100 °C to 1300 °C |
| Temperature Stability | ±0.1 °C |
| Temperature Resolution | 0.1 °C |
| Heating Time | 90 min to 700 °C |
| Accuracy at 1000 °C | ±0.25 °C |
| Calibration Capacity | Up to 16 thermocouples simultaneously |
Overview
The ISOTECH Model 877 Spherical Thermocouple Calibration Furnace is a high-stability, precision temperature source engineered for primary and secondary thermocouple calibration in metrology laboratories, national standards institutes, and accredited calibration facilities. Based on a concentric spherical thermal architecture, the furnace employs a solid cast ceramic central tube—thermally isolated within nested ceramic fiber insulation and a robust stainless-steel outer housing—to achieve near-zero axial and radial heat loss at the measurement zone. This geometry ensures exceptional isothermality (≤0.1 °C gradient across the 60 mm usable calibration length) and minimizes convective disturbance, satisfying the fundamental requirements of ASTM E230/E230M, IEC 60584, and ISO/IEC 17025–compliant calibration procedures. Unlike cylindrical furnaces with inherent end-effects, the spherical symmetry of the Model 877 delivers uniform thermal distribution without requiring complex correction algorithms—enabling direct comparison calibrations traceable to NIST or other NMIs via fixed-point or reference thermometer methods.
Key Features
- Spherical thermal design with monolithic cast ceramic calibration well—optimized for zero net heat flux at the center point
- High-temperature ceramic heating element embedded in alumina-silica sphere, rated for continuous operation up to 1300 °C
- Dual-layer insulation: low-conductivity ceramic fiber (≥1260 °C service rating) + vacuum-formed refractory lining for thermal inertia control
- Stability of ±0.1 °C over 30 minutes at any setpoint from 100 °C to 1300 °C, verified per ISO 5725 repeatability protocols
- 0.1 °C digital resolution with 4-wire Pt100 reference sensor integrated into the well wall for real-time monitoring and feedback
- Simultaneous calibration of up to 16 thermocouples (e.g., Type K, N, R, S, B, E, J, T) using standardized 6.35 mm-diameter insertion ports
- Programmable ramp rates (0.1–10 °C/min) and soak profiles stored in non-volatile memory for GLP-compliant workflow execution
Sample Compatibility & Compliance
The Model 877 accommodates standard mineral-insulated (MI) thermocouples, bare-wire probes, and sheathed sensors with diameters from 0.25 mm to 6.35 mm. Its 60 mm deep, 12 mm internal diameter calibration well supports both single- and multi-junction configurations. The furnace meets mechanical and thermal requirements specified in ANSI/NCSL Z540.3, EURAMET cg-18, and JJG 368–2021 for thermocouple calibration systems. All thermal performance data—including stability, uniformity, and drift—are documented per ISO/IEC 17025 clause 7.8.2 and include uncertainty budgets compliant with GUM (JCGM 100:2008). Traceability is maintained through factory calibration certificates with NIST-traceable reference thermometers (certified to ±0.05 °C at 660 °C).
Software & Data Management
The furnace interfaces via RS-232 or optional Ethernet (Modbus TCP) to ISOTECH CalSuite™ v4.x—a validated calibration software platform supporting 21 CFR Part 11 compliance. CalSuite enables automated calibration sequences, electronic signature capture, audit trail generation (with immutable timestamps and user ID logging), and export of calibration reports in PDF/A-1b or XML formats. All raw temperature readings, ramp logs, and deviation plots are archived with SHA-256 hash integrity verification. Software validation documentation (IQ/OQ/PQ protocols) and CSV data export capability support integration into LIMS environments and FDA-regulated quality systems.
Applications
- Primary calibration of thermocouples against SPRTs or fixed-point cells (Zn, Al, Ag) in NMIs and DAkkS-accredited labs
- Periodic verification of industrial thermocouples used in aerospace turbine testing, nuclear fuel rod monitoring, and semiconductor diffusion furnaces
- Uncertainty budget development for ISO/IEC 17025 accreditation under clause 6.4.6 (measurement equipment metrological traceability)
- Validation of temperature mapping protocols per ICH Q5C and USP Analytical Instrument Qualification
- Research-grade studies of thermoelectric homogeneity, Seebeck coefficient drift, and aging effects in noble-metal thermocouples
FAQ
What is the recommended maintenance interval for the Model 877 furnace?
Annual recalibration and visual inspection of ceramic integrity and heater resistance are recommended; full thermal verification every 12 months per ISO/IEC 17025 clause 6.4.10.
Can the Model 877 be used for thermocouple wire homogeneity testing?
Yes—the uniform axial gradient and stable soak conditions enable ASTM E220-compliant wire segment testing when paired with a calibrated micro-thermometer and precision positioning stage.
Does the furnace support automated calibration workflows with third-party software?
Yes—open Modbus RTU/TCP register maps and SCPI-like command sets allow integration with MET/CAL, WinQbase, or custom LabVIEW applications.
Is the 877 suitable for calibrating Type B thermocouples at 1700 °C?
No—the maximum operating temperature is 1300 °C; for Type B above 1300 °C, contact ISOTECH for the Model 925 high-temperature furnace series.
How is traceability established for factory calibration certificates?
Certificates reference NIST SRM 1750a (Standard Platinum Resistance Thermometers) with uncertainties stated per GUM and reported as k=2 coverage factors.
