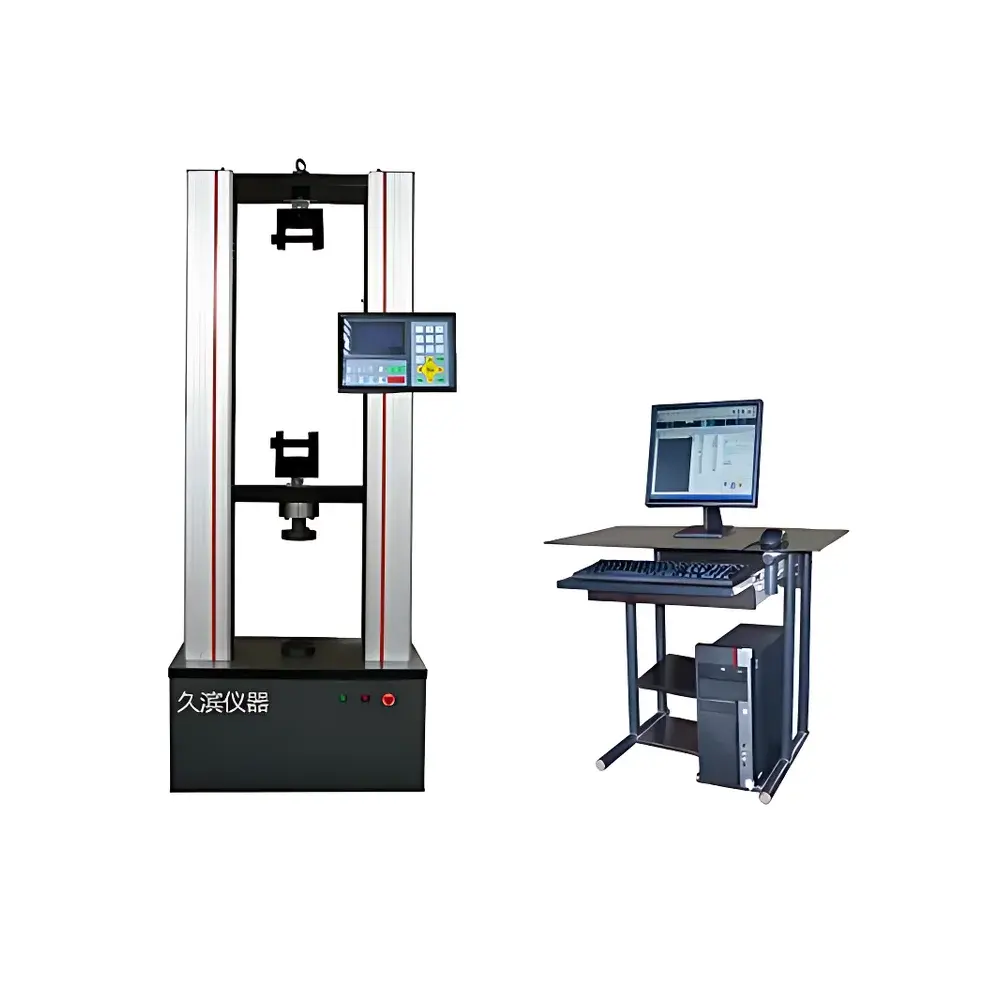

JB-121A-F Brookfield-Branded Safety Harness Tensile Testing Machine

Overview

The JB-121A-F Brookfield-Branded Safety Harness Tensile Testing Machine is a precision-engineered electromechanical universal testing system designed specifically for static and quasi-static tensile evaluation of personal protective equipment (PPE), with primary application in the mechanical qualification of fall arrest systems—including full-body safety harnesses, lanyards, webbing, buckles, D-rings, and associated anchorage components. Built upon a dual-space aluminum-framed architecture and driven by a high-torque AC servo motor, the system delivers stable, low-noise force application across its full 50 kN capacity range. Its measurement principle adheres to fundamental uniaxial tensile mechanics: load is applied via synchronized crosshead motion while force transducers and optical displacement encoders capture real-time data synchronized at ≥1 kHz sampling rate. The machine complies with core regulatory frameworks governing PPE certification, including GB 6096–1985 and GB/T 6069–2009 (China), EN 361:2019 (EU), ANSI Z359.1–2022 (USA), and ISO 10542–1:2018 (textile-based harness components). It is not intended for dynamic impact or drop-testing—those require separate pendulum or free-fall simulation rigs.

Key Features

• Dual-space rigid aluminum frame with reinforced base plate and adjustable height column—optimized for vertical alignment stability during high-load testing up to 50 kN
• AC servo drive system with closed-loop speed control (0.001–500 mm/min), enabling precise strain-rate implementation per ASTM E8/E8M and ISO 6892–1 protocols
• High-fidelity load cell calibrated to ±0.5% full-scale accuracy, traceable to NIM (National Institute of Metrology, China) standards
• Optical encoder-based displacement sensing with 0.01 mm resolution and repeatability ≤±0.02 mm over full 1350 mm travel
• Integrated digital signal conditioning: 24-bit A/D conversion, anti-aliasing filtering, and real-time noise suppression for consistent waveform fidelity
• Modular fixture interface compliant with ISO 26203–2 mounting dimensions—supports rapid swap between standard harness clamps and custom-designed hoist/lanyard adapters

Sample Compatibility & Compliance

The JB-121A-F accommodates flat webbing (polyester, nylon, Dyneema®), stitched assemblies, forged metal hardware (D-rings, connectors, cam buckles), and composite anchorage straps. Specimen width up to 380 mm and effective test height up to 3000 mm permit full-system evaluation—including multi-point attachment configurations per EN 361 Annex C. All test sequences are structured to satisfy mandatory documentation requirements under ISO/IEC 17025:2017 for accredited calibration laboratories. Software-generated reports include raw time-force-displacement datasets, annotated stress–strain curves, and pass/fail flags aligned with threshold limits defined in GB/T 6069–2009 Clause 6.2 (minimum breaking strength ≥15 kN for Type I harnesses) and ANSI Z359.1–2022 Table 1 (static strength ≥22.2 kN). Audit trails meet GLP-compliant metadata retention standards, including operator ID, timestamp, environmental temperature/humidity logs (when interfaced with optional external sensors), and firmware revision history.

Software & Data Management

The proprietary Jiubin TestSuite v4.2 software—developed in-house using C#/.NET Framework—is installed on Windows 10/11 x64 platforms and supports full source-code customization without licensing fees. It implements ISO/IEC 17025-compliant electronic records: automatic generation of PDF/CSV/XLSX reports with embedded digital signatures, configurable test templates (e.g., “GB6096 Pull-to-Failure”, “ANSI Z359 Creep Hold”), and configurable audit trail logging per FDA 21 CFR Part 11 requirements (user authentication, action timestamps, immutable change history). Raw binary data (.jbd format) retains full 1 kHz acquisition fidelity and can be exported to MATLAB, Python (NumPy), or Minitab for advanced statistical process control (SPC) analysis. Remote diagnostics and firmware updates are supported via secure HTTPS-based OTA protocol.

Applications

• Static tensile verification of full-body harness assemblies prior to EN 361:2019 Type Testing
• Breaking strength validation of energy-absorbing lanyards per ANSI Z359.14–2021 Annex A
• Webbing elongation and modulus characterization under controlled strain rates (ISO 13934–1)
• Mechanical endurance cycling of buckles and adjusters (up to 5,000 cycles at 50% MBS)
• Quality conformance testing for OEM suppliers serving aerospace (AS9100D), automotive (IATF 16949), and industrial safety markets
• Root-cause failure analysis of field-return specimens via comparative load–displacement hysteresis profiling

FAQ

Does this machine comply with OSHA 1926 Subpart M requirements for fall protection equipment verification?
Yes—the JB-121A-F satisfies the static load verification criteria outlined in OSHA 1926.502(d)(1) when operated per ANSI Z359.1–2022 test protocols.
Can the software generate reports compliant with ISO/IEC 17025 accreditation?
Yes—TestSuite v4.2 includes configurable report templates with mandatory metadata fields, digital signature support, and full audit-trail export for laboratory accreditation submissions.
Is third-party calibration certification included with purchase?
A factory calibration certificate traceable to NIM is provided; optional UKAS-accredited calibration (per ISO/IEC 17025) is available at additional cost.
What is the warranty coverage and service response time?
Standard warranty: 24 months parts and labor; on-site technical support within 5 business days in Tier-1 Chinese cities; remote diagnostics available globally.
Are custom fixtures for non-standard harness geometries supported?
Yes—Jiubin’s mechanical engineering team provides CAD-based fixture design services; lead time typically 3–4 weeks post-approval.
