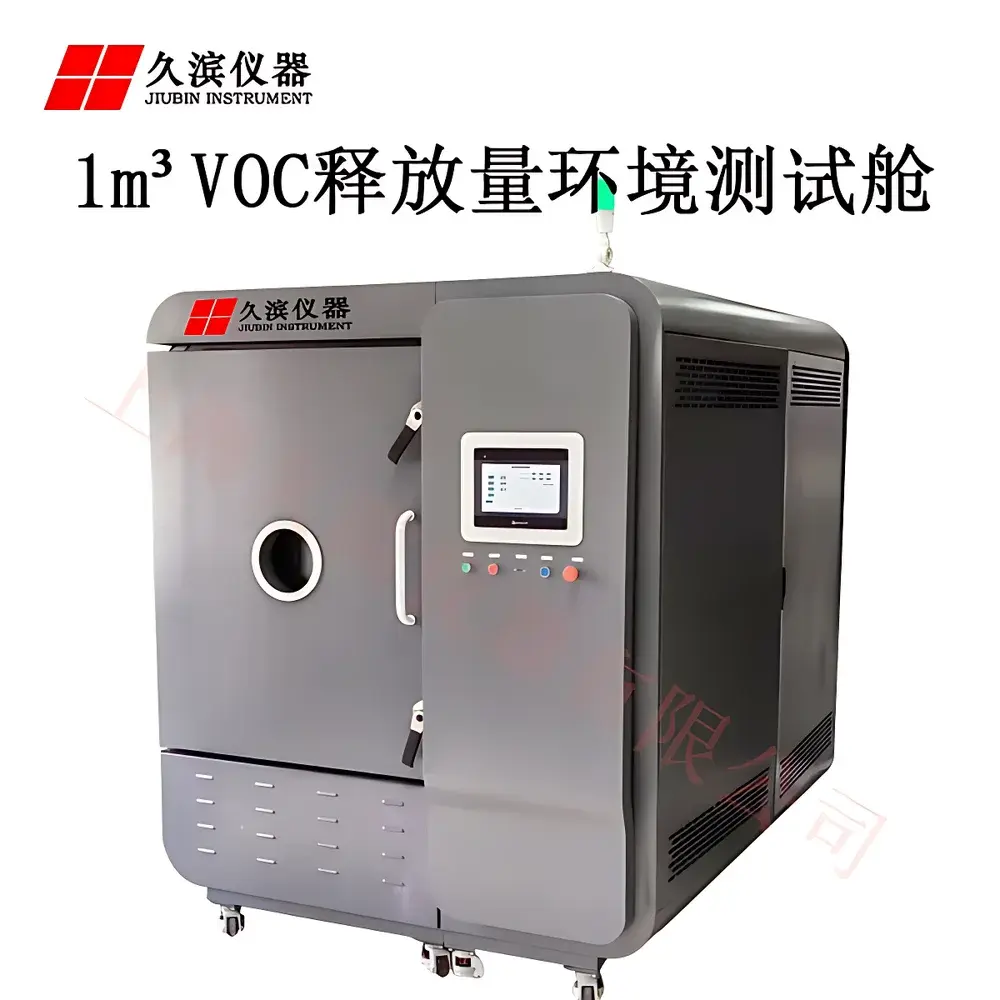

JB-1m³L Environmental Chamber for VOC and Formaldehyde Emission Testing

Overview

The JB-1m³L Environmental Chamber is a precision-engineered 1 cubic meter controlled-environment test system designed specifically for standardized determination of volatile organic compound (VOC) and formaldehyde emission rates from building materials, furniture, automotive interior components, and other solid or semi-solid products. It operates on the principle of dynamic chamber testing—where conditioned air is continuously supplied at a known, stable exchange rate, and emissions are collected via sorbent tubes or impingers for subsequent analysis by GC-MS, HPLC, or spectrophotometry. The chamber’s thermodynamic architecture ensures high spatial uniformity of temperature and humidity, critical for reproducible emission kinetics in accordance with internationally recognized protocols. Its stainless steel 316L interior and electropolished surfaces minimize background contamination and facilitate cleaning between test cycles—essential for GLP-compliant laboratories conducting serial material evaluations.

Key Features

• Stable climate control: Dual independent PID loops maintain temperature within ±0.5 °C and relative humidity within ±3 % RH across the full operational range (15–30 °C / 30–70 % RH).
• Precise air exchange regulation: Mass flow-controlled ventilation system delivers adjustable air exchange rates from 0.2 to 2.0 h⁻¹ with ≤5 % deviation, traceable to NIST-calibrated flow meters.
• Uniform internal environment: Computational fluid dynamics (CFD)-optimized airflow design achieves ≥90 % velocity and thermal homogeneity throughout the 1 m³ test volume, satisfying ISO 16000-9 Annex C validation criteria.
• Contamination-resistant construction: Interior surfaces fabricated from electropolished 316L stainless steel; no adhesives, paints, or polymer gaskets exposed to the test atmosphere.
• Integrated environmental logging: Onboard sensors record temperature, humidity, differential pressure, and airflow every 10 seconds; data stored locally and accessible via Ethernet (Modbus TCP) or exported via USB.
• Modular interface compatibility: Supports seamless integration with external analytical instruments (e.g., TD-GC-MS, DNPH-HPLC) through programmable digital I/O and analog signal outputs.

Sample Compatibility & Compliance

The JB-1m³L accommodates flat panels up to 1.2 m × 0.6 m (standard specimen size per ISO 16000-9), as well as irregular three-dimensional objects such as dashboards, seat foams, or modular insulation boards—provided total loading factor remains ≤1.0 m²/m³. All operational parameters—including chamber preconditioning duration, sampling interval, and purge protocol—are configurable to align with method-specific requirements under ASTM D6007 (wood-based panels), EN 16516 (construction products), JIS A 1901 (Japanese housing standards), and China’s GB/T 18883–2022 (indoor air quality). The system supports full audit trails for temperature/humidity setpoints, airflow calibration logs, and operator interventions—enabling compliance with ISO/IEC 17025 documentation requirements and facilitating FDA 21 CFR Part 11 readiness when paired with validated LIMS software.

Software & Data Management

The chamber is operated via an embedded industrial touchscreen HMI running deterministic real-time firmware. All measurement data—including timestamped sensor readings, alarm events, and manual parameter adjustments—are written to non-volatile memory with cyclic overwrite protection. Export formats include CSV and XML, compatible with laboratory information management systems (LIMS) and statistical process control (SPC) platforms. Optional PC-based configuration software provides remote monitoring, historical trend analysis, and automated report generation aligned with ISO 16000-10 reporting templates. Audit trail functionality records user ID, action type, timestamp, and pre-/post-values for all critical settings—supporting GLP/GMP traceability and internal quality audits.

Applications

• Quantitative emission profiling of formaldehyde, acetaldehyde, benzene, toluene, xylene, and C6–C16 aliphatic/aromatic VOCs from laminated wood, particleboard, carpet backing, and acoustic ceiling tiles.
• Regulatory testing for CE marking (EN 16516), China Compulsory Certification (CCC), and U.S. EPA TSCA Title VI compliance verification.
• Material screening during R&D of low-emission coatings, bio-based adhesives, and flame-retardant additives.
• Validation of air purification technologies (e.g., photocatalytic filters, activated carbon modules) under controlled challenge conditions.
• Inter-laboratory comparison studies and proficiency testing programs administered by national metrology institutes and accreditation bodies.

FAQ

What standards does the JB-1m³L chamber support for formaldehyde emission testing?
It is engineered to fulfill the physical and procedural requirements of ISO 16000-9, ASTM D6007, JIS A 1901, GB/T 18883–2022, and EN 16516—covering both static and dynamic chamber methodologies.
Can the chamber be validated for ISO 16000-9 Annex C performance criteria?
Yes—the airflow uniformity, temperature/humidity homogeneity, and background VOC levels are verifiable using standard procedures outlined in ISO 16000-9 Annex C; calibration certificates for integrated sensors are provided upon installation.
Is third-party certification available for this system?
Jiubin Instruments supports IQ/OQ documentation packages and can coordinate on-site performance qualification with accredited third-party vendors upon request.
How is chamber background contamination minimized during long-term operation?
The 316L stainless steel chamber body undergoes passivation and electropolishing; all internal fasteners and seals are PTFE- or FKM-based; and a dedicated high-temperature purge cycle (up to 60 °C) is programmable to remove residual organics prior to sample loading.
Does the system include provisions for regulatory audit readiness?
Yes—data integrity features include time-stamped event logs, user-access controls, electronic signatures (via optional software module), and immutable storage compliant with ALCOA+ principles for regulated environments.
