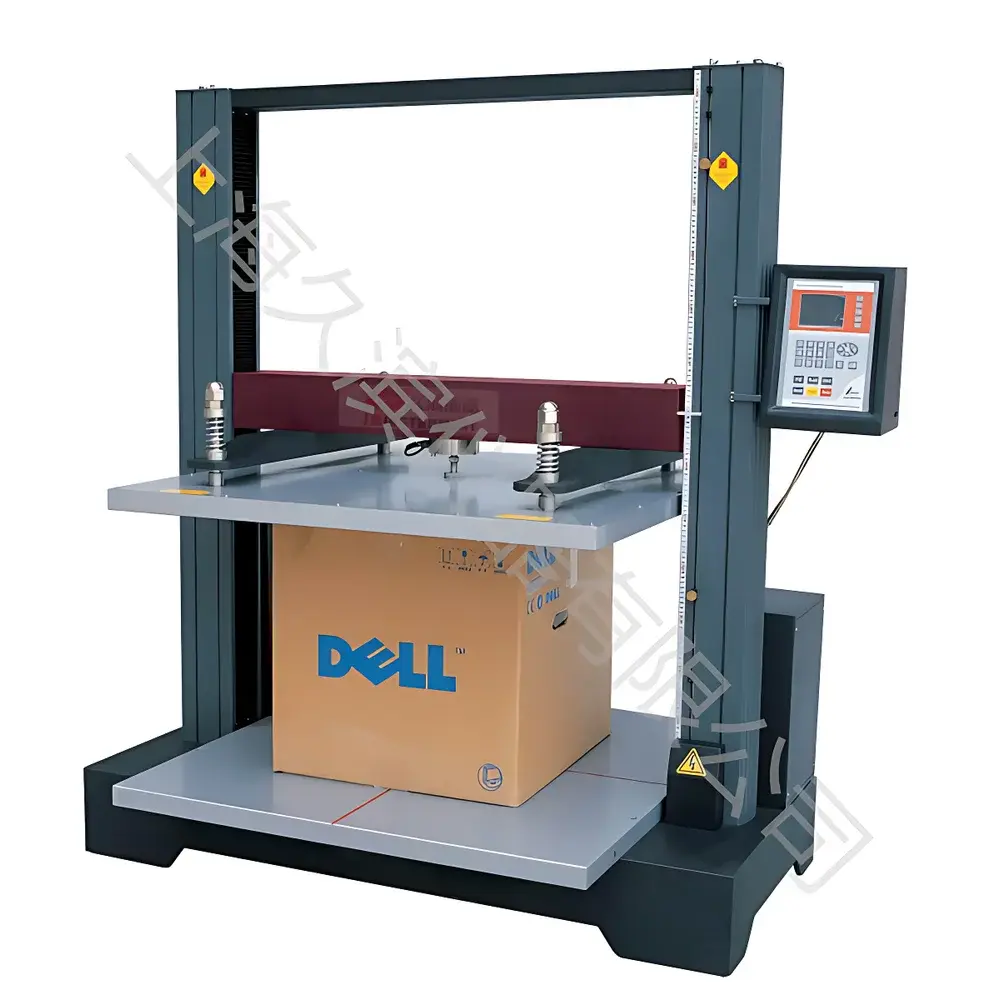

JB-611A Packaging Compression Tester by Jiubin Instruments

Overview

The JB-611A Packaging Compression Tester is an electromechanical universal testing system engineered for precise, repeatable evaluation of compressive strength and deformation behavior in rigid and semi-rigid packaging containers. Based on the fundamental principle of controlled axial compression loading under displacement- or force-controlled conditions, the instrument applies calibrated mechanical load via a high-stiffness dual-column frame and precision ball-screw actuation system. It is designed specifically to quantify critical performance parameters—including peak compressive load, deformation at yield, creep resistance under sustained load (stacking simulation), and structural collapse mode—across a broad range of industrial packaging formats. The system meets the mechanical and procedural requirements of internationally recognized standards for transport packaging testing, including ASTM D642 (Standard Test Method for Determining Compressive Resistance of Shipping Containers), ISO 12048 (Packaging—Complete, Filled Transport Packages—Compression and Stacking Tests), and GB/T 4857.4 (Packaging—Transport Packages—Pressure Test Methods). Its modular architecture supports both routine QC validation and R&D-level mechanical characterization of packaging integrity under simulated logistics stresses.

Key Features

• Configurable maximum load capacity options: 20 kN, 50 kN, or 100 kN, selected per application-specific requirements and package size class.
• High-precision force measurement using Transcell load cells with ±0.5% full-scale accuracy and 1/500,000 internal resolution.
• Ultra-fine displacement control with 0.001 mm resolution and programmable speed range from 0.001 to 500 mm/min, enabling both quasi-static and accelerated test protocols.
• Large, customizable test chamber (standard: 1000 mm × 1000 mm × 1000 mm W×D×H) accommodating full-size palletized loads, IBC totes, corrugated shipping cases, and composite drums.
• Integrated servo drive system featuring Panasonic AC servo motor and planetary gear reducer coupled with ABBA precision ground ball screws for low backlash, high repeatability, and long-term dimensional stability.
• Multi-mode closed-loop control: constant-rate displacement, constant-force hold, constant-strain ramp, and user-defined profile sequencing.
• Real-time synchronized acquisition and display of force, displacement, time, and derived metrics (e.g., stiffness, energy absorption, yield point).
• Comprehensive hardware safety interlocks: overload cutoff, overtravel limit switches, emergency stop circuitry, thermal overload protection, and software-based force/displacement boundary enforcement.

Sample Compatibility & Compliance

The JB-611A is validated for testing a wide spectrum of packaging substrates and configurations, including but not limited to: single- and double-wall corrugated fiberboard boxes (RSC, HSC, FOL), honeycomb board containers, rigid paperboard cartons, plastic intermediate bulk containers (IBCs), HDPE/PP drums (e.g., food-grade oil and water containers), fiber drums, laminated paper cans, and multi-layer composite shipping units. Its mechanical design and control firmware are fully aligned with mandatory regulatory and industry-standard test methodologies. Key referenced standards include ASTM D642, ISO 12048, GB/T 4857.3 (static compression), GB/T 4857.4 (dynamic compression), GB/T 4857.16 (stacking load simulation), GB/T 8167 and GB/T 8168 (performance evaluation of wooden and composite pallets), TAPPI T804 (compressive strength of corrugated board), and JIS Z 20212 (compression testing of transport packages). The system supports GLP-compliant operation through audit-trail-enabled software logging and configurable user access levels.

Software & Data Management

The JB-611A operates under a Windows-based control and analysis platform supporting multi-language UI, intuitive test setup wizards, and standardized report templates compliant with ISO/IEC 17025 documentation requirements. All raw data—including time-stamped force-displacement curves, event markers (yield, peak, failure), and metadata (operator ID, sample ID, environmental notes)—are stored in encrypted binary format with optional export to CSV, Excel, or PDF. Software features include automatic pass/fail judgment against preset specification limits, batch statistical analysis (mean, SD, CV%), comparative overlay of multiple test curves, and customizable reporting modules that accommodate enterprise LIMS integration. Firmware and application updates are delivered remotely; version history and change logs are retained for traceability. The system supports 21 CFR Part 11 readiness via optional electronic signature modules, role-based permissions, and immutable audit trails for all test executions and parameter modifications.

Applications

• Validation of corrugated box compression strength prior to distribution channel release.
• Stacking simulation for warehouse and containerized sea freight environments (ASTM D642 hold-time protocols).
• Comparative assessment of alternative packaging materials (e.g., molded pulp vs. corrugated vs. plastic composites).
• Design verification of reusable transit containers and returnable packaging systems.
• Quality conformance testing of fiber drums and paper-based intermediate bulk containers per FDA-regulated food and pharmaceutical supply chains.
• Root-cause analysis of field failures through correlation of lab-measured compression profiles with real-world damage reports.
• Support for ISTA 3A/3E/3H and ASTM D4169 distribution simulation protocols requiring controlled compression inputs.

FAQ

What standards does the JB-611A support out-of-the-box?
The system includes preconfigured test methods for ASTM D642, ISO 12048, GB/T 4857.3–4, GB/T 4857.16, TAPPI T804, and JIS Z 20212. Custom method creation is supported via editable parameter sets.
Can the JB-611A perform long-duration creep or stacking tests?
Yes—its closed-loop force-hold mode maintains target load within ±0.5% for durations up to 999 hours, with continuous data logging and automatic timeout alerts.
Is third-party calibration certification available?
Factory calibration is performed using NIST-traceable reference standards; ISO/IEC 17025-accredited calibration services are available upon request.
Does the system meet regulatory requirements for pharmaceutical or food packaging validation?
When configured with audit trail, electronic signatures, and user access controls, it satisfies FDA 21 CFR Part 11 and EU Annex 11 expectations for computerized system validation in GMP environments.
How is maintenance and technical support handled?
Jiubin Instruments provides lifetime software updates, remote diagnostics, and on-site service contracts covering mechanical alignment, load cell verification, and controller firmware optimization.
