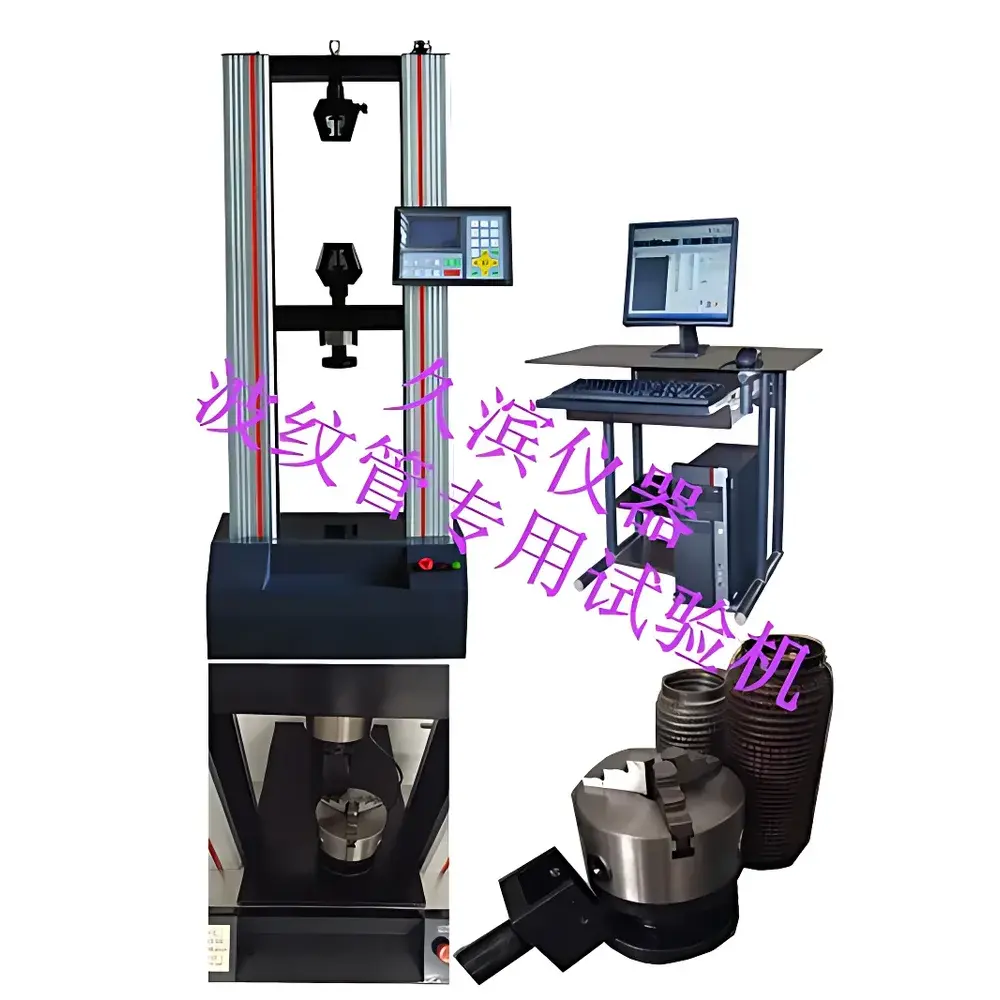

JB-Brookfield JB-121A-B Corrugated Pipe Bending & Axial Stiffness Testing Machine

Overview

The JB-Brookfield JB-121A-B Corrugated Pipe Bending & Axial Stiffness Testing Machine is an electromechanical universal testing system engineered for precise mechanical characterization of metallic, polymeric, and composite corrugated tubing used in automotive exhaust systems, HVAC ducting, cable protection conduits, and industrial fluid transfer applications. It operates on the principle of controlled axial compression, lateral bending, and combined flexural-compressive loading—enabling quantification of critical performance parameters including axial stiffness, angular deflection resistance, springback behavior, and structural integrity under cyclic or static load conditions. Designed to meet the metrological rigor required by ISO/IEC 17025-accredited laboratories, the system integrates high-fidelity force transduction, sub-micron displacement resolution, and closed-loop servo control architecture to ensure repeatability within ±0.5% of full-scale load across its 20 kN and 50 kN configurations.

Key Features

• High-precision dual-range load cell from Transcell (USA), calibrated per ISO 7500-1 Class 1 requirements
• Panasonic AC servo motor with integrated planetary gearbox and ABBA C3-grade ball screw transmission—delivering smooth, backlash-free motion and long-term dimensional stability
• Modular frame design with 1000 mm effective test height and 380 mm throat width; optional extended configurations available upon request
• Dual-control interface: rugged 7-inch industrial touchscreen for standalone operation + Windows-based PC software for advanced data acquisition and reporting
• Real-time dynamic display of axial force vs. displacement curves, with simultaneous visualization of positive/negative load values and bidirectional travel
• Auto-ranging capability: seamless switching between measurement ranges during test execution without signal interruption or recalibration
• Comprehensive safety architecture—including overload cutoff, over-speed detection, limit-switch-triggered emergency stop, undervoltage monitoring, and programmable mechanical end-stop positioning
• Predefined test templates aligned with GB/T 18442.3, ASTM D3574 (for flexible cellular materials), ASTM E8/E9 (tensile/compression standards), and ISO 844 (rigidity testing of cellular plastics)

Sample Compatibility & Compliance

The JB-121A-B accommodates a broad spectrum of corrugated geometries—ranging from small-diameter stainless-steel bellows (OD 6–50 mm) to large-section HDPE or PVC conduit (OD up to 300 mm). Its open-frame configuration supports custom fixtures for three-point bending, constrained-end compression, and torsional-flexure hybrid protocols. All hardware and firmware comply with electromagnetic compatibility (EMC) directives IEC 61326-1 and safety standard IEC 61000-6-2. Software functionality satisfies audit-trail and electronic signature requirements outlined in FDA 21 CFR Part 11 when configured with user authentication, role-based access control, and immutable test record generation—making it suitable for GLP/GMP-regulated quality assurance environments.

Software & Data Management

The proprietary JB-TestSuite v4.2 software provides a guided, menu-driven interface supporting multi-language localization (English, Chinese, Spanish, German). It enables automated calculation of axial stiffness (k = ΔF/Δx, N/mm), yield point identification, secant modulus derivation, and hysteresis loop analysis for fatigue-relevant metrics. Raw data streams are stored in encrypted SQLite databases with time-stamped metadata, including operator ID, environmental conditions (optional sensor integration), calibration history, and instrument configuration snapshots. Export formats include CSV, PDF (customizable report templates), and XML for LIMS interoperability. Version-controlled software updates are delivered remotely, with full backward compatibility maintained across firmware revisions.

Applications

• Validation of axial compressive resilience in automotive exhaust expansion joints
• Quantification of bending moment resistance in armored fiber-optic cable conduits
• Quality conformance testing per EN 1446 for plastic corrugated drainage pipes
• R&D evaluation of shape-memory alloy (SMA) reinforced waveguide structures
• Batch release testing of medical device tubing per ISO 11336 (flexibility and kink resistance)
• Accelerated life-cycle simulation via programmed displacement cycling with variable amplitude and dwell intervals

FAQ

What standards does this machine support out-of-the-box?
GB/T 18442.3, ASTM D3574, ASTM E8/E9, ISO 7500-1, ISO 844, DIN 50104, and JIS Z2241 test methods are preloaded in the software with auto-calculated pass/fail thresholds.
Can the system perform cyclic bending tests?
Yes—the controller supports programmable sine, triangle, trapezoidal, and user-defined waveform profiles with up to 1 million cycle logging capacity and real-time fatigue parameter tracking.
Is third-party calibration certification included?
Each unit ships with a factory calibration certificate traceable to NIM (National Institute of Metrology, China); optional UKAS-accredited calibration services are available upon request.
How is data integrity ensured during long-duration tests?
The system implements non-volatile memory buffering and automatic checkpoint recovery—ensuring no data loss during unexpected power interruption or communication dropout.
Does the software support multi-user environments with audit trails?
Yes—role-based permissions, electronic signatures, and immutable audit logs comply with FDA 21 CFR Part 11 Annex 11 and EU GMP Annex 11 requirements when deployed on validated network infrastructure.
