JB-Brookfield JB-121A Ring Stiffness and Ring Flexibility Testing Machine

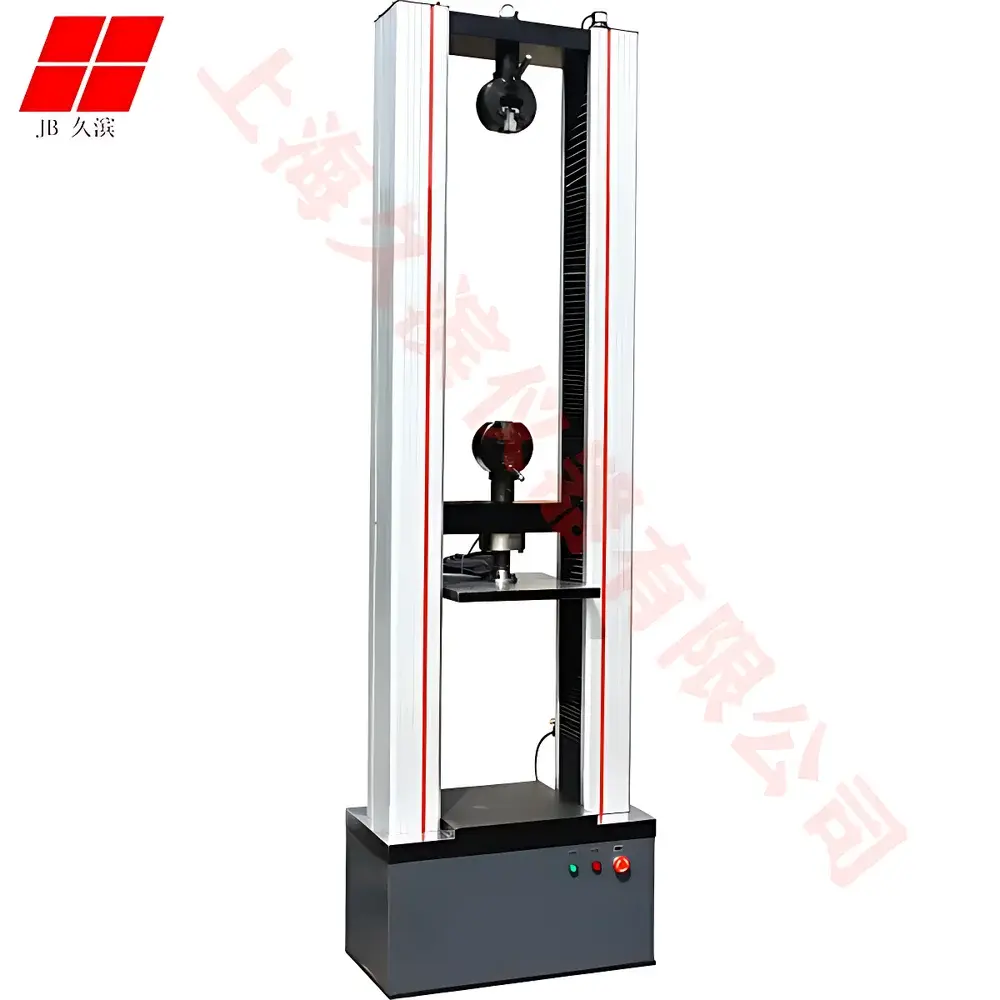

Overview

The JB-Brookfield JB-121A Ring Stiffness and Ring Flexibility Testing Machine is an electromechanical universal testing system engineered specifically for standardized structural evaluation of thermoplastic, reinforced thermoset, and composite pipes under diametral compression loading. It operates on the principle of controlled radial deformation—applying compressive force perpendicular to the pipe’s longitudinal axis while measuring load-deflection response in accordance with established ring stiffness (kN/m²) and ring flexibility (mm/kN) metrics. This instrument implements a three-point bending configuration per ASTM D2412 and ISO 9969, where the pipe specimen rests on two parallel cylindrical supports and is loaded centrally via a rigid indenter. The resulting load-displacement curve enables calculation of ring stiffness (S = 0.0086 × ΔL / δ, where ΔL is applied load and δ is deflection at 3% diameter reduction), as well as determination of initial ring tensile strength, ring flexural strength, and strain at break—critical parameters for pipeline design validation, quality assurance in municipal water/gas distribution, and compliance verification in industrial conduit manufacturing.

Key Features

• High-precision electromechanical actuation using Teco AC servo motor and closed-loop servo drive, delivering consistent speed control from 0.001 mm/min to 500 mm/min with ±0.2% accuracy over full range
• Dual-channel digital data acquisition system featuring 24-bit A/D resolution, real-time load and displacement synchronization, and automatic zero-drift compensation
• Modular load frame with adjustable support span (up to 2,000 mm) and interchangeable indenters (flat-faced, radius-matched) to accommodate pipe diameters from 50 mm to 1,600 mm
• Integrated dual-display interface: dedicated LCD panel for real-time load (kN), displacement (mm), and rate (mm/min); secondary PC-based GUI for advanced curve analysis and report generation
• Structural rigidity optimized for minimal frame deflection (<0.02 mm under maximum rated load), ensuring measurement fidelity during high-force ring compression tests
• Compliance-ready architecture supporting audit trails, user access levels, and electronic signature protocols aligned with GLP/GMP documentation requirements

Sample Compatibility & Compliance

The JB-121A accommodates rigid and semi-rigid thermoplastic pipes (e.g., PVC-U, PE, PP), fiberglass-reinforced plastic (FRP) pipes, and cement-mortar-lined ductile iron conduits. Specimen preparation follows ISO 9969 Annex A and ASTM D2412 Section 7: length ≥ 300 mm, free of joints or fittings, conditioned at 23 ± 2°C and 50 ± 5% RH for ≥24 h prior to testing. Test outputs comply with mandatory reporting formats required by national inspection agencies—including Chinese GB/T 9647–2022, European EN 1775:2021, and international ISO/IEC 17025 accredited laboratories. All calibration procedures reference traceable NIST-traceable load cells and displacement transducers certified annually per ISO/IEC 17025 Clause 6.5.

Software & Data Management

The JB-121A operates with JB-TestSuite v3.2—a Windows-based application supporting multi-language UI (English, Spanish, Arabic, Vietnamese), automated test sequence scripting, and real-time curve overlay for comparative analysis across batches. Raw data files are stored in .CSV and .XML formats compliant with ASTM E1447 and USP data integrity guidelines. Software features include: configurable pass/fail thresholds per test parameter, auto-generation of ASTM-compliant PDF reports with embedded metadata (operator ID, timestamp, calibration status), and optional integration with LIMS via HL7 or ODBC connectors. Audit trail functionality logs all user actions—including method edits, result overrides, and report exports—with immutable timestamps and digital signatures satisfying FDA 21 CFR Part 11 requirements.

Applications

• Verification of ring stiffness for HDPE pressure pipes used in trenchless installation (e.g., horizontal directional drilling)
• Quality control of GRP sewer pipes subjected to backfill loads in municipal infrastructure projects
• Developmental testing of novel composite pipe formulations under variable temperature-humidity conditioning
• Third-party certification testing per ISO 1167-2 for long-term hydrostatic strength prediction models
• Evaluation of recycled-content PVC pipes for compliance with EN 1401-1 mechanical performance thresholds
• Root cause analysis of field failures through correlation of lab-measured ring flexibility with in-situ soil-structure interaction modeling

FAQ

What standards does the JB-121A directly support out-of-the-box?

ASTM D2412, ISO 9969, EN 1775, GB/T 9647, and ISO 1167-2 test methods are preconfigured in JB-TestSuite v3.2 with validated calculation algorithms.
Can the system test pipes with non-circular cross-sections?

No—the JB-121A is designed exclusively for circular-section pipes conforming to standard geometries specified in referenced test methods.
Is third-party calibration certification included with purchase?

Yes—each unit ships with an ISO/IEC 17025-accredited calibration certificate covering load cell (±0.5% FS) and displacement transducer (±0.01 mm) traceability to national metrology institutes.
What maintenance intervals are recommended for sustained accuracy?

Biannual verification of load train alignment and annual recalibration of force and displacement sensors are advised per manufacturer’s technical bulletin TB-JB-121A-REV4.
Does the software support networked deployment across multiple lab workstations?

Yes—JB-TestSuite supports concurrent multi-user operation via SQL Server backend with role-based permissions and centralized database logging.
