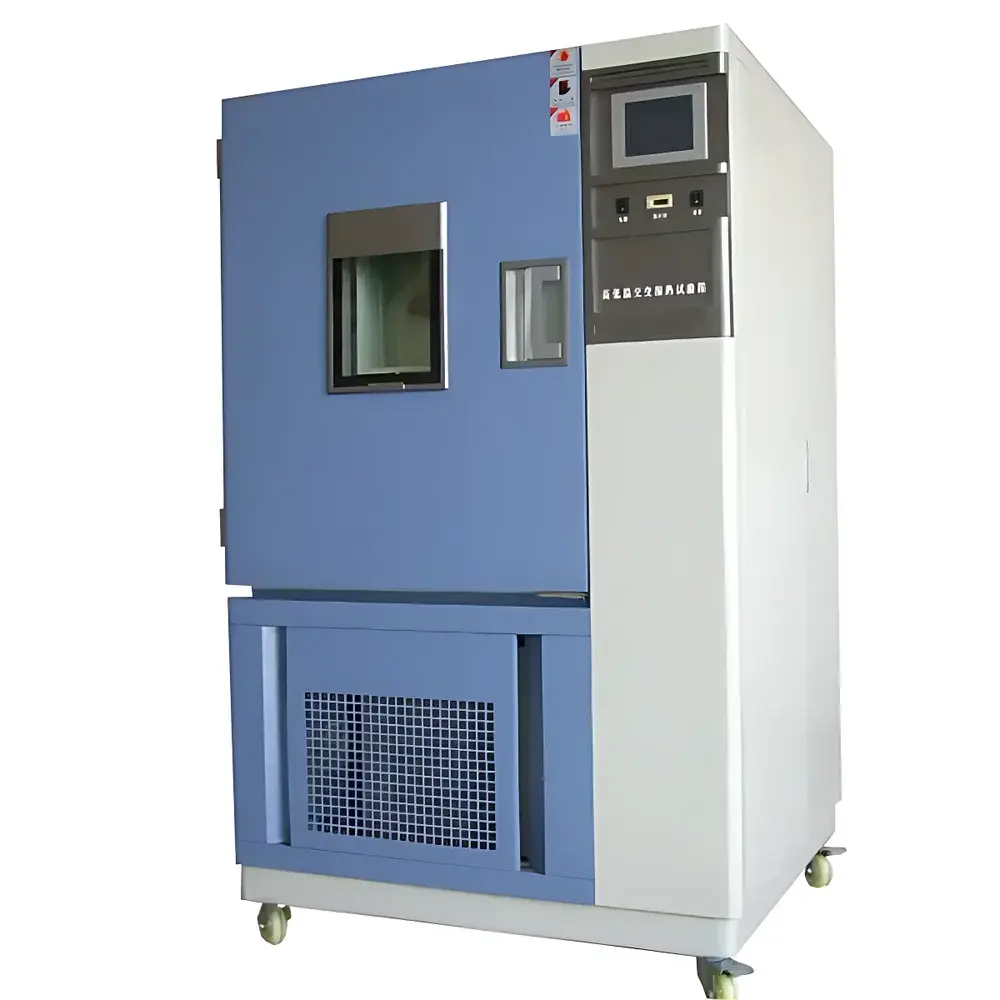

JB-Brookfield JB-GDW High-Low Temperature Environmental Test Chamber

Overview

The JB-Brookfield JB-GDW High-Low Temperature Environmental Test Chamber is an engineered precision platform for controlled thermal stress testing of materials, components, and finished products under defined low-temperature and elevated-temperature conditions. Designed in accordance with internationally recognized environmental test methodology, the chamber employs a cascade refrigeration system to achieve stable operation across a wide temperature range from –65 °C to +100 °C. Its core architecture integrates thermodynamic stability, mechanical robustness, and regulatory traceability—making it suitable for laboratories conducting qualification testing per IEC 60068-2 series, MIL-STD-810, and product-specific validation protocols required in automotive, aerospace, electronics, and medical device development.

Key Features

• Mirror-finish SUS304 stainless steel interior chamber with seamless, radius-rounded corners—ensuring corrosion resistance, ease of cleaning, and uniform thermal distribution.
• Cascade refrigeration circuit incorporating original Tecumseh (France) hermetic compressors—delivering long-term reliability, reduced maintenance intervals, and consistent cooling performance at sub-zero setpoints.
• Microprocessor-based PID temperature controller with dual digital display (setpoint/actual), auto-tuning capability, and real-time deviation monitoring—enabling repeatable thermal profiles with ±0.5 °C temperature fluctuation tolerance.
• Optimized air circulation system featuring low-noise, high-efficiency German-sourced centrifugal fans and calibrated duct geometry—guaranteeing ≤±1.5 °C temperature uniformity across the entire working volume.
• Standard 30 mm diameter access port on left-side wall—designed for feedthrough of power cables, thermocouple leads, or sensor signal lines without compromising chamber integrity or thermal sealing.
• Comprehensive multi-point safety interlock suite—including compressor overheat protection, fan motor thermal cut-off, high-pressure switch, phase-loss detection, overload relay, independent overtemperature limiter, and (where applicable) water-level monitoring for optional humidification modules.

Sample Compatibility & Compliance

The JB-GDW accommodates a broad spectrum of test specimens—from printed circuit boards (PCBs) and lithium-ion battery cells to polymer housings, optical lenses, and pharmaceutical packaging. Its internal dimensions (configurable across four standard variants) support both single-unit evaluation and batch-level thermal cycling. All models comply with Chinese national standards GB/T 2423.1 (cold test), GB/T 2423.2 (dry heat), GB/T 2423.3 (damp heat, steady state), and GB/T 2423.4 (damp heat, cyclic), as well as GB 10592–1989 for general specifications of environmental test chambers. These alignments ensure data acceptability in domestic certification workflows and serve as technical baselines for alignment with ISO 16750-4 (road vehicles), AEC-Q200 (passive components), and IPC-9701 (performance qualification of soldered assemblies).

Software & Data Management

While the base JB-GDW operates via embedded microcontroller interface, optional RS485/RS232 communication ports enable integration with third-party SCADA or LIMS platforms. When paired with compatible PC-based software (sold separately), users gain access to programmable ramp-soak profiles, real-time graphing, automated report generation (PDF/CSV), and audit-trail-enabled event logging. The system supports timestamped recording of all critical parameters—including chamber setpoint, actual temperature, compressor status, and fault codes—with retention configurable per GLP/GMP-aligned data governance policies. Optional thermal printer output provides hard-copy verification for QA documentation during routine calibration checks or production release testing.

Applications

• Thermal shock pre-screening of electronic assemblies prior to HALT/HASS execution.
• Stability assessment of adhesives, encapsulants, and conformal coatings under accelerated aging conditions.
• Validation of material dimensional stability (e.g., coefficient of thermal expansion measurements) across operational temperature bands.
• Environmental stress screening (ESS) of avionics enclosures per DO-160 Section 4.
• Pre-conditioning of sensors and transducers before functional calibration at extreme ambient extremes.
• Supporting accelerated life testing (ALT) protocols for consumer appliances, automotive ECUs, and industrial control units.

FAQ

What is the minimum achievable temperature using the cascade refrigeration system?

The JB-GDW achieves –65 °C as a guaranteed operational lower limit, validated under full-load conditions with standard chamber door closure and ambient room temperature ≤25 °C.
Is the chamber suitable for continuous operation at 100 °C?

Yes—continuous operation at +100 °C is supported; however, prolonged exposure above 85 °C may reduce service life of certain elastomeric seals. Recommended maximum dwell time at 100 °C is 96 hours per cycle unless otherwise qualified.
Can this chamber be integrated into an existing laboratory network for remote monitoring?

With optional communication module installation and compatible middleware, remote readout and basic alarm notification are feasible. Full supervisory control requires custom API integration or OEM-approved gateway hardware.
Does the unit include calibration documentation traceable to national standards?

Each shipment includes a factory calibration certificate referencing PT100 sensor verification against NIM-traceable reference standards. On-site ISO/IEC 17025 accredited calibration services are available upon request.
Are humidity control options available for this model?

The base JB-GDW is a dry-thermal-only chamber. Humidity-capable variants (e.g., JB-GDWS series) feature steam humidification and condensation dehumidification systems compliant with GB/T 2423.3 and IEC 60068-2-78.
