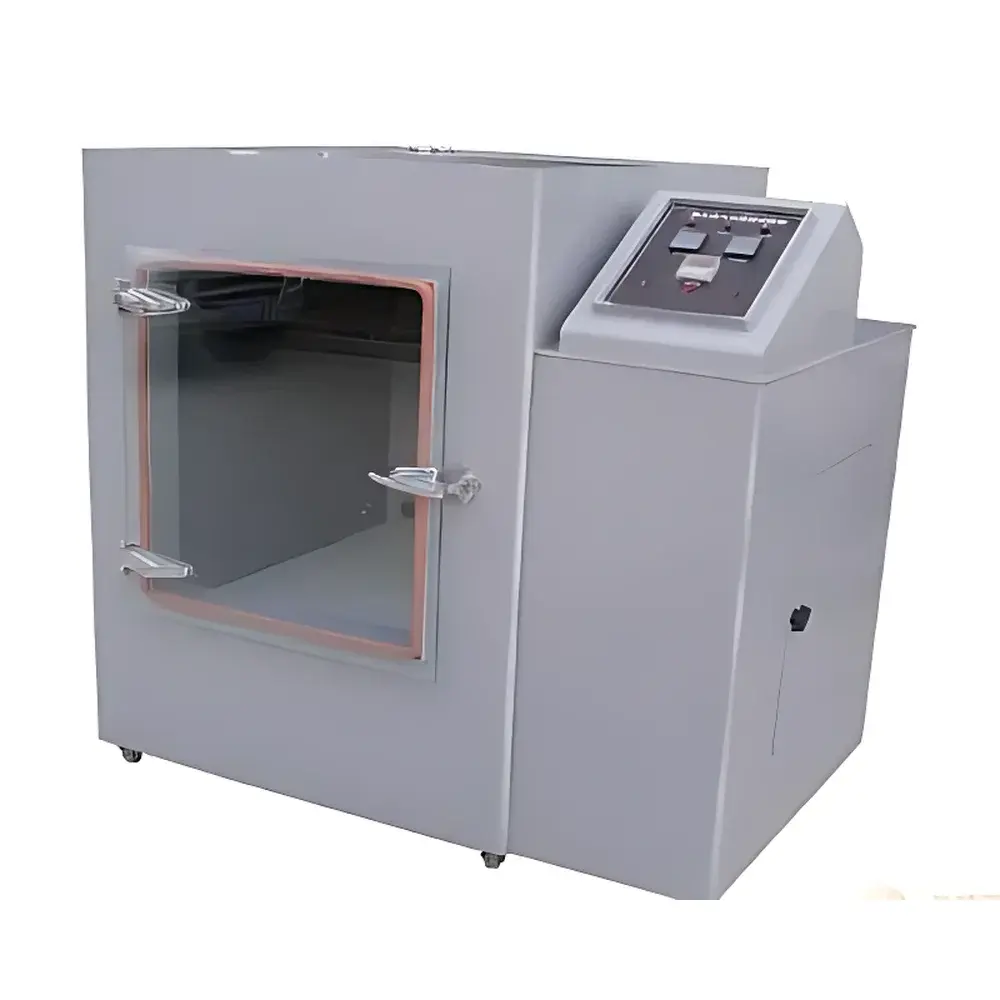

JB Instruments JB-SO2 Sulfur Dioxide Salt Spray Corrosion Test Chamber

Overview

The JB Instruments JB-SO2 Sulfur Dioxide Salt Spray Corrosion Test Chamber is a purpose-engineered environmental simulation system designed to accelerate corrosion evaluation under combined aggressive conditions—specifically sulfur dioxide (SO₂) gas exposure, elevated humidity, and controlled thermal stress. Unlike conventional salt spray chambers limited to NaCl mist, the JB-SO2 integrates precise gaseous SO₂ dosing into a saturated humid environment, replicating industrial and coastal atmospheric degradation mechanisms where acidic sulfate deposition synergizes with chloride-induced pitting and electrochemical dissolution. This dual-stress methodology aligns with internationally recognized accelerated corrosion testing protocols for assessing protective coatings, metallic substrates, and surface treatments—including electroplated layers, anodized aluminum, organic/inorganic conversion films, rust inhibitors, and polymer-based barrier systems. The chamber operates on a closed-loop gas dispersion principle, utilizing calibrated mass flow control and real-time SO₂ concentration feedback to maintain stable ppm-level exposure across the full test volume.

Key Features

• Corrosion-grade polypropylene (PP) monolithic welded construction ensures long-term chemical resistance against SO₂, H₂SO₄ condensate, and saline aerosols—eliminating leakage risks and supporting ISO 9001-compliant maintenance intervals.
• 120° angled lid design prevents direct condensate drip onto test specimens, preserving spatial uniformity of corrosive deposition and enabling repeatable gravimetric or visual assessment per ASTM G85 Annex A2 (SO₂-accelerated salt spray).
• Stainless steel 316L finned heating elements with infrared Ni-Cr alloy cores deliver rapid thermal response and ±1.0 °C stability—critical for maintaining thermodynamic equilibrium during SO₂ solubility-driven acid formation.
• Isolated boiler steam humidification avoids mineral carryover and ensures consistent 85–95 % RH without introducing contaminants that could interfere with electrochemical corrosion kinetics.
• TEMI550 touchscreen controller with dual-channel PID + SSR coordination enables synchronized regulation of temperature, humidity, and SO₂ concentration—each parameter logged at user-defined intervals with timestamped audit trails.
• Comprehensive safety architecture includes redundant thermal cutouts, phase monitoring relays, water-level interlocks, motor thermal overload protection, and Class B residual current devices—fully compliant with IEC 61000-6-2 EMC and IEC 61000-6-4 emission standards.

Sample Compatibility & Compliance

The JB-SO2 accommodates standardized test panels (e.g., ASTM G101 reference coupons), electronic enclosures, automotive fasteners, aerospace structural components, and coated architectural metals up to 500 mm width × 1000 mm depth × 600 mm height. Its operational envelope satisfies mandatory requirements for third-party certification labs conducting GLP-aligned validation per ISO/IEC 17025. The system’s SO₂ measurement traceability—via NIST-traceable 4–20 mA transmitter (0–100 ppm)—supports FDA 21 CFR Part 11-compliant data integrity when paired with optional secure logging software. Testing protocols executed in this chamber directly map to GB/T 2423.19 (electrotechnical equipment), GB/T 10125 (metallic coatings), and IEC 60068-2-42/43 (sulfur dioxide testing for electrotechnical products), ensuring regulatory acceptance across APAC, EU, and North American markets.

Software & Data Management

While the base TEMI550 controller provides local real-time visualization and manual setpoint adjustment, optional Ethernet-enabled firmware upgrades support Modbus TCP integration with centralized LIMS or MES platforms. All operational parameters—including chamber temperature, relative humidity, SO₂ concentration (ppm), runtime, alarm events, and sensor diagnostics—are stored internally with 30-day circular buffering. Exportable CSV logs include ISO 8601 timestamps and are compatible with statistical process control (SPC) tools for Cp/Cpk analysis of coating durability metrics. Audit trail functionality records operator ID, parameter modifications, and system state transitions—meeting ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) for quality assurance documentation.

Applications

• Evaluation of anti-corrosion performance for zinc-nickel, cadmium-titanium, and trivalent chromium passivations under simulated urban-industrial atmospheres.
• Validation of conformal coatings on printed circuit boards (PCBs) subjected to SO₂-laden humidity cycling per IPC-TM-650 2.6.25.
• Accelerated lifetime testing of stainless steel fasteners in marine-grade environments where sulfide stress cracking risk must be quantified.
• Qualification of powder-coated aluminum extrusions for façade applications per EN 13523-12 (corrosion resistance of organic coatings on metal substrates).
• Comparative assessment of inhibitor efficacy in transformer oil containment systems exposed to sulfur-contaminated ambient air.

FAQ

What standards does the JB-SO2 chamber explicitly support?
It is configured to meet GB/T 2423.19–1981, GB/T 10125–1997, GB/T 9789, and IEC 60068-2-42/43—covering sulfur dioxide corrosion testing for electrical, mechanical, and electroplated components.
Can SO₂ concentration be validated independently during operation?
Yes—the integrated 4–20 mA SO₂ transmitter (0–100 ppm range) supports external calibration using certified gas standards; output signals are accessible via analog terminals for third-party verification.
Is the chamber suitable for continuous unattended operation?
With its multi-layer safety interlocks, auto-shutdown on fault detection, and non-volatile event logging, the JB-SO2 is rated for 72-hour uninterrupted cycles under supervised laboratory conditions.
How is humidity controlled without introducing impurities?
Steam is generated in a physically isolated stainless steel boiler; only pure vapor enters the test chamber—no water droplets, minerals, or additives contact specimens.
Does the system provide raw sensor data export for statistical analysis?
All primary sensor outputs (PT100, capacitive RH, electrochemical SO₂) are digitally sampled at 1 Hz and exportable as time-synchronized CSV files with millisecond-resolution timestamps.
