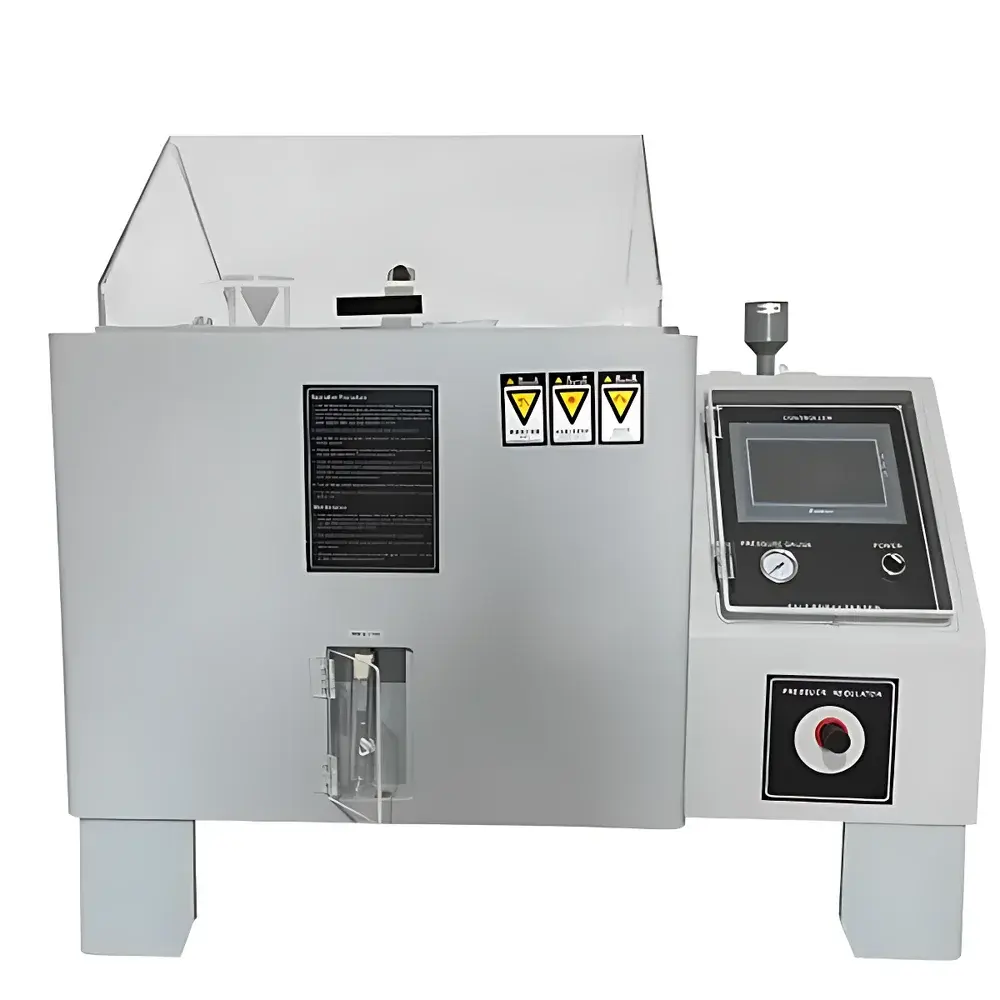

JianHu JH-Cyclic Corrosion Salt Spray Chamber
| Brand | JianHu |
|---|---|
| Origin | Shanghai, China |
| Model | JH-Cyclic Corrosion Salt Spray Chamber |
| Spray Mode | Continuous Atomization |
| Fog Output | 1–2 mL / 80 cm²·hr |
| Nozzle Pressure | 0.7–1.0 kg/cm² |
| De-fogging Method | Pneumatic Air-Compression Exhaust |
| Temperature Ramp Rate | Up to 15°C/min |
| Temp. Control Accuracy | ±0.5°C |
| Chamber Liner Material | ASTM A240 316L Stainless Steel |
| Compliance | ISO 9227, ASTM B117, ASTM G85 Annex A5 (Cyclic Acidified Salt Fog), JIS Z2371, GB/T 10587, IEC 60068-2-52 |
Overview
The JianHu JH-Cyclic Corrosion Salt Spray Chamber is an engineered environmental test system designed for accelerated, multi-phase corrosion evaluation under dynamically alternating conditions. Unlike conventional static salt spray chambers governed solely by ASTM B117, this chamber implements programmable cyclic sequences—integrating salt fog exposure, high-temperature drying, high-humidity conditioning, and ambient recovery phases—to replicate real-world atmospheric degradation mechanisms observed in automotive underhood components, marine hardware, coated fasteners, and aerospace alloys. Its core operational principle relies on controlled thermodynamic transitions: rapid thermal ramping (up to 15°C/min) enables precise transition between climatic phases without thermal lag, minimizing dwell-time artifacts and ensuring reproducible phase boundary definition. The chamber’s architecture supports full compliance with cyclic corrosion test standards including ASTM G85 Annex A5 (acidified salt fog), ISO 14993, and VDA 621-415, making it suitable for validation testing in GLP-compliant laboratories and Tier-1 automotive supplier quality assurance workflows.
Key Features
- High-speed thermal actuation: Independent heating system achieves ≤15°C/min ramp rate across the full operating range (RT+10°C to 70°C), enabling tight synchronization of temperature transitions with spray and humidity cycles.
- Corrosion-resistant chamber construction: Interior liner fabricated from ASTM A240 316L stainless steel with electropolished finish; exterior housing features reinforced cold-rolled steel with epoxy-polyester coating and triple-layer silicone gasket sealing to prevent salt fog leakage and cross-contamination.
- Precision aerosol delivery: Adjustable brass nozzles calibrated to deliver uniform fog at 1–2 mL/80 cm²·hr within 0.7–1.0 kg/cm² pressure range; solution flow stabilized via constant-head reservoir and digital pressure regulator.
- Integrated de-fogging mechanism: Compressed-air-assisted exhaust system actively evacuates residual mist post-spray phase, reducing carryover contamination and accelerating transition to dry/humid stages.
- Real-time environmental monitoring: Dual-channel Pt100 sensors (temperature/humidity) with NIST-traceable calibration certificates; closed-loop PID control maintains ±0.5°C temperature stability and ±2% RH accuracy during dynamic cycling.
- Modular control interface: 10.1-inch capacitive touchscreen HMI with intuitive drag-and-drop cycle editor; supports up to 99 programmable steps per test profile, each with independent setpoints for temperature, humidity, spray duration, and rest intervals.
Sample Compatibility & Compliance
The JH-Cyclic Corrosion Chamber accommodates standard test specimens up to 600 mm × 600 mm × 500 mm (W×D×H), with adjustable sample racks supporting vertical or angled mounting per ISO 9227 requirements. It meets structural and procedural criteria for regulatory submission testing in automotive (VDA, GMW14872), electronics (IEC 60068-2-52), and defense (MIL-STD-810H Method 509.6) applications. All firmware and data logging functions comply with FDA 21 CFR Part 11 requirements for electronic records and signatures when configured with audit trail and user access controls. Calibration documentation follows ISO/IEC 17025 traceability pathways, and factory verification reports include uncertainty budgets per ILAC P14.
Software & Data Management
JianHu’s proprietary TestMaster Pro software (v4.2+) provides PC-based test orchestration, remote monitoring, and automated report generation. It supports CSV/Excel export of time-stamped sensor logs, event-triggered alarms, and deviation alerts with timestamped screenshots. Data integrity safeguards include encrypted SQLite database storage, SHA-256 hash-verified backups, and configurable audit trails recording all parameter changes, user logins, and manual overrides. Optional cloud gateway module enables secure TLS 1.3–encrypted telemetry to private AWS S3 buckets or on-premise NAS systems, facilitating centralized fleet management across multi-site R&D labs.
Applications
- Automotive component validation: Coated steel brackets, aluminum die-cast housings, and zinc-nickel plated fasteners subjected to VDA 621-415 cyclic protocols.
- Aerospace material qualification: Titanium alloy weldments and clad aluminum sheets tested per ASTM G85 Annex A3 (dilute electrolyte fog).
- Electrochemical interface studies: In-situ monitoring of galvanic couples (e.g., Cu/Al, Zn/Fe) under synchronized thermal–chemical stress.
- Paint & coating durability assessment: Evaluation of cathodic delamination resistance in automotive OEM primers using ISO 12944–9 C5-I exposure profiles.
- Biomedical device packaging integrity: Accelerated aging of sterile barrier systems under cyclic salt–humidity–heat stress per ISO 11607–2 Annex D.
FAQ
What standards does the JH-Cyclic Corrosion Chamber support out-of-the-box?
Preloaded test templates include ASTM B117, ASTM G85 Annexes A1–A5, ISO 9227, ISO 14993, JIS Z2371, GB/T 10587, and VDA 621-415. Custom protocol import via XML is supported.
Can the chamber operate unattended for extended durations (e.g., 30-day tests)?
Yes—integrated UPS-compatible power management, redundant fan monitoring, and predictive fault diagnostics enable continuous operation with scheduled maintenance intervals exceeding 500 hours.
Is third-party calibration certification available?
Factory calibration includes NIST-traceable certificates for temperature, humidity, and spray volume; accredited ISO/IEC 17025 calibration services are offered through JianHu’s partner network in North America and EU.
How is salt solution concentration monitored and maintained?
Conductivity-based feedback loop continuously verifies NaCl concentration (5.0 ± 0.1% w/w); automatic top-up dosing is triggered upon deviation detection, logged with full audit trail.
Does the system support integration with LIMS or MES platforms?
Yes—OPC UA server interface (IEC 62541 compliant) enables bi-directional data exchange with LabWare LIMS, Siemens Opcenter, and Rockwell FactoryTalk environments.
