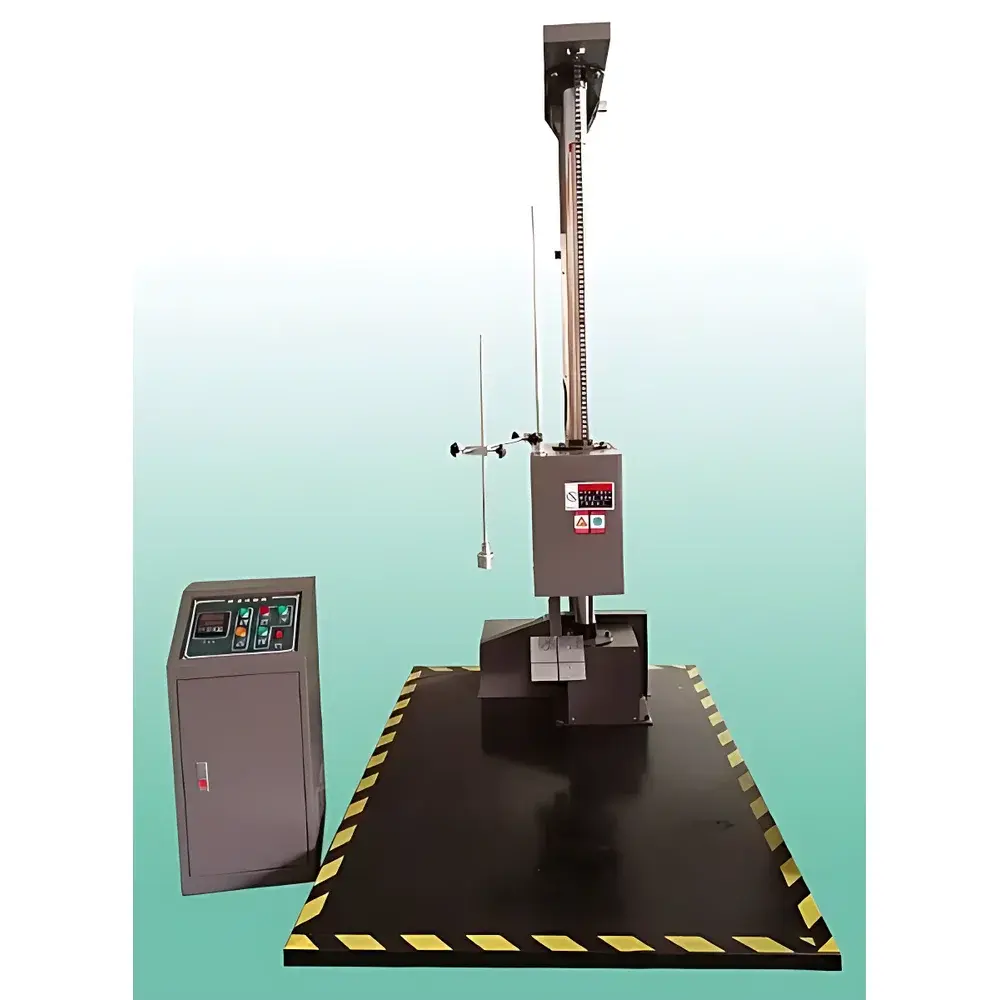

Jiubin Instruments JB-DL1 Single-Wing Drop Testing Machine

Overview

The Jiubin Instruments JB-DL1 Single-Wing Drop Testing Machine is an electromechanical impact testing system engineered for standardized evaluation of packaging integrity under simulated transportation and handling conditions. It operates on the principle of controlled free-fall impact, where a single articulated wing—guided by dual vertical columns and damped by mechanical spring buffers—releases a secured specimen from a preset height onto a rigid horizontal impact surface. This configuration enables repeatable, orientation-specific drop events targeting edges, faces, or corners—critical for assessing structural resilience, cushioning performance, and closure reliability of shipping containers, consumer electronics packaging, pharmaceutical secondary packaging, and industrial component enclosures. Designed in strict alignment with internationally recognized test standards—including GB/T 4857.5–1992 (equivalent to ISO 2248:1972(E))—the JB-DL1 supports deterministic pass/fail assessment and comparative benchmarking across production lots or design iterations.

Key Features

• Dual-column guided drop mechanism ensures vertical alignment stability and minimizes lateral deviation during release, enhancing test repeatability.
• Spring-damped base structure absorbs residual kinetic energy post-impact, reducing transmission to floor foundations and extending machine service life.
• Height-adjustable wing with calibrated scale indicator (400–1500 mm range) allows precise, tool-free positioning without recalibration.
• Manually adjustable wing width accommodates specimens up to 800 mm in depth while maintaining symmetrical load distribution.
• Integrated control panel with dedicated rise, stop, drop, reset (RST), and cycle-count functions enables intuitive operation with minimal operator training.
• Robust steel frame construction (net weight: 500 kg) provides high rigidity and resistance to resonance-induced measurement drift.
• No field assembly required—unit ships fully pre-assembled and mechanically aligned per factory specifications.

Sample Compatibility & Compliance

The JB-DL1 accommodates specimens measuring up to 800 × 600 × 800 mm and weighing ≤60 kg, covering standard cartons, corrugated shippers, molded fiber trays, and rigid plastic clamshells used in logistics and retail supply chains. Its 1400 × 1200 mm impact platform meets minimum footprint requirements defined in ISO 2248:1972(E) for unrestricted drop orientation. All operational parameters—including drop height tolerance (±5 mm), impact surface flatness (≤0.2 mm/m), and angular deviation (<1° from vertical) conform to the metrological provisions of GB/T 4857.5–1992. The system supports full traceability documentation for internal quality audits and is routinely deployed in environments requiring adherence to ISO 9001:2015 clause 8.5.1 (control of production and service provision) and ISTA Series 1–3 protocols.

Software & Data Management

The JB-DL1 operates via hardwired electro-mechanical controls without embedded firmware or digital data logging. All test parameters—including drop height, specimen identification, orientation mode (face/edge/corner), and cycle count—are manually recorded by the operator in accordance with GLP-compliant laboratory notebooks or enterprise LIMS templates. While no proprietary software is bundled, the machine’s deterministic mechanical behavior ensures compatibility with external time-stamped video capture systems (e.g., high-speed cameras synchronized to drop initiation) for forensic failure analysis. Optional third-party PLC integration kits (available separately) enable RS-485 Modbus RTU communication for centralized test sequencing and event logging in automated QA workflows compliant with FDA 21 CFR Part 11 Annex 11 audit trail requirements.

Applications

• Validation of corrugated box compression strength and edge crush resistance under corner-drop stress.
• Verification of tamper-evident seal integrity for medical device packaging subjected to face-drop impacts.
• Assessment of smartphone case deformation and screen fracture thresholds using standardized corner-drop methodology.
• Qualification of e-commerce fulfillment packaging for last-mile delivery hazards (e.g., curb-drop simulation at 1200 mm).
• Design iteration support for sustainable mono-material packaging, comparing drop survival rates across bio-based polymer variants.
• Supplier qualification testing per OEM packaging specifications referencing ISO 2248 or ASTM D5276.

FAQ

What power supply is required for safe operation?
The JB-DL1 requires a grounded three-phase, four-wire AC 380 V ±10%, 50 Hz supply with a dedicated 10 A circuit breaker featuring residual-current protection (RCD/GFCI). Failure to meet grounding and overcurrent protection requirements voids safety certification and invalidates warranty coverage.
Can the machine perform sequential multi-orientation drops without manual repositioning?
No—the JB-DL1 executes one orientation per setup. Repositioning between face, edge, and corner drops requires manual specimen rotation and clamping verification. For automated multi-axis sequencing, consider upgrading to the JB-DL2 dual-wing variant with programmable axis indexing.
Is calibration certification included with shipment?
A factory-verified mechanical calibration report (covering height scale linearity, platform levelness, and column parallelism) is provided with each unit. Annual recalibration against traceable NIST or CNAS-accredited reference standards is recommended and supported by Jiubin’s authorized service network.
What safety interlocks are built into the system?
The JB-DL1 features no automated safety interlocks. Operators must strictly observe the “no personnel on test platform” rule during actuation. Emergency power cutoff must be implemented externally via a hardwired contactor controlled by a wall-mounted emergency stop button meeting IEC 60204-1 Category 0 requirements.
Does the system comply with ISTA or ASTM standards?
While the JB-DL1 satisfies the physical test execution criteria of ISO 2248 and GB/T 4857.5, it does not natively support ISTA Procedure 1A, 2A, or ASTM D5276 without supplemental fixtures or procedural adaptation. Validation reports confirming equivalence to these standards may be generated upon request through Jiubin’s application engineering team.
