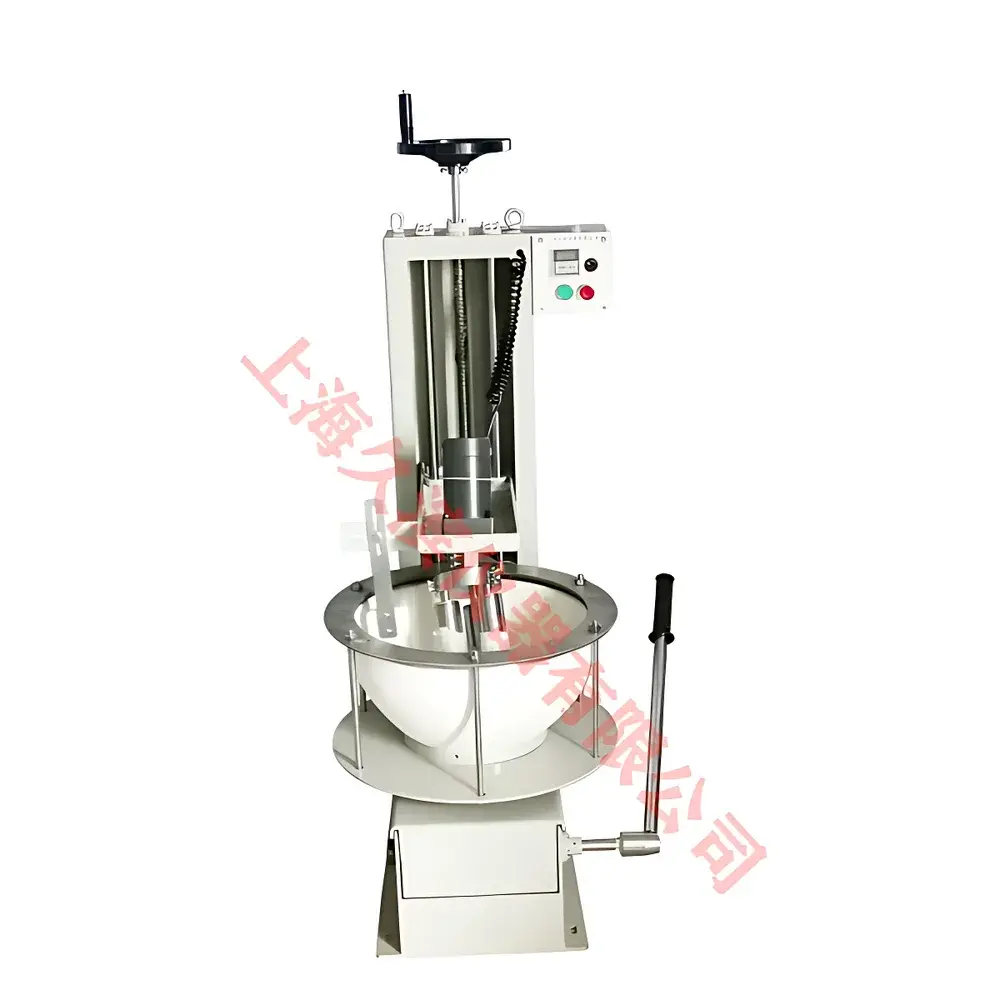

Jiubin JB-400 Dual-Piston Electric Mortar Grinder

Overview

The Jiubin JB-400 Dual-Piston Electric Mortar Grinder is a precision-engineered laboratory grinding system designed for controlled, high-efficiency size reduction of hard, brittle, and temperature-sensitive solid materials. Unlike conventional ball mills or jaw crushers, the JB-400 employs a mechanical mortar-and-pestle principle—specifically, three synchronized rotating alumina pestles operating within a fixed 400 mm-diameter alumina mortar bowl. This configuration generates combined compressive, shearing, and impact forces under low-speed, high-torque conditions, minimizing heat generation and preventing phase transformation or amorphization in thermally labile samples. The system is particularly suited for applications requiring reproducible sub-500 µm particle distributions without contamination from metallic wear debris—critical for semiconductor processing, pharmaceutical excipient preparation, and ultrafine ceramic powder synthesis.

Key Features

• Triple-pestle architecture (vs. single-pestle JB-250 predecessor), delivering up to 3× higher throughput while maintaining uniform stress distribution across the grinding zone
• Alumina (99% Al₂O₃) mortar and pestles—chemically inert, Mohs hardness ≥9, resistant to acid/alkali corrosion and thermal shock up to 1600°C
• Variable-speed drive (1–180 rpm) with digital torque monitoring, enabling optimization for both coarse pre-grinding and final micronization
• Precise time-programmable operation (1–999 minutes) with automatic shutdown and audible alert
• Sealed grinding chamber with optional inert gas purge port (N₂ or Ar) to prevent oxidation of reactive powders (e.g., Si, Ti, Mg alloys)
• Integrated safety interlock: motor disables when lid is open; emergency stop button compliant with IEC 60204-1

Sample Compatibility & Compliance

The JB-400 accommodates a broad spectrum of hard, non-fibrous, non-sticky solids—including sintered ceramics, fused quartz, silicon carbide, borosilicate glass, pharmaceutical tablets, dried botanicals, and metallurgical alloys. It is unsuitable for fibrous, elastic, or highly viscous materials (e.g., polymers above Tg, wet pastes). All wetted parts meet ISO 8502-3 cleanliness standards for residue-free operation. While not certified to ISO/IEC 17025, the instrument supports GLP-compliant workflows through traceable parameter logging (time, speed, cycle count) and is routinely validated per internal SOPs aligned with USP and ASTM C778 for particle size method verification.

Software & Data Management

The JB-400 operates via an embedded microcontroller interface with LED display and tactile keypad—no external PC required. Parameter settings (speed, duration, pause intervals) are stored in non-volatile memory and recalled per user-defined program number (up to 10 presets). Optional RS-232 or USB-C serial output enables integration with LIMS or ELN platforms for audit-trail generation. Raw operational logs (start/stop timestamps, actual rpm, elapsed time) can be exported as CSV for 21 CFR Part 11–compliant record retention when paired with validated third-party data acquisition software.

Applications

• Preparation of reference standards for XRD and SEM-EDS analysis requiring minimal lattice distortion
• Homogenization of composite ceramic precursors prior to slip casting or tape casting
• Size reduction of pharmaceutical tablets for dissolution testing (USP ) and content uniformity assays
• Production of sub-100 µm iodine or selenium micro-powders for nutritional supplement formulation
• Grinding of spent nuclear fuel simulants (e.g., UO₂ + ZrO₂) under glovebox-compatible configurations
• Routine QC grinding of abrasive grits (e.g., diamond, cubic BN) for particle size distribution validation per ISO 6344

FAQ

What materials are compatible with the alumina mortar and pestles?
Alumina components are suitable for grinding oxides, carbides, nitrides, and most inorganic salts. Avoid hydrofluoric acid–containing samples or molten alkalis above 500°C.
Can the JB-400 achieve nanoscale particles?
No—it is optimized for 10–500 µm output. Sub-micron grinding requires planetary ball milling or jet milling.
Is the unit compliant with EU CE marking requirements?
Yes; it carries CE marking per Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU, with full technical file available upon request.
How is cross-contamination prevented between batches?
A dedicated cleaning protocol using ultrasonic acetone wash followed by 120°C oven drying for 30 min is recommended; residual mass loss must be ≤0.1 mg per 5 g sample load.
Does the system support IQ/OQ/PQ documentation?
Yes—Jiubin provides a vendor-executed IQ/OQ template; PQ must be performed in situ per site-specific SOPs and material attributes.
