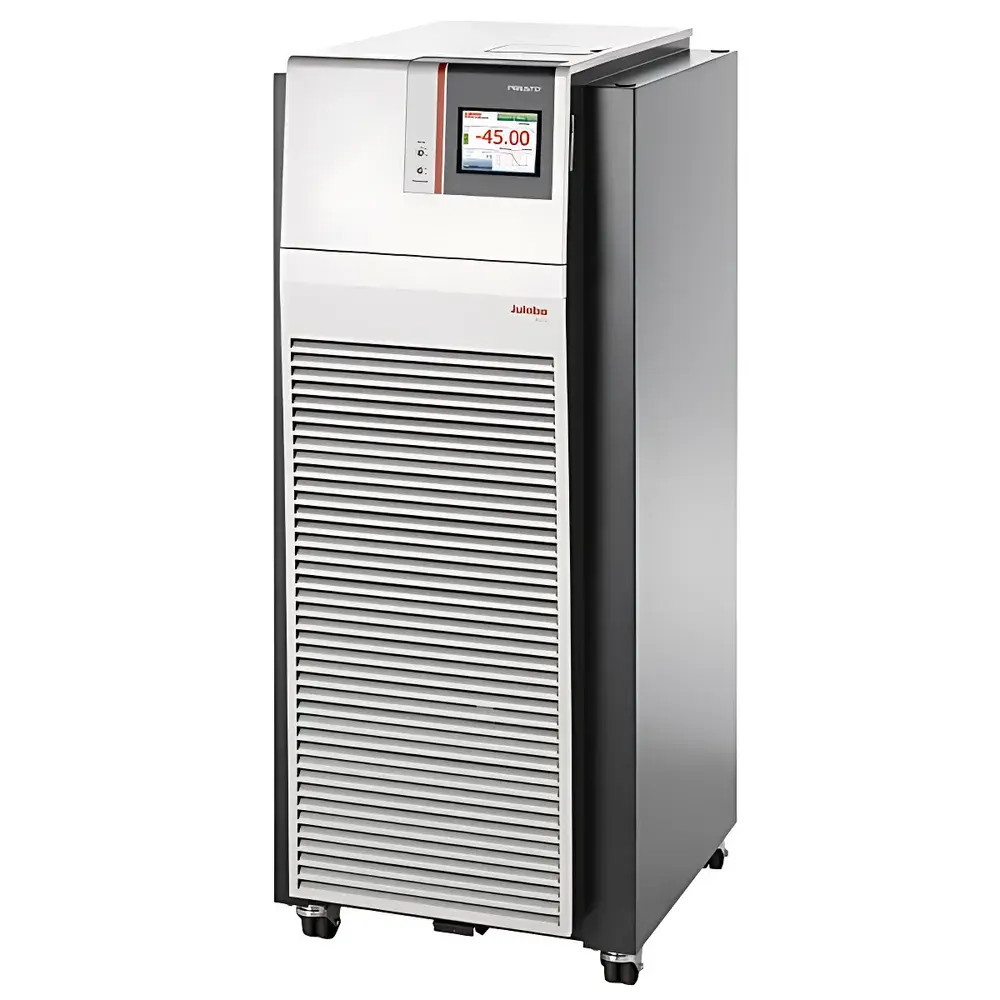

Julabo PRESTO A45/A45t Closed-Loop High-Precision Dynamic Temperature Control System

Overview

The Julabo PRESTO A45 and A45t are closed-loop, high-precision dynamic temperature control systems engineered for demanding external process applications—particularly jacketed reactor temperature management, calorimetric studies, and rapid thermal cycling in R&D and pilot-scale synthesis. Unlike conventional thermostats relying on static bath equilibrium, the PRESTO platform implements Julabo’s proprietary dynamic temperature control principle—first conceptualized in 1989 with the ATS prototype—where real-time thermal load compensation is achieved through synchronized modulation of refrigeration capacity, heating power, and high-flow hydraulic circulation. This architecture enables precise, responsive, and stable temperature regulation across an exceptionally wide range (-45 °C to +250 °C) using a single heat transfer fluid (e.g., Thermal HL), eliminating the need for fluid swaps or system reconfiguration when shifting between cryogenic and high-temperature operation. The system’s compact 7.5 L reservoir—optimized for low thermal inertia—combined with intelligent ICC (Intelligent Cascade Control) algorithms ensures temperature stability within ±0.05 °C under steady-state conditions and rapid transient response during exothermic or endothermic reaction events.

Key Features

• True closed-loop design with hydraulic sealing to suppress volatile organic vapor emissions—critical for laboratory safety and long-term fluid integrity.
• Integrated dual-mode thermal management: simultaneous high-power electric heating (6.0 kW or 12 kW) and multi-stage refrigeration (cascade compressor system) enabling seamless transition across the full operating range.
• High-dynamic circulation pump delivering 35–76 L/min flow at adjustable pressure (0.48–3.2 bar), ensuring uniform heat transfer even with high-resistance external circuits (e.g., narrow-jacket reactors or microfluidic manifolds).
• Intelligent Cascade Control (ICC) algorithm with adaptive PID tuning—maintains ±0.05 °C stability at setpoints and compensates for external disturbances (e.g., reaction enthalpy shifts, ambient fluctuations) within seconds.
• No-frost/no-ice operation down to -45 °C, achieved via optimized refrigerant circuit design and dew-point-controlled insulation—eliminating condensation-related maintenance and calibration drift.
• Robust stainless-steel fluid path and chemically resistant wetted materials compliant with ISO 8573-1 (compressed air purity) and compatible with common synthetic heat transfer fluids (e.g., silicone oils, polyalkylene glycols).

Sample Compatibility & Compliance

The PRESTO A45/A45t interfaces with externally mounted equipment—including glass or stainless-steel jacketed reactors (1–50 L), calorimeters (e.g., RC1, EasyMax), distillation columns, and analytical sample conditioning modules—via standardized 1/2″ or 3/4″ quick-connect fittings. Its closed architecture meets IEC 61000-6-3 (EMC emission) and IEC 61010-1 (safety for laboratory equipment) requirements. Fluid containment integrity satisfies EN 13445-1 (unfired pressure vessels) for internal loop pressures up to 3.2 bar. For regulated environments, optional audit-trail-enabled firmware supports 21 CFR Part 11-compliant electronic records when integrated with validated LabView or DeltaV control platforms.

Software & Data Management

Unit operation is managed via the intuitive, touch-capacitive front panel interface with multilingual support (EN/DE/FR/ES/CN). Real-time temperature, flow rate, pressure, and power consumption data are logged internally (≥30 days at 1 Hz resolution) and exportable via USB or Ethernet (Modbus TCP). Optional Julabo CombiControl software provides remote monitoring, script-based temperature ramping (including multi-step hold/soak profiles), alarm history review, and CSV/Excel-compatible reporting—fully traceable for GLP/GMP documentation workflows. All parameter changes are timestamped and user-ID tagged to satisfy audit requirements.

Applications

• Process development: Precise thermal profiling of catalytic hydrogenations, Grignard reactions, and polymerization kinetics requiring sub-0.1 °C stability over extended durations.
• Reaction calorimetry: Dynamic compensation of heat flow during fast exotherms (e.g., nitration, diazotization) without overshoot or lag-induced data distortion.
• Material testing: Thermal cycling of composites, battery electrolytes, or phase-change materials per ASTM E1970 or ISO 11357 protocols.
• Pharmaceutical QC: Controlled crystallization, dissolution testing, and stability chamber preconditioning aligned with USP and ICH Q5C guidelines.
• Automated synthesis platforms: Integration with ChemSpeed, Uniqsis, or H.E.L. systems for fully unattended temperature-programmed reaction sequences.

FAQ

What distinguishes “dynamic” temperature control from conventional thermostats?
Dynamic control actively anticipates and counteracts thermal load changes in real time—using coordinated refrigeration, heating, and flow modulation—rather than passively waiting for equilibrium. This yields faster ramp rates, tighter stability, and superior disturbance rejection.
Can the A45/A45t operate continuously at -45 °C?
Yes—its cascade refrigeration system and sealed fluid path enable uninterrupted operation at -45 °C without frost formation or viscosity-induced pump cavitation.
Is Thermal HL fluid mandatory?
No—while Thermal HL is recommended for optimal performance across the full range, the system is compatible with other ISO VG 10–100 synthetic heat transfer fluids meeting Julabo’s material compatibility specifications.
How is calibration traceability maintained?
Each unit ships with factory calibration certificates traceable to PTB (Physikalisch-Technische Bundesanstalt); field recalibration is supported using NIST-traceable RTD probes and Julabo’s certified service procedures.
Does the system support external PLC integration?
Yes—via analog I/O (0–10 V / 4–20 mA) and Modbus TCP, enabling direct integration into DCS or SCADA architectures for centralized process control.
