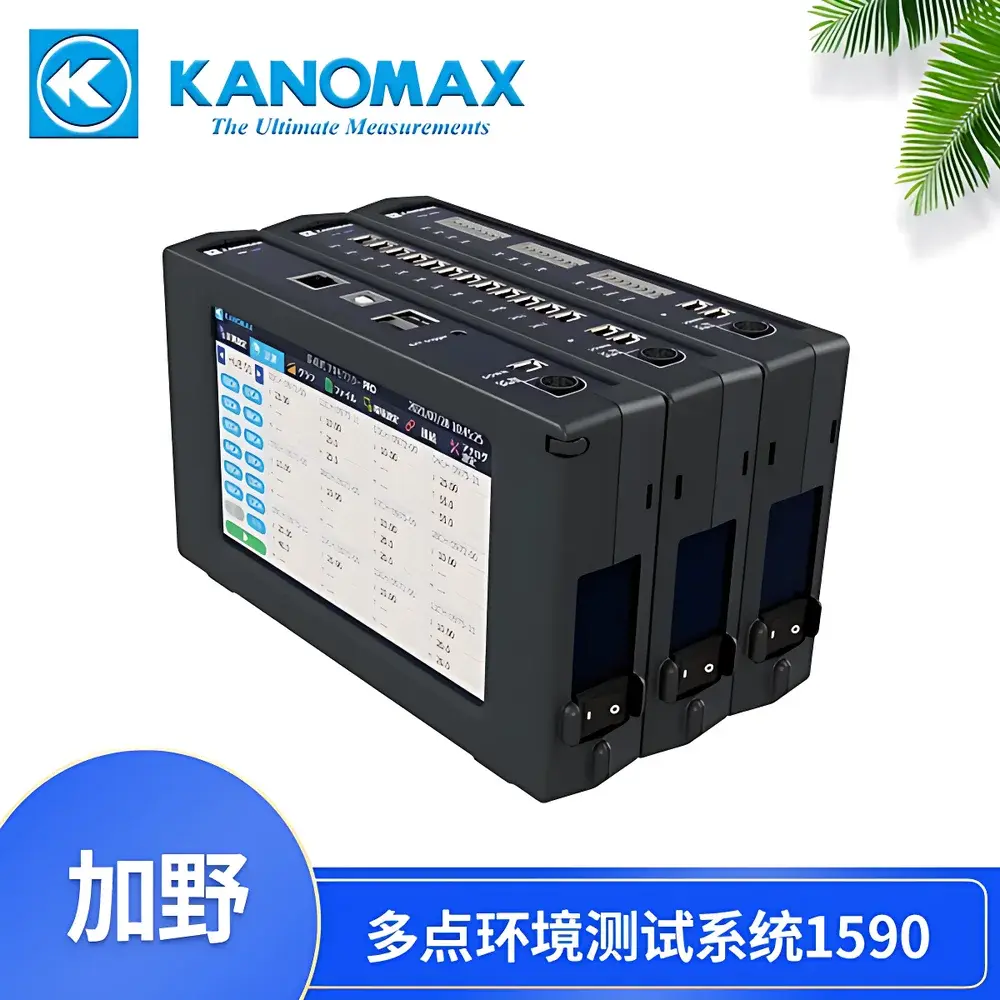

Kanomax 1590-0C Multi-Channel Environmental Monitoring System

Overview

The Kanomax 1590-0C Multi-Channel Environmental Monitoring System is a modular, high-fidelity data acquisition platform engineered for simultaneous, synchronized measurement of air velocity, temperature, and relative humidity across large-scale or spatially distributed environments. Built upon thermal anemometry principles—where heat transfer from a heated sensor element to the surrounding airflow is quantified—the system delivers traceable, NIST-aligned performance in low-velocity regimes (down to 0.01 m/s) while maintaining robustness across extended dynamic ranges (up to 50.0 m/s). Its architecture supports up to 144 independent measurement channels via cascaded 12-channel modules (MODEL 1591-0C), enabling deployment in cleanrooms, HVAC validation zones, industrial duct networks, environmental test chambers, and pharmaceutical manufacturing suites where spatial uniformity and temporal correlation are critical. The system operates independently of a host PC, with local configuration, real-time visualization, and on-device data logging performed via its integrated 7-inch capacitive touchscreen interface.

Key Features

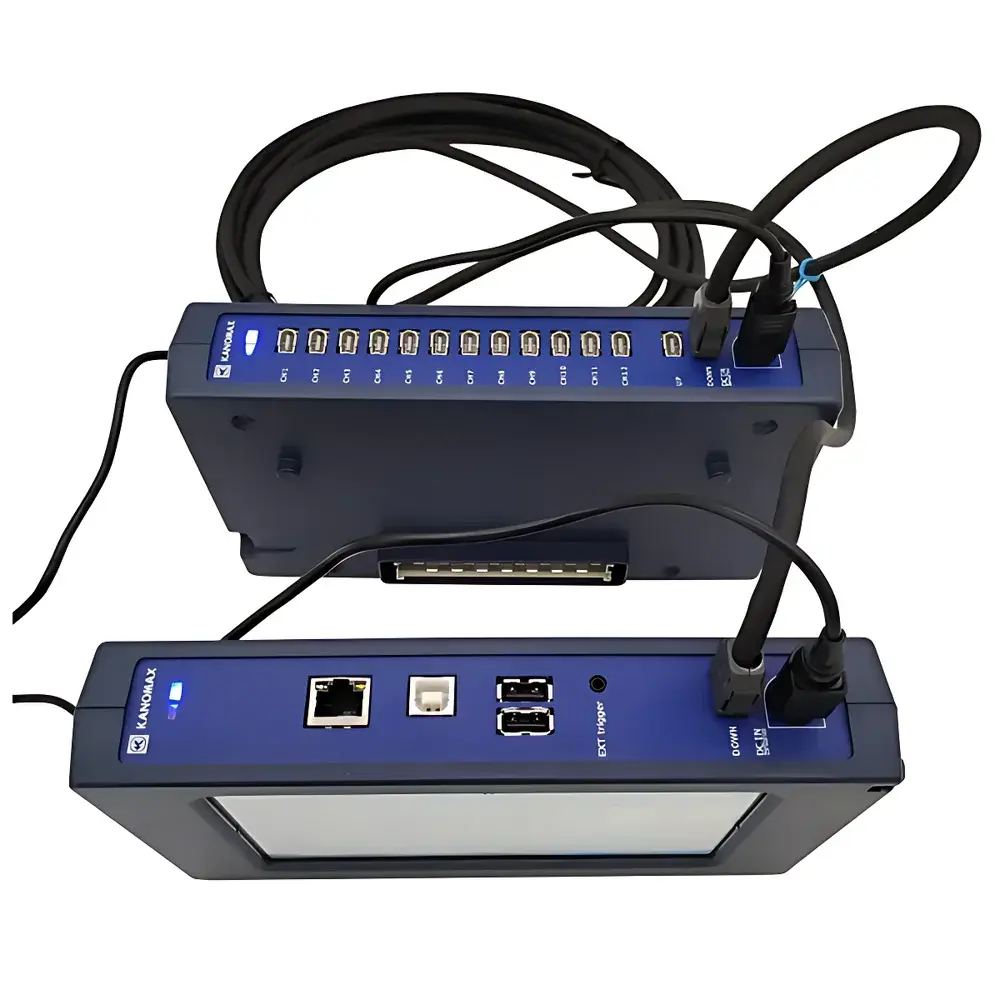

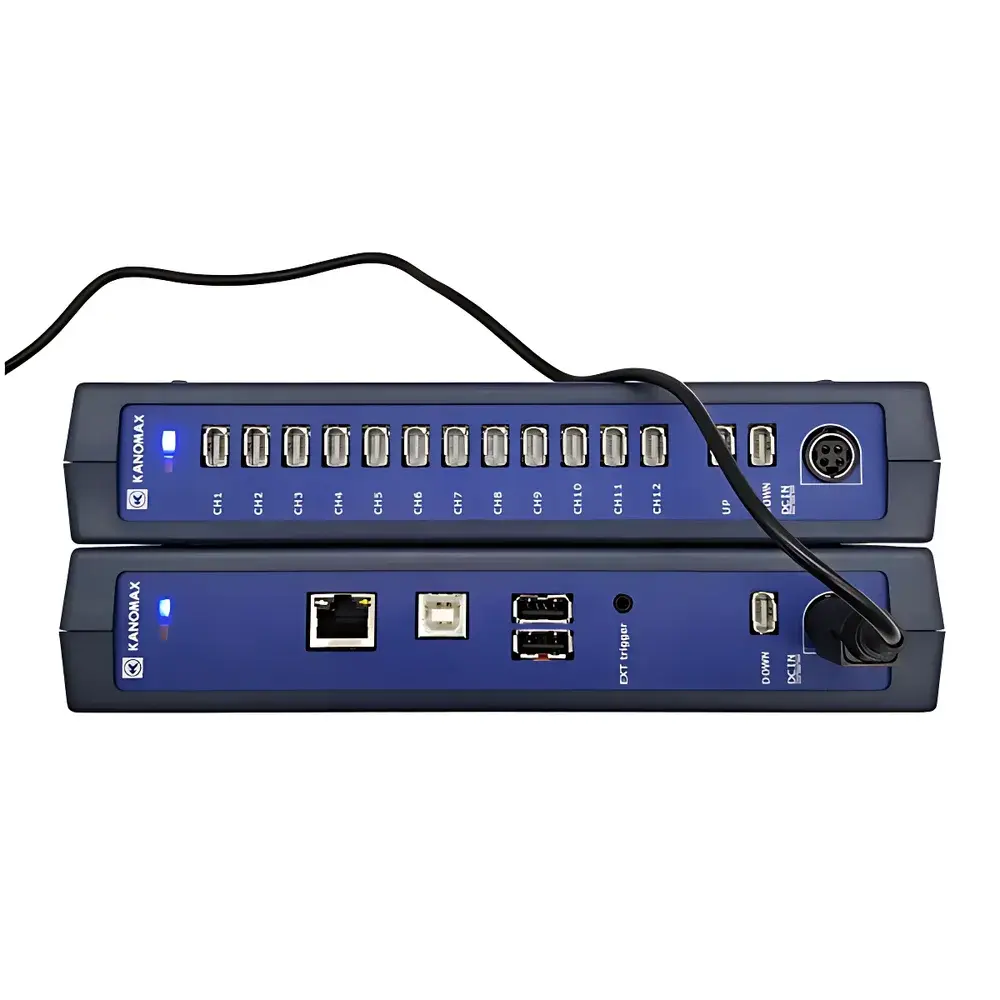

• Modular scalability: One 1590-0C main unit supports up to 12 expansion modules (1591-0C), each accommodating 12 interchangeable probes—enabling flexible, site-specific system sizing from 12 to 144 channels.
• Probe interoperability: 15 certified probe models—including directional and omnidirectional thermal anemometers, high-temperature variants (rated to 120 °C), ultra-compact designs (<6 mm diameter), and combined thermo-hygrometric sensors—are mechanically and electrically compatible without recalibration.
• Embedded intelligence: On-unit temperature compensation algorithms correct for ambient thermal drift in both probe and electronics, ensuring sustained accuracy across operating conditions (5–40 °C ambient, 0–85% RH non-condensing).
• Dual-mode analog output: MODEL 1592-0C analog output modules provide per-channel configurability for 0–5 V (load ≥1 kΩ) or 4–20 mA (loop resistance ≤250 Ω), supporting integration with PLCs, SCADA systems, and legacy DCS infrastructure.
• Power flexibility: Accepts universal AC input (100–240 V) or wide-range DC input (12–24 V), permitting stationary lab use, mobile vehicle mounting, or battery-backed field deployments.
• Self-contained operation: Internal 8 GB flash memory stores up to 24,500 timestamped readings per module; data export in CSV format enables direct import into statistical analysis tools or LIMS platforms.

Sample Compatibility & Compliance

The 1590-0C system accommodates heterogeneous sampling geometries—from laminar flow hoods and ISO Class 5 cleanroom ceiling grids to complex HVAC ductwork and open-bay industrial ventilation zones. Probes are designed for ISO 14644-3:2019-compliant airflow mapping and meet mechanical requirements for ASHRAE Guideline 12-2020 (Infection Control Risk Assessment). While not intrinsically rated for hazardous locations, optional high-temperature probes (e.g., model 0976-03/04/07) comply with IEC 60529 IP54 ingress protection when used with appropriate cable glands. All firmware and software adhere to GLP/GMP documentation standards: audit trails, user access control, electronic signatures, and data integrity safeguards align with FDA 21 CFR Part 11 requirements when deployed with validated configurations.

Software & Data Management

The bundled Windows 10 application (v3.x+) provides full remote control, real-time multi-channel waveform visualization, and statistical post-processing—including moving average, peak hold, min/max tracking, and time-weighted exposure calculations. The interface supports tri-lingual display (English, Japanese, Chinese) and permits per-probe calibration offset entry, unit conversion (m/s, ft/min, °C, °F, %RH), and custom alarm thresholds. Data streams are timestamped with microsecond resolution using internal RTC synchronized via NTP over LAN. Export options include raw CSV, Excel (.xlsx), and PDF summary reports with embedded charts. USB mass storage mode allows direct file retrieval without software installation—critical for regulated environments requiring minimal software footprint.

Applications

• HVAC commissioning and routine qualification per ISO 14644-1/2 and EU GMP Annex 1
• Pharmaceutical cleanroom airflow uniformity mapping (ISO 14644-3 Annex B)
• Thermal comfort assessment in office buildings (ASHRAE Standard 55)
• Industrial ventilation system balancing and leakage detection
• Environmental chamber validation (temperature/humidity/air velocity stability)
• Automotive cabin airflow characterization and thermal management R&D
• Academic aerodynamics studies requiring dense spatial sampling at low Reynolds numbers

FAQ

What is the maximum number of probes supported per 1590-0C main unit?
A single 1590-0C unit directly interfaces with up to 12 MODEL 1591-0C modules; each module supports 12 probes, yielding a total capacity of 144 simultaneous measurement channels.
Can the system operate without connection to a computer?

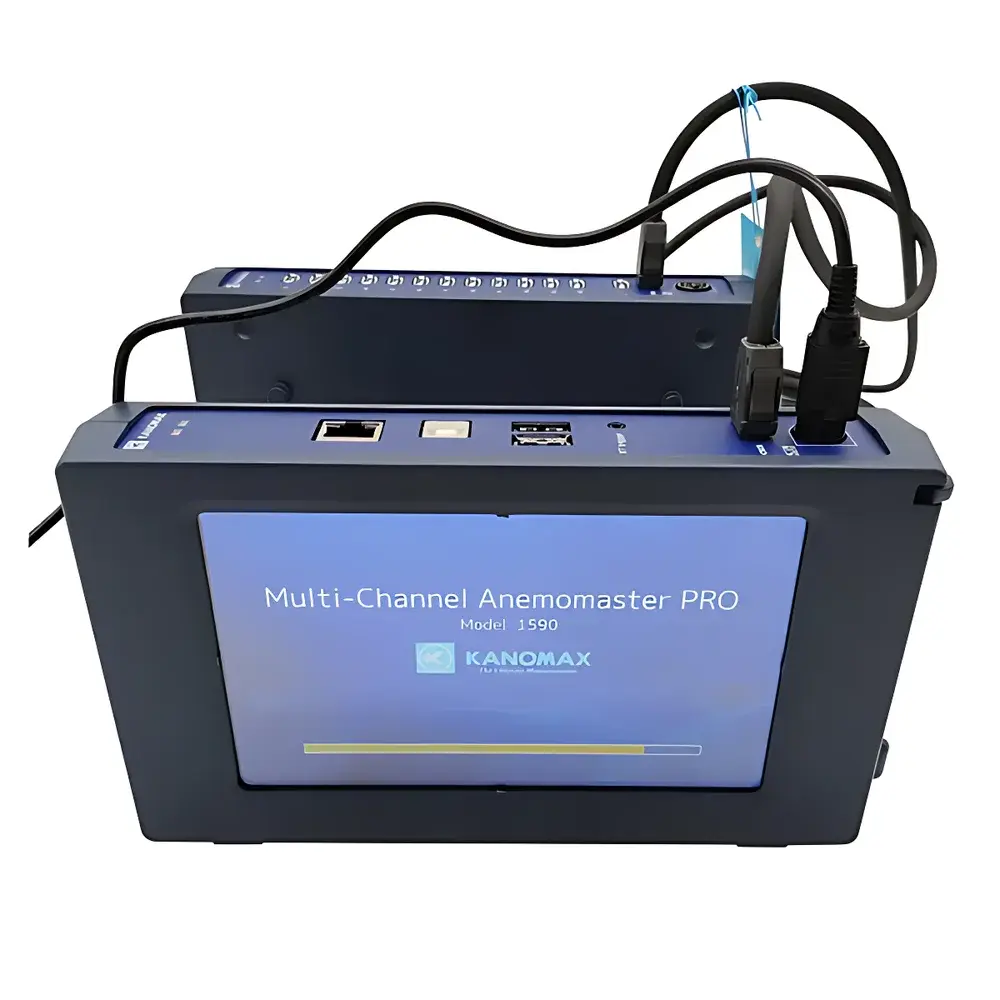

Yes—the 7-inch touchscreen enables full local operation: parameter setup, real-time graphing, historical data review, and CSV export via USB flash drive.
Are calibration certificates provided with probes?
Each probe ships with a factory calibration report traceable to JCSS (Japan Calibration Service System); NIST-traceable calibration services are available through Kanomax-certified labs.
Is the software compliant with FDA 21 CFR Part 11?
When deployed in validated configurations—including password-protected user roles, electronic signature workflows, and immutable audit logs—the system meets technical requirements for Part 11 compliance.
What analog output configurations are supported?
Each MODEL 1592-0C module provides 12 isolated analog outputs; users configure each channel individually for either 0–5 V (1 kΩ load) or 4–20 mA (250 Ω loop resistance), with programmable scaling per parameter.
