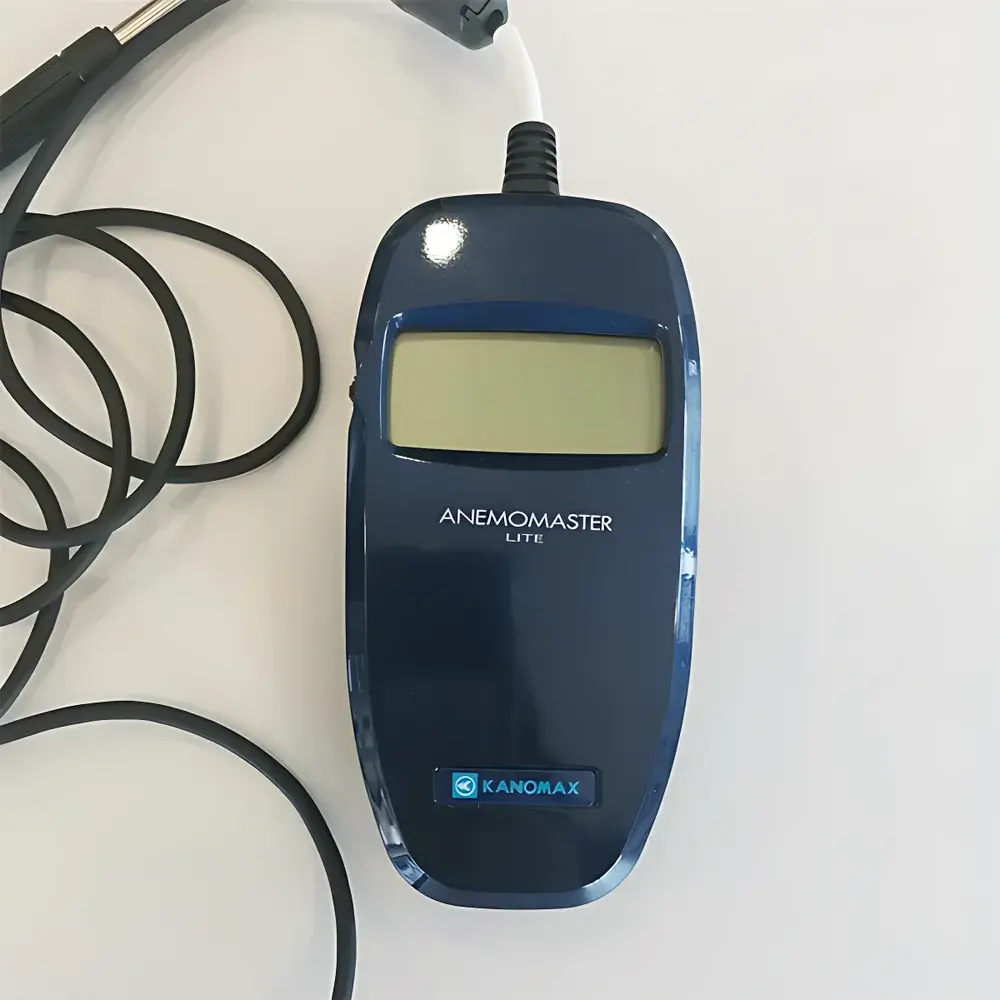

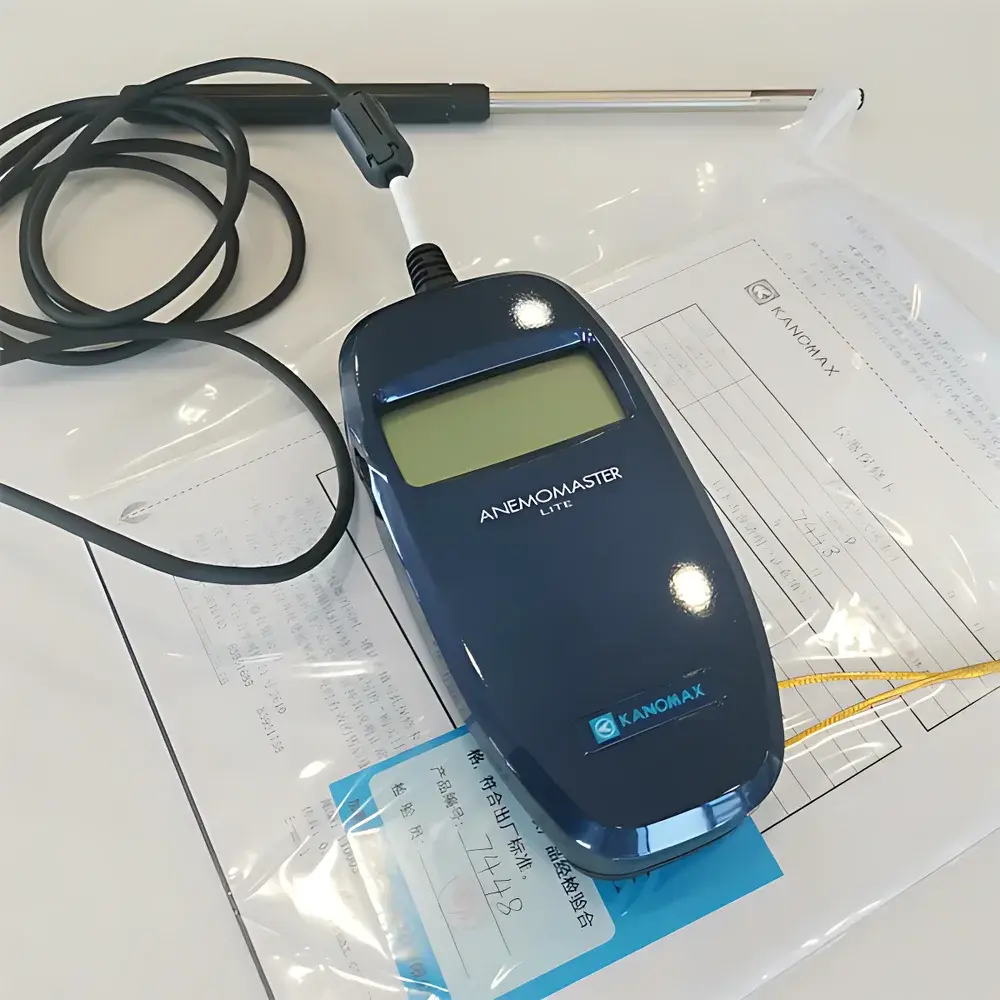

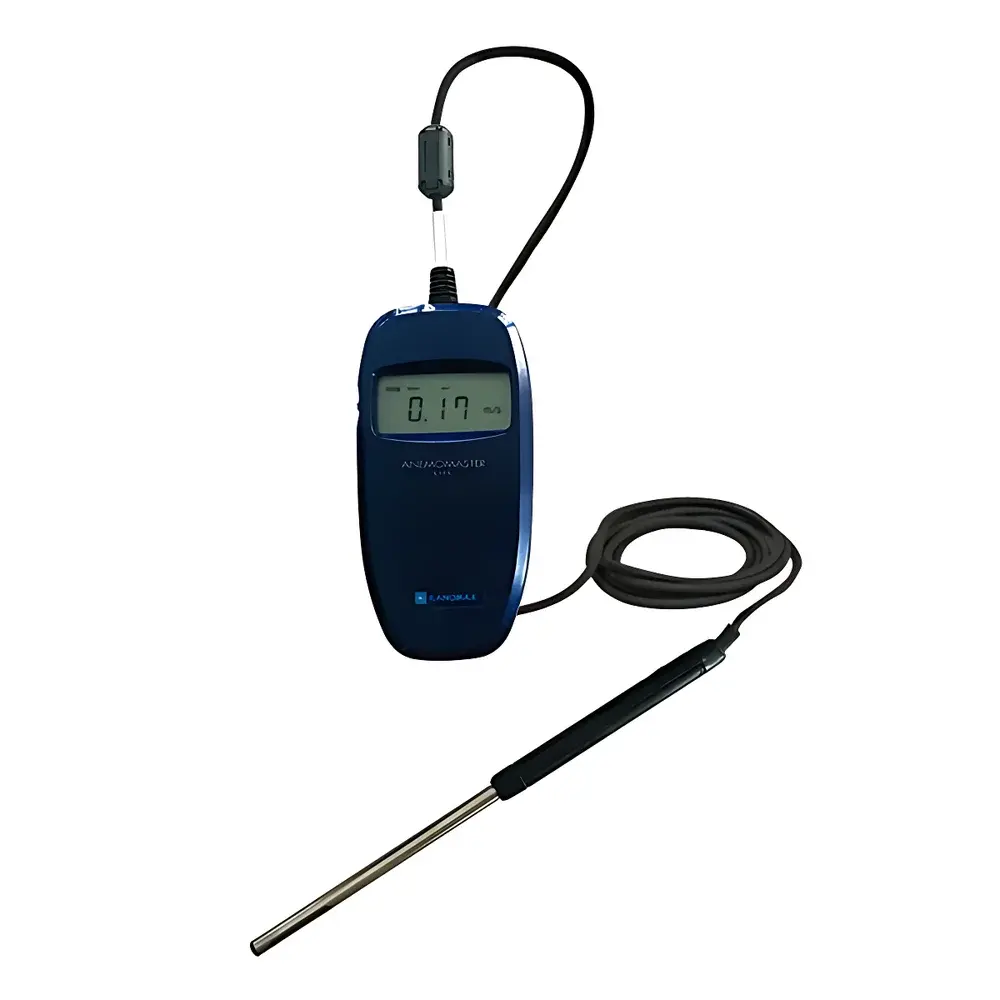

KANOMAX 6006 Handheld Thermal Anemometer for Pharmaceutical Cleanroom Air Velocity Monitoring

Overview

The KANOMAX 6006 is a compact, handheld thermal anemometer engineered for precise, real-time air velocity monitoring in controlled pharmaceutical environments—particularly ISO Class 5–8 cleanrooms, laminar flow hoods, and HVAC validation zones. It operates on constant-temperature anemometry (CTA) principles: a heated platinum sensor element cools proportionally to airflow, enabling quantitative determination of velocity via thermal dissipation physics. Unlike cup or vane anemometers, the 6006’s hot-wire design delivers high-frequency response (<100 ms), low inertia, and sensitivity down to 0.01 m/s—critical for verifying unidirectional airflow integrity per ISO 14644-3 and EU GMP Annex 1 requirements. Its integrated temperature compensation circuit corrects for ambient thermal drift, ensuring metrological consistency across the full operating range (−20 to +70 °C), while its sealed sensor head resists particulate accumulation common in HEPA-filtered spaces.

Key Features

• Thermal sensing architecture optimized for low-velocity detection (0.01–20.0 m/s), meeting minimum air velocity thresholds specified in USP , ISO 14644-3, and PIC/S TR-13 for aseptic processing zones.
• Dual-parameter measurement: simultaneous air velocity and ambient temperature acquisition with independent calibration traceability.
• Interchangeable probe configuration supports both axial and omnidirectional sampling—enabling flexible positioning within glove ports, diffuser grilles, and critical work surfaces without reconfiguration.
• Ergonomic palm-sized form factor (60 × 120 × 34 mm) and 180 g weight ensure fatigue-free extended use during cleanroom qualification audits or routine environmental monitoring rounds.
• Auto-zero function and real-time hold mode facilitate stable readings in turbulent or transient airflow conditions typical near personnel movement or equipment exhausts.
• IP54-rated enclosure provides protection against dust ingress and incidental moisture—suitable for operation in humidified cleanroom corridors and wet-process support areas.

Sample Compatibility & Compliance

The KANOMAX 6006 is validated for use in non-sterile and sterile pharmaceutical manufacturing environments where airflow verification supports regulatory compliance. Its measurement uncertainty profile aligns with ISO/IEC 17025 technical requirements for in-situ instrumentation used in GxP settings. The device satisfies functional criteria outlined in FDA Guidance for Industry: Sterile Drug Products Produced by Aseptic Processing (2004) for “airflow visualization and quantitative verification.” While not intrinsically calibrated to NIST-traceable standards out-of-box, it accepts third-party accredited calibration (e.g., A2LA-accredited labs) with documented as-found/as-left data, supporting 21 CFR Part 11-compliant audit trails when paired with KANOMAX’s optional data logging software. It is compatible with standard cleanroom gowning protocols and does not generate electrostatic discharge (ESD) risks per IEC 61340-5-1.

Software & Data Management

The 6006 interfaces via USB with KANOMAX’s proprietary LogViewer software (Windows-compatible), enabling time-stamped data export in CSV and Excel formats. Raw datasets include timestamp, velocity (m/s), temperature (°C), and measurement mode flag—structured for integration into LIMS or electronic batch record (EBR) systems. The software supports user-defined pass/fail limits aligned with internal SOPs or ISO 14644-1 classification tables, generating annotated reports suitable for regulatory inspection. Audit trail functionality records operator ID, calibration date, and parameter modifications—meeting ALCOA+ data integrity principles required under MHRA and EMA expectations.

Applications

• Verification of laminar airflow velocity at critical work surfaces (e.g., ISO 5 hood sash openings, filling line isolators).
• Mapping of room air patterns during smoke studies and recovery testing per ISO 14644-3 Annex B.
• Periodic monitoring of supply and return grilles in Grade C/D buffer rooms and preparation suites.
• Supporting risk-based environmental monitoring (REMM) programs through trend analysis of velocity stability over time.
• Commissioning and requalification of HVAC systems during facility lifecycle management (design → installation → operational qualification).

FAQ

Does the KANOMAX 6006 meet ISO 14644-3 requirements for cleanroom certification?

Yes—it provides the resolution, accuracy, and thermal stability necessary for velocity measurements in accordance with Annex D.3 of ISO 14644-3, particularly for unidirectional airflow systems.
Can it be used in high-humidity cleanroom environments (e.g., >80% RH)?

It is rated for continuous operation up to 85% RH; however, prolonged exposure above 80% RH may require periodic sensor cleaning to prevent condensate-induced drift.
Is the device compliant with 21 CFR Part 11 for electronic records?

The hardware itself is not Part 11–enabled, but when used with LogViewer software and appropriate procedural controls (electronic signatures, audit trails, system validation), it supports Part 11–compliant workflows.
What is the recommended calibration interval?

Annual calibration is advised per ISO/IEC 17025 and internal quality system requirements; more frequent intervals may be justified based on usage frequency and criticality of application.
Does it support data logging without a PC connection?

No—the 6006 is a real-time display instrument only; external logging requires active USB connection to a host computer running LogViewer.
