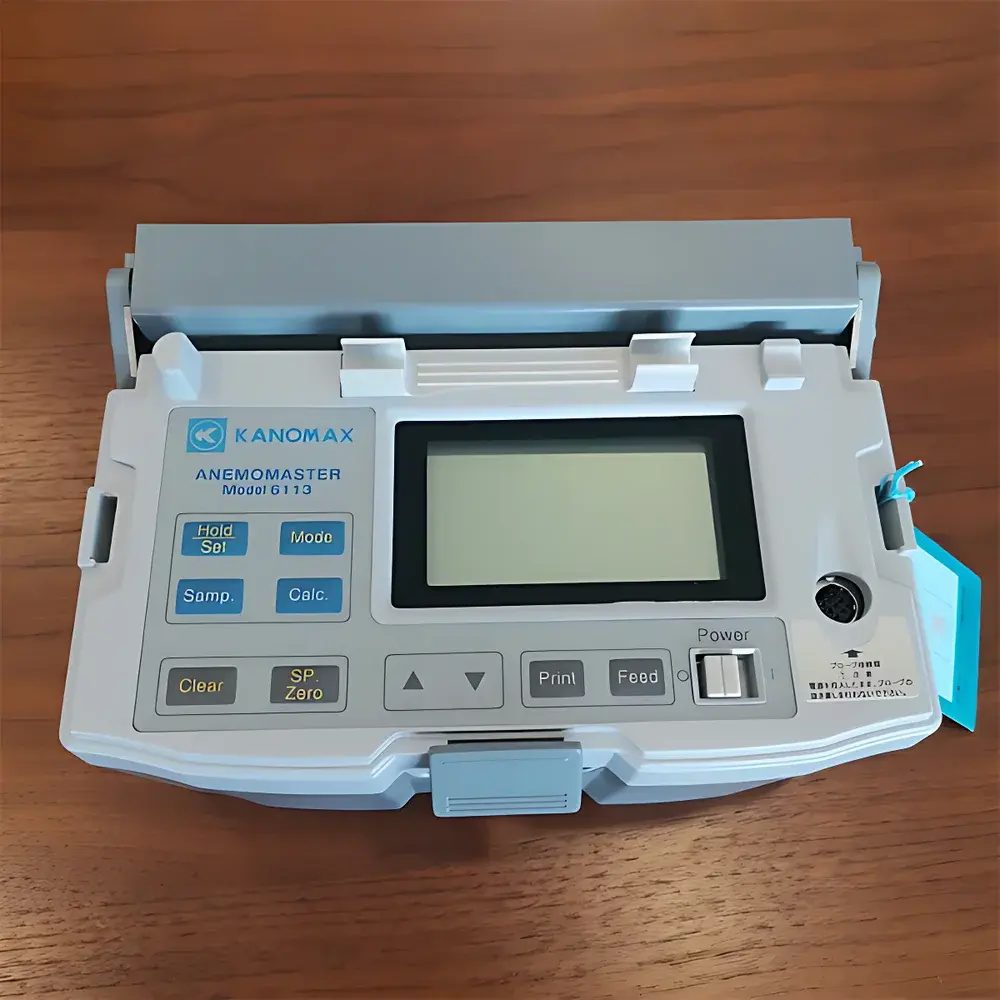

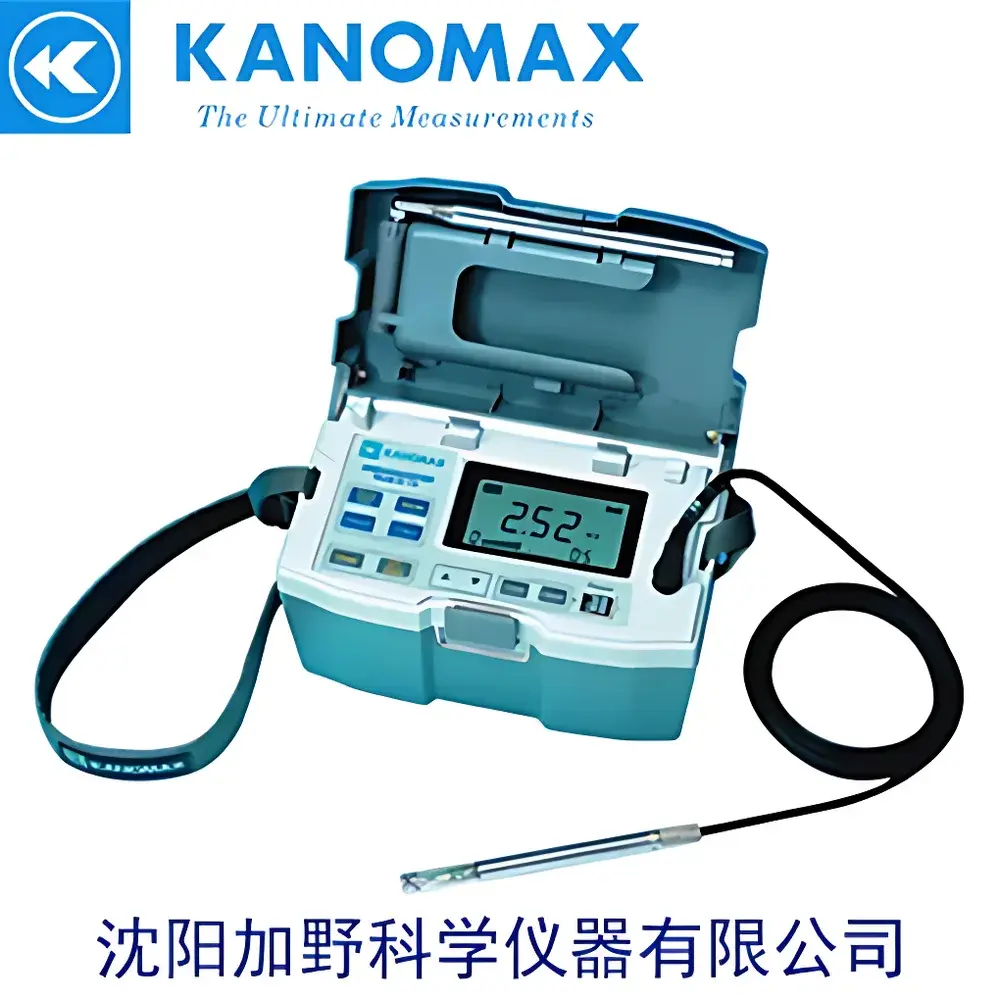

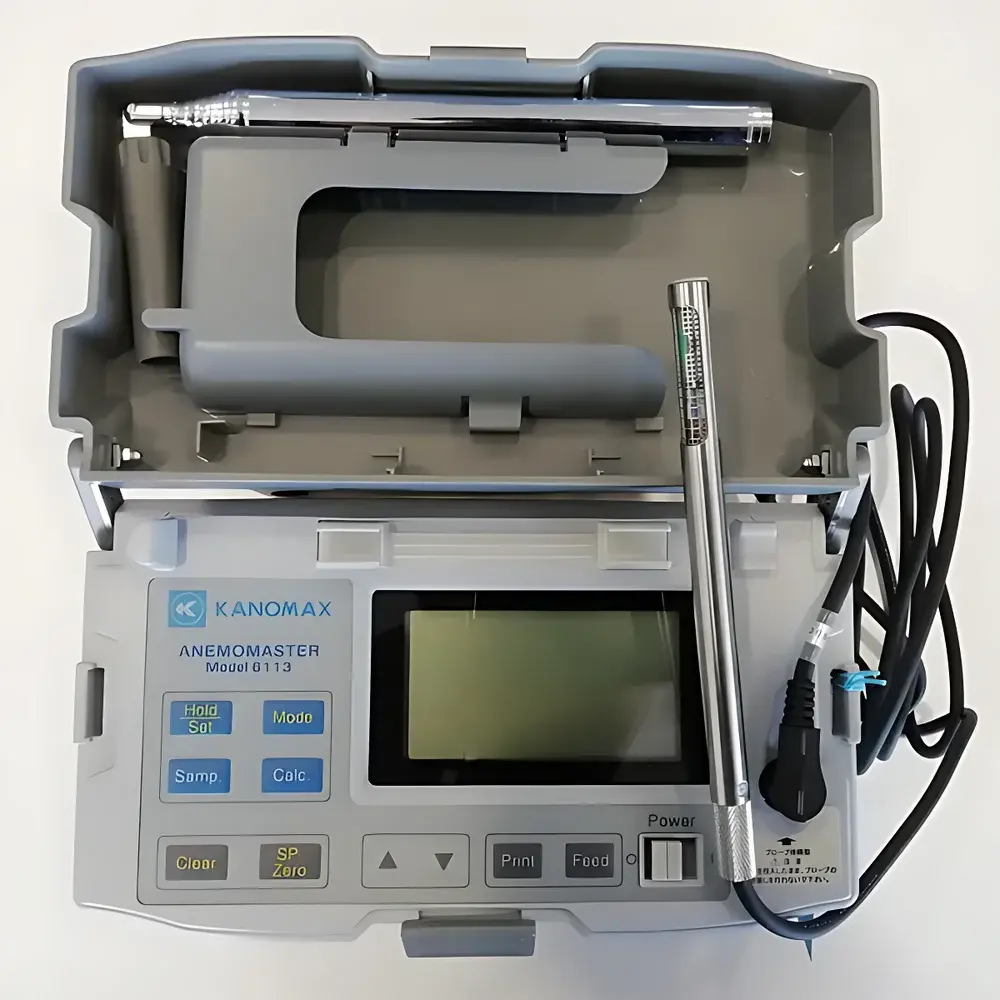

KANOMAX 6113 Intelligent Thermal Anemometer

Overview

The KANOMAX 6113 Intelligent Thermal Anemometer is a precision-engineered handheld instrument designed for simultaneous measurement of air velocity, temperature, and differential pressure in HVAC system commissioning, cleanroom validation, industrial ventilation assessment, and environmental chamber monitoring. Based on constant-temperature anemometry (CTA), the device employs a thermally sensitive probe where heat dissipation from a heated element correlates directly with local airflow velocity—enabling high-resolution, low-flow detection down to 0.1 m/s without mechanical moving parts. Its robust thermal sensor architecture ensures stable performance across demanding operational environments, including ductwork, fume hoods, and high-temperature process exhausts up to 100 °C. The unit integrates real-time data acquisition, on-device statistical analysis, and field-ready reporting capabilities—making it suitable for ISO 14644-3 compliant cleanroom airflow mapping and ASHRAE 110 tracer gas containment verification protocols.

Key Features

• Triple-parameter measurement: Simultaneous acquisition of air velocity (0.1–50.0 m/s), temperature (0–100 °C), and differential pressure (−5 to +5 kPa) in a single instrument cycle
• Interchangeable probe design: Modular hot-wire probes allow rapid replacement in field conditions without recalibration—minimizing downtime during maintenance or multi-point surveys
• Onboard statistical engine: Calculates and displays real-time maximum, minimum, and average values across up to 100 stored datasets—supporting GLP-compliant recordkeeping
• Integrated thermal printer: Enables immediate hardcopy output of measurement sessions directly at point-of-use—eliminating post-processing delays in audit-ready documentation
• Large-backlit LCD display: High-contrast 128×64 pixel screen with intuitive icon-based navigation and dual-unit readout (e.g., m/s and °C)
• RS-232C serial interface: Supports bidirectional communication with PCs for data export, firmware updates, and remote command execution per EIA/TIA-232 standards

Sample Compatibility & Compliance

The KANOMAX 6113 is validated for use with standard 10-mm diameter thermal probes (e.g., KANOMAX P-6113 series) and compatible with non-corrosive, non-particulate-laden airstreams typical of laboratory, pharmaceutical, and semiconductor facility environments. It meets IEC 61000-4 electromagnetic immunity requirements and conforms to JIS B 7554 (Japanese Industrial Standard for anemometers). While not intrinsically safe, its battery-powered operation (6 × AA) enables deployment in Class II, Division 2 hazardous locations when used with appropriate probe housings. Data integrity complies with FDA 21 CFR Part 11 principles through timestamped storage, immutable dataset identifiers, and operator-accessible audit logs.

Software & Data Management

Data export is supported via ASCII-formatted CSV files transmitted over RS-232C using standard terminal emulation (e.g., Tera Term or PuTTY). Optional analog output (0–1 V) permits integration into legacy SCADA systems or chart recorders for continuous trend logging. Internal memory retains 100 full measurement records—including date/time stamps, parameter values, and statistical summaries—with overwrite protection enabled by default. No proprietary software installation is required; raw data may be imported directly into Excel, MATLAB, or LIMS platforms for further analysis, calibration traceability, or regulatory submission packages.

Applications

• HVAC airflow balancing and duct traverse verification per ASHRAE Guideline 12
• Cleanroom unidirectional airflow uniformity testing (ISO 14644-3 Annex B)
• Biocontainment hood face velocity validation (NSF/ANSI 49)
• Industrial exhaust stack sampling point characterization
• Thermal comfort assessment in occupied spaces (ASHRAE 55)
• Validation of laminar flow benches and glovebox inflow velocities

FAQ

Does the KANOMAX 6113 require annual recalibration?
Yes—recommended annually or after any physical impact to the probe; traceable calibration certificates are available through KANOMAX-authorized service centers.
Can the built-in printer operate without external power?
Yes—the thermal printer is powered exclusively by the internal AA battery pack and requires no AC adapter or USB connection.
Is pressure measurement differential or absolute?
Differential only—designed for static pressure drop across filters, dampers, or HEPA modules using two-port tubing connections.
What is the warm-up time before achieving specified accuracy?
Less than 60 seconds after power-on under ambient conditions (23 °C, 50% RH); extended stabilization (80 °C or <5 °C).
Are probe calibration coefficients stored in the main unit or the probe itself?
Calibration coefficients are embedded in each probe’s EEPROM and automatically recognized upon insertion—ensuring metrological continuity across interchangeable sensors.
