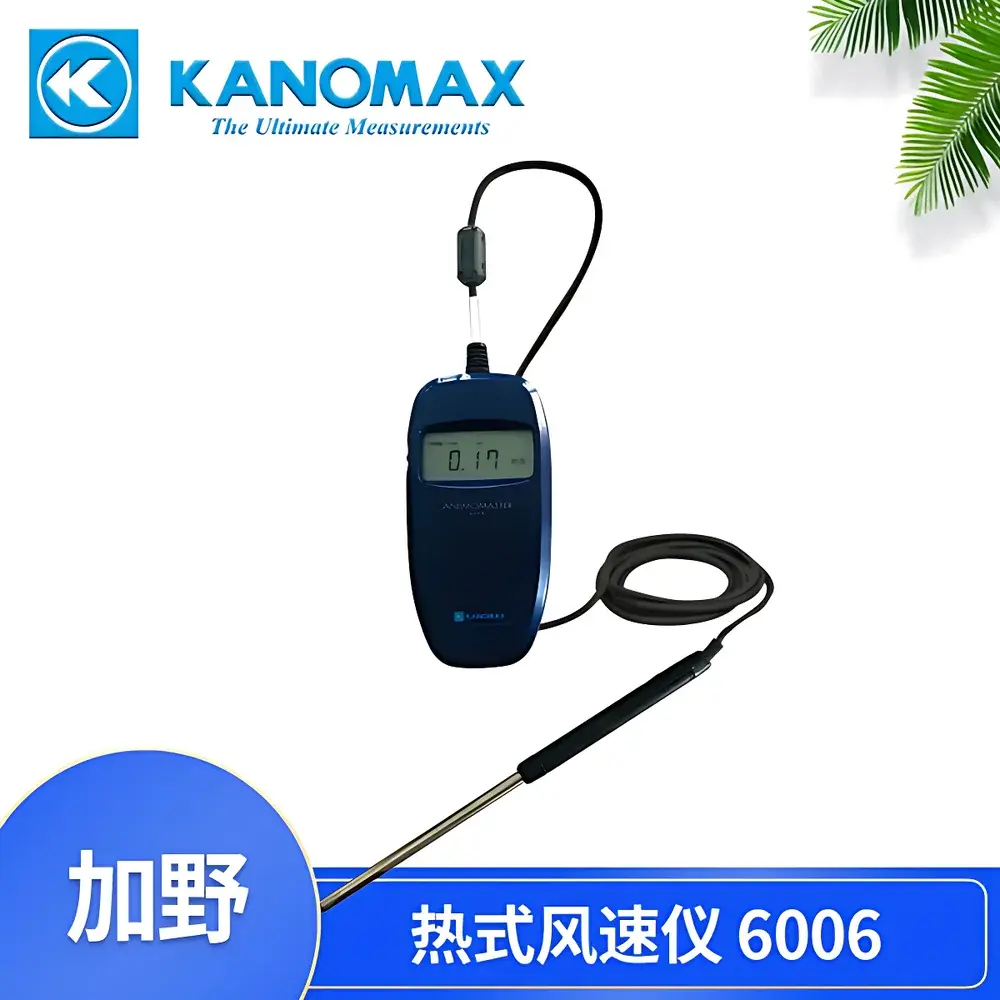

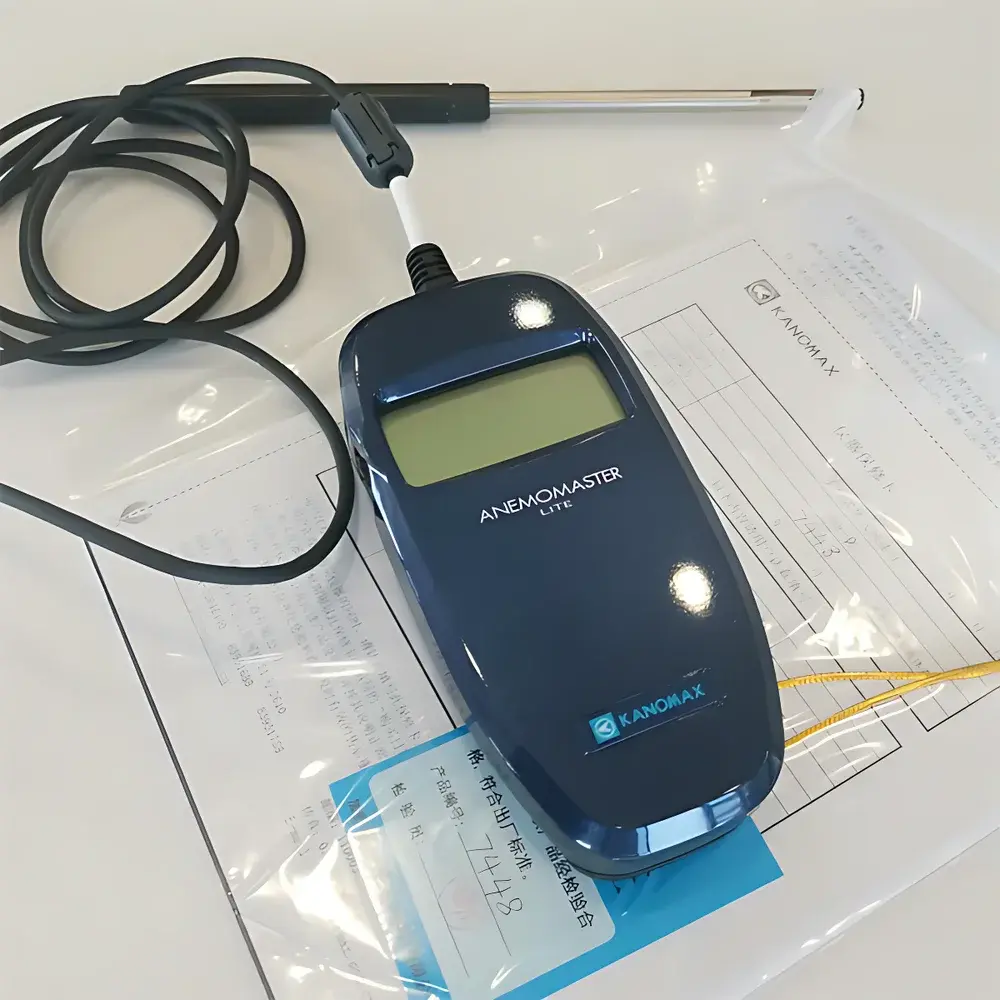

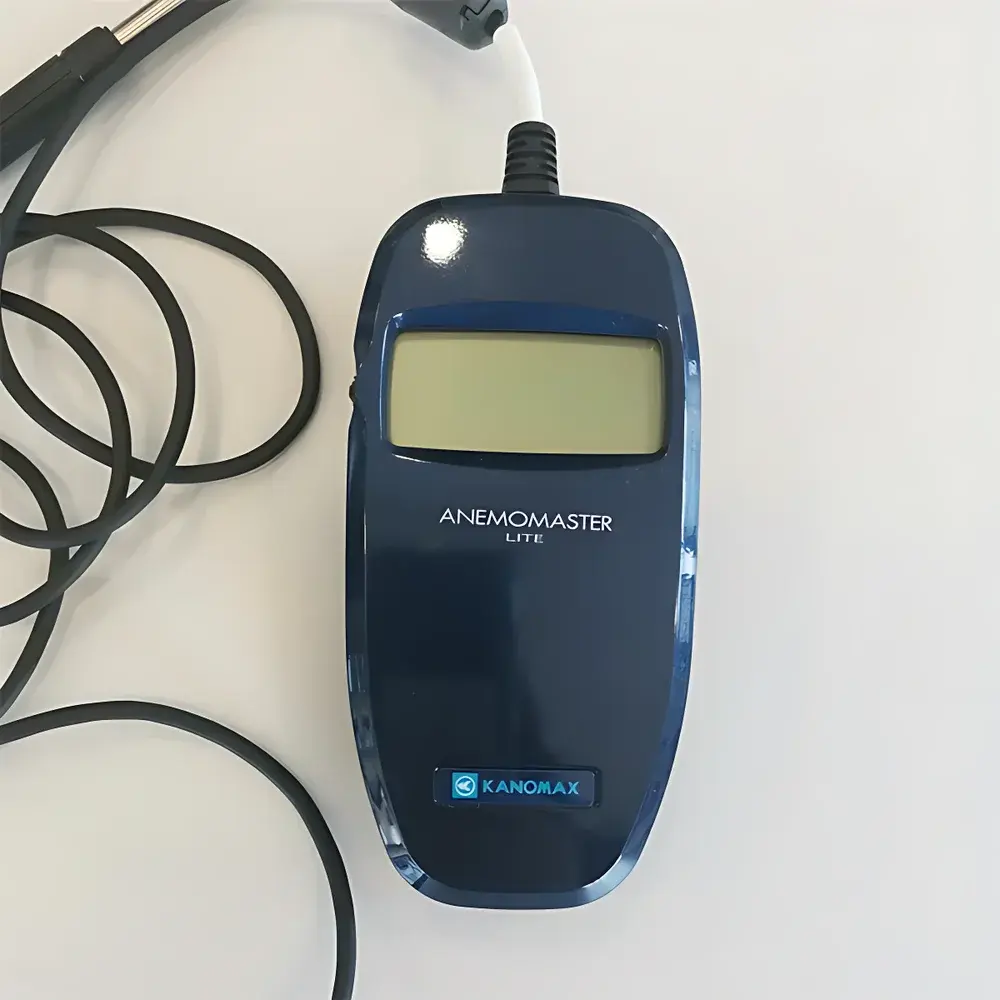

KANOMAX Model 6006 Handheld Hot-Wire Anemometer

Overview

The KANOMAX Model 6006 Handheld Hot-Wire Anemometer is a precision-engineered portable instrument designed for reliable, real-time measurement of low-to-moderate air velocity and ambient temperature in field and laboratory environments. Based on constant-temperature anemometry (CTA), the device employs a fine platinum-coated tungsten wire sensor heated to a stable temperature above ambient. As airflow passes over the sensing element, convective heat loss is quantified and converted into a linear wind speed output—enabling high-sensitivity detection down to 0.01 m/s. This principle ensures rapid response time (<1 s), minimal flow disturbance, and inherent suitability for turbulent or transient airflow characterization. Unlike cup or vane anemometers, the hot-wire method provides true vector-averaged velocity data without mechanical inertia limitations, making the Model 6006 particularly appropriate for HVAC commissioning, cleanroom validation, fume hood performance testing, and indoor air quality (IAQ) surveys.

Key Features

• Single-button operation interface with intuitive LED display—designed for one-handed use in confined or elevated spaces
• Interchangeable probe assembly with factory calibration traceability; each probe maintains certified accuracy without recalibration upon replacement
• Integrated temperature compensation circuitry that dynamically corrects wind speed readings across the full operating range (−20 to +70 °C), ensuring stability and repeatability within the critical 10–40 °C zone per ISO 7726 and ASHRAE Standard 113
• Rugged, ergonomic housing (60 × 120 × 34 mm, 180 g) with IP54-rated ingress protection against dust and water splashes
• Low-power architecture supporting continuous operation >20 hours on standard AA alkaline cells—no external power supply required
• Auto-zero function and hold mode for stable recording during static or intermittent measurements

Sample Compatibility & Compliance

The Model 6006 is optimized for gaseous media under standard atmospheric conditions (air, nitrogen, CO₂-rich environments up to 5% v/v). It is not intended for use in explosive atmospheres, corrosive gases, or particulate-laden flows exceeding ISO 14644 Class 8 contamination levels. The instrument complies with IEC 61000-4-2 (ESD immunity), IEC 61000-4-3 (radiated RF immunity), and meets CE marking requirements under the EU Electromagnetic Compatibility Directive 2014/30/EU. While not certified for intrinsic safety (ATEX/IECEx), its design aligns with general-purpose industrial hygiene and occupational safety applications referenced in OSHA 1910.94 and NIOSH Manual of Analytical Methods (NMAM) Method 0500.

Software & Data Management

The Model 6006 operates as a standalone field instrument with no embedded memory or Bluetooth/Wi-Fi connectivity. All measurements are displayed in real time on the integrated LCD and may be manually logged. For traceable documentation, users may integrate the device into validated workflows using external data loggers compatible with analog voltage output (0–5 V DC proportional to wind speed) or digital RS-232 interface (optional adapter). When used in GLP- or GMP-regulated environments, manual entry into electronic lab notebooks (ELNs) or LIMS systems must include operator ID, location, timestamp, and environmental conditions. Audit trail compliance requires adherence to 21 CFR Part 11 principles when digitizing records—though the instrument itself does not generate electronic signatures or system-generated audit logs.

Applications

• HVAC system balancing and duct traverse verification per ASHRAE Guideline 12–2020
• Cleanroom air change rate (ACR) and uniformity mapping per ISO 14644-3
• Fume hood face velocity assessment and containment validation (ANSI/AIHA Z9.5)
• Industrial ventilation surveying for OEL compliance and worker exposure assessment
• Environmental chamber airflow profiling and thermal management studies
• Educational laboratory instruction in fluid mechanics and environmental engineering curricula

FAQ

Does the Model 6006 require annual recalibration?
While KANOMAX recommends verification against a NIST-traceable reference anemometer every 12 months in routine use, the unit’s factory calibration remains valid under normal operating conditions. Recalibration is mandatory after physical damage, exposure to condensation, or operation outside specified temperature/humidity limits.
Can the probe be used in high-humidity environments?
Yes—the probe is rated for continuous operation at up to 85% RH. However, prolonged exposure to condensing moisture or dew point conditions may affect sensor response time and long-term stability; drying the probe before storage is advised.
Is the temperature measurement compensated for self-heating effects?
No—the integrated thermistor measures ambient air temperature independently of the hot-wire sensor. Its ±1.0 °C accuracy is specified per ISO 7726 Annex B and does not include airflow-induced thermal drift correction.
What is the maximum allowable air velocity for sustained measurement?
The upper limit of 20.0 m/s applies to continuous operation. Transient spikes up to 25 m/s are tolerable for <5 seconds without permanent sensor degradation, provided ambient temperature remains within −20 to +70 °C.
Are replacement probes supplied with individual calibration certificates?
Yes—each KANOMAX-certified replacement probe (e.g., 6006-P1, 6006-P2) includes a unique serial-numbered calibration report traceable to JCSS (Japan Calibration Service System) standards.
