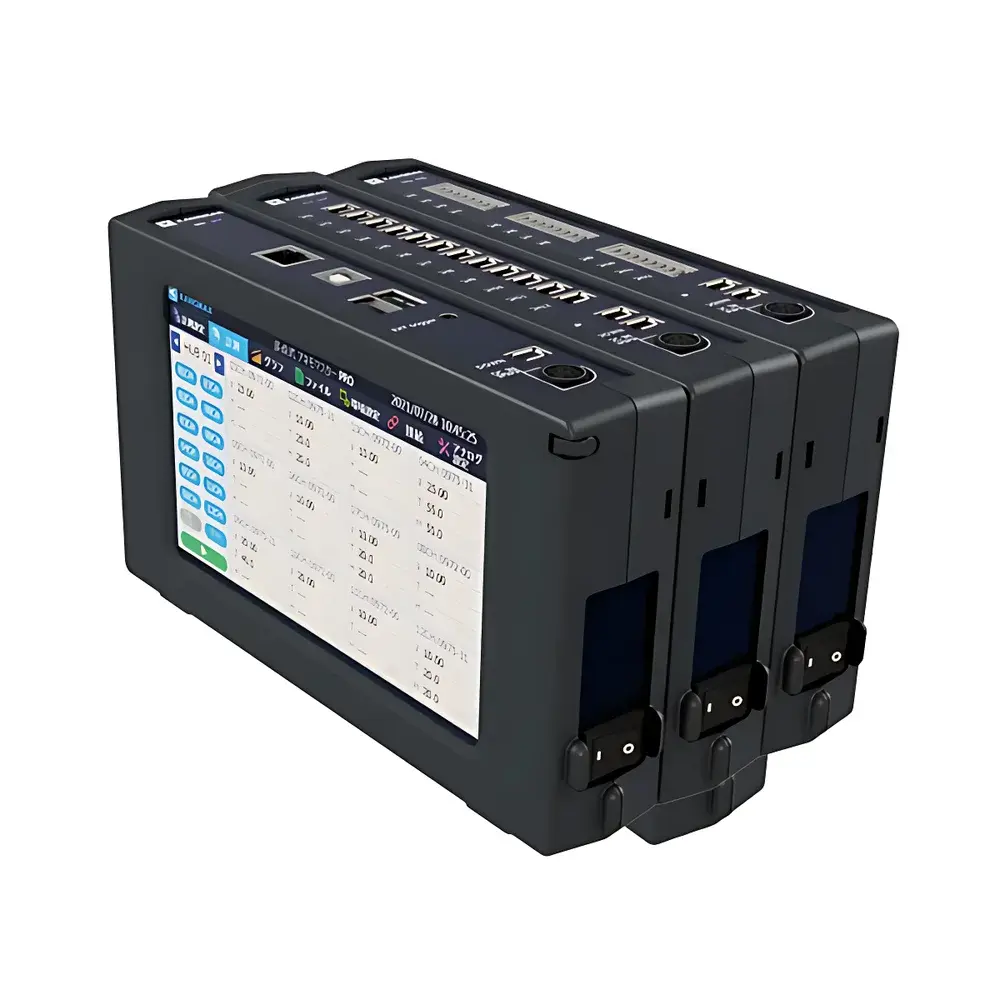

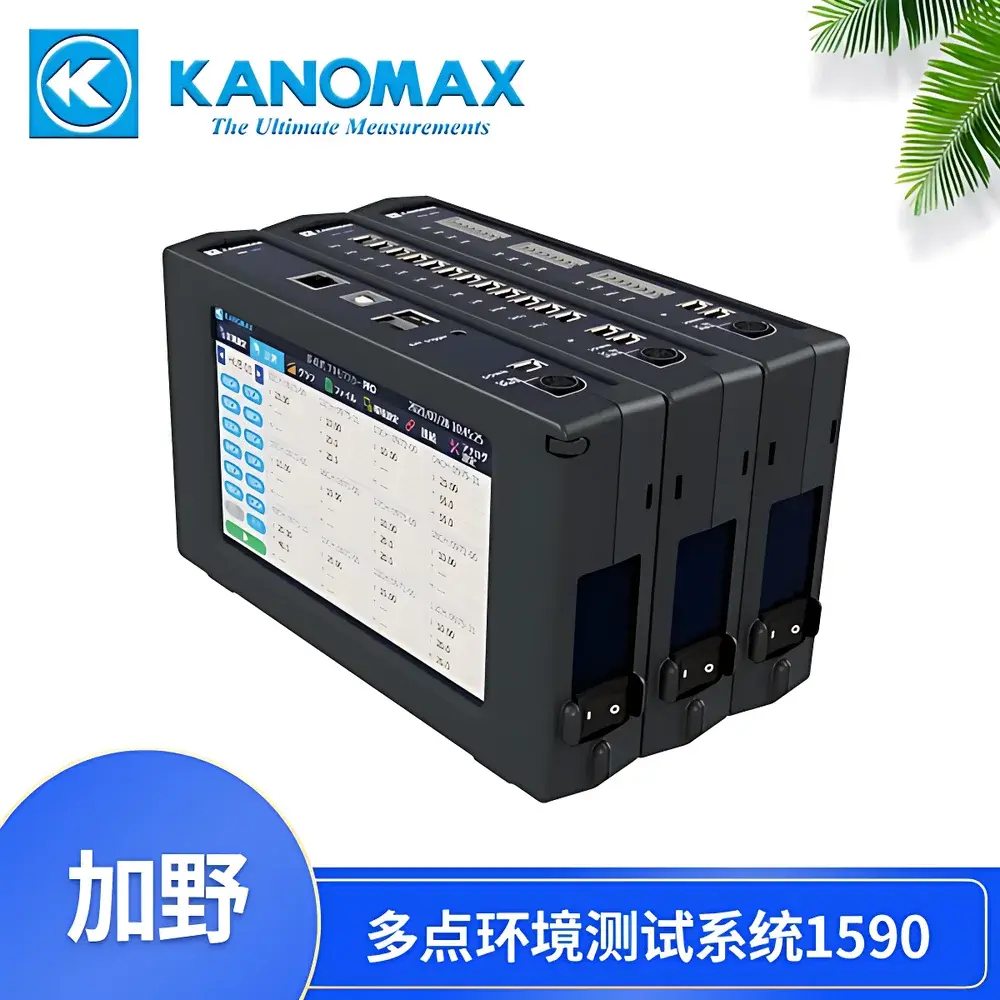

Kanomax Multi-Point Environmental Monitoring System PRO Model 1590-0C

Overview

The Kanomax Multi-Point Environmental Monitoring System PRO Model 1590-0C is a modular, high-flexibility platform engineered for simultaneous, synchronized measurement of air velocity, temperature, and relative humidity across up to 144 spatially distributed points. Based on constant-temperature anemometry (CTA), the system delivers traceable, high-reproducibility airflow data across its full dynamic range—from ultra-low velocities (0.01 m/s) to high-speed laminar or turbulent flows (up to 50.0 m/s). Its architecture supports scalable deployment in cleanrooms, HVAC validation zones, pharmaceutical manufacturing suites, semiconductor fabrication facilities, and laboratory ventilation studies—where spatial uniformity, regulatory compliance, and long-term stability are critical. The system operates independently via its built-in 7-inch color touchscreen interface or integrates seamlessly into centralized monitoring networks via USB or Ethernet.

Key Features

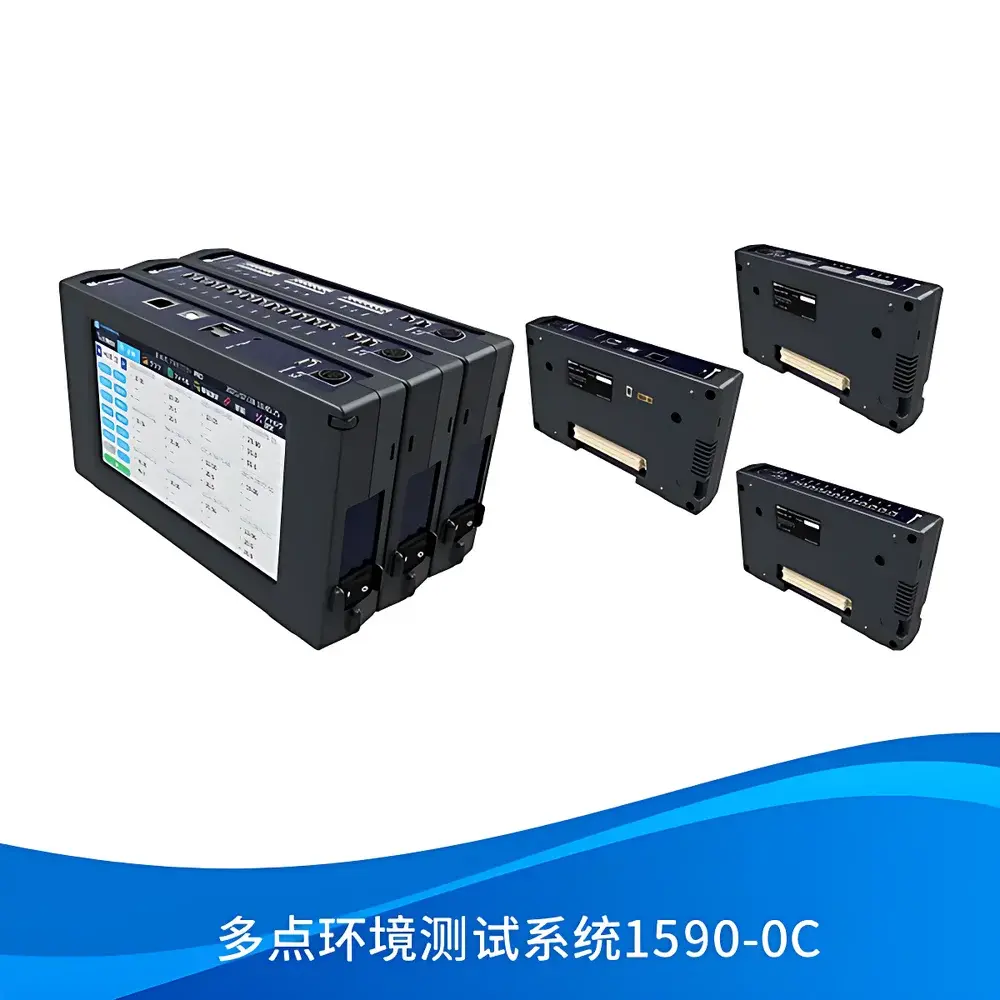

• Modular topology: One Model 1590-0C main unit supports up to 12 Model 1591-0C measurement modules; each module accommodates 12 interchangeable probes—enabling up to 144 concurrent measurement channels.
• Fifteen probe variants with cross-compatibility: Includes directional and omnidirectional thermal anemometer probes, high-temperature probes rated to 120 °C, ultra-compact probes (minimum footprint < 6 mm diameter), and combined vane/thermistor/hygrometer probes for multi-parameter acquisition.
• Real-time temperature compensation: All probes incorporate integrated thermistors for automatic thermal drift correction, ensuring accuracy across operating ambient conditions (5–40 °C).
• Integrated 7-inch capacitive touchscreen: Enables standalone configuration, real-time data visualization, alarm setup, and local CSV data export without external PC dependency.
• Dual power architecture: Supports AC 100–240 V or DC 12–24 V input—optimized for both fixed installations and mobile applications including vehicle-mounted environmental audits.
• Expandable analog output capability: Optional Model 1592-0C modules provide configurable 0–5 V or 4–20 mA outputs per channel; up to 12 modules support 144-channel analog signal routing for integration with PLCs, SCADA systems, or legacy DAQ hardware.

Sample Compatibility & Compliance

The system is validated for use in environments requiring adherence to ISO 14644-3 (cleanroom testing), ISO 16813 (HVAC performance), and ASTM D1896 (air velocity mapping). Probe selection enables compliance with USP (environmental monitoring in aseptic processing) and EU GMP Annex 1 (airflow visualization and uniformity assessment). All thermal anemometer probes meet IEC 60529 IP20 specifications for ingress protection. Data integrity is maintained through internal timestamping, non-volatile memory (8 GB), and cycle-accurate storage capacity of 24,500 measurements per module (1,000 per channel). The system supports audit-trail-ready operation when used with compliant software configurations aligned with FDA 21 CFR Part 11 requirements.

Software & Data Management

Kanomax PRO Software (Windows 10 compatible) provides native tri-language UI (English, Japanese, Chinese) and supports up to 144-channel real-time acquisition. Key capabilities include: automatic probe identification and calibration metadata loading; per-channel parameter configuration (sampling interval, averaging window, alarm thresholds); real-time graphical display with selectable time-series, min/max/mean overlays, and statistical summary panels; and direct export to CSV or Excel-compatible formats. Data logging includes embedded timestamps, probe serial numbers, and environmental context tags. Software-generated reports comply with GLP documentation standards and support electronic signature workflows when deployed on validated IT infrastructure.

Applications

• Cleanroom airflow qualification: ISO Class 5–8 unidirectional and non-unidirectional flow mapping, including velocity uniformity, turbulence index, and recovery time verification.
• HVAC system commissioning: Duct traverse surveys, supply/exhaust balance testing, and room pressurization profiling.
• Pharmaceutical facility monitoring: Aseptic processing isolator airflow verification, glove port velocity checks, and barrier system integrity validation.
• Thermal management validation: Electronics cooling analysis, battery enclosure airflow distribution, and heat sink performance benchmarking.
• Environmental chamber characterization: Spatial temperature and humidity gradient analysis during qualification protocols (IQ/OQ/PQ).
• Research-grade aerodynamics: Low-turbulence wind tunnel boundary layer studies and microclimate modeling in agricultural or architectural simulation labs.

FAQ

What is the maximum number of measurement points supported by a single Model 1590-0C system?
A fully expanded system comprises one Model 1590-0C main unit, twelve Model 1591-0C measurement modules, and up to 144 probes—enabling simultaneous acquisition across all channels.
Can the system operate without connection to a computer?
Yes—the built-in 7-inch touchscreen allows full system configuration, real-time monitoring, data review, and local CSV export without external computing hardware.
Are calibration certificates provided with each probe?
Each probe is supplied with a factory calibration report traceable to JCSS (Japan Calibration Service System); NIST-traceable calibration services are available upon request.
Does the system support alarm notification and event-triggered logging?
Yes—user-defined upper/lower limits per channel trigger visual alerts on-screen and initiate time-stamped event logging with pre/post-trigger buffer capture.
Is the software compatible with networked or cloud-based data aggregation platforms?
While the native software operates locally, raw CSV exports and optional Modbus TCP gateway modules enable integration with enterprise MES, LIMS, or cloud analytics platforms via standard industrial protocols.
