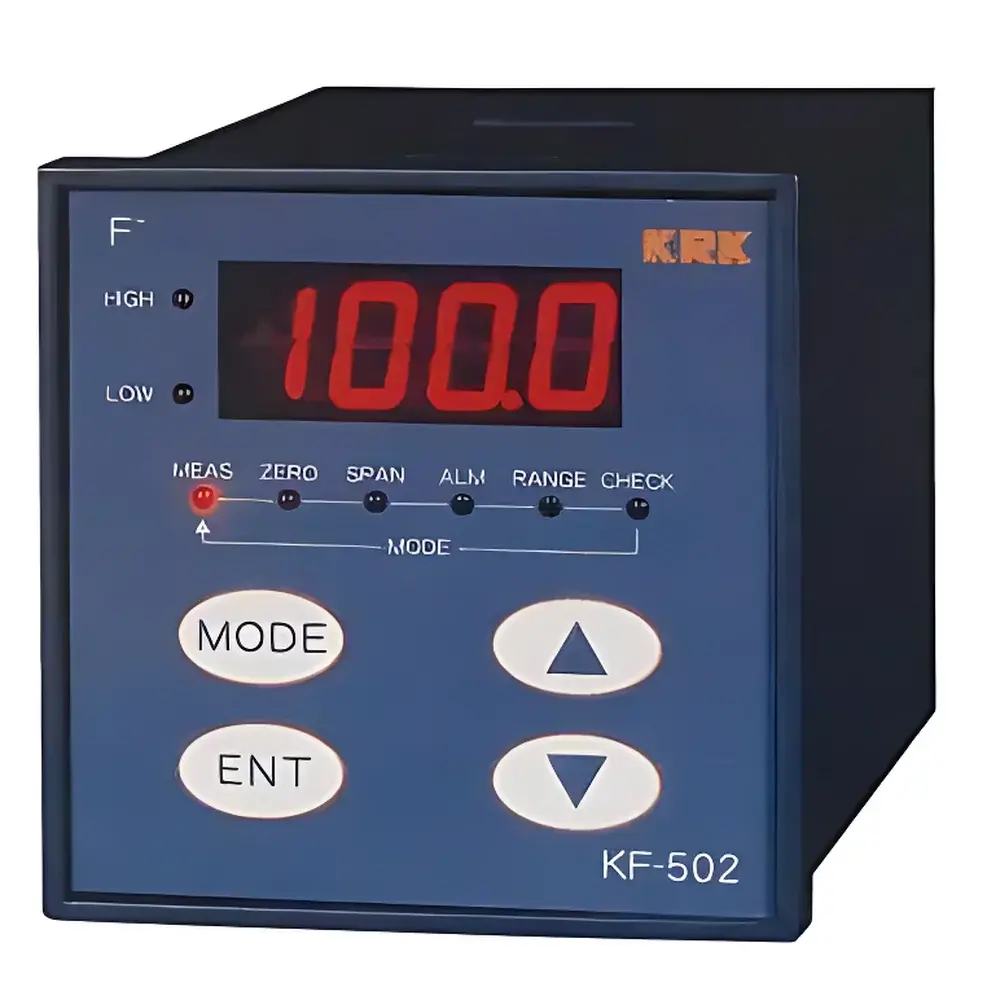

Kasuri KF-502 Fluoride Ion Monitor

Overview

The Kasuri KF-502 Fluoride Ion Monitor is a dedicated online analytical instrument engineered for continuous, real-time quantification of free fluoride ions (F⁻) in aqueous process streams and environmental water systems. It operates on the potentiometric principle using a solid-state ion-selective membrane (ISM) electrode, which generates a stable, Nernstian potential response proportional to the logarithm of fluoride ion activity in solution. Unlike conventional glass electrodes, the ISM design eliminates drift and offers superior chemical resistance—particularly against hydroxide interference and hydrogen ion effects—making it suitable for long-term unattended operation in municipal drinking water treatment, semiconductor rinse water monitoring, aluminum anodizing effluent control, and fluoridation dosing verification. The instrument’s measurement validity is strictly conditioned on sample pH maintenance between 4.0 and 9.0; outside this range, hydrolysis of fluoride complexes or OH⁻ competition at the membrane surface introduces systematic bias. For non-compliant samples, integration with inline pH adjustment or ISAB (Ionic Strength Adjustment Buffer) dosing modules is recommended prior to analysis.

Key Features

• True online capability with <1-second electrochemical response time, enabling dynamic process feedback control
• Dual-range resolution: 0.1 mg/L (0–199.9 mg/L) and 1 mg/L (200–1000 mg/L), optimized for both trace-level compliance monitoring and high-concentration industrial discharge verification
• Isolated 4–20 mA analog output with configurable span ranges (0–10, 0–20, 0–100, 0–200, or 0–1000 mg/L), supporting seamless integration into DCS, SCADA, or PLC architectures
• Two programmable relay outputs (dry contact, AC 240 V / 1 A max) for high/low limit alarms or actuator interlocks
• Front-panel LED display with 3½-digit resolution and intuitive zero/span calibration interface
• Robust 96×96 mm DIN-mount housing (IP65-rated front panel), designed for panel installation in control rooms or field enclosures
• Low power consumption and wide-input AC power supply (85–240 V, 50/60 Hz), ensuring operational stability across global utility grids

Sample Compatibility & Compliance

The KF-502 is validated for use with potable water, wastewater effluents, cooling tower blowdown, and industrial rinse waters containing low-to-moderate total dissolved solids (TDS). It complies with ASTM D1179–22 (Standard Test Method for Fluoride in Water) when operated within its specified pH window and calibrated per manufacturer protocol. While not intrinsically certified for hazardous locations, its electrical isolation and low-energy signal path meet IEC 61000-6-2/6-4 immunity and emission requirements for industrial environments. For regulated applications—including those under EPA Method 300.0, ISO 10304-1, or WHO Guideline Limits—the system supports GLP-aligned calibration logging (via external data logger) and satisfies foundational elements of FDA 21 CFR Part 11 when paired with audit-trail-capable supervisory software.

Software & Data Management

As a standalone analog transmitter, the KF-502 does not include embedded firmware-based data storage or digital communication protocols (e.g., Modbus RTU, HART). However, its 4–20 mA output is fully compatible with third-party historian systems (e.g., Siemens Desigo CC, Honeywell Experion PKS, or Ignition SCADA) for time-series trending, alarm correlation, and automated report generation. Users may configure linear scaling, damping filters, and alarm hysteresis externally via the host controller. For calibration traceability, manual logbooks or electronic lab notebooks (ELN) are recommended to record date/time-stamped zero/span values, standard concentrations used (e.g., 1.0 and 10.0 mg/L NaF traceable to NIST SRM 3162a), and operator identification—fulfilling minimum documentation requirements for ISO/IEC 17025-accredited laboratories.

Applications

• Real-time monitoring of fluoride dosage in municipal water fluoridation plants to ensure compliance with WHO (1.5 mg/L) and US EPA MCL (4.0 mg/L)
• In-line verification of fluoride removal efficiency in activated alumina or bone char filtration systems
• Effluent compliance tracking for electronics manufacturing (wafer cleaning lines) and metal finishing facilities subject to local discharge permits
• Process control of hydrofluoric acid (HF) neutralization in chemical wastewater treatment
• Research-grade fluoride kinetics studies in geochemical leaching experiments or soil column elution tests

FAQ

What is the required pH range for accurate fluoride measurement?
The KF-502 requires sample pH to be maintained between 4.0 and 9.0. Outside this range, measurement error increases due to hydroxide interference or fluoride complexation; pH adjustment or ISAB addition is necessary.
Can the KF-502 measure fluoride in seawater or high-salinity brines?
No. High ionic strength (>5000 µS/cm) causes significant activity coefficient deviation and membrane potential drift. Use only in low-to-moderate TDS matrices unless compensated via empirical calibration.
How often should the sensor be calibrated?
Daily zero/span calibration is recommended for regulatory reporting; weekly calibration suffices for process trend monitoring if drift remains within ±1% FS over 72 hours.
Is the ISM electrode replaceable as a field-serviceable component?
Yes. The fluoride-selective sensor module is designed for tool-free replacement without recalibrating the transmitter electronics.
Does the instrument support temperature compensation?
No. The KF-502 assumes ambient temperature stability (0–40 °C); for applications with >±2 °C variation, external Pt100 RTD input or post-processing correction is advised.
