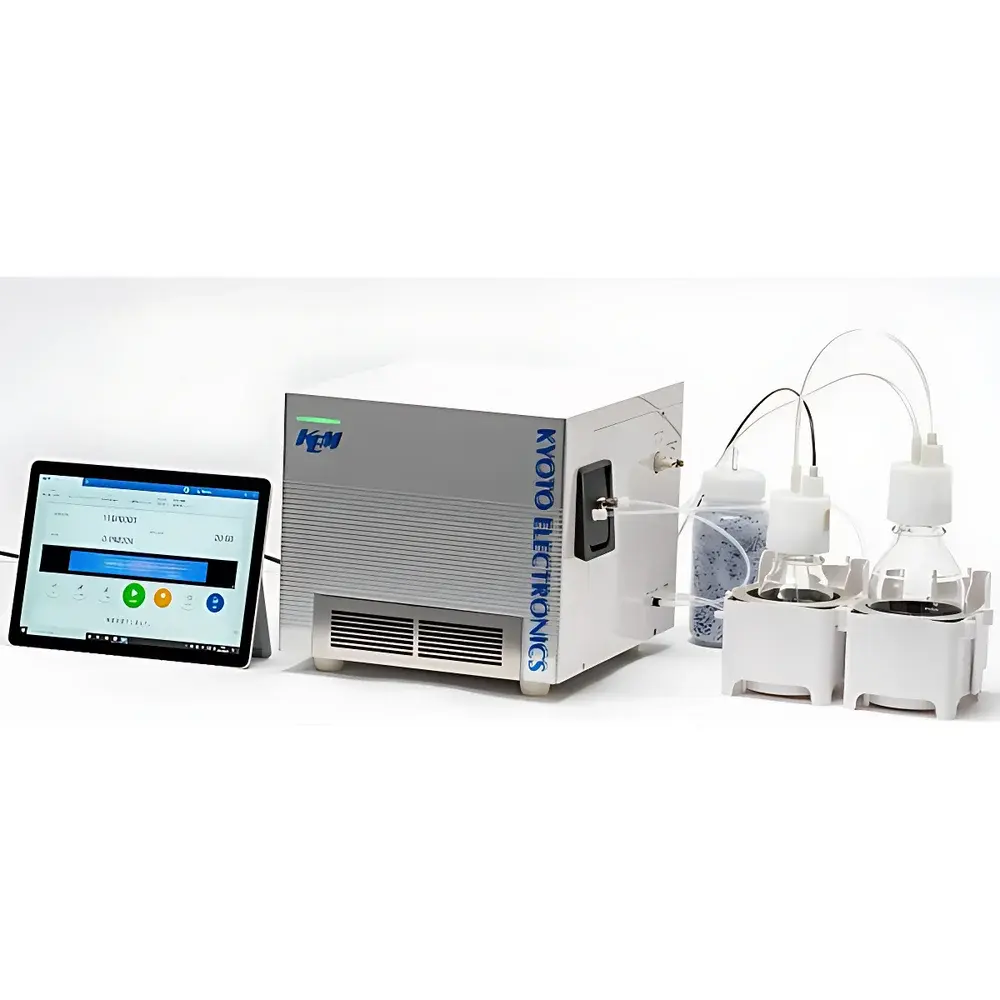

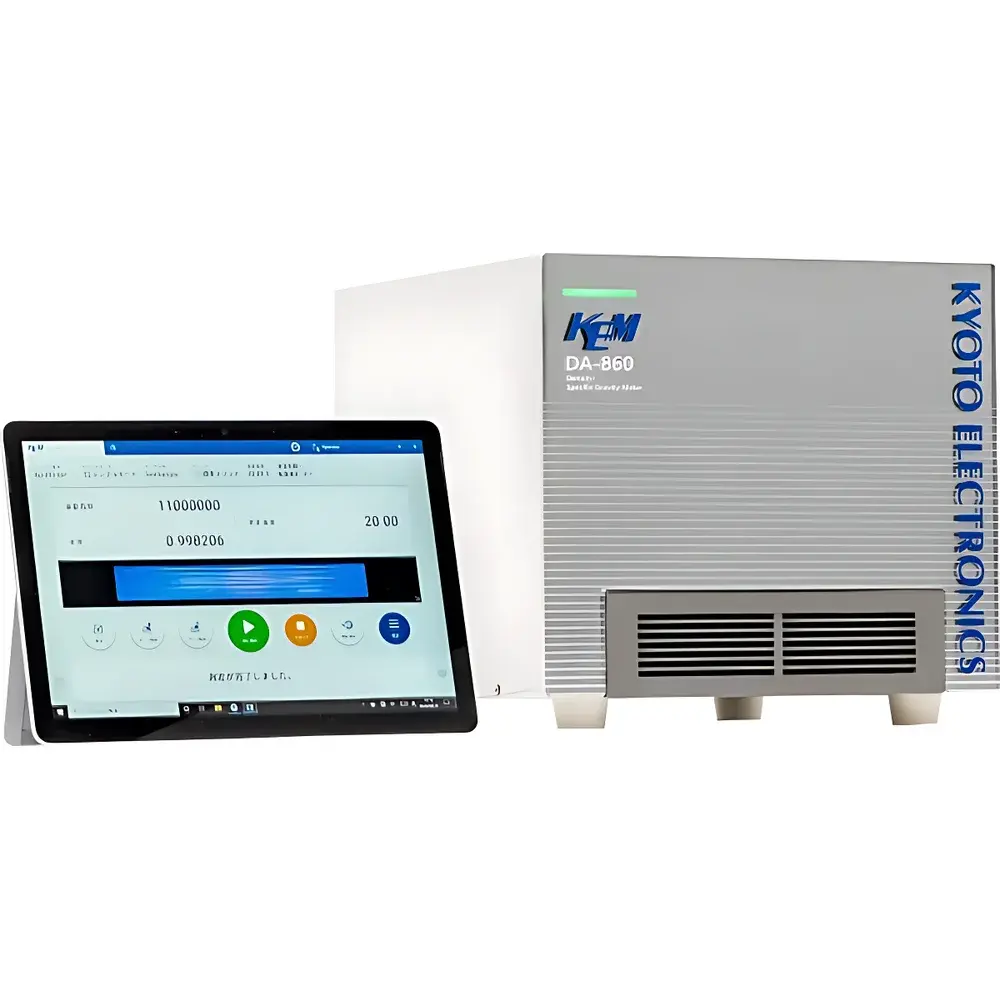

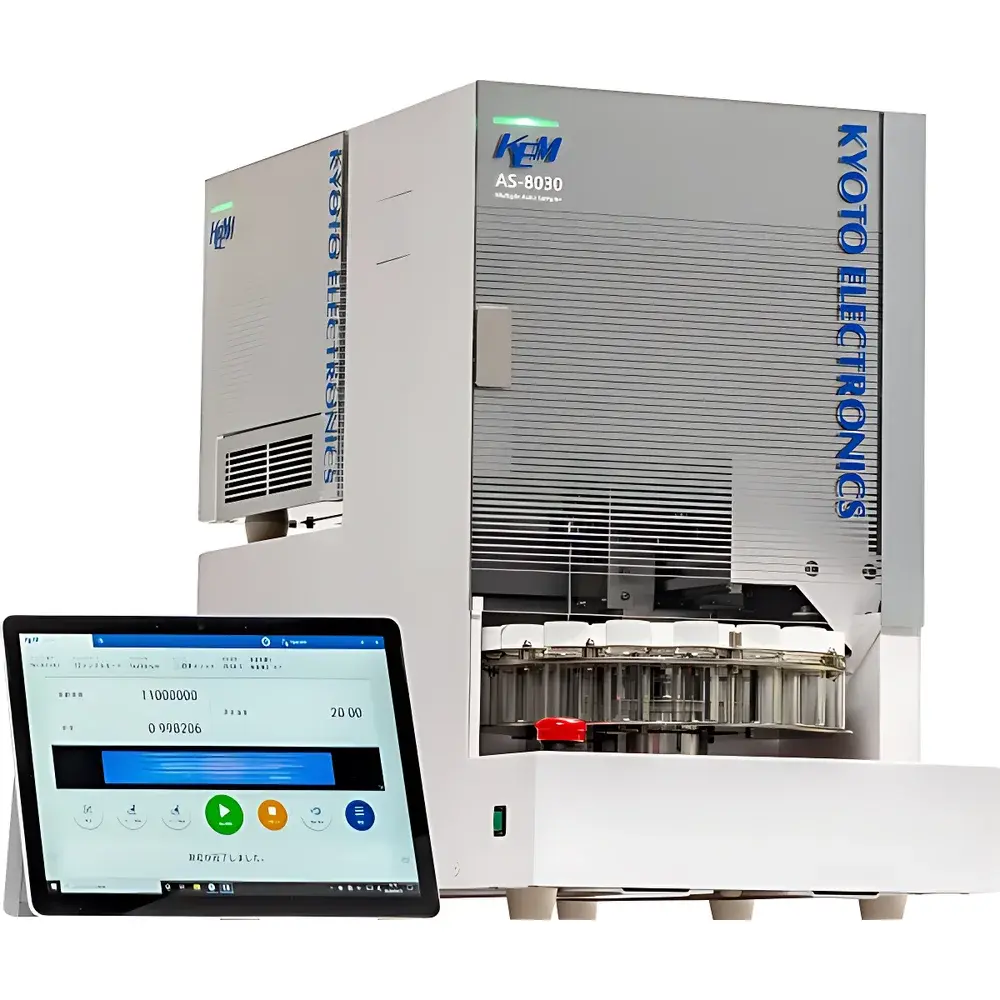

KEM DA-860 Digital Density Analyzer (U-Tube Oscillation Method) for Petroleum Products
| Brand | KEM (Kyoto Electronics Manufacturing) |
|---|---|
| Model | DA-860 |
| Measurement Principle | U-Tube Oscillation Method |
| Standard Compliance | ASTM D4052-22, EN ISO 12185:1996, EN ISO 15212-1:1999, GB/T 2013-2010, GB/T 29617-2013, SH/T 0604-2000 |
| Density Range | 0–3 g/cm³ |
| Accuracy | ±0.000003 g/cm³ |
| Repeatability | ±0.000001 g/cm³ |
| Temperature Control | 0–100 °C (Peltier), Resolution: 0.001 °C |
| Sample Volume | ~1 mL (syringe) or ~2 mL (pump) |
| Measurement Time | ~10 s (to 4-digit stability) |
| Interface | LAN, USB, RS-232C |
| Power | AC 100–240 V, 50/60 Hz |
| Dimensions | 295 × 330 × 255 mm |
| Weight | ~19 kg |
Overview
The KEM DA-860 Digital Density Analyzer is a high-precision laboratory instrument engineered for the accurate and traceable determination of density, relative density (specific gravity), and API gravity of liquid petroleum products and related hydrocarbon-based fluids. It operates on the internationally standardized U-tube oscillation principle—where a precisely machined borosilicate glass U-shaped tube is filled with sample and excited to resonate at its natural frequency. Since the oscillation period is inversely proportional to the square root of the sample’s mass (and thus its density), the instrument calculates density with exceptional resolution via real-time frequency measurement and temperature-compensated algorithms. Designed in strict accordance with ASTM D4052-22, EN ISO 12185:1996, and GB/T 2013-2010, the DA-860 delivers metrologically sound results suitable for quality control, custody transfer verification, regulatory reporting, and R&D applications across refineries, independent testing laboratories, and petrochemical research facilities.
Key Features
- Ultra-high metrological performance: Certified accuracy of ±0.000003 g/cm³ and repeatability of ±0.000001 g/cm³—validated using NIST-traceable density standards manufactured in-house by KEM.
- Integrated high-resolution camera system: Provides real-time visual monitoring of the oscillation cell during filling and measurement; enables image capture and timestamped storage for auditability and troubleshooting.
- Flexible operator interface: Supports both tablet-based and desktop PC operation via intuitive, icon-driven software—adaptable to varying lab workflows and user preferences.
- Rapid thermal equilibration: Peltier-controlled temperature regulation (0–100 °C) with 0.001 °C resolution ensures precise thermal stabilization, critical for viscosity-sensitive samples and API gravity calculations per ASTM D1250.
- Advanced signal processing: Proprietary evolutionary algorithm achieves stable 4-digit density output within approximately 10 seconds—significantly reducing cycle time without compromising precision.
- Multi-unit network capability: A single control station can manage up to four DA-860 measurement units simultaneously, enabling centralized data logging, batch tracking, and cross-instrument calibration synchronization.
- Automated correction functions: Includes real-time bubble detection, full-range kinematic viscosity compensation (per ASTM D5002), and automatic barometric pressure adjustment for field-deployable consistency.
Sample Compatibility & Compliance
The DA-860 is validated for use with a broad spectrum of petroleum-derived liquids—including crude oil, gasoline, diesel, jet fuel, lubricating oils, biodiesel blends, ethanol fuels, and refinery intermediates—as well as non-petroleum solvents, organic chemicals, and glycerol-based industrial fluids. Its robust U-tube design accommodates samples with viscosities up to 200 mPa·s without flow restriction or resonance damping artifacts. All measurements comply with GLP and GMP data integrity requirements: full electronic audit trail, user-access controls, and 21 CFR Part 11–ready software options are available upon configuration. Regulatory method alignment includes ASTM D4052-22 (primary), ASTM D5002-22 (crude oil), ASTM D7961 (biofuels), EN ISO 12185 (European crude/petroleum standard), and Chinese national standards GB/T 2013, GB/T 29617, and SH/T 0604.
Software & Data Management
The DA-860 is operated via KEM’s proprietary Density Manager software, a Windows-based application supporting automated method selection, multi-point calibration, and customizable report generation (PDF, CSV, XML). Data export conforms to LIMS-compatible formats and includes raw oscillation frequency, temperature, pressure, viscosity-corrected density, API gravity, and uncertainty estimates per ISO/IEC 17025 guidelines. The software supports full electronic signature functionality, secure user role assignment (administrator, analyst, reviewer), and immutable audit logs—including timestamps for all measurement events, parameter changes, and calibration actions. Optional integration with enterprise ERP or SAP systems is supported via OPC UA and RESTful API interfaces.
Applications
- Refinery QC/QA: Real-time density verification of feedstocks, distillates, and finished fuels against specification limits (e.g., ASTM D975 for diesel, D1655 for jet fuel).
- Custody transfer: High-accuracy density input for volume-to-mass conversion in fiscal metering systems compliant with API MPMS Chapter 11.1.
- Blending optimization: Monitoring density shifts during additive dosing or biofuel blending to ensure target API gravity and compositional homogeneity.
- Research & development: Characterizing novel synthetic fuels, hydrogenated bio-oils, and low-carbon aviation fuel (SAF) candidates under controlled thermal conditions.
- Regulatory compliance: Generating auditable test reports for EPA, CARB, EU RED II, and China’s GB 17930–2016 gasoline standard submissions.
- Contract testing labs: Accredited testing per ISO/IEC 17025 with documented uncertainty budgets and interlaboratory comparison readiness.
FAQ
What international standards does the DA-860 fully support?
ASTM D4052-22, ASTM D5002-22, EN ISO 12185:1996, EN ISO 15212-1:1999, GB/T 2013-2010, GB/T 29617-2013, SH/T 0604-2000, and JJG 1058-2010.
Can the DA-860 measure highly viscous samples such as heavy fuel oil?
Yes—the U-tube geometry and adaptive oscillation detection enable reliable measurement of samples up to 200 mPa·s; optional viscosity correction per ASTM D5002 is applied automatically.
Is temperature control sufficient for API gravity calculations per ASTM D1250?
Yes—Peltier-based temperature regulation achieves ±0.001 °C stability over 0–100 °C, meeting the thermal precision requirement for base-density derivation used in API gravity tables.
How is data integrity ensured for regulated environments?
With configurable 21 CFR Part 11 compliance, including electronic signatures, audit trails, access controls, and immutable record retention—all validated per IQ/OQ protocols.
What sample volume is required, and how is contamination minimized?
As little as 1 mL via syringe or 2 mL via integrated pump; the U-tube is chemically inert (borosilicate glass), and automated rinse cycles reduce carryover between analyses.
