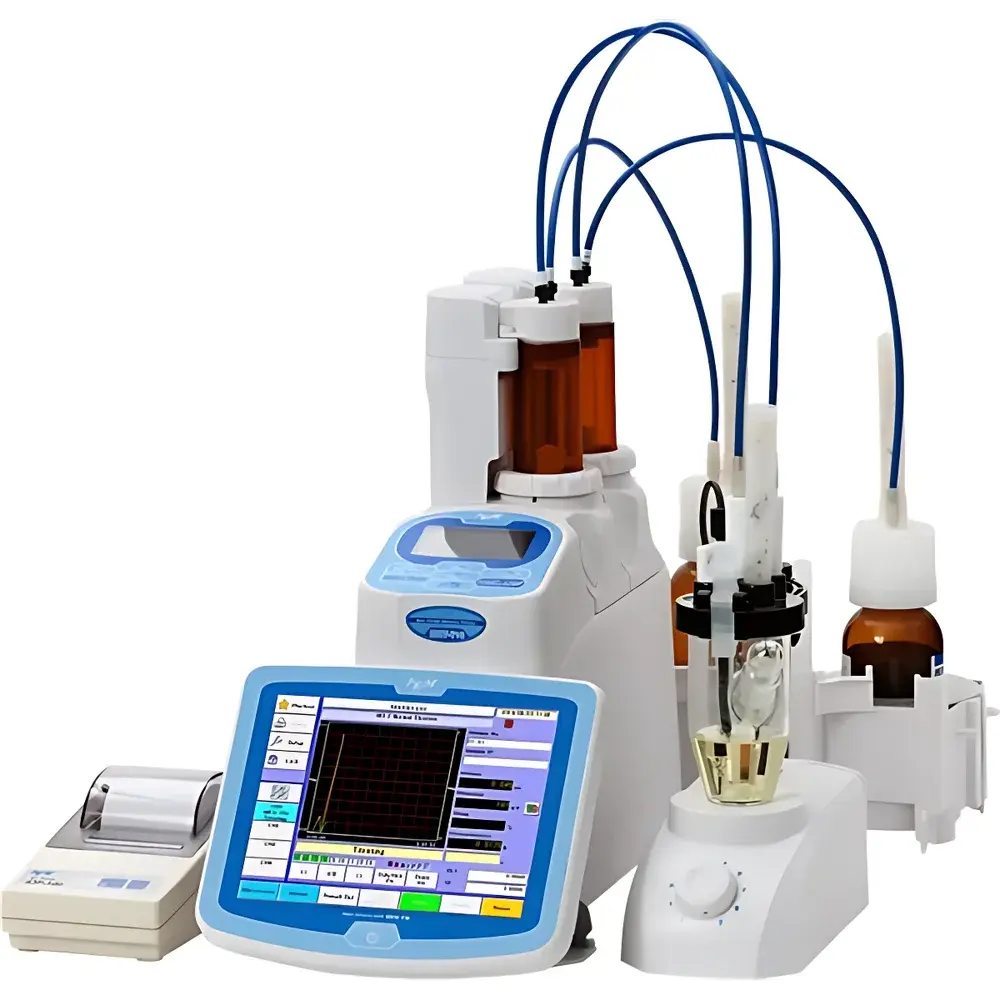

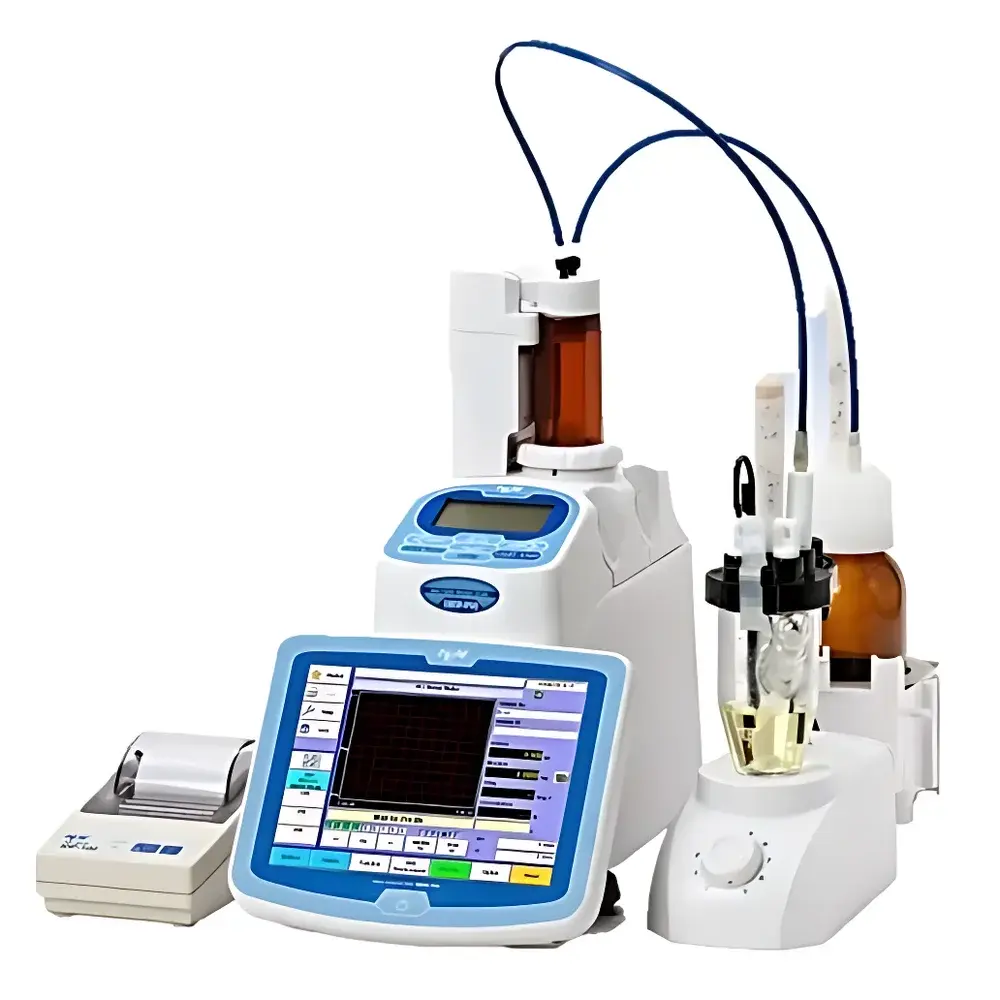

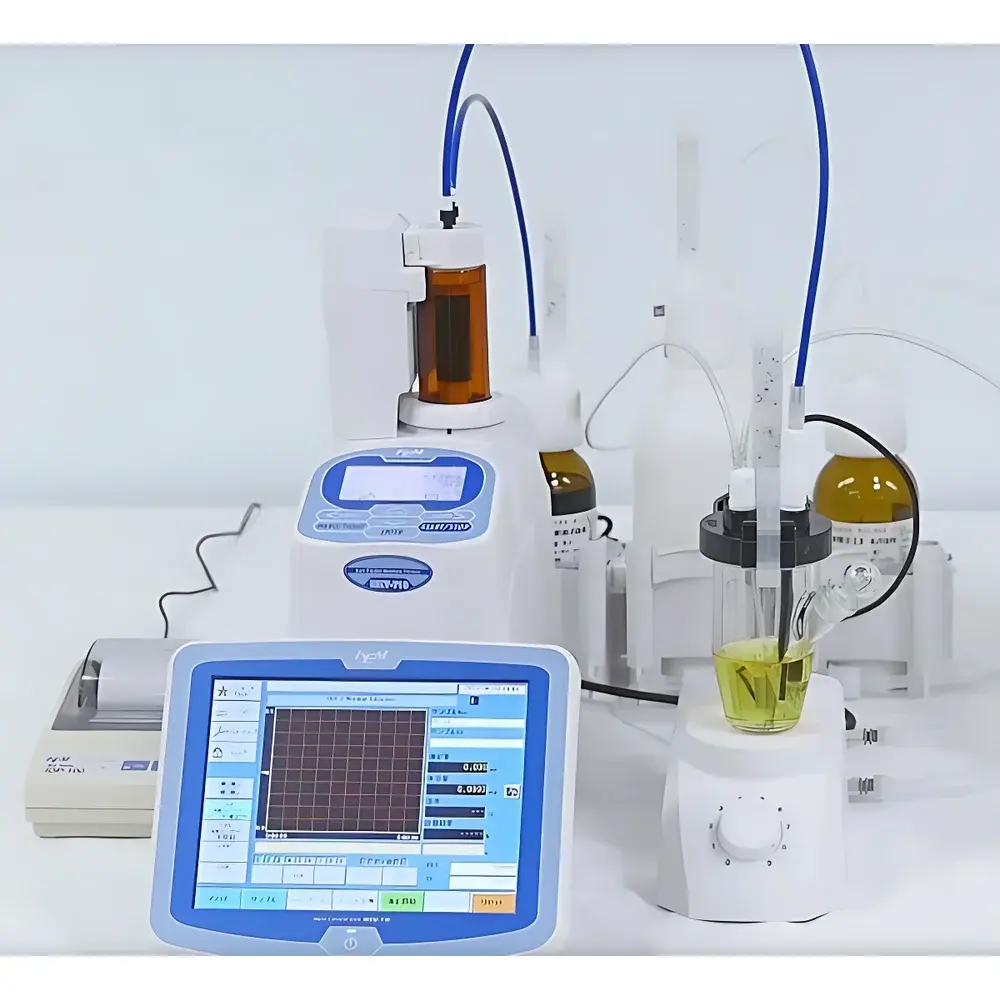

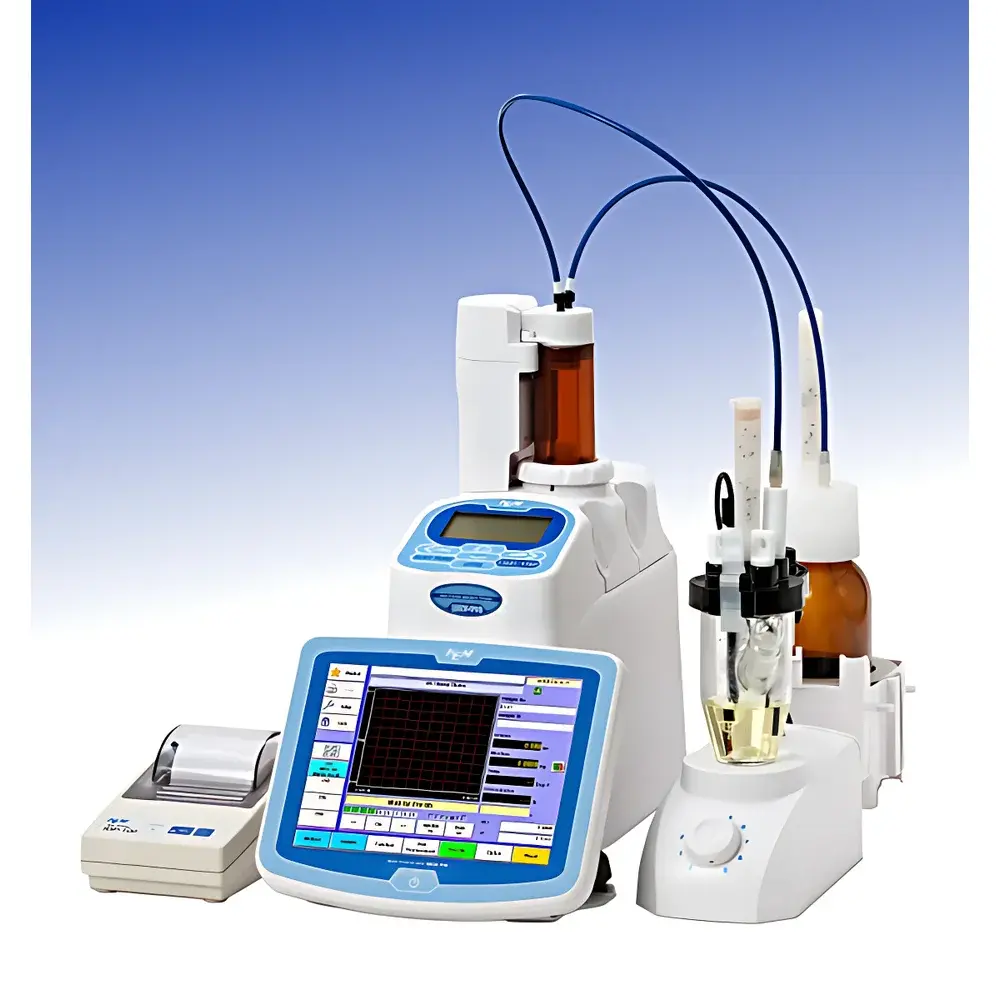

KEM MKV-710S Volumetric Karl Fischer Moisture Titrator
| Brand | KEM (Kyoto Electronics Manufacturing) |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Instrument Type | Volumetric Karl Fischer Titrator |
| Titration Mode | Fully Automatic |
| Measurement Resolution | 0.005 mL |
| Water Content Range | 1 ppm to 100% H₂O |
| Accuracy (10 mL Burette) | ±0.015 mL |
| Minimum Dispensing Increment | 1/20,000 |
| Repeatability | ±0.005 mL |
| Burette Unit | EBU-710-KF |
| Titration Control Precision | 0.015 mL |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Data Storage Capacity | 500 Sample Records |
| GLP Compliance | Operator Logging, Reagent Tracking, Performance Verification, Time-Stamped Audit Trail |
| Connectivity | RS-232C, USB (Host & Device), SS-BUS (APB) |
| Optional Accessories | ADP-611 Coulometric/KF Oven, Solvent Exchange Unit, Dual Burette Module |
Overview
The KEM MKV-710S Volumetric Karl Fischer Moisture Titrator is a fully automated, high-precision analytical instrument engineered for quantitative determination of water content in diverse industrial and research matrices using the classical volumetric Karl Fischer (KF) titration method. Based on the stoichiometric reaction between iodine, sulfur dioxide, methanol, and water in an anhydrous organic medium—where one mole of iodine reacts with one mole of water—the MKV-710S delivers trace-level quantification across a dynamic range from 1 ppm to 100% w/w H₂O. Its design adheres to internationally recognized principles outlined in ASTM E203, ISO 760, and USP , ensuring methodological rigor for regulated environments including pharmaceutical QC, petrochemical quality control, polymer manufacturing, and food safety laboratories. The system operates under strict electrochemical endpoint detection via bipotentiometric (dual-platinum electrode) monitoring, where the sustained potential shift beyond user-defined stabilization time (1–99 s) triggers titration termination—minimizing over-titration and maximizing measurement reproducibility.
Key Features
- 8.4-inch full-color TFT LCD touchscreen interface with intuitive graphical navigation and multi-language support (English, Japanese, Chinese, Korean, Russian, Spanish, German, French)
- Wireless Bluetooth-enabled remote operation via MCU-710 handheld controller—enabling safe operation in fume hoods or hazardous environments without physical contact
- Detachable MCU-710 unit with integrated rechargeable battery for mobile, offline method setup and real-time monitoring
- Role-based user access control with password-protected administrator and operator profiles—supporting ISO/IEC 17025 and FDA 21 CFR Part 11 compliance requirements
- EBU-710-KF intelligent burette module featuring embedded memory chip storing reagent lot number, concentration, expiration date, and calibration history
- Optimized dead-volume reduction and solvent consumption minimization through precision-machined glass syringe and low-diffusion valve architecture
- Onboard PDF report generation with customizable templates; direct export to USB mass storage devices
- Seamless integration with KEM’s ADP-611 KF oven for thermally assisted moisture release from solid or viscous samples—automated temperature optimization based on sample type and moisture volatility profile
Sample Compatibility & Compliance
The MKV-710S accommodates a broad spectrum of sample types—including liquids (oils, solvents, monomers), solids (polymers, APIs, excipients), slurries (catalysts, pigments), and gases (via gas sampling valve)—when paired with appropriate sample introduction accessories. Its S-type titration cell (30–100 mL solvent capacity) supports both direct injection and coulometric-compatible evaporation modes. All firmware and data handling protocols conform to Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP) frameworks: automatic timestamping, electronic signature capture, audit trail logging of all critical events (reagent loading, calibration, method edits, result approvals), and secure operator authentication. System validation documentation—including IQ/OQ/PQ templates—is available upon request to support regulatory submissions under EMA, FDA, and PMDA guidelines.
Software & Data Management
Data integrity is maintained through dual-layer storage architecture: internal flash memory retains up to 500 complete sample records (including raw titration curves, endpoint detection logs, blank corrections, and statistical summaries), while external USB ports enable bulk transfer to LIMS or ELN platforms. The instrument supports bidirectional communication with analytical balances (via RS-232C or USB HID), thermal printers, barcode scanners, and foot switches for hands-free operation. Built-in calculation modules automate concentration derivation (mg H₂O/g or % w/w), statistical analysis (mean, SD, RSD), and batch-wise trending. All exported PDF reports embed digital signatures and cryptographic hash verification to meet ALCOA+ data integrity standards.
Applications
- Pharmaceuticals: Quantification of residual moisture in active pharmaceutical ingredients (APIs), lyophilized powders, and tablet coatings per ICH Q5C and USP
- Petrochemicals: Water determination in crude oil, lubricants, jet fuels, and biodiesel per ASTM D6304 and IP 386
- Polymers & Plastics: Moisture analysis in PET, nylon, polycarbonate, and engineering resins prior to extrusion or injection molding
- Food & Beverage: Compliance testing for moisture limits in dairy powders, starches, spices, and dehydrated fruits per AOAC 992.18
- Electronics: Detection of trace moisture in lithium-ion battery electrolytes and semiconductor-grade solvents
- Academic Research: Method development for novel KF reagents, kinetic studies of hydrolysis reactions, and inter-laboratory proficiency testing
FAQ
What is the difference between volumetric and coulometric Karl Fischer titration?
Volumetric KF measures water by dispensing standardized iodine-containing titrant from a burette; it is optimal for samples containing >100 µg water. Coulometric KF generates iodine electrochemically at the anode and is preferred for ultra-trace analysis (<10 µg). The MKV-710S is strictly volumetric but can interface with the ADP-611 oven for volatile sample analysis.
Does the MKV-710S support dual-burette configurations?
Yes—optional dual-burette module enables simultaneous forward/backward titration or separate reagent delivery for complex matrix correction (e.g., aldehyde interference compensation).
How is reagent stability managed during long-term operation?
The EBU-710-KF burette stores reagent metadata (lot ID, titer, expiry) in its onboard EEPROM; the system alerts users when reagent age or environmental exposure exceeds validated thresholds.
Can the instrument be integrated into a centralized lab network?
Yes—via Ethernet-to-serial converters or native USB-to-TCP/IP gateways, the MKV-710S supports SCADA-level integration with enterprise MES/QMS systems using Modbus RTU or custom API endpoints.
Is validation support provided for GxP environments?
KEM supplies comprehensive validation packages including URS, FRS, DQ/IQ/OQ protocols, traceability matrices, and electronic calibration certificates compliant with ISO/IEC 17025 and Annex 11.
