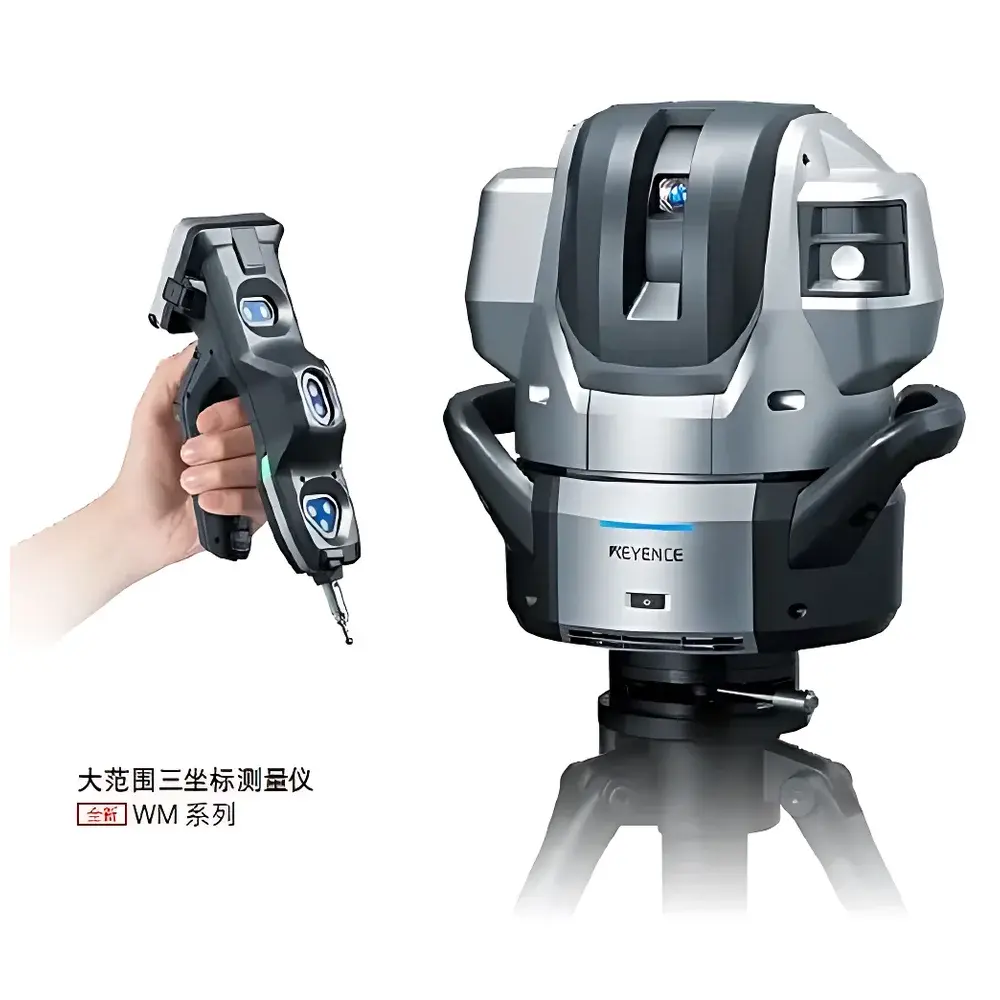

KEYENCE WM-3000 Wireless Laser Tracker

Overview

The KEYENCE WM-3000 Wireless Laser Tracker is a high-precision, portable coordinate measuring system engineered for large-volume metrology applications in industrial manufacturing, aerospace assembly, automotive body-in-white verification, and precision machinery calibration. Operating on the principle of interferometric distance measurement combined with high-resolution angular encoders, the WM-3000 emits a collimated laser beam to a retroreflective target (e.g., spherically mounted retroreflector or SMR), precisely tracking its 3D position in real time. Its wireless architecture eliminates cable constraints, enabling rapid repositioning and flexible deployment across shop floors, hangars, or outdoor fabrication sites—without sacrificing traceable metrological integrity. Designed and manufactured in Japan, the system complies with ISO 10360-12 (acceptance and reverification tests for laser trackers) and supports traceability to national standards via NIST-traceable calibration certificates.

Key Features

• True wireless operation: Integrated battery-powered tracker head and onboard Wi-Fi module enable untethered measurement over the full 10 m × 5 m × 5 m volumetric envelope without signal latency or physical tethering.
• Sub-micron resolution: Achieves 1 µm linear displacement resolution across the entire working volume, supporting fine-tuning of critical fits and alignment tolerances in high-value assemblies.
• ISO-compliant accuracy performance: Delivers certified volumetric accuracy of (28 + 5L/1000) µm per ISO 10360-12, where L is the measured distance in meters—validated at multiple distances up to 30 m during factory certification.
• Compact, ergonomic form factor: Weighing under 12 kg with integrated leveling feet and quick-mount tripod interface, the WM-3000 supports single-operator setup and relocation within minutes.
• Dual-axis angular encoder system: High-stability absolute encoders provide ±90° horizontal rotation and ±30° vertical pitch coverage, ensuring unobstructed line-of-sight acquisition across complex geometries.
• Real-time feedback interface: Integrated OLED display and tactile control panel allow immediate verification of target lock status, distance, and angular deviation—reducing reliance on external computing hardware during field operation.

Sample Compatibility & Compliance

The WM-3000 is compatible with industry-standard passive optical targets, including 0.5″, 1″, and 1.5″ spherically mounted retroreflectors (SMRs), as well as active targets for dynamic tracking applications. It supports reflective surfaces with minimum reflectivity ≥70% (at 780 nm wavelength) and accommodates surface roughness up to Ra 6.3 µm without significant signal degradation. The system meets electromagnetic compatibility requirements per IEC 61326-1:2023 (industrial environment), and its optical housing conforms to IP54 ingress protection rating for dust and splash resistance. All firmware and calibration data adhere to ISO/IEC 17025:2017 documentation requirements and support GLP/GMP audit trails when integrated with validated software environments.

Software & Data Management

The WM-3000 operates natively with KEYENCE’s proprietary Metrology Suite v4.x, a Windows-based application offering point cloud acquisition, best-fit alignment (RPS and 3-2-1 methods), GD&T evaluation (per ASME Y14.5–2018 and ISO 1101:2017), and automated report generation in PDF and XML formats. The software supports bidirectional data exchange with major CAD platforms (Siemens NX, CATIA V5/V6, SolidWorks) via STEP AP242 and IGES interfaces. Audit logging records all user actions—including measurement initiation, target registration, and report export—with timestamps and operator ID, satisfying FDA 21 CFR Part 11 electronic record requirements when deployed in regulated manufacturing settings. Raw measurement data (XYZ, IJK vectors, timestamp, temperature, humidity) are stored in open ASCII format for third-party statistical process control (SPC) integration.

Applications

• Aerospace: Wing-to-fuselage alignment verification, tooling calibration for composite layup molds, and dimensional validation of large airframe subassemblies.
• Automotive: Body-in-white (BIW) dimensional conformance testing, robotic weld cell calibration, and stamping die verification across multi-station transfer lines.
• Energy: Turbine blade root geometry inspection, wind turbine nacelle alignment, and offshore platform structural deformation monitoring.
• Machinery: Coordinate-based verification of CNC machine tool volumetric error maps and geometric compensation parameter validation.
• Research & Development: In-situ thermal expansion studies, vibration-induced displacement analysis, and kinematic chain calibration for robotic manipulators.

FAQ

What environmental conditions affect WM-3000 measurement stability?
Ambient temperature gradients exceeding 1 °C/m and air turbulence (e.g., near HVAC vents or open doors) may introduce refractive index variations. For optimal accuracy, operate within 15–25 °C with relative humidity 30–70% RH and minimal air movement.
Is the WM-3000 suitable for outdoor use?
Yes—its IP54-rated enclosure and sunlight-resistant display enable daylight operation; however, direct solar exposure on the SMR or tracker aperture should be avoided to maintain signal coherence.
Does the system require annual recalibration?
Per ISO 10360-12, annual performance verification is recommended; KEYENCE provides certified on-site recalibration services with full uncertainty budget documentation aligned to ISO/IEC 17025.
Can the WM-3000 integrate with existing shop-floor MES or QMS platforms?
Yes—via OPC UA or RESTful API interfaces, raw measurement results and pass/fail status can be transmitted directly to enterprise quality management systems (e.g., ETQ Reliance, Siemens Opcenter Quality) for closed-loop SPC.
What is the typical warm-up time before achieving specified accuracy?
The system achieves thermal equilibrium and full specification compliance within 15 minutes of power-on under stable ambient conditions.
