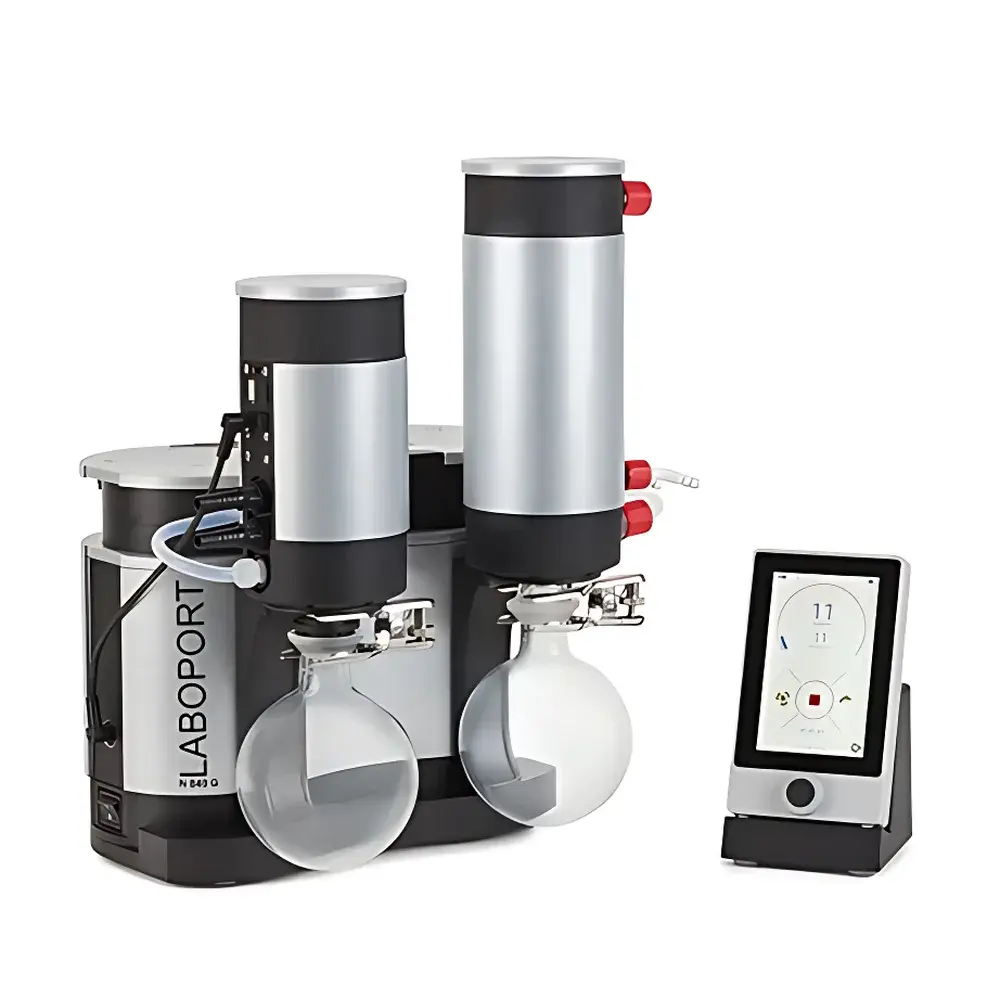

KNF SC 840 G LABOPORT® Vacuum System

Overview

The KNF SC 840 G LABOPORT® Vacuum System is a fully integrated, chemically resistant diaphragm vacuum solution engineered for precision-controlled laboratory vacuum applications. Unlike conventional single-pump configurations, this system combines a corrosion-resistant KNF NMP series diaphragm pump with an intelligent vacuum controller, inlet solvent separation bottle, and high-efficiency outlet cold trap—forming a closed-loop, oil-free vacuum architecture optimized for solvent recovery and process stability. Its operation relies on positive displacement via PTFE-coated diaphragms and elastomer-free valve technology, eliminating lubricant contamination and enabling continuous duty cycles under aggressive chemical exposure. Designed specifically for demanding workflows such as rotary evaporation, fractional distillation, and vacuum drying, the SC 840 G delivers stable vacuum regulation across dynamic load conditions while maintaining full compliance with ISO 8573-1 Class 0 (oil-free air) and IEC 61000-6-3 EMC standards.

Key Features

• Integrated vacuum control with real-time pressure feedback loop and adaptive ramp profiling to automatically detect solvent boiling points during evaporation—minimizing bumping and improving reproducibility.
• Dual-stage condensate management: inlet separation bottle captures bulk liquid carryover; downstream cold trap (−20 °C nominal) achieves >95% recovery of low-boiling solvents including acetone, dichloromethane, and ethyl acetate.
• Four programmable operating modes—Constant Pressure, Linear Ramp, Timed Vacuum Hold, and Manual Override—each configurable via intuitive touchscreen interface or tactile rotary encoder for glove-compatible operation.
• Remote operation capability via Ethernet (TCP/IP) and RS-232 interfaces, supporting integration into centralized lab automation platforms and enabling safe operation inside fume hoods without physical access.
• Chemical resistance certified per ASTM D543: compatible with concentrated acids (HCl, HNO₃), bases (NaOH), halogenated solvents, and peroxides when equipped with optional Viton®/EPDM wetted materials.
• Low acoustic emission (<52 dB(A) at 1 m) and thermally managed motor design ensure quiet, stable performance in shared laboratory environments.

Sample Compatibility & Compliance

The SC 840 G is validated for use with volatile organic compounds (VOCs), aqueous solutions, and mildly corrosive vapors typical in pharmaceutical synthesis, analytical sample preparation, and materials science workflows. Its dry-running diaphragm mechanism prevents cross-contamination between samples, supporting GLP-compliant multi-user environments. All electronic components meet IEC 61010-1 safety requirements for laboratory equipment. The vacuum controller supports audit-trail logging (time-stamped pressure setpoints, mode changes, alarms) aligned with FDA 21 CFR Part 11 data integrity expectations when paired with compliant LIMS systems (e.g., LabVantage, Thermo Fisher SampleManager). CE marking confirms conformity with EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU.

Software & Data Management

The embedded LABOPORT® controller firmware (v3.2+) provides native support for CSV export of time-series vacuum data (pressure, flow estimate, temperature, error codes) via USB mass storage or network transfer. Optional KNF LabControl Software enables remote monitoring, multi-system fleet management, and scheduled calibration reminders. All configuration parameters—including ramp rates, hold durations, and safety cutoff thresholds—are password-protected and stored in non-volatile memory with write-cycle endurance exceeding 100,000 cycles. Firmware updates are delivered via signed binary packages to ensure traceability and prevent unauthorized modification.

Applications

• Rotary evaporation of heat-sensitive compounds under precisely regulated sub-atmospheric conditions (10–100 mbar range).
• Vacuum drying of hygroscopic powders and polymer films using programmable pressure ramps to avoid surface cracking.
• Short-path and fractional distillation requiring stable, pulse-free vacuum delivery with minimal backstreaming risk.
• Multi-station vacuum networks serving parallel filtration, degassing, or lyophilization processes with centralized pressure arbitration.
• Automated sample preparation workflows integrated into robotic liquid handling platforms via Modbus TCP or ASCII command protocol.

FAQ

Is the SC 840 G suitable for use with strong oxidizers such as nitric acid vapor?
Yes—when specified with EPDM diaphragms and FKM (Viton®) valves, the pump meets ASTM D543 Class A resistance to concentrated nitric acid up to 70% w/w at ambient temperature.
Can vacuum setpoints be logged with timestamp and user ID for audit purposes?
Yes—the controller records all pressure adjustments, mode switches, and alarm events with ISO 8601 timestamps and stores them in internal memory; exportable via USB or Ethernet with optional digital signature verification.
What maintenance intervals are recommended for routine operation?
Diaphragm replacement is recommended every 12,000 hours or 24 months (whichever occurs first); inlet filters require cleaning every 200 hours in high-particulate environments; cold trap condensate must be drained after each evaporation cycle.
Does the system comply with USP <1058> Analytical Instrument Qualification guidelines?
Yes—the modular architecture supports IQ/OQ documentation templates provided by KNF, and the controller’s deterministic response time (<100 ms) satisfies performance qualification criteria for critical pressure control steps.
