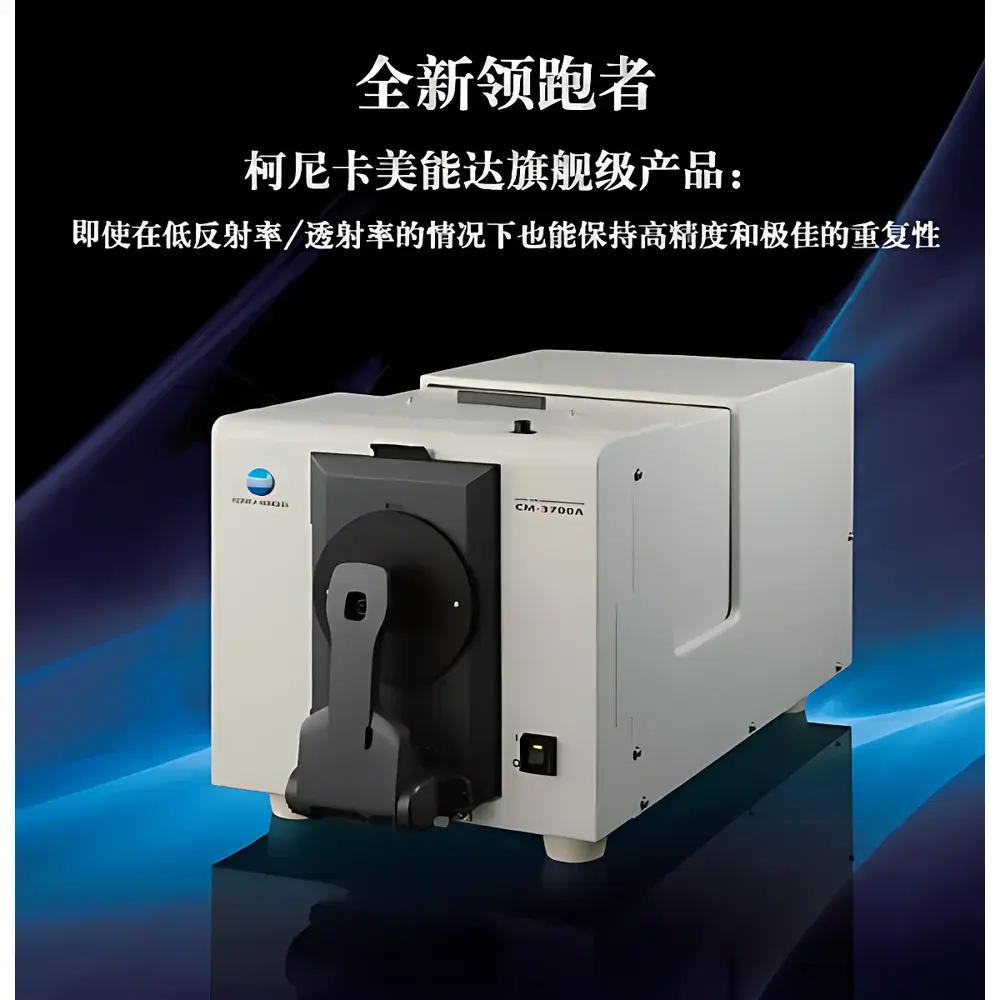

Konica Minolta CM-3700d Desktop Spectrophotometer
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CM-3700d |
| Product Type | Spectrophotometer |
| Instrument Type | Desktop |
| Optical Geometry | d/8° integrating sphere |
| Light Source | Pulsed Xenon Lamp |
| Spectral Range | 360 nm – 740 nm |
| Repeatability | ΔE*ab standard deviation ≤ 0.005 |
Overview
The Konica Minolta CM-3700d is a high-precision desktop spectrophotometer engineered for laboratory-grade color measurement and spectral analysis in quality-critical industrial environments. Utilizing a d/8° integrating sphere optical geometry with a pulsed xenon lamp, the instrument delivers stable, flash-based illumination that eliminates thermal drift and ensures consistent spectral acquisition across repeated measurements. Its 360–740 nm spectral range covers the full visible spectrum and extends into near-UV and near-NIR regions—enabling accurate characterization of fluorescent, metallic, and pearlescent materials per ISO 13655 and CIE Publication 15. Its design conforms to the fundamental principles of CIE tristimulus colorimetry, supporting calculation of CIELAB (L*a*b*), CIELCH, ΔE*ab, ΔE00, and other industry-standard color difference metrics with traceable calibration against NIST-traceable standards. The CM-3700d is optimized for applications requiring metrological rigor, including formulation validation, supplier color approval, and long-term stability monitoring in regulated manufacturing settings.
Key Features
- Stable pulsed xenon light source eliminates lamp aging effects and provides uniform spectral output across all wavelengths without warm-up time
- d/8° integrating sphere geometry with specular component included (SCI) and excluded (SCE) modes for comprehensive surface appearance evaluation
- High-resolution spectral data acquisition at 10 nm intervals (31 data points), enabling robust spectral curve analysis and metamerism assessment
- Integrated UV calibration and adjustable UV energy control for accurate measurement of optical brighteners and fluorescing materials
- Large-aperture measurement port (Φ25.4 mm) accommodates textured, curved, or irregular samples without repositioning artifacts
- Rugged mechanical design with temperature-compensated optics and internal reference calibration for long-term measurement stability
- Compliance with ISO 7724-1, ISO 13655, ASTM E308, and CIE No. 15:2018 for spectral data integrity and inter-instrument agreement
Sample Compatibility & Compliance
The CM-3700d supports solid, opaque, translucent, and semi-glossy samples—including plastics, paints, textiles, ceramics, and coated metals—without requiring contact or sample preparation. Its non-destructive measurement principle ensures repeatability across batch production runs and multi-site comparisons. The instrument meets regulatory requirements for color documentation in GMP-compliant environments: audit trail functionality, user access levels, electronic signature support, and data export integrity align with FDA 21 CFR Part 11 when used with Konica Minolta’s SpectraMagic NX software (v3.6+). All spectral data files are timestamped, digitally signed, and stored in vendor-neutral formats (e.g., .qtx, .ciexyz), facilitating integration into LIMS and MES platforms.
Software & Data Management
SpectraMagic NX software provides full instrument control, spectral database management, and statistical process analysis. It enables creation of custom tolerances (ellipsoidal, rectangular, or user-defined), batch comparison reports, and trend charts with SPC control limits. Raw spectral data is exportable in CSV, XML, and CxF/X3 formats for third-party analysis tools. Version-controlled method templates ensure procedural consistency across operators and shifts. Software validation packages—including IQ/OQ documentation and test protocols—are available for regulated industries. Data integrity safeguards include automatic backup, encrypted storage, and immutable log files compliant with GLP and ISO/IEC 17025 requirements.
Applications
- Color formulation and matching in automotive OEM paint labs and coating R&D centers
- In-process color verification on production lines for plastic injection molding and extrusion
- Supplier quality audits and incoming material inspection per AATCC TM173, ISO 105-J03, and GMW14872
- Long-term color stability testing under accelerated aging conditions (QUV, Xenon arc)
- Calibration transfer between master instruments and field units using inter-instrument agreement (IIA) routines
- Development and validation of color-difference thresholds for perceptual acceptability studies
FAQ
What is the recommended calibration frequency for the CM-3700d in a production QA lab?
Daily zero and white calibration is recommended; full recalibration against certified standards every 30 days or after environmental shifts exceeding ±5°C.
Does the CM-3700d support measurement of transparent or liquid samples?
No—it is designed exclusively for reflective solid samples. For transmission measurements, Konica Minolta’s CM-5 or CM-700d series is recommended.
Can spectral data be exported for use in MATLAB or Python-based color modeling?
Yes—CSV exports contain wavelength-indexed reflectance values (360–740 nm at 10 nm steps), fully compatible with NumPy, Pandas, and color-science libraries such as Colour Science for Python.
Is the instrument compatible with automated sample handling systems?
Yes—RS-232 and USB virtual COM port interfaces support integration with PLC-controlled turntables and robotic sample loaders via SCPI command set.
How does the CM-3700d handle measurement of textured or low-gloss surfaces?
The d/8° sphere geometry with diffuser plate ensures uniform illumination distribution, minimizing directional bias; SCE mode suppresses specular reflection to isolate diffuse color response.
