KPM PSC Guardian HD Online Near-Infrared Analyzer Series for Web-Based Process Control

Overview

The KPM PSC Guardian HD is an industrial-grade, online near-infrared (NIR) analyzer engineered for real-time, non-contact measurement of moisture content, coating weight, and film thickness across continuous moving webs. Operating on the principle of absorption spectroscopy in the 1100–2500 nm spectral range, the system quantifies chemical bond vibrations—primarily O–H, C–H, and N–H—to derive composition and physical property profiles with high reproducibility. Designed specifically for demanding paper, board, film, foil, and battery separator manufacturing environments, the Guardian HD delivers cross-directional (CD) and machine-direction (MD) process analytics without interrupting production. Its robust architecture eliminates reliance on ionizing radiation sources, circumventing regulatory burdens associated with X-ray or beta-gauge systems—no NRC licensing, shielding requirements, or radiological safety protocols are necessary.

Key Features

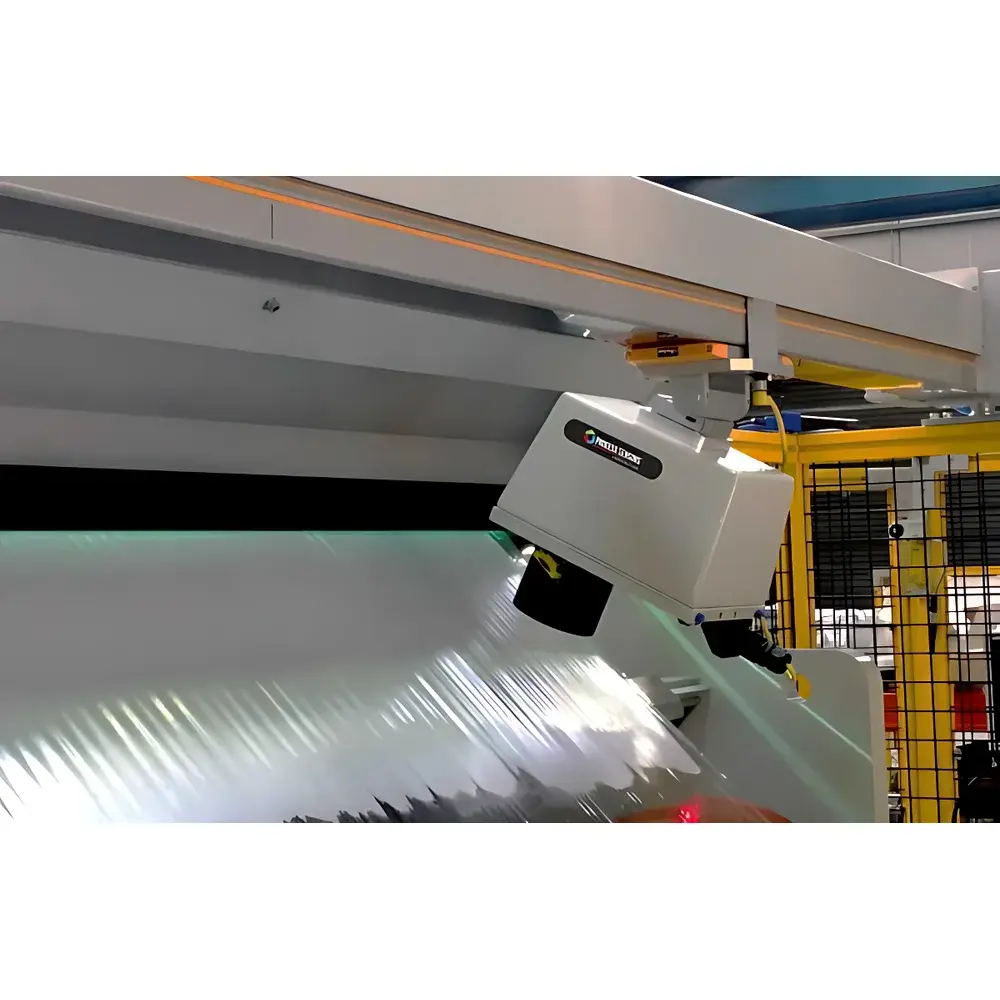

• IP65-rated NIR sensor head with purge-air window protection for operation in high-humidity, high-temperature industrial settings
• Automated edge detection and dynamic web tracking to compensate for lateral drift during scanning

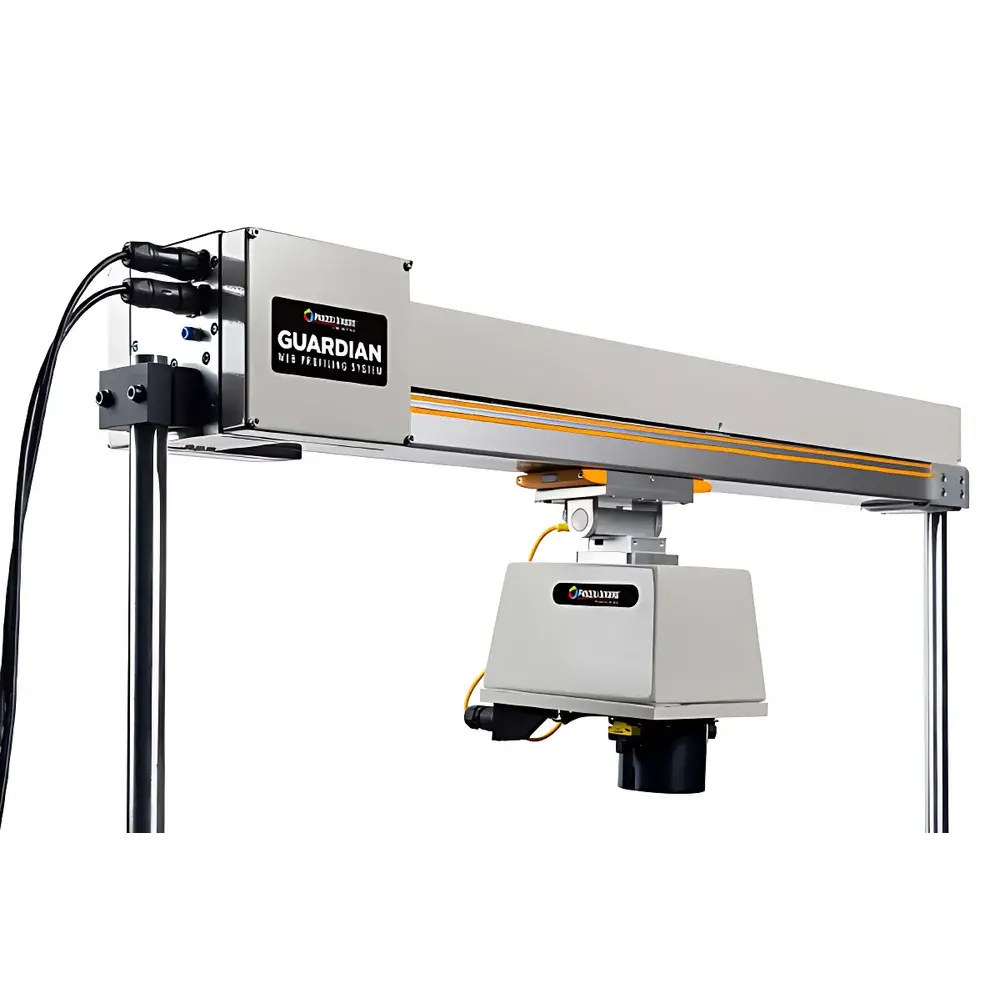

• Sealed industrial scanning frame with precision linear actuator, rated for continuous operation at ambient temperatures up to 50°C and relative humidity >90%
• Real-time CD profiling with up to 100 independently configurable measurement zones per web
• Three isolated 4–20 mA analog outputs for direct integration into PLC-based closed-loop control systems
• Optional fieldbus interfaces including Modbus TCP, EtherNet/IP, and Profibus DP for SCADA and MES interoperability

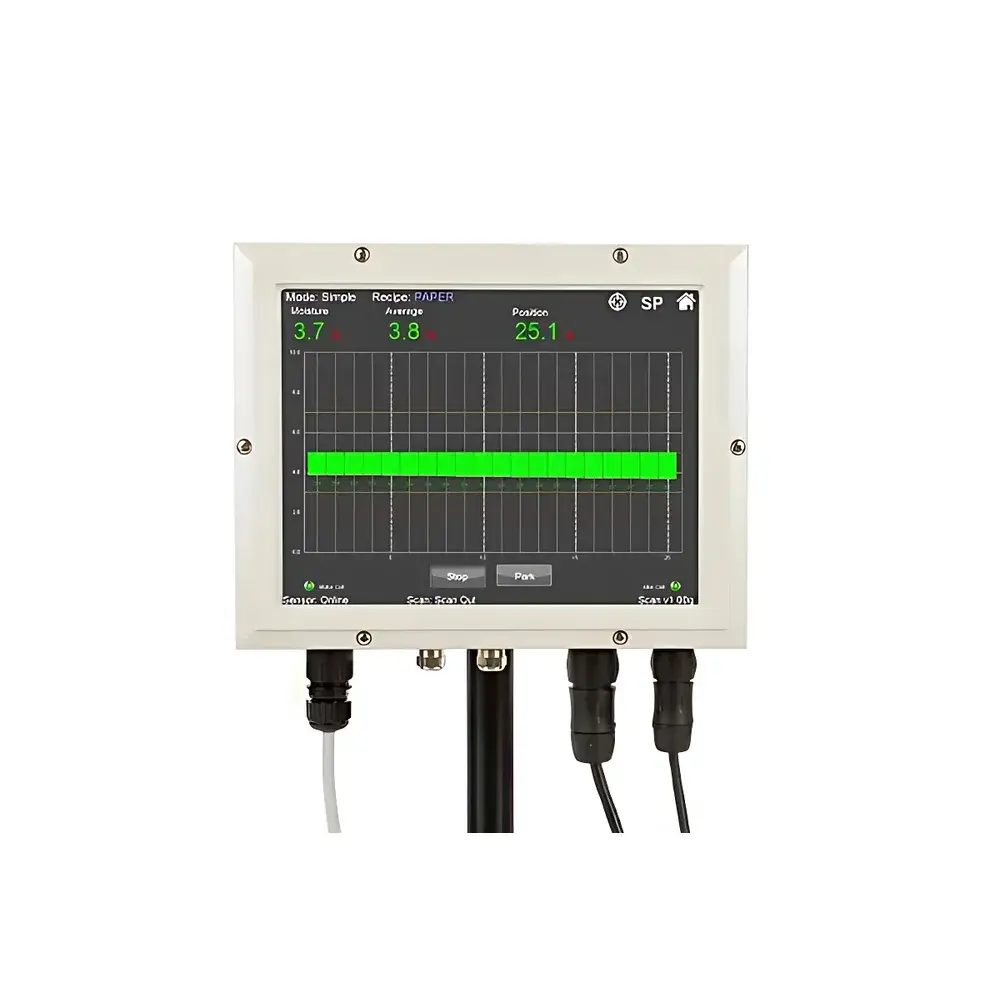

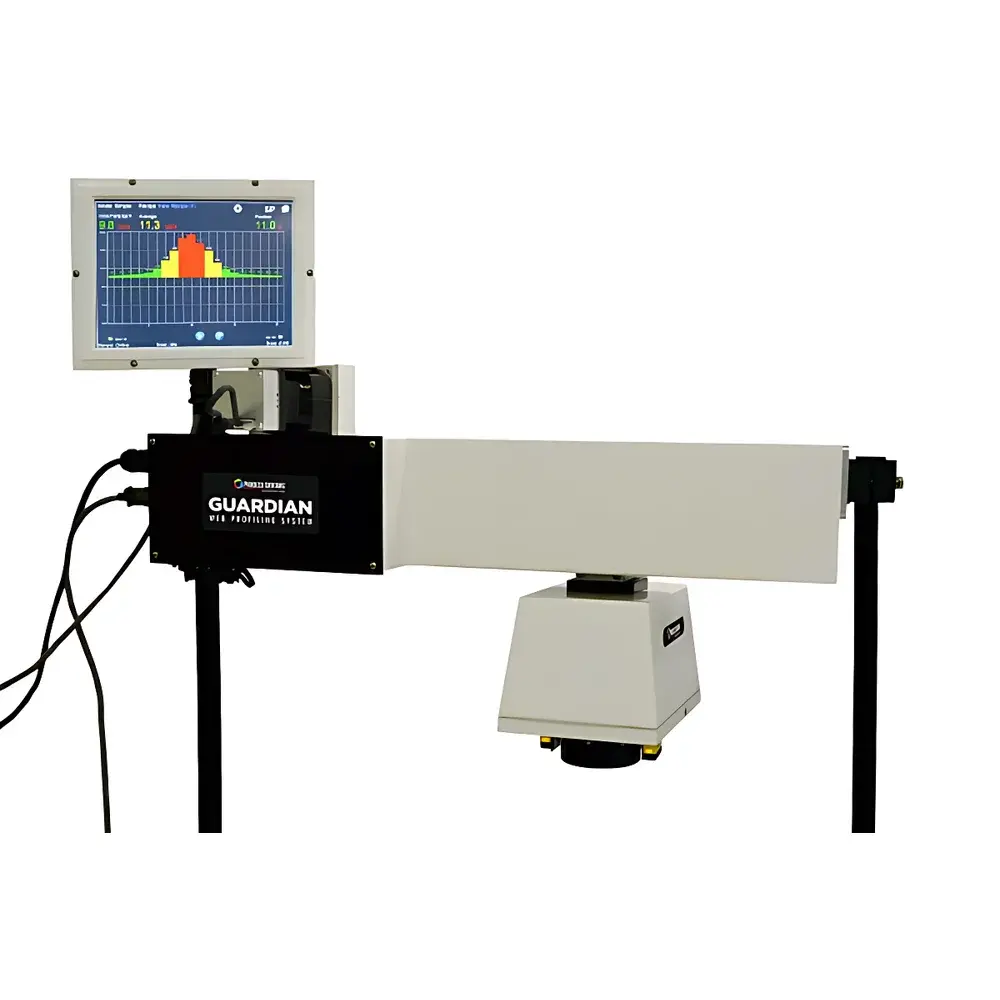

• Onboard touchscreen HMI (12″ standard, 19″ Elite version) with intuitive graphical interface for live profile visualization, alarm management, and recipe selection

Sample Compatibility & Compliance

The Guardian HD supports a broad spectrum of web-based substrates—including uncoated and coated papers, corrugated board, polymeric films (BOPP, PET, PE), aluminum foil, release liners, pressure-sensitive tapes, nonwovens, and lithium-ion battery separator membranes. It complies with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emissions), and meets CE marking requirements for industrial machinery. While not a medical or pharmaceutical device, its data integrity features—including timestamped raw spectra logging, user-access controls, and audit-trail-capable software—align with foundational principles of FDA 21 CFR Part 11 for electronic records in regulated manufacturing contexts. No radioactive source certification, NRC registration, or ALARA compliance documentation is required.

Software & Data Management

All Guardian HD systems include ViewerSuite™—a Windows®-based application preinstalled on Elite configurations and available as optional software for Standard units. ViewerSuite enables full traceability through synchronized rolling reports that embed measurement values, date/time stamps, web length position, product ID, and operator credentials. Raw spectral data is archived in HDF5 format; export options include CSV, XML, and plain-text for third-party statistical process control (SPC) platforms. The system stores up to 100 product-specific calibration recipes locally, each supporting unique spectral preprocessing parameters, baseline correction methods, and multivariate regression models (PLS, PCR). Networked deployments allow centralized monitoring of multiple Guardian HD units via a single dashboard, with configurable alerts routed to email, SMS, or plant-wide stack lights via optional relay modules.

Applications

The Guardian HD is deployed across critical process stages in converting and finishing lines: wet-end aqueous coating weight verification; dry-end organic coating uniformity assessment; hot-melt adhesive thickness mapping; dryer inlet/outlet moisture profiling; rehumidification zone control (LAS, steam curtains, water spray bars); and battery separator caliper consistency validation. In papermaking, it mitigates edge curl and dimensional instability by maintaining moisture gradients within ±0.15% w/w tolerance. In flexible packaging, it ensures optical clarity and lamination adhesion by verifying nanoscale polymer layer thicknesses. For EV battery manufacturers, it supports GMP-aligned inline QA of microporous polyolefin membranes prior to electrode stacking—reducing offline lab sampling frequency by >70% and accelerating line qualification cycles.

FAQ

Does the Guardian HD require radioactive source licensing?
No. As a non-ionizing NIR system, it operates without regulatory oversight from nuclear agencies such as the NRC or equivalent national bodies.
Can it measure through colored or opaque coatings?
Yes—provided the coating exhibits characteristic NIR absorbance bands and is optically thin relative to the penetration depth of the selected wavelength range (typically 1–3 mm for most polymers and cellulosics).
How often does calibration need to be verified?
Field validation using reference samples is recommended every 8–12 weeks under stable process conditions; automated drift compensation algorithms maintain accuracy between validations.
Is spectral data accessible for custom modeling?
Yes—raw interferograms or processed absorbance spectra can be exported programmatically via API or manually via ViewerSuite for PLS model development in MATLAB, Python, or Unscrambler.
What environmental conditions limit installation?
Ambient temperature must remain between 0–50°C; ambient vibration must comply with ISO 10816-3 Class A limits; direct sunlight on the sensor window must be avoided unless equipped with optional sunshade assembly.
