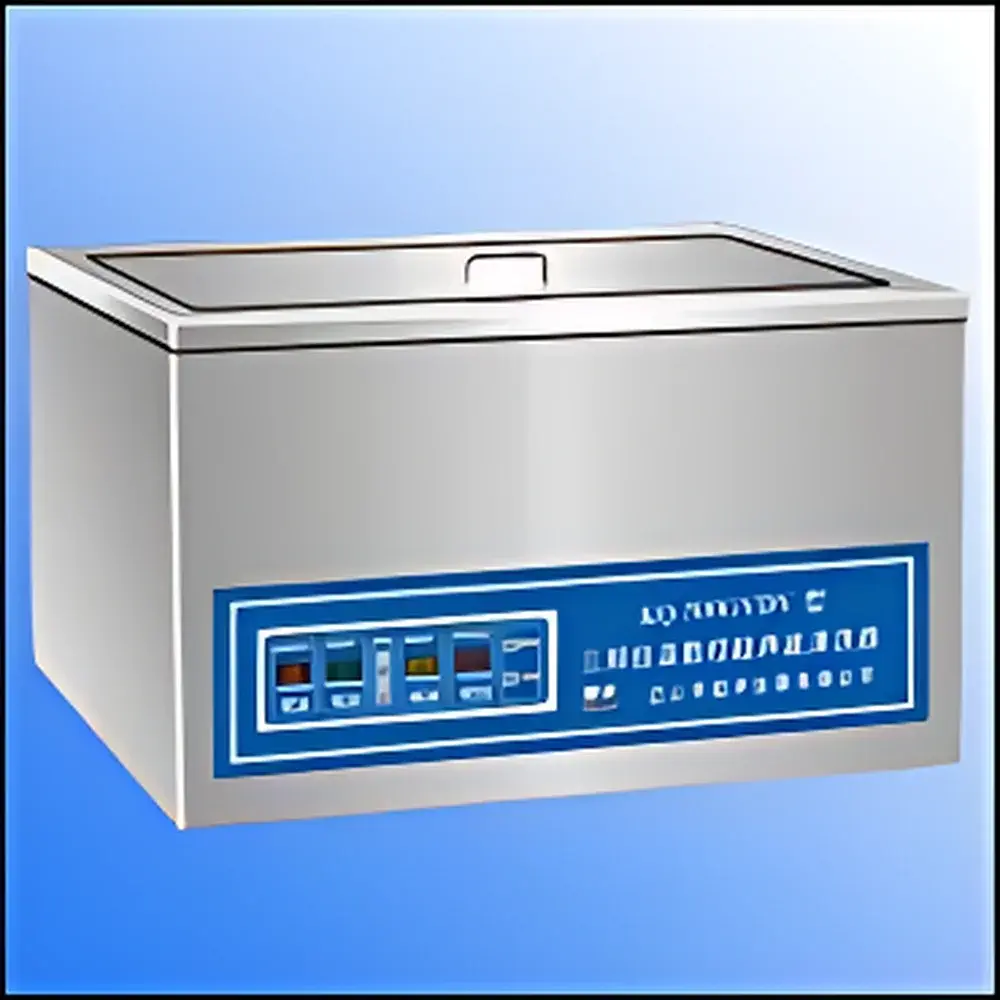

KQ-300GVDV Desktop Tri-Frequency Temperature-Controlled Digital Ultrasonic Cleaner

Overview

The KQ-300GVDV is a benchtop tri-frequency digital ultrasonic cleaner engineered for laboratories requiring precision cleaning, degassing, dispersion, and cell lysis across diverse sample matrices. Unlike conventional single-frequency ultrasonic systems, the KQ-300GVDV employs three discrete ultrasonic frequencies—28 kHz, 45 kHz, and 100 kHz—each optimized for distinct physical cleaning mechanisms: low-frequency (28 kHz) delivers high cavitation intensity suitable for macro-particulate removal and heavy contamination; mid-frequency (45 kHz) balances penetration depth and bubble collapse energy for general-purpose cleaning of delicate components; high-frequency (100 kHz) generates finer, more uniformly distributed cavitation nuclei ideal for micro-contaminant removal, surface-sensitive substrates, and nano-scale dispersion. The integrated Peltier-assisted cooling module (300 W) and PID-controlled heating system (600 W) enable precise thermal management between 0 °C and 80 °C, critical for temperature-sensitive biological samples, volatile solvents, or process-critical degassing protocols. Its monolithic transducer array—comprising dual-frequency piezoelectric elements rated at 50 W each—ensures uniform acoustic field distribution across the 13-L stainless-steel tank (300 × 240 × 180 mm internal), minimizing standing wave artifacts and dead zones.

Key Features

• Tri-frequency programmable operation (28/45/100 kHz) with automatic sequential switching and user-defined dwell time per frequency (1–999 s)
• Digital PID temperature control with ±0.5 °C accuracy and real-time display of setpoint vs. actual bath temperature
• Adjustable ultrasonic power output (40–100% in 1% steps) to match sample fragility and contamination load
• Integrated thermostatically regulated recirculating filtration system with stainless-steel mesh pre-filter
• Acoustically damped stainless-steel lid with EPDM sealing gasket to suppress airborne noise and solvent evaporation
• Non-volatile memory retains all operational parameters (frequency sequence, power levels, temperature, timer) between power cycles
• Stainless-steel wire mesh basket (argon-welded construction) and drain ball valve for rapid, residue-free solution exchange
• Embedded microcontroller-based interface with intuitive menu navigation and error logging capability

Sample Compatibility & Compliance

The KQ-300GVDV supports a broad range of sample types including optical lenses, semiconductor wafers, surgical instruments, HPLC vials, microfluidic chips, tissue culture plates, and nanoparticle suspensions. Its frequency-selective operation enables method development aligned with ASTM D2603 (Ultrasonic Cleaning Performance Testing), ISO 13485 (medical device cleaning validation), and USP (Ultrasonic Cleaning of Pharmaceutical Equipment). The system’s closed-loop temperature control and programmable duty cycling support GLP-compliant documentation when paired with external data loggers. All wetted parts—including tank, basket, and filtration housing—are fabricated from 316L stainless steel, ensuring compatibility with aqueous, alcoholic, and mild alkaline cleaning solutions while resisting pitting and crevice corrosion.

Software & Data Management

While the KQ-300GVDV operates via an embedded standalone controller, its parameter retention architecture facilitates audit-ready workflow reproducibility. Each cleaning cycle stores timestamped metadata—including selected frequencies, power percentages, temperature profile, and duration—in onboard flash memory (retained for ≥10,000 cycles). Optional RS-232 or USB-to-serial interface (available as accessory) enables integration with laboratory information management systems (LIMS) for automated record generation. When used in regulated environments, the system complies with FDA 21 CFR Part 11 requirements for electronic records when deployed with validated third-party data acquisition software that enforces user authentication, audit trails, and electronic signatures.

Applications

• Pre-analytical sample preparation: removal of organic residues from GC/MS autosampler vials and ICP-MS nebulizer components
• Microelectronics: post-etch residue clearance from photomasks and MEMS devices without surface erosion
• Pharmaceutical QA/QC: cleaning of tablet punches, capsule fillers, and dissolution apparatus parts per USP
• Life sciences: gentle cell membrane disruption for protein extraction and subcellular fractionation
• Materials science: deagglomeration of carbon nanotubes and metal oxide nanoparticles in suspension media
• Academic research: solvent degassing prior to HPLC mobile phase preparation and oxygen-sensitive reaction setups

FAQ

Can the KQ-300GVDV operate continuously at 100 kHz for extended periods?
Yes—the transducer array and cooling system are thermally rated for uninterrupted operation at any single frequency up to 480 minutes, provided ambient temperature remains ≤25 °C and ventilation clearance is maintained.
Is the filtration system compatible with organic solvents such as acetone or isopropanol?
The stainless-steel housing and EPDM gasket are chemically resistant to common polar solvents; however, prolonged exposure to chlorinated or strong oxidizing agents (e.g., chloroform, nitric acid) is not recommended.
Does the unit support remote monitoring or Ethernet connectivity?
No native Ethernet port is included; however, optional RS-232 or USB serial adapters enable connection to PC-based control and logging platforms.
What maintenance intervals are recommended for optimal performance?
The stainless-steel filter mesh should be inspected and cleaned after every 50 operating hours; transducer coupling integrity should be verified annually using impedance spectroscopy per manufacturer guidelines.
Can the KQ-300GVDV be validated for GMP cleaning processes?
Yes—its programmable repeatability, temperature traceability, and parameter retention support IQ/OQ/PQ protocol execution when combined with calibrated external sensors and documented SOPs.
